1040 nm Femtosecond Fiber Lasers
- Menlo Systems' figure 9® Technology
- Highly Stable and Easy to Use
- >10 W Average Power
- Pulse Widths of <150 fs
- CHIRPED PULSES
Picosecond Pulses for Seeding Applications
- SYNC100 Repetition Rate Synchronization
Tunable Cavity Length by High-Bandwidth Piezo-Controlled Synchronization
- RRE-SYNCRO Repetition Rate Stabilization Electronics
Feedback Electronics to Phase Lock Pulses to an External Clock
- VARIO User-Defined Repetition Rate
Factory-Set Value Selectable in the 50-250 MHz Range
- MULTIBRANCH Additional Seed Ports
Seeding of Multiple Amplifiers with Optional Subsequent Frequency Conversion to Cover Multiple Wavelengths
- SHG 520 Second Harmonic Generation Module
Frequency Doubling to 520 nm
- Amplifier Seeding
- THz Generation and THz Physics
- 2-Photon Polymerization and 3D Printing
- Ultrafast Spectroscopy
- Multiphoton Excitation
- OPO/OPA Seeding
Need a Quote?
Please note that these femtosecond fiber lasers are available directly from Menlo Systems.
|Outside United States
- >10 W Output Power
- <150 fs Pulse Width
- High Stability
- Low Amplitude and Phase Noise
- All-PM Fiber Solution
- Repetition Rate: 50 - 250 MHz
- Single Mode-Lock State
- Menlo Systems' figure 9® Technology
- Laser Output in Less Than 60 Seconds
- 520 nm Second Harmonic Generation Module Available
Menlo Systems’ ORANGE-HIGH-POWER-10 femtosecond Yb fiber-based laser source offer more than 10 W in average power with a pulse duration of <150 fs. Based on their unique figure 9® design, the laser offers reproducible and long-term stable operation. Both the oscillator and amplifier use polarization-maintaining (PM) fiber components only, ensuring excellent stability and low-noise operation. The second harmonic generation is a highly efficient module for maximum performance. The laser is maintenance free, user installed, and ready to use at the press of a single button.
Customize your laser with the available options to match the requirements of your application.
A complete synchronization solution is available with the RRE-SYNCRO Repetition Rate Stabilization Electronics. Having all components come from a single supplier reduces the time required to synchronize the elements of the system, giving more time to focus on the experiment. See the Synchronization tab for details.

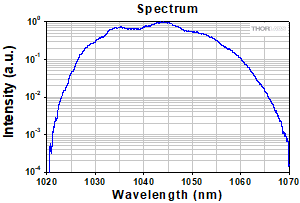

|Wavelength||1040 nm ± 10 nm|
|Average Output Powera||>10 W (@ 100 MHz)|
|Pulse Energy||>100 nJ|

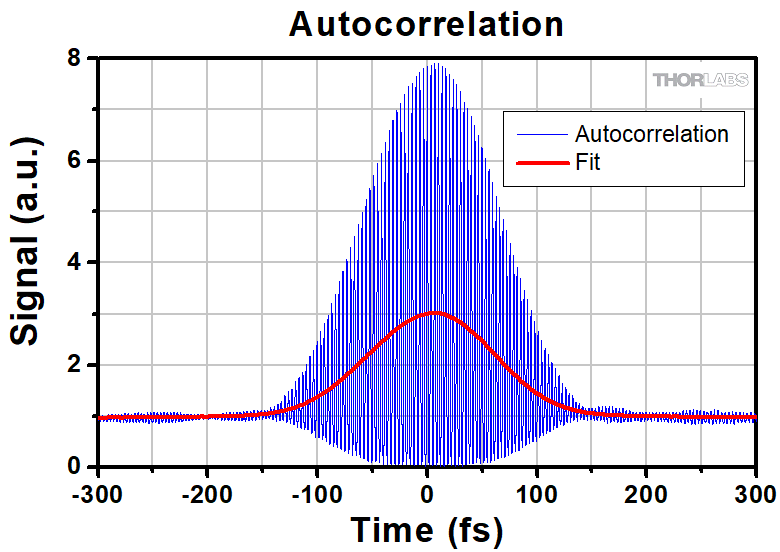

|Pulse Widtha||<150 fsb|
|Repetition Ratea||50 MHz or 100 MHz|
|Repetition Rate Stability||<1 ppm Over 90 Hours at Constant Temperature|
|Output Port||Free Space|
|Additional Fiber-Coupled Seed Port||1 (Up to 4 with MULTIBRANCH)|
|Beam Height||120 mm|
|RMS Timing Jitter||<200 fs (0.1 Hz - 500 kHz)
or Same as Reference,
Whichever Applies First
|External Reference||10 MHz (Provided by Customer)
Signal Level: 5 to 10 dBm
|Repetition Rate||Signal Level: -20 to -10 dBm|
|Stepper Motor||Stepper Motor Control, Sub-D, 9 Pin|
|Piezo||Piezo Control BNO|
|Error||Error Signal for Monitoring, BNC|

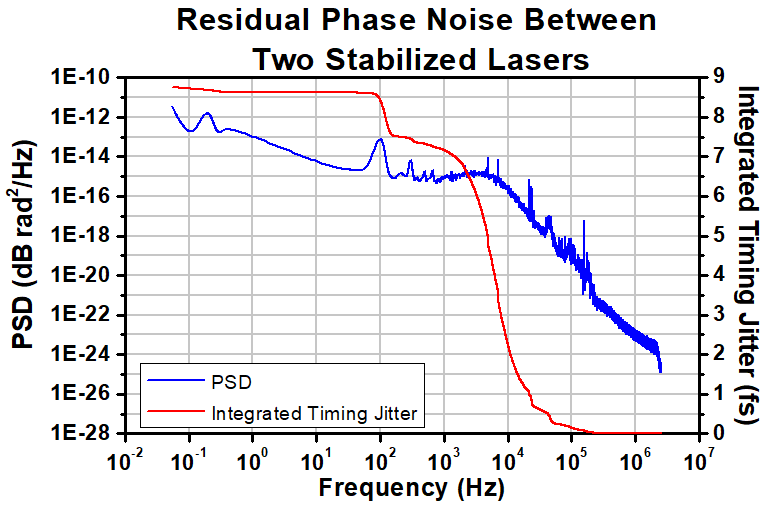

|Relative Phase Noise|
|Configuration||RMS Timing Jitter||Integrated Timing Jitter of Free-Running Laser|
|RF Reference (10 MHz) to Laser||<200 fs (0.1 Hz - 500 kHz)
or Same as Reference, Whichever Applies First
|<2 fs (10 kHz - 10 MHz)|
|Laser to Laser||<20 fs (0.1 Hz - 500 kHz)
for Menlo fs Lasers with Small Locking Bandwidth
Complete Synchronization Solution
- Laser and Synchronization Electronics
- All Components from One Supplier
- Full Automation for Hands-Off Operation
- Integrated and Tested for Immediate, Out-of-the-Box Operation
Synchronize your pulsed laser sources with high accuracy using Menlo Systems' RRE-SYNCRO. This unit provides state-of-the art phase lock electronics in a user-friendly, plug-and-play system. Menlo Systems has developed the Repetition Rate Synchronization for the patented, Nobel Prize awarded Optical Frequency Synthesizer technology. The RRE has been field-tested in this highly demanding environment enabling measurements with precision never reached before.
The main application is the synchronization of a pulsed laser to a radio frequency reference, derived from a radio frequency clock or an optical reference clock. An embedded microcontroller for the stepper motor and Piezo control in laser cavity ensures long-term stability.
Laser to Reference
Click to Enlarge
Laser to Laser
Click to Enlarge
Click to Enlarge
Integrated Timing Jitter of Free Running Laser: <2 fs (rms, 10 kHz - 10 MHz)
Pulsed Laser Emission: Power and Energy Calculations
Determining whether emission from a pulsed laser is compatible with a device or application can require referencing parameters that are not supplied by the laser's manufacturer. When this is the case, the necessary parameters can typically be calculated from the available information. Calculating peak pulse power, average power, pulse energy, and related parameters can be necessary to achieve desired outcomes including:
- Protecting biological samples from harm.
- Measuring the pulsed laser emission without damaging photodetectors and other sensors.
- Exciting fluorescence and non-linear effects in materials.
Pulsed laser radiation parameters are illustrated in Figure 1 and described in the table. For quick reference, a list of equations are provided below. The document available for download provides this information, as well as an introduction to pulsed laser emission, an overview of relationships among the different parameters, and guidance for applying the calculations.
Peak power and average power calculated from each other:
|Peak power calculated from average power and duty cycle*:|
|*Duty cycle () is the fraction of time during which there is laser pulse emission.|
Click to Enlarge
Figure 1: Parameters used to describe pulsed laser emission are indicated in the plot (above) and described in the table (below). Pulse energy (E) is the shaded area under the pulse curve. Pulse energy is, equivalently, the area of the diagonally hashed region.
|Pulse Energy||E||Joules [J]||A measure of one pulse's total emission, which is the only light emitted by the laser over the entire period. The pulse energy equals the shaded area, which is equivalent to the area covered by diagonal hash marks.|
|Period||Δt||Seconds [s]||The amount of time between the start of one pulse and the start of the next.|
|Average Power||Pavg||Watts [W]||The height on the optical power axis, if the energy emitted by the pulse were uniformly spread over the entire period.|
|Instantaneous Power||P||Watts [W]||The optical power at a single, specific point in time.|
|Peak Power||Ppeak||Watts [W]||The maximum instantaneous optical power output by the laser.|
|Pulse Width||Seconds [s]||A measure of the time between the beginning and end of the pulse, typically based on the full width half maximum (FWHM) of the pulse shape. Also called pulse duration.|
|Repetition Rate||frep||Hertz [Hz]||The frequency with which pulses are emitted. Equal to the reciprocal of the period.|
Is it safe to use a detector with a specified maximum peak optical input power of 75 mW to measure the following pulsed laser emission?
- Average Power: 1 mW
- Repetition Rate: 85 MHz
- Pulse Width: 10 fs
The energy per pulse:
seems low, but the peak pulse power is:
It is not safe to use the detector to measure this pulsed laser emission, since the peak power of the pulses is >5 orders of magnitude higher than the detector's maximum peak optical input power.
