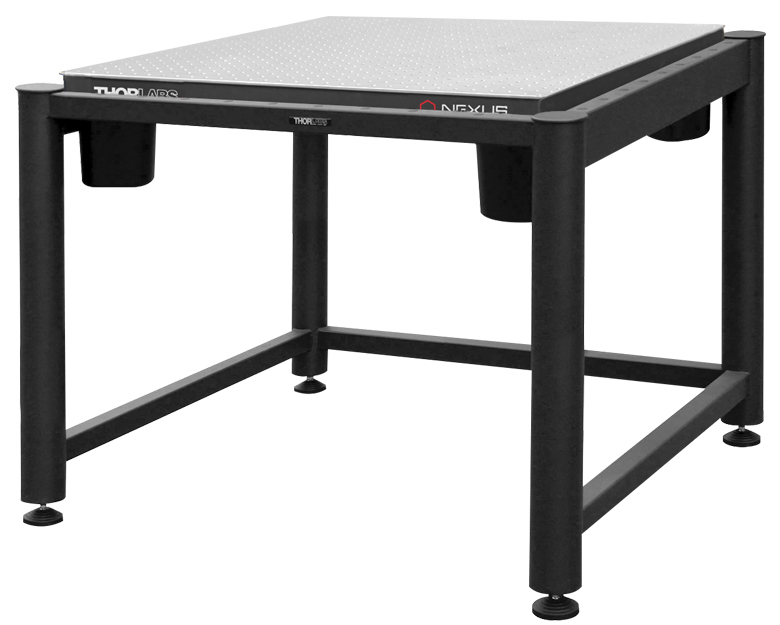

Standing Height Active Isolation ScienceDesk with Breadboard Fitted

• Three Support Options:
  • Active, Self-Leveling Vibration Isolation (SDA7590 and SDA7590S)
  • Passive Isolation (SDP7590 and SDH7590)
  • Rigid, Non-Isolating (SDR7590)
• Welded Steel Frame (No Assembly Required)
• Easy to Relocate with Optional Casters
• High Load Capacities up to 700 kg (1540 lbs) (See Specs Tab for Details)

These frames provide a compact, portable, and ergonomic workstation solution for optical breadboards. The breadboard rests within the frame bars, which also protect the worksurface from incidental contact and provide compatibility with a number of additional accessories such as monitor mounts, keyboard holders, and shelving. The welded steel frame provides high rigidity and requires no assembly. Optional casters provide easy mobility throughout the lab while a large array of shelving, storage, lighting, and computer accessories create an ergonomic, modular workspace ideal for any application.

Our active-isolation ScienceDesks are available in two heights, 765 mm (30.12") and 910 mm (35.80"). The shorter desk (SDA7590) is optimized for comfort while in a seated position, while the taller one (SDA7590S), shown to the right, is designed as a standing desk option with clearance to comfortably fit a lab stool with ample leg room. The height of all desks can be adjusted by ±15 mm (±0.59") using leveling feet.

Support Options
These ScienceDesk Workstations are available with active, passive, or non-isolating supports depending on the amount of vibration isolation needed. Our active supports deliver our highest level of vibration isolation making them suitable for applications requiring nanometer resolution. In addition, they will adjust the pressure in each isolator to keep the optical table surface level, even when the distribution of weight on the tabletop is changed. Active supports will require a constant source of pressurized air, such as that provided by our compressor. For less demanding applications that require sub-micron resolution, such as OCT and confocal imaging, we offer passive isolation supports. Passive isolation supports do not require a constant source of compressed air and can be inflated with a simple air pump, but please follow the installation instructions outlined in the user guide so that the isolators are neither overinflated nor underinflated. Finally, a non-isolating rigid support frame is available that is ideal for applications that do not require vibration damping.

For more information on the different isolation types, please see the Isolators tab above.

Workstation Breadboard Specificationsa
Item #	Imperial	B3036F	B3036T	B3036FN	B3036Y	B3036FX
	Metric	B7590A	B7590L	B7590AN	B7590Z	B7590AX
Dimensions		Imperial: 2.5' x 3' Metric: 750 mm x 900 mm
Damping		Nexus Optimized Broadband Damping				Intrinsically Damped
Compliance Curve (Click to View)b		Imperial Metric			Imperial Metric	Not Availablec
Tapped Holes		Imperial: 1/4"-20 Metric: M6			Untapped	Imperial: 1/4"-20 Metric: M6
Sealed Holes		No	Yes	No	N/A	No
Ferromagnetism		Magnetic	Magnetic	Non-Magnetic	Magnetic	Magnetic
Thickness		60 mm (2.4")				58 mm (2.28")d

• See the Specs tab for complete specifications.
• The compliance curves here are typical, and slight variations may occur between individual tables. Each Nexus optimized damping breadboard is individually tested before shipment and includes a certificate with the individual test data and compliance curve.
• We do not currently have a measured compliance curve for this intrinsically damped breadboard. Click here to see an example comparison between the compliance curves for our 600 mm x 900 mm Nexus optimized damping breadboards versus our 600 mm x 900 mm intrinsically damped breadboards.
• The total work surface height of the workstation will be 2 mm less than those using a Nexus Optimized Damping Breadboard. This can be corrected by using the ScienceDesk's leveling feet, which have an adjustment range of ±15 mm.

• Thickness: 60 mm (2.4") or 58 mm (2.28")
• Size: 2.5' x 3' (Imperial), 750 mm x 900 mm (Metric)
• Every Nexus Breadboard Individually Optimized, Tested, and Shipped with Test Data Certificate
• 1/4"-20 Holes on 1" Centers (Imperial), M6 Holes on
  25 mm Centers (Metric)
• 1/2" (12.5 mm) Hole Border for Maximum Usable Area
• Available with Sealed Holes or Untapped
• 304L Nonmagnetic Steel Option

Thorlabs' 2.5' x 3' (750 mm x 900 mm) Breadboards for our ScienceDesk Workstations feature steel construction and excellent thermal stability. Two options are available based on the amount of vibration damping required on the tabletop: our Nexus breadboards with opimized vibration damping and our intrinsically damped breadboards with minimal vibration damping. See the table to the right for more information on the different options.

Nexus Breadboards
Nexus Breadboards are the ideal choice for minimizing vibrations created on the work surface. They are designed to have broadband damping optimized for their size and feature all-steel contruction. They are available with 1/4"-20 (M6) mounting holes on 1" (25 mm) centers with a 0.5" (12.5 mm) border at the edges, no mounting holes, or with sealed mounting holes for liquid spill management. A 1/4"-20 (M6) tapped breadboard that is constructed from 304L nonmagnetic steel is also available. Every Nexus breadboard is individually optimized, tested, and shipped with a test data certificate.

Intrinsically Damped Breadboards
Our intrinsically damped breadboards are available for applications requiring minimal vibration damping on the tabletop. They have a steel top plate, bottom plate, and honeycomb core with side panels that are created from unplasticized polyvinyl chloride (uPVC). The breadboard has 1/4"-20 (M6) mounting holes on 1" (25 mm) centers with a 0.5" (12.5 mm) border at the edge.

Custom options are available with a typical lead time of 6 - 8 weeks. Please contact Tech Support for more information.

• Locking Mechanism Prevents Unintentional Movement
• Max Load: 320 kg (704 lbs) (Set of Four)

These Casters attach to the bottom of a ScienceDesk frame to convert it into a mobile workstation. Once the ScienceDesk is in the desired location, a foot can be lowered on each leg of the frame to provide a stable work environment. The casters also feature a locking mechanism to prevent inadvertent movement when the frame's feet are not lowered. They are sold in a Set of Four.

Click to Enlarge
ScienceDesk Frame Elevated with Frame Risers
(The Enlargement Shows a Detailed View of the Frame Riser and Where it is Installed on the ScienceDesk)

• Set of Four Risers for Our ScienceDesk Frames
• Adjusts our Standard ScienceDesks to the Height of the 910 mm Tall Standing ScienceDesks
• Compatible with All Frame Types

The PSY170 set of four risers elevates Thorlabs' ScienceDesk frames to a height of 910 mm (35.8"), making them the ideal height for use while standing. Remove the existing feet and secure each 145 mm (5.71") tall riser to a leg of the ScienceDesk frame using the top-located M16 bolt. Refit the standard ScienceDesk feet to the bottom of the risers, and level the frame in the usual way. Due to the height increase, the casters (PSY140) cannot be used with these frame risers.

These risers, which are sold in a set of four, are not compatible with our Corner ScienceDesks. Please contact Tech Support if you wish to order a set of five.

Click to Enlarge
Hinged Clamps Allow for Quick Attachment to Mounting Posts

Click for Details
Two Overhead Shelves can be Placed on a Single Pair of Posts

• Strong, Melamine-Faced MDF Construction
• Shelves for 900 mm Wide ScienceDesk Workstations
• Hinged Clamps for Easy Fitting
• 300 mm (11.81") Shelf Depth
• Maximum Load Capacity: 50 kg (110 lbs)

These Overhead Shelves span the width of the ScienceDesk and are used to place supporting equipment in close proximity above the work surface. Slide the shelf along the post to the desired height above the work surface and then secure it using the included hinged clamps. Up to two shelves can be mounted onto a single set of supporting posts, as seen in the image to the right.

The shelves span the width of a 900 mm wide ScienceDesk frame and are supported by two 750 mm (29.5") tall posts that mount to the holes in the frame's side bars. Two 750 mm tall posts are included with the PSY221; if additional shelves are needed we also offer the PSY223, which does not include mounting posts. The additional shelf is ideal if you wish to use our 1000 mm (39.4") mounting posts (sold separately below) instead of the 750 mm (29.5") tall posts provided with the PSY221. Two overhead shelves can be mounted onto a single set of mounting posts.

Each overhead shelf comes with two hinged clamps for attaching to mounting posts, as shown in the image to the right. To install a shelf, secure the clamps at the desired height on the posts. The shelf can then be lowered onto the clamps and attached using the provided M6 cap screws. At this point the shelf can be repositioned or leveled as required. For more details on installation, please see the manual, which is available by clicking on the red Docs icon () below.

Our PSY240 LED light strips or the HDPS12 power outlets can be mounted underneath the shelf using the M6-tapped holes provided.

Click to Enlarge
Hinged Clamps Allow for Quick Attachment to Mounting Posts

Click for Details
Tilted Overhead Shelf Holding Various Equipment at a 12° Downward Angle for Easy Viewing

• Strong, Melamine-Faced MDF Construction
• Tilted Shelves for 900 mm Wide Workstations
• 12º Tilt from Horizontal Allows for Easy Viewing and Storage of Equipment
• 2 mm Thick Steel Support Bar Securely Holds Equipment on the Shelf
• Hinged Clamps for Easy Fitting
• 300 mm (11.81") Shelf Depth
• Maximum Load Capacity: 50 kg (110 lbs)*

These Overhead Shelves have a 12º downward tilt allowing for easy viewing, operation, and storage of equipment and accessories in the lab, as shown above. Each shelf has a 2 mm thick steel support bar on the front edge that extends 22.0 mm (0.87") above its surface to securely hold equipment and prevent it from sliding off of the shelf.

The shelves span the width of a 900 mm wide ScienceDesk frame and are supported by two 750 mm (29.5") tall posts that mount to the holes in the frame's side bars. Two 750 mm tall posts are included with the PSY150; if additional shelves are needed we also offer the PSY150/S, which does not include mounting posts. The additional shelf is ideal if you wish to use our 1000 mm (39.4") mounting posts (sold separately below) instead of the 750 mm (29.5") tall posts provided with the PSY150. Two overhead shelves can be mounted onto a single set of mounting posts.

Each overhead shelf comes with two hinged clamps for attaching to mounting posts, as shown in the image to the right. To install a shelf, secure the clamps at the desired height on the posts. The shelf can then be lowered onto the clamps and attached using the provided M6 cap screws. At this point the shelf can be repositioned or leveled as required. For more details on installation, please see the manual, which is available by clicking on the red Docs icon () below.

The PSY240 LED light strips or the HDPS12 power outlets detailed below can be mounted underneath the shelf using the M6-tapped holes provided.

*Please Note: The maximum load capacity specification refers to the downward force on the shelf and does not directly correspond to the maximum load of the support bar.

Click to Enlarge

• Strong, Melamine-Faced MDF Construction
• 300 mm x 278 mm (11.8" x 10.9") and 300 mm x 500 mm (11.8" x 19.7") Shelf Sizes
• Maximum Load Capacity: 20 kg (44 lbs)
• PSY191 and PSY192 Include 750 mm (29.5") Post
• PSY191/S and PSY192/S can be Installed Without Removing Post

These Instrument Shelves are smaller in size than the overhead shelves above and can be used to hold a variety of items above the table. The post of the instrument shelf assembly mounts to the upper rails of the ScienceDesk frame (as seen in the image to the left). More than one shelf can be mounted to the same post. All shelves can also be mounted directly to our standard Ø1.5" posts.

The split-clamp design (see the image to the right) allows the shelves to be installed anywhere on the post without removing the existing shelves. Additional shelves are sold separately but do not include support posts. Additionally, a PSY322 Hinged Locking Clamp is available, which will hold the vertical position of the shelf on the post while allowing for free rotational movement around the axis of the post.

Click to Enlarge
Hinged Clamps Allow for Quick Attachment to Mounting Posts

• Strong, Steel Tray
• Tray: 300 mm x 300 mm (11.81" x 11.81")
• 12.7 mm (0.50") High Lip Along All Four Edges Retains Equipment
• Maximum Load Capacity: 20 kg (44 lbs)
• PSY320 Includes a 750 mm (29.5") Tall Post
• Hinged Clamp Design Allows for Installation Without Removing Existing Shelves
• Removable Rubber Pad Included

The PSY320 and PSY320/S Component Trays can be used to hold a variety of items, such as screws, hex keys, or other tools, near the working surface. A 12.7 mm (0.50") high lip on the four edges prevents parts from falling off of the tray, while the 300 mm x 300 mm (11.81" x 11.81") surface provides adequate space to hold needed tools. Each tray comes with a hinged clamp, shown to the right, to attach it to mounting posts. These clamps allow the tray to be installed anywhere on the post without removing the existing shelves. The trays also include a PSY322 Hinged Locking Clamp, which will hold the vertical position on the post while allowing for free rotational movement around the axis of the post.

A 750 mm (29.5") tall post is included with the PSY320 tray to attach directly to the ScienceDesk frame. If additional trays are needed we offer the PSY320/S, which do not include mounting posts. These additional trays are also ideal if you wish to use our 1000 mm (39.4") tall mounting posts (sold separately) instead of the 750 mm (29.5") tall posts provided with the PSY320. Each components tray can also be mounted directly to our standard Ø1.5" posts.

Click to Enlarge
PSY321 Bracket Used to Attach a 12" x 12" Breadboard to a Ø1.5" post

Click to Enlarge
Hinged Clamps Allow for Quick Attachment to Mounting Posts

• Strong, Steel Construction
• Supports Solid Aluminum Breadboards up to 300 mm x 300 mm (12" x 12")
• Maximum Load Capacity: 20 kg (44 lbs)
• PSY321 Includes a 750 mm (29.5") Tall Post
• Hinged Clamp Design Allows for Installation Without Removing Existing Shelves

The PSY321 and PSY321/S Breadboard Brackets are designed to securely mount breadboards onto a Ø1.5" mounting post. Each bracket will support any aluminum breadboard up to 300 mm x 300 mm or 12" x 12" in size, and has a maximum load capacity of 20 kg (44 lbs). A hinged clamp, shown to the right, is included to attach the tray to the mounting posts. Its design allows the bracket to be installed anywhere on the post without removing the existing shelves. Additionally, a PSY322 Hinged Locking Clamp is included, which will hold the vertical position on the post while allowing for free rotational movement around the axis of the post.

A 750 mm (29.5") tall post is included with the PSY321 bracket to attach directly to the ScienceDesk frame. If additional brackets are needed we offer the PSY321/S, which do not include mounting posts. These additional brackets are also ideal if you wish to use our 1000 mm (39.4") tall mounting posts (sold separately) instead of the 750 mm (29.5") tall posts provided with the PSY321. Each bracket can also be mounted directly to our standard Ø1.5" posts.

The breadboard is mounted to the bracket using six 1/4"-20 (M6) cap screws (not included). For more details on installation, please see the manual, which is available by clicking on the red
Docs icon () below.

Click to Enlarge
Computer shelf shown holding a CPU and mounted on the upper rail of the ScienceDesk Frame with our monitor mount and keyboard arm.

• Strong, Melamine-Faced, MDF Construction
• Designed to Hold a Computer CPU
• 260 mm x 450 mm (10.2" x 17.7")
• Maximum Load Capacity: 20 kg (44 lbs)

This Computer Shelf can be ergonomically positioned on the surrounding frame of the ScienceDesk and is ideally suited for supporting a computer. It can be mounted to the upper or lower rails of the ScienceDesk frame and provides a shelf size of 260 mm x 450 mm (10.2" x 17.7").

Click to Enlarge
PSY353 Side Shelf Mounted
on a ScienceDesk

• 600 mm (23.6") Wide Side Shelves
• Compatible with 750 mm Deep ScienceDesks
• Three Shelf Depths Avaiable:

  • PSY350: 750 mm (29.5")
  • PSY352: 600 mm (23.6")
  • PSY353: 400 mm (15.8")
• Mounts on Either Side of the Frame on the Upper Rail
• Does Not Interfere with the Mounting of Other Upper Rail Accessories
• Maximum Load Capacity: 50 kg (110 lbs)

These Side Shelves can be mounted to either side of the upper side rails of the ScienceDesk, providing a shelf width of 600 mm (23.6"). The shelves are compatible with any ScienceDesks that has a 750 mm depth.

Click for Details
PSY360 Bracket Mounting an MB1224 Breadboard and Attached to a ScienceDesk

• PSY360 Supports Breadboards up to 300 mm x 600 mm (12" x 24")
• PSY361 Supports Breadboards up to 600 mm x 900 mm (24" x 36")
• Maximum Load Capacity: 50 kg (110 lbs)
• Strong, All-Steel Construction
• Can be Leveled via Adjustment Screw

These Brackets allow our solid aluminum breadboards to be fixed to the side or rear rails of the ScienceDesk, in a similar way to the side shelves mentioned above. They are available in two sizes; the PSY360 supports breadboards up to 300 mm x 600 mm (12" x 24"), while the PSY361 can be used with breadboards up to 600 mm x 900 mm (24" x 36"). The breadboard can be leveled by adjusting a screw in the rear face of each bracket, using an 4 mm or 9/64" hex key (click the image to the right). Two brackets are supplied that attach to the underside of the breadboard using standard M6 or 1/4"-20 bolts (not supplied).

• Strong, Melamine-Faced MDF Construction
• Compatible with 900 mm Wide ScienceDesks
• Two Shelf Depths Avaiable:

  • PSY310: 580 mm (22.8")
  • PSY311: 730 mm (28.7")
• Maximum Load Capacity: 100 kg (220 lbs)

These large Under Shelves span the rear width of the ScienceDesk frame and provide a large shelf depth, while still giving leg clearance. The surface provides extensive storage both at the rear and sides of the ScienceDesk and allows heavy items, such as controllers and power supplies, to be stored away from the work surface. For more details on installation, please see the manual, which is available by clicking on the red Docs icon () below.

• 750 mm (29.5") Shelf Depth
• Compatible with 750 mm Deep ScienceDesks
• Not in Contact with Tabletop
• Maximum Load Capacity: 15 kg (33 lbs)

The Preparation Shelf rests on the upper rails of the ScienceDesk, creating usable workspace next to an imaging sytem without disturbing the isolated tabletop. The shelf can be easily repositioned by sliding it along the frame.

Click to Enlarge

View Imperial Product List

Item #	Qty	Description
Lab Bench
PSY501	1	Lab Bench for ScienceDesk Workstations, 1700 mm x 600 mm, Free-Standing
ScienceDesk Frame and Breadboard
SDA90120	1	ScienceDesk Frame for 3' x 4' (900 mm x 1200 mm) Tabletops, Active Isolators, Height: 30.12" (765 mm)
B3648F	1	Nexus Breadboard, 36" x 48" x 2.4", 1/4"-20 Mounting Holes
Accessories
PSY222	1	300 mm Deep Overhead Shelf with 750 mm Posts for 1200 mm Wide ScienceDesks
PSY191/S	1	Additional Instrument Shelf: 300 mm x 278 mm
PSY313	1	880 mm x 1350 mm Large Under Shelf for 1200 mm Wide ScienceDesks
PSY251	1	900 mm Sample Preparation / Staging Shelf
PSY121	1	Flat Screen Monitor Support Bracket with Articulating Arm
PSY132	1	Articulated Arm with Keyboard and Mouse Holder
PSY177	1	Rack Chassis Brackets for PSY501/PSY502 Lab Bench and TFR19 Rack Chassis
TFR19	1	19" Rack Chassis for Optical Table Workstations
PSY157	1	Tool Caddy for ScienceDesk
RAU300	1	19" Rack 3U Drawer with RAU001 Divider Kit, Lock, and Keys
HDPS12-US	1	12-Outlet, Surge-Protected Power Strip, US Plugs
PTA512	1	Air Compressor, 115 VAC Power Supply with US Plug
PSY140	1	Casters, Set of Four
Add To CartExportForward

View Metric Product List

Item #	Qty	Description
Lab Bench
PSY501	1	Lab Bench for ScienceDesk Workstations, 1700 mm x 600 mm, Free-Standing
ScienceDesk Frame and Breadboard
SDA90120	1	ScienceDesk Frame for 3' x 4' (900 mm x 1200 mm) Tabletops, Active Isolators, Height: 30.12" (765 mm)
B90120A	1	Nexus Breadboard, 900 mm x 1200 mm x 60 mm, M6 x 1.0 Mounting Holes
Accessories
PSY222	1	300 mm Deep Overhead Shelf with 750 mm Posts for 1200 mm Wide ScienceDesks
PSY191/S	1	Additional Instrument Shelf: 300 mm x 278 mm
PSY313	1	880 mm x 1350 mm Large Under Shelf for 1200 mm Wide ScienceDesks
PSY251	1	900 mm Sample Preparation / Staging Shelf
PSY121	1	Flat Screen Monitor Support Bracket with Articulating Arm
PSY132	1	Articulated Arm with Keyboard and Mouse Holder
PSY177	1	Rack Chassis Brackets for PSY501/PSY502 Lab Bench and TFR19 Rack Chassis
TFR19	1	19" Rack Chassis for Optical Table Workstations
PSY157	1	Tool Caddy for ScienceDesk
RAU300	1	19" Rack 3U Drawer with RAU001 Divider Kit, Lock, and Keys
HDPS12-EU	1	12-Outlet, Surge-Protected Power Strip, EU Plugs
PTA514	1	Air Compressor, 230 VAC Power Supply with EU Plug
PSY140	1	Casters, Set of Four
Add To CartExportForward

(EU Power Strip)

View Metric Product List

Item #	Qty	Description
Lab Bench
PSY501	1	Lab Bench for ScienceDesk Workstations, 1700 mm x 600 mm, Free-Standing
ScienceDesk Frame and Breadboard
SDA90120	1	ScienceDesk Frame for 3' x 4' (900 mm x 1200 mm) Tabletops, Active Isolators, Height: 30.12" (765 mm)
B90120A	1	Nexus Breadboard, 900 mm x 1200 mm x 60 mm, M6 x 1.0 Mounting Holes
Accessories
PSY222	1	300 mm Deep Overhead Shelf with 750 mm Posts for 1200 mm Wide ScienceDesks
PSY191/S	1	Additional Instrument Shelf: 300 mm x 278 mm
PSY313	1	880 mm x 1350 mm Large Under Shelf for 1200 mm Wide ScienceDesks
PSY251	1	900 mm Sample Preparation / Staging Shelf
PSY121	1	Flat Screen Monitor Support Bracket with Articulating Arm
PSY132	1	Articulated Arm with Keyboard and Mouse Holder
PSY177	1	Rack Chassis Brackets for PSY501/PSY502 Lab Bench and TFR19 Rack Chassis
TFR19	1	19" Rack Chassis for Optical Table Workstations
PSY157	1	Tool Caddy for ScienceDesk
RAU300	1	19" Rack 3U Drawer with RAU001 Divider Kit, Lock, and Keys
HDPS12-UK	1	12-Outlet, Surge-Protected Power Strip, UK Plugs
PTA513	1	Air Compressor, 230 VAC Power Supply with UK Plug
PSY140	1	Casters, Set of Four
Add To CartExportForward

(UK Power Strip)

Lab Bench Attached to the Side of the ScienceDesk Frame Using the Included Brackets

• 1700 mm x 600 mm Work Surface
• Brackets Attach Bench to ScienceDesk™ Frame In Multiple Orientations
• Rear Ø17.5 mm Through Holes for Post-Mounted ScienceDesk Accessories
• M6 x 1.0 Taps Along Front and Rear of Frame for Power Strips, Light Strips,
  or Cable Trays
• Two Cable Ports For Routing and Organizing Cables
• Optional Casters Allow for Easy Relocation Throughout the Lab
• Steel Frame with Melamine-Faced MDF Tabletop

Thorlabs' PSY501 Free-Standing Lab Bench has a 1700 mm x 600 mm work surface to provide additional preparation or storage space in the lab. The bench is designed to have a nominal work surface height of 794 mm so that it is level with the work surface of any ScienceDesk™ workstation. Additionally, the steel support frame can support loads up to 350 kg and has leveling feet for height adjustments up to ±25.0 mm. Two ports with removable covers are provided for managing cables.

As shown in the photo to the right, two brackets are included to attach the bench directly to the upper rails of the ScienceDesk frame. The brackets can be mounted to any side of the bench using the included M8 screws, thus allowing for it to be placed in any orientation around the ScienceDesk. The bench will not interfere with the isolated work surface when attached to the ScienceDesk frame.

ScienceDesk Accessory Compatibility
Any post-mounted ScienceDesk accessory, including shelving, storage, or monitor and keyboard mounts, can be attached to the bench using the rear-located Ø17.5 mm through holes. The bench also includes four M6 x 1.0 tapped mounting holes along the front and rear of the supporting frame. These mounting holes allow various ScienceDesk accessories, such as power strips, light strips, or cable trays, to be attached to the edge of the bench.

Casters can be mounted to the bottom rails of the desk to convert it into a mobile workstation. A TFR19 19" Rack Chassis can also be attached to the desk using the PSY177 brackets.

Click to Enlarge
Monitor Mount Attached to a PSY161 Post and Mounted on a ScienceDesk

• Compatible with 75 mm x 75 mm (2.95" x 2.95") and 100 mm x 100 mm (3.94" x 3.94") VESA Patterns
• Maximum Load Capacity: 10 kg (22 lbs)
• Mounts to a Ø1.5" Post (Not Included)

The PSY121 Flat Screen Monitor Support Bracket is compatible with 75 mm x 75 mm and 100 mm x 100 mm VESA mounting patterns. These mounting patterns are typically used on small to medium LCD monitor displays. The monitor mount features an articulated arm that allow flexible positioning and has a load capacity of 10 kg (22 lbs).

A Ø1.5" post is required to secure this mount (PSY161 or PSY162). Alternatively, a post from an Overhead Shelf/Instrument Shelf or one of our Ø1.5" lab posts could also be used.

Click to Enlarge
PSY132 Keyboard Holder
Mounted on a ScienceDesk

• Articulating Arm Keyboard and Mouse Holder
• Includes Wrist Rest
• Attaches to ScienceDesk Frame

This Articulating Arm Keyboard and Mouse Holder is the ideal solution to secure most keyboards and mouse pads to the ScienceDesk frame. The arm attaches to the side rails of the frame and provides 360° of horizontal positionng and vertical adjustment. It is an ergonomic, space-saving alternative to storing the keyboard and mouse on the table itself.

• Length: 750 mm (29.5") and 1000 mm (39.4")
• Ideal for Post-Mounted Accessories
• M16 Bolt Attaches to Outside Rails of ScienceDesk

These Posts are available in lengths of 750 mm or 1000 mm (29.5" and 39.4") and are ideal for accessories that require a 1.5" diameter post, such as the monitor mount. Note that 750 mm long posts are included with the Overhead and Instrument Shelves.

Click to Enlarge
Locking Clamp Positioned Under Our PSY321 Breadboard Mounting Bracket, Holding it in Place and Allowing for Free Rotation of the Bracket

• Retain the Position of Ø1.5" Post Mounted Accessories
• Hinged Clamp Design Allows for Installation Without Removing Existing Shelves

Thorlabs PSY322 Hinged Locking Clamps are the ideal solution for preventing the unwanted movement of accessories along the axis of the post. Locking the clamp in place (5 mm hex key included) directly under a post-mounted accessory, as shown to the right, prevents the accessory from sliding down the post when it is loosened for adjustments. This also allows mounted shelving or brackets to be freely rotated around the axis of the post to a needed position at any time.

Click to Enlarge
Hinged Clamps Allow for Quick Attachment to Mounting Posts

Click to Enlarge
Overhead Storage Trays are Ideal for Organizing a Broad Range of Lab Equipment (Not Included)

• Strong, Welded-Steel Construction
• Hinged Clamp Attaches Quickly to Mounting Posts
• Compatible with 900 mm Wide ScienceDesk Workstations
• Four Plastic Storage Bins Included
  • 190 mm Deep x 105 mm Wide x 75 mm High
      (7.48" Deep x 4.13" Wide x 2.95" High)
  • Front Lip Height: 34 mm (1.34")
• Maximum Load Capacity: 50 kg (110 lbs)

These Storage Trays consist of a steel tray and a front-located steel rack. The top tray includes a removable tool caddy that can be placed along the top tray for flexible storage and organization of tools, components, and accessories. The front-facing rack contains two rows of slots for flexible positioning of the four included plastic storage bins, as shown in the image to the bottom right. See the animation to the right for assembly steps.

The PSY155/S spans the width of a 900 mm wide ScienceDesk Frame and can be mounted to either the 750 mm tall or 1000 mm tall posts for ScienceDesk frames (sold separately). Two overhead trays can be mounted onto a single set of mounting posts. The storage tray can also be mounted directly to our standard Ø1.5" posts.

Each storage tray comes with two hinged clamps for attaching to mounting posts, as shown in the image to the right. To install the tray, secure the clamps at the desired height on the posts. The tray can then be lowered onto the clamps and attached using the provided M6 cap screws. At this point the tray can be repositioned or leveled as required. For more details on installation, please see the animation to the above right, or the manual, which is available by clicking on the red Docs icon () below.

The bottom of the tray also contains five M6 taps spaced for compatibility with our PSY240 LED light strips and HDPS12 power outlets available below.

• Steel Panel with 70 Slots for Flexible Bin Positioning
• Panel Size: 532.6 mm x 580.0 mm (20.97" x 22.83")
• Supplied with Several Sizes of Lin Bins
  • Qty 5: 135 mm Deep x 105 mm Wide x 75 mm High, Front Lip Height: 34 mm
      (5.32" Deep x 4.13" Wide x 2.95" High, Front Lip Height 1.34")
  • Qty 5: 190 mm Deep x 105 mm Wide x 75 mm High, Front Lip Height: 34 mm
      (7.48" Deep x 4.13" Wide x 2.95" High, Front Lip Height 1.34")
  • Qty 3: 210 mm Deep x 140 mm Wide x 130 mm High, Front Lip Height: 58 mm
      (8.27" Deep x 5.51" Wide x 5.12" High, Front Lip Height 2.28")
• Maximum Load Capacity: 50 kg (110 lbs)

This Storage Rack attaches to the side or rear rails of the ScienceDesk. It features a 532.6 mm x 580.0 mm (20.97" x 22.83") steel panel with 10 rows of 7 slots to allow flexible positioning of storage bins. The panel hooks over the lower rail of the ScienceDesk, and two M16 hex bolts screw into the upper rail to hold the panel in place. 13 storage bins in 3 different sizes are also included. Please contact Tech Support if you wish to order a different combination of bin sizes. Note that this rack is not compatible with our Corner ScienceDesks.

Click to Enlarge
PSY157 with BT17 Benchtop Organizer (Sold Separately)

Click to Enlarge
PSY157 Tool Caddy with Included Dividers

• Size: 340 mm x 168 mm x 77 mm (13.39" x 6.61" x 3.03") (L x W x H)
• Rubber Mat in Bottom to Protect Tools and Components
• Divider Kit Included
• Accepts BT17 (BT17/M) Benchtop Organizer

This versatile Tool/Parts Caddy is ideal for general storage. It measures 340 mm x 168 mm x 77 mm (13.39" x 6.61" x 3.03") and simply hooks over the rails of the ScienceDesk as shown to the right. The caddy is made from 1.2 mm (0.05") thick steel with a grey powder-coated paint finish and is supplied complete with a rubber base mat for protecting tools and components.

A divider kit is also provided to allow the user to build smaller storage bins. As shown to the right, it is comprised of two plastic pieces that span the length of the caddy and two that span the width. The dividers can be moved and interlocked to build different arrangements. They can also be cut into smaller lengths to build custom bin sizes. The caddy can also house our BT17(/M) benchtop organizer, as seen to the right.

Click to Enlarge
MPT01 Storage Tray is Ideal for Holding Tools and Devices

Click to Enlarge
Rear View of the MPT01 Storage Tray, Showing the Ø3.25" (Ø82.5 mm) Magnet

• 6" (152.0 mm) Diameter, 1.2" (31.0 mm) Deep Bowl with Pivoting Plastic Cowl
• Contents Retained Magnetically
• Durable Stainless Steel Construction
• Protective Rubber Cover on Magnet Prevents Marring of Mounting Surface

This Magnetic Storage Tray is ideal for storing small tools, cap screws, and other fasteners securely. The tray can be magnetically held horizontally or vertically to any ferrous surface such as an optical table or breadboard. When attached to a vertical surface, a plastic cowl holds nonmagnetic or loose items as shown to the right. The cowl pivots and clips in place at the upper and lower ends of travel to prevent accidental movement.

A rubber cover on the Ø3.25" (Ø82.5 mm) magnet protects the mounting surface from damage. The magnet serves two purposes; it attaches the tray to the ferrous surface and holds magnetic parts within the tray.

Click to Enlarge
PSY230 Shown Fitted to the Rear Rail of a ScienceDesk

• Attach to the Upper Rear Rail of a ScienceDesk (Shown in Photo to the Right)
• Ideal for Keeping Electrical Cables and Fiber Optic Patch Cables Out of the Way
• Maximum Load Capacity (Evenly Distributed): 5 kg (11 lbs)
• Length: 900 mm (35.44")

This Cable Tray is designed to be attached to the rear rail of the ScienceDesk, using the two brackets supplied. It is easily installed by hooking the brackets over the rail and locating the cable tray into the slots in the brackets. The tray is made from 3 mm (1/8") thick steel wire with a powder-coated plastic finish. Measuring 900 mm (35.44") long, 60.6 mm (2.39") high and 109.4 mm (4.31") deep, they are ideal for keeping electrical cables and fiber optic patch cables tidy.

Click to Enlarge
19" Rack Chassis Shown with a Mounted RBD201 DC Controller

• Standard 19" EIA Equipment Rack
• Fits to the Side Rails of the ScienceDesk (Shown in Photo to the Right)
• 360 mm (14.17") High, 8U Capacity
• Heavy-Duty, 3" Wide Vertical Channels
• Maximum Load Capacity: 60 kg (132 lbs)

This heavy-duty Instrumentation Rack is manufactured from industrial-grade steel, U-channels, and angle extrusions. It can support up to 60 kg (132 lbs) when the weight is distributed evenly throughout the height of the rack. Each side of the rack attaches to a support bar, which in turn fixes to the upper side rails using two M8 bolts (supplied). The chassis can be mounted centrally as shown to the right, or to the left or right of center.

Once the chassis is fitted, the ScienceDesk can be used with our range of 19" Rack Hardware and other industry-standard 19" lab equipment.

Click to Enlarge
Open RAU400 Drawer Unit Showing Included RAU001 Divider Kit

• Available in 3 Heights: 2U, 3U, and 4U
• Full Extension Ball-Bearing Drawer Slides
• Black-Powder-Coated Finish
• Rubber Lined Bottom to Protect Components and Devices
• Sold Complete with Divider Kit (Item # RAU001)
• Lockable for Added Security

This versatile Drawer Assembly is ideal for general storage. It fits the 19" rack chassis detailed above and is available in 3 heights: 2U, 3U, and 4U. The drawer is made from 1.2 mm (0.05") thick steel with a black-powder-coated paint finish. It moves on smooth roller bearing runners and features a coupling on the drawer slide, allowing for removal of the drawer from the housing. Each drawer is lockable and comes with two keys, four 12-24 screws with nuts for securing the drawer to the rack chassis, a rubber base mat, and an RAU001 divider kit. Additional RAU001 divider kits are available separately.

The RAU001 drawer divider kit is provided to allow the user to build smaller storage bins. As shown to the right, it is comprised of two plastic pieces that span the depth of the drawer and two that span the width. The dividers can be moved and interlocked to build different arrangements; they can also be cut into smaller lengths to build custom bin sizes.

• 850 mm (33.46") Long
• ON/OFF Switch
• Sturdy Aluminum Base Resists Warping
• Frosted Plastic Cover Ensures Even Spread of Light
• Shipped with 3 Spring Clips, 3 M6 Screws, and a Power Supply

These rigid LED Light Strips are 850 mm (33.46") long, and are held in place by three spring clips. They are easily fitted underneath a rack or a shelf, such as our ScienceDesk overhead shelves or Overhead Trays with Racks. The strip lights can also be mounted over a bench for general laboratory use.

• 12-Outlet, Surge-Protected Power Strip
• Three Outlet Types: US, EU, or UK
• Electrically Grounded Outlets

These 12-outlet Power Strips are available with US-, EU-, and UK-style outlets. Each is designed for indoor use and is housed within an impact-resistant, sturdy metal case. The units are turned on and off with a rocker switch. The power strips are fitted with clearance holes for standard M6 bolts (supplied) and are shipped complete with two brackets for mounting to the rear rail of our ScienceDesks. They can also be mounted underneath the overhead shelf described above, using the M6 tapped holes provided in the shelf.

The HDPS12-US Installed on The Rear Rail of One of Our ScienceDesks.

• Keeps Arms Elevated Above Tabletop
• Length: 800 mm (31.50")
• Padded for Comfort
• Adjustable Height

The PSY100 Wrist Rest is designed to provide the optimum height and angle for adjusting nanopositioning stages or other equipment. It enables operators to perform delicate instrument adjustments with higher accuracy and lower fatigue. The padded portion of the wrist rest is molded foam to provide extra comfort for the user.

The wrist rest is adjustable and mounts to the upper rails of the ScienceDesk workstation using two included M16 bolts. For more details on installation, please see the manual, which is available by clicking on the red Docs icon () below. The wrist rest comes complete with mounting studs and locking bolts.

• Keeps Arms Elevated Above Tabletop
• Length: 300 mm (11.81")
• Padded for Comfort
• Slides Over the Rails of the ScienceDesk Frame

The TWR300 Elbow Rest enables operators to perform delicate instrument adjustments with higher accuracy and lower fatigue. The elbow rest consists of foam that is molded around a steel insert for added comfort. The steel insert maintains the ergonomic shape and increases the durability of the part.

The elbow rest slips onto the upper rails of the ScienceDesk frame, and can be easily slid across the length of the rail. It requires no additional hardware for mounting and is sold in sets of two.

• Tested by Independent Electromagnetic Compatibility (EMC) Consultants
• Shielding Effectiveness >70 dB at 10 MHz
• Removable Panels for Easy Access
• ScienceDesk Accessories Fit Inside
• Designed to Fit 750 mm x 900 mm ScienceDesk Frame

Sensitive electrophysiology and microscopy applications benefit when isolated from external interferences such as electrostatic fields and high frequency electromagnetic waves (e.g., AM/FM radio waves, CRT oscilloscopes, and fluorescent strip lights). The ScienceDesk™ Faraday Enclosure protects against these external sources of interference and is designed to fit our 750 mm x 900 mm ScienceDesk bases.

The enclosure mounts onto the ScienceDesk frame, not the breadboard as with systems from other manufacturers, and therefore does not interfere with the vibration-isolated tabletop.

The magnetic panels are easily removed for access to the work area, and two holes in the rear panel assist in cable management. The range of ScienceDesk post-mounted accessories described above can be fitted within the enclosure, providing a variety of shelving and equipment mounting options. In addition, adapter brackets are available to allow side shelves and post-mounted accessories to be fitted outside the protected area.

Our 25 mm structural rails and components can also be attached to the inside face of the frame, thereby allowing custom enclosure and shelving systems to be constructed.

For detailed information, please see our complete product presentation.

• 2 m Hose for Use with Passive Isolation Products
• Connects to a Standard Schrader Valve
• Integrated Pressure Gauge

The PTA127 is a manual Foot Pump that can be used to pressurize passive vibration isolation systems where a constant supply of air is not necessary. The foot pump comes with a Schrader-type connector, pressure gauge and 2 m of hose to allow convenient positioning of the foot pump.

• Delivery Pressure up to 8 Bar (116 PSI)
• Air Tank Size 3.5 Liters
• Two Voltage Options: 230 V @ 50 Hz or 115 V @ 60 Hz
• Integral Pressure Regulator and Filter
• Low Noise Operation: 30 dB at 1 m

The PTA512, PTA513, and PTA514 are high-performance Air Compressors designed for applications demanding the highest quality air supply. They are self contained, lightweight, and compact, with minimal vibrations due to the very low noise emitted (30 dB at 1 m) from the compressor. The oil-lubricated pump unit is fitted with piston rings, thereby eliminating oil carryover to the air supply. These compressors deliver 50% more air than other silent compressors.

They accept standard 6 mm outer diameter tubing, include an air regulator, filter, receiver tank with pressure gauge, safety valve, drain, and line pressure gauge. They are shipped with a power cord for the appropriate territory. For detailed specifications, please see our product presentation.
