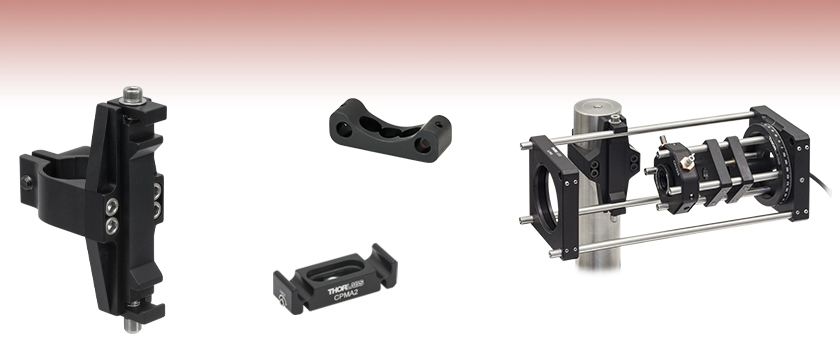

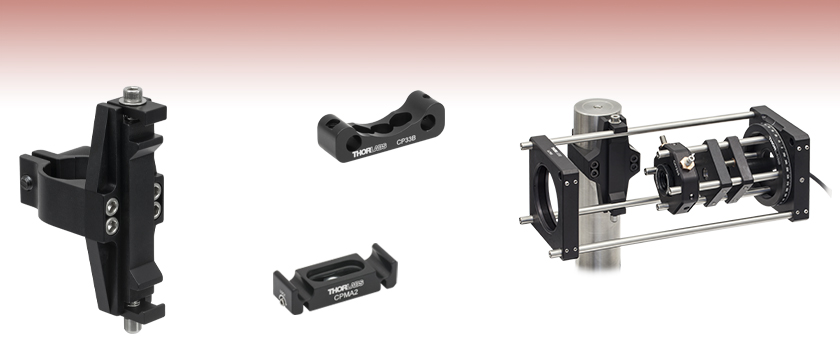

Post Mounts for Cage Systems


  • Supports for 16 mm, 30 mm, and 60 mm Cage Systems
  • Ø1/2", Ø1", and Ø1.5" Post Mounting Options
  • Quick-Release Versions Available for 30 mm and 60 mm Cage Systems

C1060

60 mm Cage
Horizontal Clamp
for Ø1" Posts

CPMA2

30 mm Cage System
Snap-On Adapter

Application Idea

60 mm Cage System
Mounted on Ø1.5" Post
Using CH1560 Clamp Mount

CP02B

30 mm Cage System
Mounting Bracket

Related Items


Please Wait

Features

  • Clamps and Brackets Provide a Means to Support Cage Segments with Posts
  • Solutions Available for 16 mm, 30 mm, and 60 mm Cage Systems
  • Snap-On Options for 30 mm and 60 mm Cage Systems
  • Mounting Options for Mini Series, Ø1/2", Ø1", and Ø1.5" Posts

Thorlabs' cage supports allow our cage systems to be post-mounted. We offer supports to mount 16 mm cage systems on our Mini-Series Posts, as well as adapters to mount our 30 mm or 60 mm cage systems to our Ø1/2", Ø1" (25 mm), or Ø1.5" posts. For additional information on our cage systems, please refer to the Cage Overview tab.

We also offer the CRA30(/M) 30 mm cage rotation adapter that is compatible with our Precision Rotation Stage.

Mounting Brackets
Thorlabs offers fixed cage post mounting brackets for 16, 30, and 60 mm cage systems. These are secured to two cage rods and allow the cage to be mounted to a post via a counterbored hole. We also offer snap-on cage mounting brackets for 30 and 60 mm cage systems. These may be used to post mount cage rods and are easy to install on assembled cage systems.

Post-Clamp Mounts
These mounts allow for horizontal mounting of 30 or 60 mm cage systems to the side of our Ø1" (25 mm) or Ø1.5" posts. The CV1530(/M) allows for vertical mounting of a 30 mm cage system and clamps to a Ø1.5" post. We also offer the RA90TR(/M), which allows for horizontal mounting of cage rods to a Ø1/2" post.

Cage System Overview

The Cage Assembly System provides a convenient way to construct large optomechanical systems with an established line of precision-machined building blocks designed for high flexibility and accurate alignment.

16 mm, 30 mm, and 60 mm Cage System Standards

Thorlabs offers three standards defined by the center-to-center spacing of the cage assembly rods (see image below). The 16 mm cage, 30 mm cage, and 60 mm cage standards are designed to accomodate Ø1/2", Ø1", and Ø2" optics, respectively. Specialized cage plates that allow smaller optics to be directly inserted into our larger cage systems are also available. All locking setscrews used in these cage plates are standard 4-40 setscrews, which use a 0.05" hex key.

Standard Threads

The flexibility of our Cage Assembly System stems from well-defined mounting and thread standards designed to directly interface with a wide range of specialized products. The three most prevalent thread standards are our SM05 Series (0.535"-40 thread), SM1 Series (1.035"-40 thread), and SM2 Series (2.035"-40 thread), all of which were defined to house the industry's most common optic sizes. Essential building blocks, such as our popular lens tubes, directly interface to these standards.


An example of the standard cage plate measurements determining cage system compatibility.
Standard Cage System Measurements
Cage System 16 mm 30 mm 60 mm
Thread Series SM05 SM1 SM2
Rod to Rod Spacing 16 mm (0.63") 30 mm (1.18") 60 mm (2.36")
Total Length 25 mm (0.98") 41 mm (1.60") 71.1 mm (2.8")
Cage Components
Cage Rods 16 mm These rods are used to connect cage plates, optic mounts, and other components in the cage system. The SR Series Cage Rods are compatible with our 16 mm cage systems, while the 30 mm and 60 mm cage systems use ER Series Cage Rods.
30 mm
60 mm
Cage Plates 16 mm These serve as the basic building blocks for a cage system. They may have SM-threaded central bores, smooth bores sized for industry standard optics or to accommodate the outer profile of our SM Series Lens Tubes, or specialized bores for other components such as our FiberPorts.
30 mm
60 mm
Optic Mounts 16 mm Thorlabs offers fixed, kinematic, rotation, and translation mounts specifically designed for our Cage Systems.
30 mm
60 mm
Cage Cubes 16 mm These cubes are useful for housing larger optical components, such as prisms or mirrors, or optics that need to sit at an angle to the beam path, such as beamsplitters. Our cage cubes are available empty or with pre-mounted optics.
30 mm
60 mm
Post and Breadboard Mounts and Adapters Mounting options for cage systems can be found on our Cage System Construction pages. Cage Systems can be mounted either parallel or perpendicular to the table surface.
Size Adapters Cage System Size Adapters can be used to integrate components from different cage system and threading standards.
Specialized Components Thorlabs also produces specialized cage components, such as Filter Wheels, a HeNe Laser Mount, and a FiberPort Cage Plate Adapter, allowing a wide range of our products to be integrated into cage-mounted optical systems. Explore our Cage Systems Visual Navigation Guide to see the full range of Thorlabs' cage components.

Please Give Us Your Feedback

Email Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?   Little Use  1234Very Useful

Enter Comments Below:

Characters remaining  8000
Posted Comments:
Poster:lior
Posted Date:2016-04-20 18:36:00.78
Greetings, The LCP01B arrives with two cap screws, clamping the flexure locks to the ER rods. I'm afraid these screws are imperial, while the part is supposed to be universal. Do you plan to offer this part with metric screws as well? Thanks, Lior
Poster:besembeson
Posted Date:2016-04-21 01:27:27.0
Response from Bweh at Thorlabs USA: Thanks for pointing this to us. We are going to consider adding the suitable hex key with the part (short term) to keep this universal. Long term, we will alter the design to use a #3 cap screw that has a universal 5/64 (2mm) hex key.
Poster:cbrideau
Posted Date:2014-01-15 18:41:22.543
Is it possible to get something like this, which supports the cage vertically, for your 1" posts instead of 1.5"?
Poster:jlow
Posted Date:2014-01-23 05:00:32.0
Response from Jeremy at Thorlabs: We do not currently carry a vertical cage mount for Ø1" post (but we can custom make this). We will look into the possibility of carrying this in the future.

16 mm Cage Mounting Bracket


Click to Enlarge
View Imperial Product List
Item #QtyDescription
SMB1116 mm Cage Mounting Bracket
SR64Compact Cage Assembly Rod, 6" Long, Ø4 mm
MS3R1Mini Series Mounting Posts, Ø6 mm, L = 3"
MSH31Mini-Series Post Holder with Swivel Base, 3" (76 mm) Tall, 4-40 (M3) Slot
SRM05116 mm Cage Rotation Mount for Ø0.5" Optics
SSP05116 mm Cage Plate Positioner
SM05L051SM05 Lens Tube, 0.50" Thread Depth, One Retaining Ring Included
View Metric Product List
Item #QtyDescription
SMB1116 mm Cage Mounting Bracket
SR64Compact Cage Assembly Rod, 6" Long, Ø4 mm
MS3R/M1Mini Series Mounting Posts, Ø6 mm, L = 75 mm
MSH31Mini-Series Post Holder with Swivel Base, 3" (76 mm) Tall, 4-40 (M3) Slot
SRM05116 mm Cage Rotation Mount for Ø0.5" Optics
SSP05116 mm Cage Plate Positioner
SM05L051SM05 Lens Tube, 0.50" Thread Depth, One Retaining Ring Included
16 mm Cage System Mounted on a Mini Series Post
Using an SMB1 Bracket

The SMB1 provides a compact mounting option when working with our compact cage system. The slim, low-profile design is ideal for incorporating 16 mm Cage Systems into an optomechanical assembly.

Please note that this bracket cannot be used directly below an SM05 lens tube.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
SMB1 Support Documentation
SMB116 mm Cage Mounting Bracket
$16.40
Today

30 mm Cage Mounting Bracket

The CP02B allows the 30 mm Cage Systems to be post mounted
Click to Enlarge

30 mm Cage System Rods Mounted on a Ø1/2" Post
Using a CP02B Bracket
  • Compatible with 30 mm Cage Systems
  • Three #8 (M4) Counterbores for Post Mounting and OEM Applications
  • Cage Rods (Not Included) are Locked into Place with Top-Located Setscrews
  • Bracket Offers Clearance for SM1 Lens Tubes

The CP02B provides a compact mounting option for incorporating 30 mm Cage Systems into optomechanical assemblies. Three #8 (M4) counterbored mounting holes allow this adapter to be used with our standard post and post holders in addition to OEM applications, which require secure mounting into a larger system (post and post holder not included).

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
CP02B Support Documentation
CP02B30 mm Cage Mounting Bracket
$13.80
Today

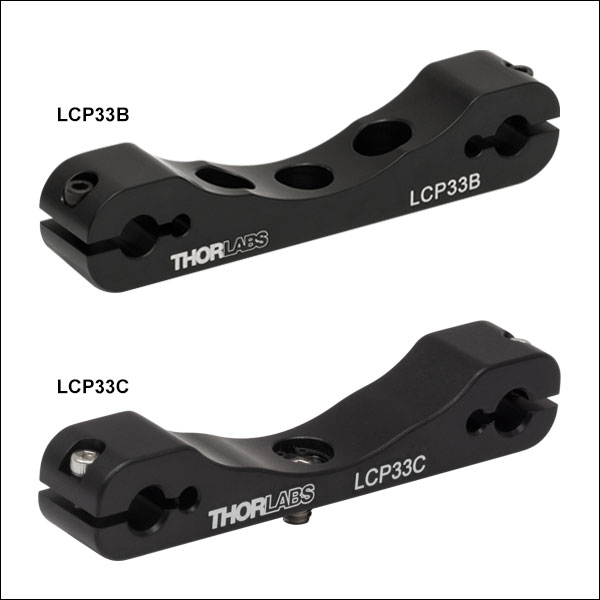

60 mm Cage Mounting Bracket


Click to Enlarge
View Imperial Product List
Item #QtyDescription
LCP01B160 mm Cage Mounting Bracket
LCP01160 mm Cage Plate, SM2 Threads, 0.5" Thick, 8-32 Tap (Two SM2RR Retaining Rings Included)
SM2L201SM2 Lens Tube, 2" Thread Depth, One Retaining Ring Included
ER42Cage Assembly Rod, 4" Long, Ø6 mm
TR31Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 3"
View Metric Product List
Item #QtyDescription
LCP01B160 mm Cage Mounting Bracket
LCP01/M160 mm Cage Plate, SM2 Threads, 0.5" Thick, M4 Tap (Two SM2RR Retaining Rings Included)
SM2L201SM2 Lens Tube, 2" Thread Depth, One Retaining Ring Included
ER42Cage Assembly Rod, 4" Long, Ø6 mm
TR75/M1Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 75 mm

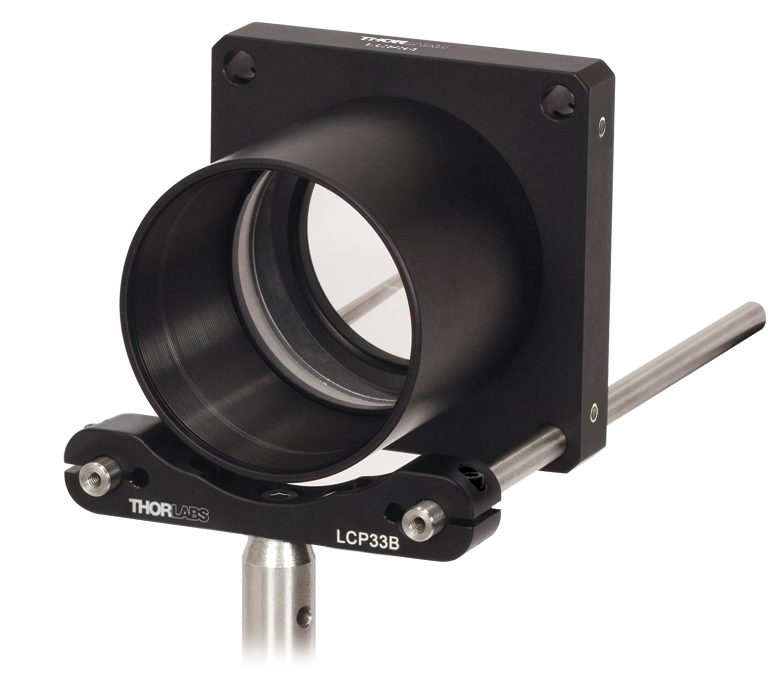

60 mm Cage System with SM02 Lens Tube
Mounted on a Ø1/2" Post Post Using an LCP01B Adapter
  • 60 mm Cage System Compatible
  • Firmly Lock onto Ø6.0 mm ER Rods with Flexure Locking Design

The LCP01B allows 60 mm Cage Systems to be incorporated into other optomechanical assemblies. This cage plate adapter has a flexure cut design for increased stability. It has two Ø0.24" (Ø6.0 mm) through holes with cap screws that clamp the flexure locks onto the Ø6.0 mm ER Rods (not included). It has three #8 (M4) counterbored holes for post mounting and has been specially designed to provide clearance for SM2 Lens Tubes as shown in the photo on the right.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
LCP01B Support Documentation
LCP01BCustomer Inspired!60 mm Cage Mounting Bracket
$29.75
3-5 Days

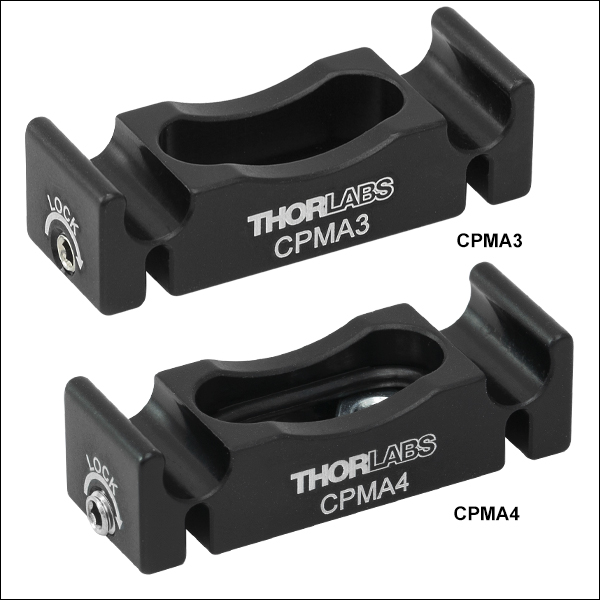

Snap-On 30 mm Cage Mounting Brackets


Click for Details
View Imperial Product List
Item #QtyDescription
CPMA21Snap-On 30 mm Cage Mounting Bracket, 8-32 Tap
CP021SM1-Threaded 30 mm Cage Plate, 0.35" Thick, 2 Retaining Rings, 8-32 Tap
CP90F130 mm Removable Cage Plate, Front and Back Plate, Internal SM1 Threading
ER4-P41Cage Assembly Rod, 4" Long, Ø6 mm, 4 Pack
TR31Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 3"
View Metric Product List
Item #QtyDescription
CPMA2/M1Snap-On 30 mm Cage Mounting Bracket, M4 Tap
CP02/M1SM1-Threaded 30 mm Cage Plate, 0.35" Thick, 2 Retaining Rings, M4 Tap
CP90F130 mm Removable Cage Plate, Front and Back Plate, Internal SM1 Threading
ER4-P41Cage Assembly Rod, 4" Long, Ø6 mm, 4 Pack
TR75/M1Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 75 mm

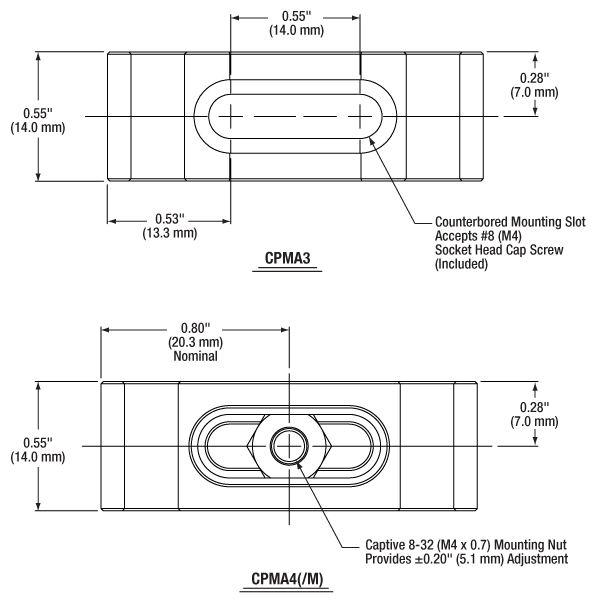

30 mm Cage System Mounted on a
Ø1/2" Post Using a CPMA2 Clamp
  • 30 mm Cage System Compatible
  • Snap-On Functionality for Easy Installation or Removal
  • Firmly Lock onto Ø6.0 mm ER Rods with Flexure Slot Locking Design
  • Off-Axis Mounting Adjustment Range
    • CPMA1: ±0.28" (±7.0 mm)
    • CPMA2(/M): ±0.20" (±5.1 mm)

These cage mounting brackets provide users with a snap-on solution for adding support posts to assembled 30 mm Cage Systems. The flexure-based design can be quickly snapped onto an open section of two Ø6.0 mm Cage Rods (not included), allowing for easy installation or removal without requiring the disassembly of a cage system. Slide the brackets into the appropriate position and lock into position using the included 0.050" hex key. The slotted post-mounting feature of the brackets allows the cage rods to be installed off the axis of the post (see above for adjustment ranges).

Two options are available for post mounting. The CPMA1 features a slotted #8 (M4) counterbore that allows for mounting of the adapter using an 8-32 (M4) capscrew (included). This is useful for supporting 30 mm cage systems using fixed posts, such as our Ø1" (25.0 mm) posts with 8-32 (M4) taps, as the cage system can be rotated and then fixed to the post at any arbitrary angle. Alternatively, the CPMA2(/M) offers a captive 8-32 (M4 x 0.7) nut in a slot for mounting to Ø1/2" posts in Ø1/2" post holders.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
CPMA2 Support Documentation
CPMA2Snap-On 30 mm Cage Mounting Bracket, 8-32 Tap
$30.75
Today
+1 Qty Docs Part Number - Universal Price Available / Ships
CPMA1 Support Documentation
CPMA1Snap-On 30 mm Cage Mounting Bracket, #8 (M4) Slot
$30.75
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
CPMA2/M Support Documentation
CPMA2/MSnap-On 30 mm Cage Mounting Bracket, M4 Tap
$30.75
Today

Snap-On 60 mm Cage Mounting Brackets


Click to Enlarge
View Imperial Product List
Item #QtyDescription
LCPMA11Snap-On 60 mm Cage Mounting Bracket, #8 (M4) Slot
LCP01260 mm Cage Plate, SM2 Threads, 0.5" Thick, 8-32 Tap (Two SM2RR Retaining Rings Included)
QRC2A1SM2-Threaded Quick-Release Cage Mount for the 60 mm Cage System
SM2D25D1Ring-Actuated SM2 Iris Diaphragm
RS31Ø1" Pillar Post, 1/4"-20 Taps, L = 3", 8-32 Adapter Included
ER6-P41Cage Assembly Rod, 6" Long, Ø6 mm, 4 Pack
View Metric Product List
Item #QtyDescription
LCPMA11Snap-On 60 mm Cage Mounting Bracket, #8 (M4) Slot
LCP01/M260 mm Cage Plate, SM2 Threads, 0.5" Thick, M4 Tap (Two SM2RR Retaining Rings Included)
QRC2A1SM2-Threaded Quick-Release Cage Mount for the 60 mm Cage System
SM2D25D1Ring-Actuated SM2 Iris Diaphragm
RS75/M1Ø25.0 mm Pillar Post, M6 Taps, L = 75 mm, M4 Adapter Included
ER6-P41Cage Assembly Rod, 6" Long, Ø6 mm, 4 Pack

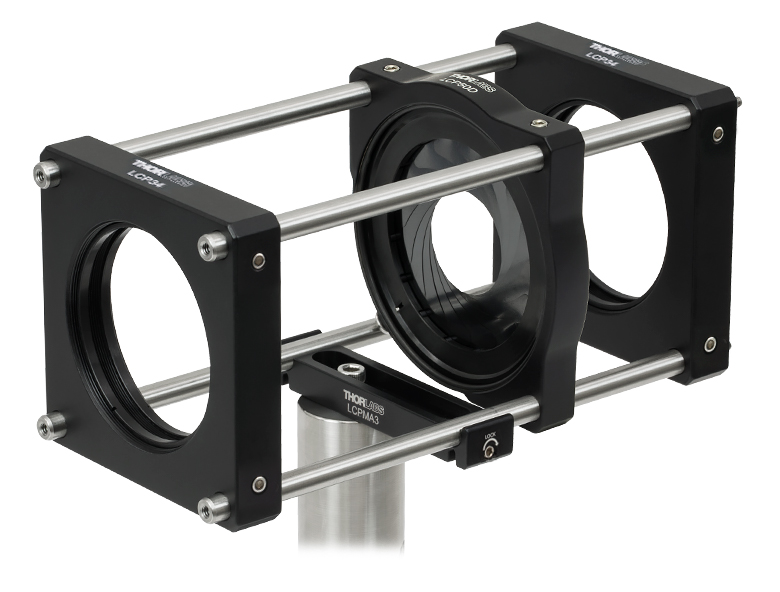

60 mm Cage System Mounted Off-Axis on a Ø1" Post
Using an LCPMA1 Clamp
  • 60 mm Cage System Compatible
  • Snap-On Functionality for Easy Installation or Removal
  • Firmly Lock onto Ø6.0 mm ER Rods with Flexure Slot Locking Design
  • Off-Axis Mounting Adjustment Range
    • LCPMA1: ±0.88" (±22.3 mm)
    • LCPMA2(/M): ±0.75" (±19.1 mm)
  • Brackets Offer Clearance for SM2 Lens Tubes

These cage mounting brackets provide users with a snap-on solution for adding support posts to assembled 60 mm Cage Systems. The flexure-based design can be quickly snapped onto an open section of two Ø6.0 mm Cage Rods (not included), allowing for easy installation or removal without requiring the disassembly of a cage system. Slide the brackets into the appropriate position and lock into position using the included 0.050" hex key. The slotted post-mounting feature of the brackets allows the cage rods to be installed off the axis of the post (see above for adjustment ranges).

Two options are available for post mounting. The LCPMA1 features a slotted #8 (M4) counterbore that allows for mounting of the adapter using an 8-32 (M4) capscrew (included). This is useful for supporting 60 mm cage systems using fixed posts, such as our Ø1" (25.0 mm) posts with 8-32 (M4) taps, as the cage system can be rotated and then fixed to the post at any arbitrary angle. Alternatively, the LCPMA2(/M) offers a captive 8-32 (M4 x 0.7) nut in a slot for mounting to Ø1/2" posts in Ø1/2" post holders.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
LCPMA2 Support Documentation
LCPMA2Snap-On 60 mm Cage Mounting Bracket, 8-32 Tap
$35.75
Today
+1 Qty Docs Part Number - Universal Price Available / Ships
LCPMA1 Support Documentation
LCPMA1Snap-On 60 mm Cage Mounting Bracket, #8 (M4) Slot
$35.75
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
LCPMA2/M Support Documentation
LCPMA2/MSnap-On 60 mm Cage Mounting Bracket, M4 Tap
$35.75
Today

Cage System Clamps for Ø1" (Ø25.0 mm) Posts


Click to Enlarge
View Imperial Product List
Item #QtyDescription
Imperial Product List
C1060160 mm Cage Clamp for Ø1" Posts
RS61Ø1" Pillar Post, 1/4"-20 Taps, L = 6", 8-32 Adapter Included
ER6-P41Cage Assembly Rod, 6" Long, Ø6 mm, 4 Pack
LCP01260 mm Cage Plate, SM2 Threads, 0.5" Thick, 8-32 Tap (Two SM2RR Retaining Rings Included)
View Metric Product List
Item #QtyDescription
Metric Product List
C1060/M160 mm Cage Clamp for Ø25.0 mm Posts
RS150/M1Ø25.0 mm Pillar Post, M6 Taps, L = 150 mm, M4 Adapter Included
ER6-P41Cage Assembly Rod, 6" Long, Ø6 mm, 4 Pack
LCP01/M260 mm Cage Plate, SM2 Threads, 0.5" Thick, M4 Tap (Two SM2RR Retaining Rings Included)
60 mm Cage System Mounted on a Ø1" Post Using a C1060 Clamp

Click to Enlarge
View Imperial Product List
Item #QtyDescription
Imperial Product List
C15QR1Quick-Release Handle for Ø1" or Ø1.5" Post Clamps, 1/4"-20 Threads
C1026130 mm Cage Clamp for Ø1" Posts
RS61Ø1" Pillar Post, 1/4"-20 Taps, L = 6", 8-32 Adapter Included
View Metric Product List
Item #QtyDescription
Metric Product List
C15QR/M1Quick Release Handle for Ø25.0 mm or Ø1.5" Post Clamps, M6 Threads
C1026/M130 mm Cage Clamp for Ø25.0 mm Posts
RS150/M1Ø25.0 mm Pillar Post, M6 Taps, L = 150 mm, M4 Adapter Included
A C15QR Quick-Release Handle can be used in place of the 1/4"-20 (M6) clamping screw for better control.
  • Quick-Connect Cage Clamps for 30 mm and 60 mm Cage Systems
  • Easy Drop-In and Drop-Out of Cage Systems
  • Single Locking Screw Allows One-Handed Operation
  • Compatible with Ø1" (Ø25 mm) Posts

The C1026(/M) and C1060(/M) Cage System Clamps for Ø1" (Ø25 mm) Posts are designed to support 30 mm and 60 mm cage systems, respectively. Two parallel cage rods can be placed in the clamp and locked in place with a single screw. In this way, complete cage system sections can be supported by a single post. The clamp itself can be secured to a Ø1" (Ø25 mm) post by tightening the highly stable flexure lock mechanism with a 3/16" (5 mm) balldriver.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
C1026 Support Documentation
C102630 mm Cage Clamp for Ø1" Posts
$74.00
Today
C1060 Support Documentation
C106060 mm Cage Clamp for Ø1" Posts
$82.25
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
C1026/M Support Documentation
C1026/M30 mm Cage Clamp for Ø25.0 mm Posts
$74.00
Today
C1060/M Support Documentation
C1060/M60 mm Cage Clamp for Ø25.0 mm Posts
$82.25
Today

Ø1.5" Horizontal Post-Mounting Cage System Clamps


Click to Enlarge
View Imperial Product List
Item #QtyDescription
CP02T1SM1-Threaded 30 mm Cage Plate, 0.50" Thick, 2 Retaining Rings, 8-32 Tap
CH1530130 mm Cage Clamp for Ø1.5" Posts, Included Quick-Release Handle
SM1Z1Z-Axis Translation Mount, 30 mm Cage Compatible
P81Ø1.5" Mounting Post, 1/4"-20 Taps, L = 8"
ER6-P41Cage Assembly Rod, 6" Long, Ø6 mm, 4 Pack
SM1L031SM1 Lens Tube, 0.30" Thread Depth, One Retaining Ring Included
View Metric Product List
Item #QtyDescription
CP02T/M1SM1-Threaded 30 mm Cage Plate, 0.50" Thick, 2 Retaining Rings, M4 Tap
CH1530/M130 mm Cage Clamp for Ø1.5" Posts, Included Quick-Release Handle, Metric
SM1Z1Z-Axis Translation Mount, 30 mm Cage Compatible
P200/M1Ø1.5" Mounting Post, M6 Taps, L = 200 mm
ER6-P41Cage Assembly Rod, 6" Long, Ø6 mm, 4 Pack
SM1L031SM1 Lens Tube, 0.30" Thread Depth, One Retaining Ring Included
30 mm Cage System Mounted on a Ø1.5" Post Using a CH1530 Clamp
  • Securely Mount 30 mm or 60 mm Cage Systems to our Ø1.5" Posts
  • Quick-Connect Mechanism for Fast Drop-In/Drop-Out of Cage Assemblies using Ø6 mm Cage Rods
  • Cage Clamping Mechanism Activated by 3/16" (5 mm) Hex Cap Screw
  • Includes Quick-Release Handle for Easy Mounting to Ø1.5" Posts

The CH1530(/M) and CH1560(/M) Cage Clamps allow 30 mm or 60 mm cage systems, respectively, to be mounted horizontally to our Ø1.5" Posts. The quick-connect mechanism allows for drop-in/drop-out mounting of a cage segment; to secure the cage segment, tighten the hex cap screw on the cage clamping mechanism using a 9/64" (3 mm) hex key or balldriver. Each cage clamp includes a C15QR(/M) Quick-Release Handle for mounting to a Ø1.5" post; additional quick-release handles can be purchased separately below. For low-profile applications, the handle can be removed and replaced with a 1/4"-20 (M6) cap screw at least 1/2" (12 mm) long.

The application to the right shows the CH1530 supporting a cage system composed of 4 ER6 cage rods, an SM1Z Z-Axis Translation Mount, and a CP02T cage plate. This system can be used as a telescope to expand or contract the beam diameter using lenses of appropriate focal length placed in the Z-axis mount and cage plate.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
CH1530 Support Documentation
CH153030 mm Cage Clamp for Ø1.5" Posts, Included Quick-Release Handle
$76.00
Today
CH1560 Support Documentation
CH156060 mm Cage Clamp for Ø1.5" Posts, Included Quick-Release Handle
$84.75
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
CH1530/M Support Documentation
CH1530/M30 mm Cage Clamp for Ø1.5" Posts, Included Quick-Release Handle, Metric
$76.00
Today
CH1560/M Support Documentation
CH1560/M60 mm Cage Clamp for Ø1.5" Posts, Included Quick-Release Handle, Metric
$84.75
Today

Ø1.5" Vertical Post-Mounting Cage System Clamps


Click to Enlarge
View Imperial Product List
Item #QtyDescription
CV15301Vertical 30 mm Cage Clamp for Ø1.5" Posts
P121Ø1.5" Mounting Post, 1/4"-20 Taps, L = 12"
ER4-P41Cage Assembly Rod, 4" Long, Ø6 mm, 4 Pack
RMS40X140X Olympus Plan Achromat Objective, 0.65 NA, 0.6 mm WD
SM1Z1Z-Axis Translation Mount, 30 mm Cage Compatible
CP021SM1-Threaded 30 mm Cage Plate, 0.35" Thick, 2 Retaining Rings, 8-32 Tap
DCC1545M1USB 2.0 CMOS Camera, 1280 x 1024, Monochrome Sensor
SM1A392Adapter with External C-Mount Threads and External SM1 Threads
MVL12WA112 mm EFL, f/1.4, for 1/2" C-Mount Format Cameras, with Lock
View Metric Product List
Item #QtyDescription
CV1530/M1Vertical 30 mm Cage Clamp for Ø1.5" Posts, Metric
P300/M1Ø1.5" Mounting Post, M6 Taps, L = 300 mm
ER4-P41Cage Assembly Rod, 4" Long, Ø6 mm, 4 Pack
RMS40X140X Olympus Plan Achromat Objective, 0.65 NA, 0.6 mm WD
SM1Z1Z-Axis Translation Mount, 30 mm Cage Compatible
CP02/M1SM1-Threaded 30 mm Cage Plate, 0.35" Thick, 2 Retaining Rings, M4 Tap
DCC1545M1USB 2.0 CMOS Camera, 1280 x 1024, Monochrome Sensor
SM1A392Adapter with External C-Mount Threads and External SM1 Threads
MVL12WA112 mm EFL, f/1.4, for 1/2" C-Mount Format Cameras, with Lock
30 mm Cage System Vertically Mounted
on a Ø1.5" Post Using a CV1530 Clamp
  • Mount 30 mm Cage Systems to Our Ø1.5" Posts
  • Can Be Oriented to Mount Cage Systems Vertically or Horizontally
  • Quick-Connect Mechanism for Fast Drop-In/Drop-Out of Cage Assemblies
  • 15 lb (6.8 kg) Load Capacity

The CV1530(/M) Cage Clamp allows a 30 mm cage system to be mounted vertically to our Ø1.5" Posts. The quick-connect mechanism allows for drop-in/drop-out mounting of a cage segment; to secure the cage segment, tighten the cap screw on the cage clamping mechanism using a 9/64" (3 mm) hex key or balldriver. Each cage clamp includes a C15QR(/M) Quick-Release Handle for mounting to a Ø1.5" post; additional quick-release handles can be purchased separately below. For low-profile applications, the handle can be removed and replaced with a 1/4"-20 (M6) cap screw at least 1/2" (12 mm) long.

The vertical cage clamp can be converted to a horizontal cage clamp. To do so, unscrew the four cap screws on either side of the cage clamps using a 9/64" (3 mm) balldriver or hex key, turn the front plate 90°, and replace the cap screws.

The application to the right shows the CV1530 mount supporting a 30 mm cage system in a vertical orientation. The assembly is composed of four ER4 cage rods, an SM1Z Z-Axis Translation Mount, and a CP02 cage plate. This configuration can be used in a variety of applications including the inspection station shown to the right, which consists of a CMOS Camera, a Camera Lens, and a Microscope Objective.

Custom CV1530(/M) Clamp Mounts can be ordered for 16 and 60 mm cage system compatibility. Please contact Tech Support for more information.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
CV1530 Support Documentation
CV1530Vertical 30 mm Cage Clamp for Ø1.5" Posts
$183.00
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
CV1530/M Support Documentation
CV1530/MVertical 30 mm Cage Clamp for Ø1.5" Posts, Metric
$183.00
Today
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites: West Coast US | Europe | Asia | China | Japan
Copyright 1999-2017 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px:Save this Image
