SM2-Compatible Fixed Mounts


  • SM2 (2.035"-40) Threading
  • Mount SM2-Threaded Lens Tubes
  • Mount Ø2" Optics

LM2-B

LM2-A

Nested Ø2" Optics Mount

SMR2

Compatible with
Ø2" Lens Tubes

Internal SM2
Threads

Internal and
External
SM2 Threads

Internal SM2
Threads with Back Lip

LMR2

LMR2S

Related Items


Please Wait

Features

  • SM2-Threaded (2.035"-40) Fixed Mounts
  • Compatible with SM2-Threaded Components such as Lens Tubes, Irises and Adapters
  • Wide Range of Fixed Lens, Filter, and Nested Mounts

These SM2-threaded (2.035"-40) mounts allow a variety of optical components to be integrated into optomechanical setups. Each of these mounts features an 8-32 (M4) tapped hole at the base, allowing them to be mounted on our Ø1/2" posts. These fixed mounts allow for versatility and flexibility in optomechanical constructions due to compatibility with SM2-threaded lens tubes, irises and adapters.


Posted Comments:
No Comments Posted

Lens Mount with Internal SM2 Threads

  • Internal SM2 (2.035"-40) Threads
  • Mounts Optics up to 0.36" (9.1 mm) Thick
  • Optics Held by SM2RR Retaining Ring (Included) and Back Lip
  • 8-32 (M4) Tapped Hole for Mounting to a Ø1/2" Post
  • Available Individually and in 5 Packs

The LMR2(/M) Fixed Optic Mount is a convenient way to mount Ø2" optics on TR Series posts using the 8-32 (M4) tapped hole on the base of the mount. Each LMR series part has an internally SM2-threaded hole equipped with a back edge lip on which the optic rests. The retaining ring included with each mount can be used to secure the optic in place by sandwiching the optic between the back lip and the retaining ring. As an alternative to the included SM2RR retaining ring, the SM2LTRR retaining ring for stress-free mounting can be purchased separately. The LMR series of fixed optics mounts are also used as a mount to hold optical components with external SM2 threads.

The LMR2(/M) is available individually and in 5 packs for ordering convenience. Each mount in the LMR2(/M)-P5 5 pack also includes its own SM2RR retaining ring.

Item #Optic
Diameter
Max Optic
Thicknessa
Clear ApertureOptical HeightIncluded
Retaining Ring
Suggested
Spanner Wrench
LMR2(/M) Ø2" 0.36" (9.1 mm) Ø1.90" (Ø48.3 mm) 1.36" (34.4 mm) SM2RR SPW604
  • This specification is true for thin lenses. For lenses with small focal lengths, and hence large lens curvatures, please contact Tech Support to ensure a proper fit.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LMR2 Support Documentation
LMR2Lens Mount with Retaining Ring for Ø2" Optics, 8-32 Tap
$26.53
Today
LMR2-P5 Support Documentation
LMR2-P5Lens Mount with Retaining Ring for Ø2" Optics, 8-32 Tap, 5 Pack
$125.98
Today
+1 Qty Docs Part Number - Metric Price Available
LMR2/M Support Documentation
LMR2/MLens Mount with Retaining Ring for Ø2" Optics, M4 Tap
$26.53
Today
LMR2/M-P5 Support Documentation
LMR2/M-P5Lens Mount with Retaining Ring for Ø2" Optics, M4 Tap, 5 Pack
$125.98
Today

Lens Mount with Internal and External SM2 Threads

  • Internal and External SM2 (2.035"-40) Threads
  • Mounts Optics up to 0.36" (9.1 mm) Thick
  • Optics Held by SM2RR Retaining Ring (Included)
  • 8-32 (M4) Tapped Hole for Mounting to a Ø1/2" Post
  • Add or Remove SM2-Threaded Components without Losing Access to the Mounted Optic

These fixed lens mounts have internal SM2 threading on one side and external SM2 threading on the other. The optic is secured in the mount with the included retaining ring and the mount has an 8-32 (M4) tapped hole for mounting to a Ø1/2" post.

The internal threading is deep enough to hold an unmounted optic up to 0.36" (9.1 mm) thick, while the external threading is just deep enough to mount lens tubes, irises, or other internally threaded SM components. Although functionality of this part can be duplicated by combining a lens tube slip ring and a lens tube, this fixed lens mount offers a smaller package size.

Item #Optic
Diameter
Max Optic
Thicknessa
Clear AperturebOptical HeightIncluded
Retaining Ring
Suggested
Spanner Wrench
LMR2S(/M) Ø2" 0.36" (9.1 mm) Ø1.90" (Ø48.3 mm) 1.36" (34.4 mm) SM2RR SPW604
  • This specification is true for thin lenses. For lenses with small focal lengths, and hence large lens curvatures, please contact Tech Support to ensure a proper fit.
  • This specification refers to the clear aperture of the retaining ring used to mount the optic.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LMR2S Support Documentation
LMR2SØ2" Lens Mount with Internal and External SM2 Threads, 8-32 Tap
$32.84
Today
+1 Qty Docs Part Number - Metric Price Available
LMR2S/M Support Documentation
LMR2S/MØ2" Lens Mount with Internal and External SM2 Threads, M4 Tap
$32.84
Today

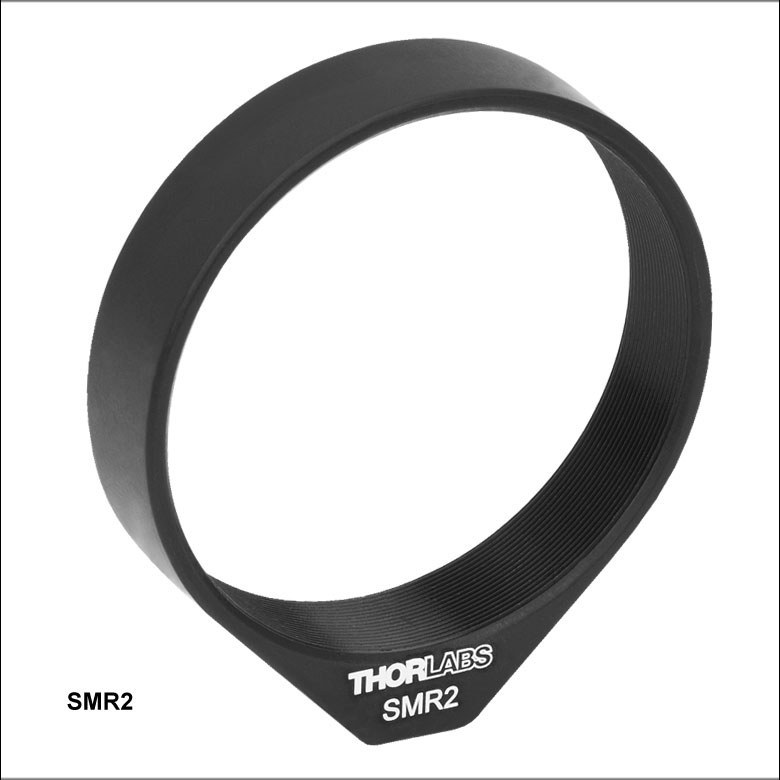

Ø2" Lens Tube Post Mounts

  • Internal SM2 (2.035"-40) Threads
  • Mounts Optics up to 0.30" (7.62 mm) Thick Using SM2RR Retaining Rings (Sold Separately)
  • 8-32 (M4) Tapped Hole for Mounting to Ø1/2" Posts
  • Mount Ø2" Lens Tubes or Other SM2-Threaded Components on Either Side

This SM2-Threaded Lens Tube Post Mount features internal SM2 threads that extend the full length of the mount without any retaining lip. It is perfect for mounting lens tubes as well as mounted optics, and can also be used to hold unmounted optics when used with two SM2RR retaining rings (sold separately).

Please note that the SMR2(/M) does not include retaining rings, and two SM2RR retaining rings will be needed to hold unmounted Ø2" optics with this mount.

Item #Optic
Diameter
Max Optic
Thicknessa
Clear AperturebOptical HeightCompatible Retaining
Ring (Not Included)c
Suggested
Spanner Wrench
SMR2(/M) Ø2" 0.30" (7.6 mm) Ø2.01" (Ø51.0 mm) 1.36" (34.4 mm) SM2RR SPW604
  • This specification is true for thin lenses. For lenses with small focal lengths, and hence large lens curvatures, please contact Tech Support to ensure a proper fit.
  • This specification refers to the clear aperture of the mount without a retaining ring.
  • Two retaining rings are needed to secure an optic in this mount.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
SMR2 Support Documentation
SMR2Ø2" Lens Mount with SM2 Internal Threads and No Retaining Lip, 8-32 Tap
$27.06
Today
+1 Qty Docs Part Number - Metric Price Available
SMR2/M Support Documentation
SMR2/MØ2" Lens Mount with SM2 Internal Threads and No Retaining Lip, M4 Tap
$27.06
Today

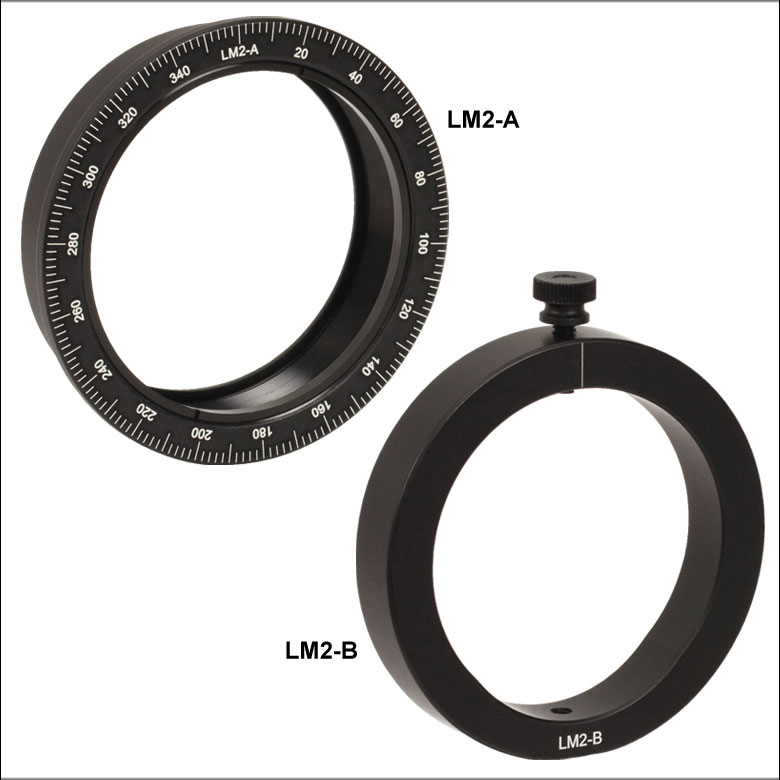

Nested Optical Mount

  • LM2-A Optic Carriage Nests within LM2-B Mounting Ring
  • LM2-A Carriage Laser Engraved Every 2°
  • Mounts Ø2" (50 mm) up to 0.48" (12.2 mm) Thick

These nested lens mount sets are comprised of an inner optic carriage and an outer mounting ring (each sold separately). This allows easy exchange of optics while maintaining optical alignment. The LM2-A inner carriage is radially laser engraved with graduation marks every 2°, labeled every 20°. The LM2-A carriage directly accepts Ø2" (50 mm) optics up to a thickness of 0.48" (12.2 mm) into its SM2 (2.035"-40) threaded bore. The mating LM2-B positionally locks the LM2-A with a top-located thumbscrew and is post-mountable via a bottom #8-32 (M4) tapped hole. Each LM2-A includes one SM2RR retaining ring for fastening optics within the SM2 (2.035"-40) bore.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LM2-B Support Documentation
LM2-BRotation Mounting Ring for LM2-A Ø2" Optic Carriage, 8-32 Tap
$31.52
Today
+1 Qty Docs Part Number - Universal Price Available
LM2-A Support Documentation
LM2-ARotating Inner Carriage for Ø2" Optics, One SM2RR Retaining Ring
$28.37
Today
+1 Qty Docs Part Number - Metric Price Available
LM2-B/M Support Documentation
LM2-B/MRotation Mounting Ring for LM2-A Ø2" Optic Carriage, M4 Tap
$31.52
Today

Filter Mount with 90° Flip

  • Holds Ø2" Filters up to 0.46" (11.7 mm) Thick
  • Post and Rod Mounted for Greater Flexibility
  • Detent Force at 0º and 90º; Lockable Across Entire Range
  • Includes 0.050" Hex Key and SM2RR Retaining Ring

The TR2F90 can be post mounted as an individual unit or ER-cage-rod-mounted for stacking filters in a series. Since the depth of the filter mount is 0.6" (15 mm), the minimum length of the ER rod needed when creating a stack of filters is the number of filter mounts being stacked times 0.6" (15 mm). A precision detent mechanism provides holding force at the 0° and 90° positions, while a nylon setscrew allows the mount to be locked.

Please note that the threaded hole used to attach the post to the filter mount goes all the way through to the rotation mechanism. Be sure that no more than 0.2" (5 mm) of the screw on top of the post is threaded into the filter mount in order to prevent the binding of the rotation mechanism.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
TR2F90 Support Documentation
TR2F9090° Flip Mount for Ø2" Filters and Optics, 8-32 Tap
$159.69
Today
+1 Qty Docs Part Number - Metric Price Available
TR2F90/M Support Documentation
TR2F90/M90° Flip Mount for Ø2" Filters and Optics, M4 Tap
$159.69
Today
