Passive TO Can Laser Diode Mounts


  • Fixed Mounts for TO-18, TO-38, TO-46, Ø5.6 mm, Ø9 mm, TO-3, and TO-5 Laser Diodes
  • Post, Cage System, and Lens Tube Mounting Options
  • Compact Passive Design

LMF9

Ø9 mm Laser
Diode Mount

S1LDM9

SM1-Threaded Aluminum Mount
for Ø9 mm Laser Diodes

S05PLM56

SM05-Threaded Delrin® Mount
for Ø5.6 mm Laser Diodes

CP1LD56

30 mm Cage Plate
for Ø5.6 mm Laser Diodes

Ø9 mm Laser Diode
Mounted in a KM100T
Kinematic Mount
Using an S1LDM9 Adapter

Application Idea

Related Items


Please Wait
TO Can Mount
Click to Enlarge

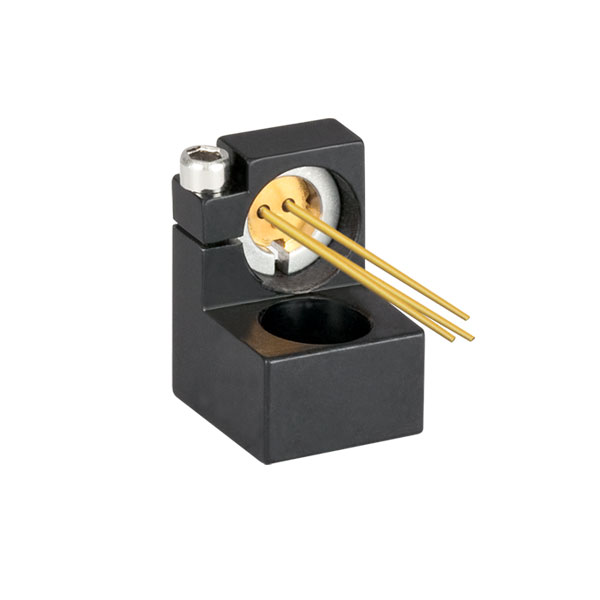

A TO-18 diode is shown mounted in an LMF18 laser diode mount. Unlike the LMF56, which mounts
Ø5.6 mm diode packages, the LMF18 features a cutout for the tab on TO-18 diode packages.

Click to Enlarge
View Imperial Product List
Item #QtyDescription
LCRM2160 mm Cage Rotation Mount for Ø2" Optics, 8-32 Tap
CP38T1SM2-Threaded Round Cage Plate with SM1 Internal Thread and SM2 External Thread, 1 SM1RR Retaining Ring
LCP34160 mm Cage Plate, SM2 Threads, 0.5" Thick, 8-32 Tap (Two SM2RR Retaining Rings Included)
CH1560160 mm Cage Clamp for Ø1.5" Posts, Included Quick-Release Handle, Imperial
ER8-P41Cage Assembly Rod, 8" Long, Ø6 mm, 4 Pack
P101Ø1.5" Mounting Post, 1/4"-20 Taps, L = 10"
L404P400M1404 nm, 400 mW, Ø5.6 mm, G Pin Code, MM Laser Diode
SR9F1ESD Protection and Strain Relief Cable, Pin Codes F and G, 3.3 V
LDH56-P2130 mm Cage Plate Collimation Mount for Ø5.6 mm TO Can Laser Diodes and M9 x 0.5-Threaded Aspheric Lenses
A110TM1f = 6.24 mm, NA = 0.40, WD = 2.39 mm, DW = 780 nm, Mounted Aspheric Lens, Uncoated
CYCP230 mm Cage Mount for Cylindrical Lenses, 8-32 Tap
ER1.5-P41Cage Assembly Rod, 1.5" Long, Ø6 mm, 4 Pack
ER4-P41Cage Assembly Rod, 4" Long, Ø6 mm, 4 Pack
View Metric Product List
Item #QtyDescription
LCRM2/M160 mm Cage Rotation Mount for Ø2" Optics, M4 x 0.7 Tap
CP38T1SM2-Threaded Round Cage Plate with SM1 Internal Thread and SM2 External Thread, 1 SM1RR Retaining Ring
LCP34/M160 mm Cage Plate, SM2 Threads, 0.5" Thick, M4 Tap (Two SM2RR Retaining Rings Included)
CH1560/M160 mm Cage Clamp for Ø1.5" Posts, Included Quick-Release Handle, Metric
ER8-P41Cage Assembly Rod, 8" Long, Ø6 mm, 4 Pack
P250/M1Ø1.5" Mounting Post, M6 Taps, L = 250 mm
L404P400M1404 nm, 400 mW, Ø5.6 mm, G Pin Code, MM Laser Diode
SR9F1ESD Protection and Strain Relief Cable, Pin Codes F and G, 3.3 V
LDH56-P2130 mm Cage Plate Collimation Mount for Ø5.6 mm TO Can Laser Diodes and M9 x 0.5-Threaded Aspheric Lenses
A110TM1f = 6.24 mm, NA = 0.40, WD = 2.39 mm, DW = 780 nm, Mounted Aspheric Lens, Uncoated
CYCP/M230 mm Cage Mount for Cylindrical Lenses, M4 Tap
ER1.5-P41Cage Assembly Rod, 1.5" Long, Ø6 mm, 4 Pack
ER4-P41Cage Assembly Rod, 4" Long, Ø6 mm, 4 Pack

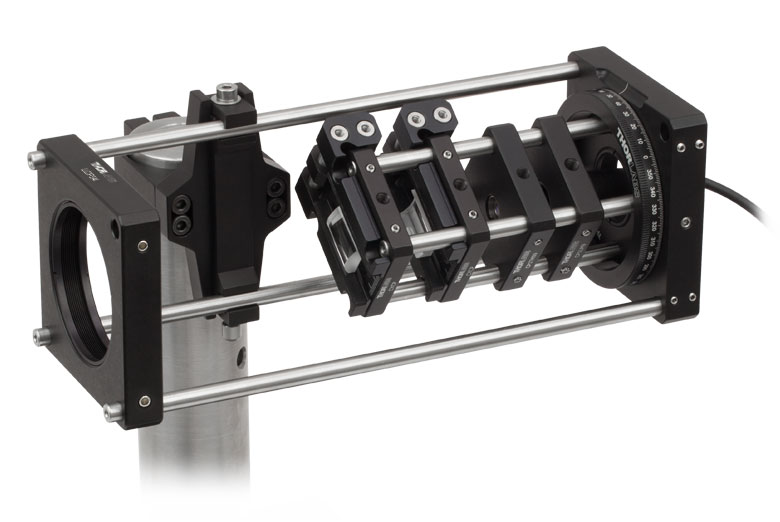

A collimated 30 mm-cage-mounted laser diode is shown mounted within a 60 mm cage system, allowing for rotation of the polarization axis. See the Application tab above for details.

Thorlabs offers post-mountable, SM-threaded, and cage-compatible passive mounts for TO can laser diodes. Passive mounts are also available for fiber-pigtailed laser diodes, as well as unmounted light emitting diodes (LEDs).

Ø1/2" post-mountable passive mounts are compatible with TO-18, TO-38, TO-46, Ø5.6 mm, or Ø9 mm laser diode packages. We also offer post mounts with threads for strain relief cables. SM05-threaded (0.535"-40) and SM1-threaded (1.035"-40) mounts are available in aluminum or non-conductive Delrin®* versions for laser diodes in Ø5.6 mm, Ø9 mm, TO-38, TO-46, and TO-5 packages. The external threading on SM-threaded mounts allows them to be used in a wide variety of SM05- or SM1-compatible optomechanics, including our Kinematic Mounts, Lens Tubes, XY Translation Mounts, 16 mm Cage Plates (SM05 compatible), and 30 mm Cage Plates (SM1 compatible). 30 mm Cage System-compatible and post-mountable cage plate mounts are also available for mounting Ø5.6 mm, Ø9 mm, and TO-3 laser diodes.

Laser Diode Temperature Warning
Please note that these diode mounts do not have any temperature regulation or temperature measurement capability, which only makes them suitable for diodes that do not require active cooling. For our selection of temperature-controlled mounts, please click here. Running a laser diode at a high operating temperature can significantly shorten its lifetime.

*Delrin® is a registered trademark of DuPont Polymers, Inc.

Passive Mounts for TO Can Diodes
  Compatible Packages
Laser Diode Mounts Ø5.6 mm, Ø9 mm, TO-18, TO-38, TO-46, TO-3, TO-5
LED Mounts T1-3/4, TO-18, TO-18R, TO-39, TO-46

LCRM2 - Creating a Rotating 30 mm Cage Assembly Within a 60 mm Cage System

Thorlabs' versatile cage system can be used to create complex optical systems with elements that are aligned along a common optical axis. The cage system is available in three different sizes (16 mm, 30 mm, and 60 mm rod spacings), with a wide selection of accessories available as well as cage size adapters that allow for interoperability of different cage sizes. Smaller cage assemblies may be mounted within larger ones where clearances allow, as in the Application Idea above.

Design & Construction

In the Application Idea above, a 30 mm cage assembly is mounted on a CP38T SM2-Threaded Round Cage Plate, which is threaded into an LCRM2 60 mm Cage Rotation Mount (available below). The 30 mm cage assembly consists of a TO-can laser diode and collimation optics. Rotating the laser diode in conjunction with its collimation optics allows the polarization axis of the TO can laser diode to be rotated while maintaining a collimated, approximately Gaussian beam.

The Ø9 mm TO can laser diode is mounted in an LDH9-P2 30 mm Cage Collimation Mount and SR9 ESD Protection/Strain Relief Cable. The collimated elliptical output of the laser diode is corrected for using cylindrical lenses mounted in CYCP Cylindrical Lens Mounts. ER1.5 Cage Assembly Rods must be substituted for the ER2 rods that are included with each CYCP mount. This provides the necessary clearance for the 30 mm cage assembly to rotate unobstructed within the 60 mm cage assembly.


Click to Enlarge

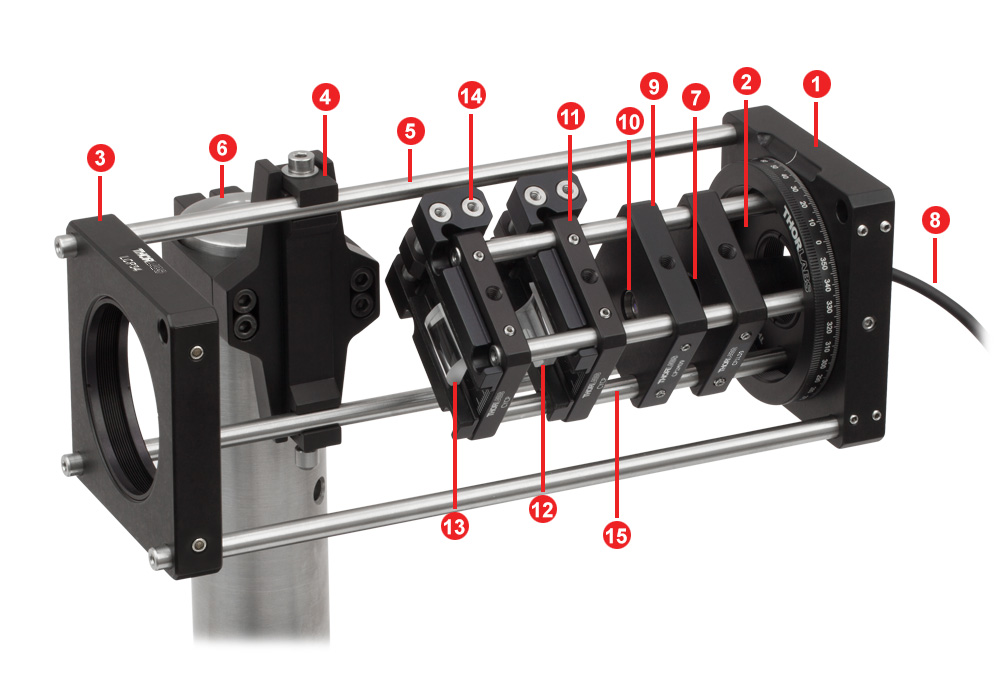

Rotating 30 mm Cage Assembly Within 60 mm Cage System
60 mm Cage System Components
# Product Description Item # Item Qty.
1 60 mm Cage Rotation Mount for Ø2" Optics LCRM2 1
2 SM2-Threaded Round 30 mm Cage Plate CP38T 1
3 60 mm Threaded Cage Plate LCP34 1
4 60 mm Cage Clamp for Ø1.5" Posts CH1560 1
5 Cage Assembly Rod, 8" Long, 4 Pack ER8-P4 1
6 Ø1.5" Mounting Post - 1
30 mm Cage Assembly Components
# Product Description Item # Item Qty.
7 Ø5.6 mm, Ø9 mm, or TO3 TO Can Laser Diode - 1
8 ESD Protection and Strain Relief Cable - 1
9 30 mm Cage Plate
Laser Diode
Collimation Mount a
For Ø5.6 mm TO Can LD LDH56-P2 1
For Ø9 mm TO Can LD LDH9-P2
For TO3 Laser Diode LDH3-P1
10 Mounted M9 x 0.5 mm Aspheric Lens - 1
11 30 mm Cage Mount for Cylindrical Lenses CYCP 2
12 Plano-Concave Cylindrical Lens - 1
13 Plano-Convex Cylindrical Lens - 1
14 Cage Assembly Rod, 1.5" Long, 4 Pack ER1.5-P4 1
15 Cage Assembly Rod, 4" Long, 4 Pack ER4-P4 1
  • Choose the passive laser diode (LD) mount compatible with the laser diode package (Mounting options for Ø5.6 mm or Ø9 mm TO can as well as TO3 laser diodes are available).

Posted Comments:
Satish Acharya  (posted 2023-01-20 22:19:07.563)
What is the part number of the aluminum retaining ring included in the Delrin mount S1PLM46? Is the ring available to purchase separately in a pack of 5?
jdelia  (posted 2023-01-20 01:45:09.0)
Thank you for contacting Thorlabs. While we do not offer this retaining ring as a part of our standard catalog, I have reached out you directly to discuss ordering it as a separate component.
Ismail Degani  (posted 2019-08-25 18:18:28.763)
I could really use a S05PLDM9 with a slight modification to support TO-5 diodes. (currently there is also S1PLM05 but I need a 1/2" tube compatible mount)
YLohia  (posted 2019-08-26 11:54:55.0)
Hello, thank you for contacting Thorlabs. Perhaps the SM1A1 can be used to adapt the SM1 threads of the S1PLM05 to the SM05 threads of your system? I have reached out to you directly to discuss this.
Greg  (posted 2016-10-28 20:06:05.247)
I don't understand the difference between the TO-18 and 5.6mm mounts, LMF18 and LMF56, on this page. Google "TO-18 laser diode," and you'll see the name is used interchangeably with 5.6mm. Your spec sheet for L650P007 calls it a "5.6mm, TO-18 discreet laser diode." My understanding was also that they were the same. Please clarify what the difference is? What is a laser diode you would use with each? Thanks, Greg
tfrisch  (posted 2016-11-01 01:56:49.0)
Hi Greg, thank you for contacting Thorlabs. The biggest difference between these body types is a tab on the TO-18. Other than that, they are very similar and can often be interchanged.
cfespie  (posted 2014-12-30 08:58:35.807)
The s05LM556 is potentially electrically conductive. Once a laser diode is place inside this part, it could short out to your entire assembly. It would be better to include ceramic, ABS, nylon, or Delrin interfaces to lasers (like PAL5-A) to ensure electrical isolation.
cdaly  (posted 2014-12-31 09:38:50.0)
Response from Chris at Thorlabs: If the S05LM56 is mounted into a standard fixed mount such as the LMR05(/M), it can be electrically isolated using the TRE(/M) post adapters.
steve  (posted 2013-06-04 00:04:23.55)
Please also have an adaptor for TO-8 case (for a specific bare photodiode I need to use). Thanks.
cdaly  (posted 2013-06-10 10:37:00.0)
Response from Chris at Thorlabs: Thank you for your feedback. I have begun an internal discussion about your idea and this may be released in the future. We appreciate your suggestion.
jlow  (posted 2012-09-27 13:57:00.0)
Response from Jeremy at Thorlabs: Thank you very much for your feedback. I have posted this feedback into our internal forum and we will look into the possibility of offering this.
iain  (posted 2012-09-18 07:46:00.0)
The S1LEDM mount works very nicely with LEDs or photodiodes in a TO-18 package. Would you consider making a similar mount for devices in a TO-5 package? I ask because I need to mount a TO-5-packaged photodiode (Hamamatsu G8370-02). Cheers, Iain.
jjurado  (posted 2011-05-11 11:08:00.0)
Response from Javier at Thorlabs to Mario Stipcevic: Thank you very much for contacting us with your request. I will contact you directly to get the dimensions and other specifications of your LED.
stipcevi  (posted 2011-05-11 03:38:50.0)
Hi ! I would like to: 1. Mount 5mm LED in standard plastic case into SM05 lens tube, how do i do it ? 2. I would like to pigtail 5mm plastoc LED to a fiber with a verz mow coupling efficienncy (no lens required). how do I do it ? Thank you ! Best regards, Mario Stipcevic
Back to Top

Post-Mountable Laser Diode Mounts

TO Can Mount
Click to Enlarge

LMF56 with Mounted Ø5.6 mm Diode Package Attached to a Ø1/2" Post
TO Can Mount
Click to Enlarge

LM9F Includes an Adapter for Ø5.6 mm Diode Packages
  • Versions for TO-18, TO-38, TO-46, Ø5.6 mm, or Ø9 mm Diode Packages
  • Flexure Clamp Secures Diode in Place
  • Compact Design Takes up Minimal Space in the Lab
  • Post-Mountable via 8-32 (M4) Tap or #8 (M4) Counterbore

Thorlabs' Post-Mountable Laser Diode Mounts provide a simple solution for quick and easy mounting of a laser diode mounted in a TO-18, TO-38, TO-46, Ø5.6 mm, or Ø9 mm package that does not require temperature control. A top-located 2-56 cap screw with a 5/64" (2 mm) hex actuates a flexure clamp that secures the diode in place. The LM9F Ø9 mm laser diode mount includes an adapter for Ø5.6 mm laser diode packages.

Each diode mount can be attached to a post using a bottom-located 8-32 (M4) tap, with exception to the LM9F which has a #8 (M4) counterbore. Both mounting options allow for a compact profile that takes up minimal space in an experimental setup. The LMF18(/M), LMF38(/M), LMF46(/M), LMF56(/M), and LMF9(/M) also have a Ø0.10" torque hole in the front of the mount. A 5/64" (2 mm) balldriver can be inserted into this hole to provide extra leverage when tightening or loosening the mount.

Additionally, Thorlabs offers temperature-controlled mounts, as well as laser diode current controllers.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LMF18 Support Documentation
LMF18Post-Mountable Laser Diode Mount for TO-18 Packages, 8-32 Tap
$27.92
Today
LMF38 Support Documentation
LMF38Post-Mountable Laser Diode Mount for TO-38 Packages, 8-32 Tap
$27.92
Today
LMF46 Support Documentation
LMF46Post-Mountable Laser Diode Mount for TO-46 Packages, 8-32 Tap
$27.92
Today
LMF56 Support Documentation
LMF56Post-Mountable Laser Diode Mount for Ø5.6 mm Packages, 8-32 Tap
$27.92
Today
LMF9 Support Documentation
LMF9Post-Mountable Laser Diode Mount for Ø9 mm Packages, 8-32 Tap
$27.92
Today
+1 Qty Docs Part Number - Universal Price Available
LM9F Support Documentation
LM9FPost-Mountable Laser Diode Mount for Ø5.6 mm and Ø9 mm Packages, #8 (M4) Counterbore
$31.77
Today
+1 Qty Docs Part Number - Metric Price Available
LMF18/M Support Documentation
LMF18/MPost-Mountable Laser Diode Mount for TO-18 Packages, M4 Tap
$27.92
Today
LMF38/M Support Documentation
LMF38/MPost-Mountable Laser Diode Mount for TO-38 Packages, M4 Tap
$27.92
Today
LMF46/M Support Documentation
LMF46/MPost-Mountable Laser Diode Mount for TO-46 Packages, M4 Tap
$27.92
Today
LMF56/M Support Documentation
LMF56/MPost-Mountable Laser Diode Mount for Ø5.6 mm Packages, M4 Tap
$27.92
Today
LMF9/M Support Documentation
LMF9/MPost-Mountable Laser Diode Mount for Ø9 mm Packages, M4 Tap
$27.92
Today
Back to Top

Post-Mountable Laser Diode and Strain Relief Cable Mounts

Laser Diode and Strain Relief Mounting Instructions
TO Can Mount
Click to Enlarge

LMF18R with TO-18 Diode Package and Strain Relief Cable Attached to a Ø1/2" Post
  • Versions for TO-18, Ø5.6 mm, or Ø9 mm Diode Packages
  • Flexure Clamp Secures Diode in Place
  • Internal 13/32"-40 Thread Accepts SR9 Strain Relief Cable
  • Compact Design Takes up Minimal Space in the Lab
  • Post-Mountable via 8-32 (M4) Tap

Thorlabs' Post-Mountable Laser Diode and Strain Relief Mounts provide a simple solution for mounting a laser diode and strain-relief cable. These mounts accommodate diodes in TO-18, Ø5.6 mm, or Ø9 mm packages and do not offer temperature control.

When using this mount, the diode pins should first be clipped for proper attachment to the strain relief cable. The top of the mount is engraved to show the length to which the leads should be clipped, as illustrated in the video to the right. If the diode pins are too long then you will not be able to fully engage the threads of the strain relief cable. Then, depending on the mount, the laser diode must be inserted from the rear [LMF18R(/M)] or front [LMF56R(/M) and LMF9R(/M)]. Once the diode reaches the mechanical stop, tighten the cap screw [5/64" (2 mm) hex] that secures the diode in place. Finally, align the strain relief socket, insert the pins, then screw the strain relief cable's boot onto the back of the mount.

Each diode mount can be attached to a post using a bottom-located 8-32 (M4) tap. This allows for a compact profile that takes up minimal space in an experimental setup. The LMF18R(/M), LMF56R(/M), and LMF9R(/M) also have a Ø0.10" torque hole in the front of the mount. A 5/64" (2 mm) balldriver can be inserted into this hole to provide extra leverage when tightening or loosening the mount.

Additionally, Thorlabs offers temperature-controlled mounts, as well as laser diode current controllers.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LMF18R Support Documentation
LMF18RPost-Mountable Laser Diode and Strain Relief Mount for TO-18 Packages, 8-32 Tap
$31.19
Today
LMF56R Support Documentation
LMF56RPost-Mountable Laser Diode and Strain Relief Mount for Ø5.6 mm Packages, 8-32 Tap
$31.19
Today
LMF9R Support Documentation
LMF9RPost-Mountable Laser Diode and Strain Relief Mount for Ø9 mm Packages, 8-32 Tap
$31.19
Today
+1 Qty Docs Part Number - Metric Price Available
LMF18R/M Support Documentation
LMF18R/MPost-Mountable Laser Diode and Strain Relief Mount for TO-18 Packages, M4 Tap
$31.19
Today
LMF56R/M Support Documentation
LMF56R/MPost-Mountable Laser Diode and Strain Relief Mount for Ø5.6 mm Packages, M4 Tap
$31.19
Today
LMF9R/M Support Documentation
LMF9R/MPost-Mountable Laser Diode and Strain Relief Mount for Ø9 mm Packages, M4 Tap
$31.19
Today
Back to Top

Aluminum Lens Tube Mounts

SM-Threaded Laser Diode Mount Compatibility
Item # Laser Diode
Package
External
Mounting
Threads
Compatible
Spanner Wrenches
Mount Laser Diode
Retaining Ring
S05LM38 TO-38 SM05
(0.535"-40)
SPW801 SPW801
S05LM46 TO-46
S05LM56 Ø5.6 mm
S05LDM9 Ø9 mm
S1LM38 TO-38 SM1
(1.035"-40)
SPW909
SPW801
S1LM46 TO-46
S1LM56 Ø5.6 mm
S1LDM9 Ø9 mm
S1LM05 TO-5

Thorlabs offers SM05-threaded (0.535"-40) and SM1-threaded (1.035"-40) black-anodized aluminum lens tube mounts to accommodate laser diodes in TO-38, TO-46, Ø5.6 mm, Ø9 mm, and TO-5 packages. These laser diode mounts are designed such that the laser diode is aligned to the optical axis of the lens tube, enabling easy assembly of lens-tube-based setups.

The laser diode can be directly inserted into the mount and held in place with the included retaining ring (see the table to the right for details). Our SPW801 Adjustable Spanner Wrench can be used to secure the laser diode into any of these mounts. Alternatively, the table to the right also lists the compatible fixed spanner wrench for each mount, if available.

Each laser diode mount, other than the S1LM05, is equipped with internal 13/32"-40 threads that allow our ESD protection and strain relief cables to be attached. Instead of 13/32"-40 threads, the S1LM05 has internal SM05 threads.

To operate and control the mounted laser diodes, please see our line of laser diode current controllers. If your application requires mounting a temperature-controlled laser diode into a lens tube setup, please see our lens-tube-compatible temperature-controlled laser diode mounts.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
S05LM38 Support Documentation
S05LM38SM05-Threaded Aluminum Mount for TO-38 Laser Diodes
$30.28
Today
S05LM46 Support Documentation
S05LM46SM05-Threaded Aluminum Mount for TO-46 Laser Diodes
$34.17
Today
S05LM56 Support Documentation
S05LM56SM05-Threaded Aluminum Mount for Ø5.6 mm Laser Diodes
$30.28
Today
S05LDM9 Support Documentation
S05LDM9SM05-Threaded Aluminum Mount for Ø9 mm Laser Diodes
$30.28
Today
S1LM38 Support Documentation
S1LM38SM1-Threaded Aluminum Mount for TO-38 Laser Diodes
$36.54
7-10 Days
S1LM46 Support Documentation
S1LM46SM1-Threaded Aluminum Mount for TO-46 Laser Diodes
$42.47
Today
S1LM56 Support Documentation
S1LM56SM1-Threaded Aluminum Mount for Ø5.6 mm Laser Diodes
$36.54
Today
S1LDM9 Support Documentation
S1LDM9SM1-Threaded Aluminum Mount for Ø9 mm Laser Diodes
$36.54
Today
S1LM05 Support Documentation
S1LM05Customer Inspired! SM1-Threaded Aluminum Mount for TO-5 Laser Diodes
$42.47
Today
Back to Top

Delrin® Lens Tube Mounts

SM-Threaded Laser Diode Mount Compatibility
Item # Laser Diode
Package
External
Mounting
Threads
Compatible
Spanner Wrenches
Mount Laser Diode
Retaining Ring
S05PLM38 TO-38 SM05
(0.535"-40)
SPW801 SPW801
S05PLM46 TO-46
S05PLM56 Ø5.6 mm
S05PLDM9 Ø9 mm
S1PLM38 TO-38 SM1
(1.035"-40)
SPW909
SPW801
S1PLM46 TO-46
S1PLM56 Ø5.6 mm
S1PLDM9 Ø9 mm
S1PLM05 TO-5

Thorlabs offers laser diode lens tube mounts fabricated from Delrin for mounting laser diodes in TO-38, TO-46, Ø5.6 mm, Ø9 mm, and TO-5 packages. Mounts are available with either SM05 (0.535"-40) or SM1 (1.035"-40) external threading. The Delrin material provides electrical insulation between the laser diode case and our aluminum lens tubes.

These laser diode mounts are designed such that the laser diode is aligned to the optical axis of the lens tube, enabling easy assembly of lens-tube-based setups. The laser diode can be directly inserted into the mount and held in place with the included black-anodized aluminum retaining ring (see the table to the right for details). The S1PLM05 comes with a Delrin retaining ring instead of the aluminum retaining ring included with the other Delrin mounts.

Our SPW801 Adjustable Spanner Wrench can be used to secure the laser diode into any of these mounts. Alternatively, the table to the right also lists the compatible fixed spanner wrench for each mount, if available. The mount and retaining ring should both be at room temperature before adjustment.

Each laser diode mount, other than the S1LM05, is equipped with internal 13/32"-40 threads that allow our ESD protection and strain relief cables to be attached. Instead of 13/32"-40 threads, the S1LM05 has internal SM05 threads.

To operate and control the mounted laser diodes, please see our line of laser diode current controllers. If your application requires mounting a temperature-controlled laser diode into a lens tube setup, please see our lens-tube-compatible temperature-controlled laser diode mounts. Please note that Delrin is an electrically and thermally insulating material. The maximum operating temperature for these mounts is 185 °F (85 °C).

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
S05PLM38 Support Documentation
S05PLM38Customer Inspired! SM05-Threaded Delrin Mount for TO-38 Laser Diodes
$30.28
Today
S05PLM46 Support Documentation
S05PLM46Customer Inspired! SM05-Threaded Delrin Mount for TO-46 Laser Diodes
$34.17
Today
S05PLM56 Support Documentation
S05PLM56Customer Inspired! SM05-Threaded Delrin Mount for Ø5.6 mm Laser Diodes
$30.28
Today
S05PLDM9 Support Documentation
S05PLDM9Customer Inspired! SM05-Threaded Delrin Mount for Ø9 mm Laser Diodes
$30.28
Today
S1PLM38 Support Documentation
S1PLM38Customer Inspired! SM1-Threaded Delrin Mount for TO-38 Laser Diodes
$36.54
Today
S1PLM46 Support Documentation
S1PLM46Customer Inspired! SM1-Threaded Delrin Mount for TO-46 Laser Diodes
$42.47
Today
S1PLM56 Support Documentation
S1PLM56Customer Inspired! SM1-Threaded Delrin Mount for Ø5.6 mm Laser Diodes
$36.54
Today
S1PLDM9 Support Documentation
S1PLDM9Customer Inspired! SM1-Threaded Delrin Mount for Ø9 mm Laser Diodes
$36.54
Today
S1PLM05 Support Documentation
S1PLM05Customer Inspired! SM1-Threaded Delrin Mount for TO-5 Laser Diodes
$42.47
7-10 Days
Back to Top

Cage Plate Mounts

CP1LD9 (left) and CP49 (right) Laser Diode Mounts, Each Shown Holding a Laser Diode and Mounted to a Ø1/2" Post

These cage plates provide precision mounting of the laser diode without the use of adapters, which ensures maximum centration for good beam quality and alignment to the cage system. They are fully compatible with our 30 mm cage system and can be mounted on Ø1/2" posts using the bottom-located 8-32 (M4) tapped hole. Four through holes on 30 mm centers accept Ø6 mm cage rods that can be secured by tightening M4 x 0.7 side-located locking setscrews [5/64" (2 mm) hex].

For the Ø5.6 mm and Ø9 mm laser diode cage plates, the distance between the laser diode and an adjacent cage plate can be precisely set using a 3/16"-100 adjuster (5/64" (2.0 mm) hex, Item # F19SS075). The laser diode is secured with a retaining ring that can be tightened using a spanner wrench. The Ø5.6 mm mount is compatible with our SPW801 spanner wrench only, while the Ø9 mm mount is compatible with the SPW301 and SPW801 spanner wrenches. To align the laser chip axis to the cage system, access ports on the front of the mount allow rotation of the laser diode using tweezers prior to fully threading the retaining ring (see photo to the right). After the laser diode is mounted, a strain relief cable can be screwed into the back of the cage plate for electrical connections.

The CP49 cage plate can be mounted directly onto any heat sink that is designed to accept TO-3 laser packages. Two #6 through holes allow the laser diode to be mounted to the plate. The mounting area is cut 1 mm oversized in all directions to allow adjustment of the laser for centration within the cage system. This cage plate is not compatible with our strain relief cables.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
CP1LD56 Support Documentation
CP1LD5630 mm Cage Plate Mount for Ø5.6 mm TO Can Laser Diodes
$56.43
Today
CP1LD9 Support Documentation
CP1LD930 mm Cage Plate Mount for Ø9 mm TO Can Laser Diodes
$56.43
Today
CP49 Support Documentation
CP4930 mm Cage Plate Mount for TO-3 Laser Diodes
$86.43
Today
+1 Qty Docs Part Number - Metric Price Available
CP1LD56/M Support Documentation
CP1LD56/M30 mm Cage Plate Mount for Ø5.6 mm TO Can Laser Diodes, Metric
$56.43
7-10 Days
CP1LD9/M Support Documentation
CP1LD9/M30 mm Cage Plate Mount for Ø9 mm TO Can Laser Diodes, Metric
$56.43
Today
