25 mm (0.98") Compact Motorized Translation Stage


  • 25 mm (0.98") of Travel in a Low-Profile Package
  • 8-32 (M4) and 4-40 (M3) Tapped Holes
  • Mounting Adapters for Breadboards, Multi-Axis Motion, and 60 mm Cage Systems

MTS25-Z8

25 mm Stage

MTS25B-Z8

XY Mounting Adapter

MTS25C-Z8

Right-Angle Bracket

MTSA1

Accessory Mounting Plate
1/4"-20 (M6) and 8-32 (M4) Taps

Two MTS25-Z8 Stages
in XY Configuration,
Using a MTS25B-Z8
Adapter Plate

Related Items


Please Wait
Key Specificationsa
Travel Range 25 mm (0.98")
Velocity (Max) 2.4 mm/s
Min Achievable Incremental Movementb 0.05 µm
Bidirectional Repeatabilityc 1.6 µm
Backlashd <6 µm
Horizontal Load Capacity (Max) 25 lbs (12 kg)
Vertical Load Capacity (Max) 10 lbs (4.5 kg)
Included Actuator Built-In DC Motor
Cable Length 500 mm (1.64 ft)
Required Controller KDC101
  • Please see the Specs tab for a complete specifications list.
  • The measured minimum incremental motion that the stage can achieve, also referred to as the minimum step size.
  • The average of the repeatability when a set position is approached from both directions.
  • When a stage is moved to a position and then returned to its original position, some motion is lost due to the lead screw mechanism. This loss is known as backlash.
Motorized Linear Translation Stages
12 mm Standard
25 mm Compact
Standard
TravelMax
50 mm Compact
Direct-Drive Servo
TravelMax
Long Travel: 100 mm to 300 mm

Features

  • 25 mm (0.98") Travel Range

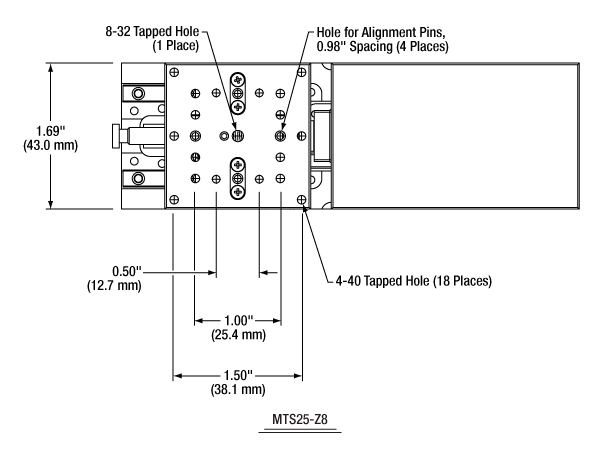

  • Carriage Contains One Centered 8-32 (M4) Tap and Eighteen 4-40 (M3) Taps
  • Low-Profile Package Combines Actuator and Moving Platform
  • DC Servo Motor Actuator
  • Several Mounting Adapters Available
    • Base Plate for Breadboard Mounting
    • Mounting Adapter Plate for Standard Optical Accessories, Provides Seven 1/4"-20 (M6) and Six 8-32 (M4) Tapped Holes
    • XY Mounting Adapter
    • Right-Angle Bracket for Vertical Mounting
    • Adapter for 60 mm Cage Systems

Thorlabs' MTS25-Z8 (MTS25/M-Z8) Motorized Translation Stage provides 25 mm (0.98") of electronically controlled linear travel along a well-defined axis. Each stage is equipped with a 1.50" x 1.50" (37.5 mm x 37.5 mm) tapped hole matrix that includes eighteen 4-40 (M3) taps and a centered 8-32 (M4) tap. By integrating the moving platform with the actuator, the overall package size is greatly reduced relative to standard motorized stages like the PT1-Z8 Motorized Stage.

The moving platform contains holes for alignment pins that ensure orthogonality when the stage is stacked with other stages or connected to our accessories. Horizontal loads of 25 lbs (12 kg) and vertical loads of 10 lbs (4.5 kg) are supported by the 67.49:1 planetary gear head. A built-in Hall Effect encoder provides a resolution of 29 nm (see the Specs tab for additional details).

The translation mechanism, based upon a dual set of linear rails with continuously recirculating ball bearings, provides smooth, low-friction movement. Built-in limit switches prevent travel outside of the intended range, regardless of the control interface being used.

Mounting Adapters and Stage Combinations
Thorlabs' adapter plates and brackets provide a convenient way to mount the MTS25-Z8 on an optical table or breadboard; to install a motor along the optical axis of our 60 mm cage systems; and to allow several stages to be combined in XY, XZ, or XYZ configurations. A multi-hole adapter plate is also available that offers seven 1/4"-20 (M6) and six 8-32 (M4) tapped holes, providing more options when mounting standard optical accessories to the top platform. Our MTS50-Z8 50 mm (1.97") Motorized Translation Stage can be also be combined with the MTS25-Z8 in certain arrangements. All of these options are described in greater detail below.

Controller Options
The KDC101 DC Servo Motor Controller and a 15 V power supply, sold separately below, are required to operate these stages. Alternatively, we offer the KMTS25E(/M) bundle, which includes the MTS25(/M)-Z8 translation stage, the KDC101 DC Servo controller, and a KPS101* power supply at a significant savings over ordering these items separately.

The KDC101 provides control for a single axis, with or without a PC. It is bundled with Thorlabs' Kinesis® software, which supplies out-of-the-box stage control from a PC and enables support for common programming interfaces like LabVIEW and LabWindows. A USB cable is included with the KDC101.

Thorlabs also manufactures the PT1-Z8 Motorized Translation Stage, which features a larger mounting surface for even more flexibility.

*This previous-generation item is not available for individual purchase. If a replacement is needed, the KPS201 Power Supply can be used.

Motor Specifications
Motor Type DC Servo
Nominal Voltage 6 V
No Load Speed 6560 rpm
No Load Current 7.43 mA
Nominal Speed 1050 rpm
Nominal Torque (Maximum Continuous Torque) 1.26 mN•m
Nominal Current (Maximum Continuous Current) 0.156 A
Stall Torque 1.54 mN•m
Starting Current  0.184 A
Maximum Efficiency 65%
Terminal Resistance 32.7 Ω
Terminal Inductance 0.607 mH
Torque Constant 8.38 mN•m/A
Speed Constant 1140 rpm/V
Speed / Torque Gradient 4450 rpm/mN•m
Mechanical Time Constant 13.9 ms
Rotor Inertia 0.298 g•cm2
Feedback Hall Effect Encoder
Stage Specifications
Translation
Travel Range 25 mm (0.98")
Bidirectional Repeatabilitya 1.6 µm
Backlashb <6 µm
Min Achievable Incremental Movementc 0.05 µm
Min Repeatable Incremental Movementd 0.8 µm
Home Location Accuracy ±4.0 µm
Absolute On-Axis Accuracy 145 µm
Percentage Accuracy (Max) 0.3%
Resolution 29 nm (See Calculation Below)
Motion Parameters
Velocity (Max) 2.4 mm/s
Velocity Stability ±0.25 mm/s
Acceleration (Max) 4.5 mm/s2
Load Capacity
Vertical Load Recommended:e <4.0 kg (<8.8 lbs)
Max: 4.5 kg (10 lbs)
Horizontal Load Recommended:e <10 kg (<22 lbs)
Max: 12 kg (25 lbs)
Straightness
Pitch <0.04° (<698 µrad)
Yaw <0.05° (<872 µrad)
Physical
Dimensions 5.31" x 1.69" x 0.87"
(134.9 mm x 42.9 mm x 22.1 mm)
Weight 0.31 kg (0.68 lb)
Cable Length 0.5 m (1.6 ft)
  • The average of the repeatability when a set position is approached from both directions.
  • When a stage is moved to a position and then returned to its original position, some motion is lost due to the lead screw mechanism. This loss is known as backlash.
  • The measured minimum incremental motion that the stage can achieve, also referred to as the minimum step size.
  • The minimum incremental motion that the stage can repeatedly achieve within its standard error.
  • Under continuous use.



Resolution Calculation

For the MTS25-Z8 (MTS25/M-Z8), there are 512 encoder counts per revolution of the motor. The output shaft of the motor goes into a 67.49:1 planetary gear head. This requires the motor to rotate 67.49 times to rotate the 1.0 mm pitch lead screw one revolution. The end result is the lead screw advances by 1.0 mm.

The linear displacement of the actuator per encoder count is given by

512 x 67.49 = 34,555 encoder counts per revolution of the lead screw,

whereas the linear displacement of the lead screw per encoder count is given by

1.0 mm / 34,555 counts = 2.9 x 10-5 mm (29 nm).

Motor Connector

D-Type Male

DB15 Male

Pin Description Pin Description
1 Ground/Return 9 Ident
2 Forward Limit Switch 10 Vcc
3 Reverse Limit Switch 11 Encoder A
4 Reserved for Future Use 12 Reserved for Future Use
5 Motor - 13 Encoder B
6 Reserved for Future Use 14 Reserved for Future Use
7 Motor + 15 Reserved for Future Use
8 Reserved for Future Use

Thorlabs offers two platforms to drive our wide range of motion controllers: our Kinesis® software package or the legacy APT™ (Advanced Positioning Technology) software package. Either package can be used to control devices in the Kinesis family, which covers a wide range of motion controllers ranging from small, low-powered, single-channel drivers (such as the K-Cubes™ and T-Cubes™) to high-power, multi-channel, modular 19" rack nanopositioning systems (the APT Rack System).

The Kinesis Software features .NET controls which can be used by 3rd party developers working in the latest C#, Visual Basic, LabVIEW™, or any .NET compatible languages to create custom applications. Low-level DLL libraries are included for applications not expected to use the .NET framework. A Central Sequence Manager supports integration and synchronization of all Thorlabs motion control hardware.

Kinesis Software
Kinesis GUI Screen
APT Software
APT GUI Screen

Our legacy APT System Software platform offers ActiveX-based controls which can be used by 3rd party developers working on C#, Visual Basic, LabVIEW™, or any Active-X compatible languages to create custom applications and includes a simulator mode to assist in developing custom applications without requiring hardware.

By providing these common software platforms, Thorlabs has ensured that users can easily mix and match any of the Kinesis and APT controllers in a single application, while only having to learn a single set of software tools. In this way, it is perfectly feasible to combine any of the controllers from single-axis to multi-axis systems and control all from a single, PC-based unified software interface.

The software packages allow two methods of usage: graphical user interface (GUI) utilities for direct interaction with and control of the controllers 'out of the box', and a set of programming interfaces that allow custom-integrated positioning and alignment solutions to be easily programmed in the development language of choice.

A range of video tutorials is available to help explain our APT system software. These tutorials provide an overview of the software and the APT Config utility. Additionally, a tutorial video is available to explain how to select simulator mode within the software, which allows the user to experiment with the software without a controller connected. Please select the APT Tutorials tab above to view these videos.

Software

Kinesis Version 1.14.47

The Kinesis Software Package, which includes a GUI for control of Thorlabs' Kinesis and APT™ system controllers.

Also Available:

  • Communications Protocol
Software Download

Software

APT Version 3.21.6

The APT Software Package, which includes a GUI for control of Thorlabs' APT™ and Kinesis system controllers.

Also Available:

  • Communications Protocol
Software Download

The APT video tutorials available here fall into two main groups - one group covers using the supplied APT utilities and the second group covers programming the APT System using a selection of different programming environments.

Disclaimer: The videos below were originally produced in Adobe Flash. Following the discontinuation of Flash after 2020, these tutorials were re-recorded for future use. The Flash Player controls still appear in the bottom of each video, but they are not functional.

Every APT controller is supplied with the utilities APTUser and APTConfig. APTUser provides a quick and easy way of interacting with the APT control hardware using intuitive graphical control panels. APTConfig is an 'off-line' utility that allows various system wide settings to be made such as pre-selecting mechanical stage types and associating them with specific motion controllers.

APT User Utility

The first video below gives an overview of using the APTUser Utility. The OptoDriver single channel controller products can be operated via their front panel controls in the absence of a control PC. The stored settings relating to the operation of these front panel controls can be changed using the APTUser utility. The second video illustrates this process.

APT User - Overview
APT User - OptoDriver Settings


APT Config Utility

There are various APT system-wide settings that can be made using the APT Config utility, including setting up a simulated hardware configuration and associating mechanical stages with specific motor drive channels. The first video presents a brief overview of the APT Config application. More details on creating a simulated hardware configuration and making stage associations are present in the next two videos.

APT Config - Overview
APT Config - Simulator Setup
APT Config - Stage Association


APT Programming

The APT Software System is implemented as a collection of ActiveX Controls. ActiveX Controls are language-independant software modules that provide both a graphical user interface and a programming interface. There is an ActiveX Control type for each type of hardware unit, e.g. a Motor ActiveX Control covers operation with any type of APT motor controller (DC or stepper). Many Windows software development environments and languages directly support ActiveX Controls, and, once such a Control is embedded into a custom application, all of the functionality it contains is immediately available to the application for automated operation. The videos below illustrate the basics of using the APT ActiveX Controls with LabVIEW, Visual Basic, and Visual C++. Note that many other languages support ActiveX including LabWindows CVI, C++ Builder, VB.NET, C#.NET, Office VBA, Matlab, HPVEE etc. Although these environments are not covered specifically by the tutorial videos, many of the ideas shown will still be relevant to using these other languages.

Visual Basic

Part 1 illustrates how to get an APT ActiveX Control running within Visual Basic, and Part 2 goes on to show how to program a custom positioning sequence.

APT Programming Using Visual Basic - Part 1
APT Programming Using Visual Basic - Part 2


LabVIEW

Full Active support is provided by LabVIEW and the series of tutorial videos below illustrate the basic building blocks in creating a custom APT motion control sequence. We start by showing how to call up the Thorlabs-supplied online help during software development. Part 2 illustrates how to create an APT ActiveX Control. ActiveX Controls provide both Methods (i.e. Functions) and Properties (i.e. Value Settings). Parts 3 and 4 show how to create and wire up both the methods and properties exposed by an ActiveX Control. Finally, in Part 5, we pull everything together and show a completed LabVIEW example program that demonstrates a custom move sequence.

APT Programming Using LabVIEW -
Part 1: Accessing Online Help
APT Programming Using LabVIEW -
Part 2: Creating an ActiveX Control
APT Programming Using LabVIEW -
Part 3: Create an ActiveX Method
APT Programming Using LabVIEW -
Part 4: Create an ActiveX Property
APT Programming Using LabVIEW -
Part 5: How to Start an ActiveX Control


The following tutorial videos illustrate alternative ways of creating Method and Property nodes:

APT Programming Using LabVIEW -
Create an ActiveX Method (Alternative)
APT Programming Using LabVIEW -
Create an ActiveX Property (Alternative)


Visual C++

Part 1 illustrates how to get an APT ActiveX Control running within Visual C++, and Part 2 goes on to show how to program a custom positioning sequence.

APT Programming with Visual C++ - Part 1
APT Programming with Visual C++ - Part 2


MATLAB

For assistance when using MATLAB and ActiveX controls with the Thorlabs APT positioners, click here.

To further assist programmers, a guide to programming the APT software in LabVIEW is also available here.


Posted Comments:
Gülçin Ş. Aşkın  (posted 2024-01-29 21:37:32.657)
Hello. I have two MTS25/M-Z8. One of them shows "Motor overcurrent" error in Home command. (Error code: 35002). Please let me know what can I check to resolve this issue. Best regards
spolineni  (posted 2024-02-02 07:55:08.0)
Thank you for reaching out to us. Regarding the issue you’re experiencing, it could be due to a variety of factors, typically something that impedes the movement of the stage. I will reach out to you directly to assist in troubleshooting and aim to resolve this issue.
Dale Lossing  (posted 2023-01-24 15:38:10.853)
We have several test benches with these linear stages and utilize Kinesis s/w to control them. On one of our set ups, the following occurs: Upon opening the Kinesis, it state "Loading to HID controllers" and there is a long pause then it does connect and works fine. This is only happening on 1 of 4 setups. Separate computers on each. We updated the Kinesis s/w yesterday, no change.
JReeder  (posted 2023-01-25 11:08:42.0)
Thanks for your enquiry. The message 'Loading to HID Controllers' indicates that on that computer you have a Joystick or similar Human Interface Device connected which can be used to control the stage through our Kinesis software. This message indicates that it is loading the device into Kinesis so that you can use it. The message does not indicate an issue with the stages, controllers or software.
user  (posted 2022-10-06 19:30:43.83)
Hi I purchased MTS25-z8/M before 5 years, and It still work well. However, the moving stage oscillate much when it is moving. Is there any way to reduce this oscillation? Thank you for your reading.
cwright  (posted 2022-10-06 11:54:04.0)
Response from Charles at Thorlabs: Thank you for your query. There could be a few potential causes, such as wear to the lead screw or rails, should it have been used while lacking in grease, or the lead screw could have been bent by an impact. I will reach out to who to help with troubleshooting this.
Pedro Garcia  (posted 2022-08-23 18:49:40.567)
Regards, Thorlabs team: I'm interested in the calibration file of the KDC101 K-Cube DC Servo Motor Controller, also I´ve experience some trouble trying to upgrade the software and firmware for this controller, there is some tutorial or instructions page? so I can corroborate that steps I've been follow are the proper method to this upgrade Beforehand, I´m thankfull for your response
DJayasuriya  (posted 2022-08-24 07:09:53.0)
Thank you for your inquiry. Unfortuantely we do not have a guide, however we have reached out to you with how to update your firmware.
Jisoo Kyoung  (posted 2021-10-27 22:20:44.793)
Dear Thorlabs, Hi, I am interested in your KMTS25E/M. I would like to control the KMTS25E/M by Python code. Is it possible to use Python instead of Kinesis Software? If you have any example code, please send me. Thanks.
Jean-Baptiste Le Bouquin  (posted 2020-09-12 04:44:12.79)
Hello, what is the operational ambiant temperature for the MTS25/M-Z8. We consider a use case in a telescope where ambiant temperature can vary from 5degC to 20degC. Thanks.
DJayasuriya  (posted 2020-09-14 09:21:43.0)
Thank you for inquiry. The unit would be functional within the temperature range 5 deg C to 40 deg C. Please note that if the unit has been stored at a low temperature or in an environment of high humidity, it must be allowed to reach ambient conditions before being powered up. Hope this helps.
Jean-Baptiste Le Bouquin  (posted 2019-10-14 14:31:05.527)
Hi, How is it possible to control the KMTS25E with a Linux computer ? Ideally we need to control the translation stage with a serial communication. Thanks, Jean-Baptiste
rmiron  (posted 2019-10-15 06:17:42.0)
Response from Radu at Thorlabs: Hello, Jean-Baptiste. That is possible. You will need to refer to the serial protocol's documentation, which can be found here: https://www.thorlabs.com/Software/Motion%20Control/APT_Communications_Protocol.pdf If have an RS-232 port on your PC, you can simply connect to the KDC101 controller via an RS-232 to USB cable. If not, you can set the relevant USB port as a virtual communications port. In order to do so, access DeviceManager, identify "APT USB Device" under "Universal Serial Bus controllers", right-click on it, go to Properties\Advanced and tick "Load VCP". If you now power-cycle the device, you should see a new port appear under "Ports". Having done this, you should set the port settings as described on page 29 of the documentation. The device to real unit conversion ratios can be found on page 35. On pages 8-9 you can find the list of serial commands that you can send to your controller. If you require further assistance, please contact your local technical support team, who will gladly help.
dale.durand  (posted 2016-11-30 15:25:52.397)
I am using an MTS25-Z8 linear stage and TDC001 controller from LabView. It is working and I can command the stage to absolute positions. Where can I get descriptions of the move parameters; fMinVel, fAccn, and fMaxVel? It seems fMaxVel is the maximum velocity in mm per second. Why is there a minimum velocity? Are the units for fAccn mm/sec^2? Thank you, Dale Durand
bhallewell  (posted 2016-12-07 04:42:13.0)
Response from Ben at Thorlabs: When using APT, these parameters are set for real world units, in your case mm/sec & mm/sec^2. A description of these parameters can be found in the Motor Control Methods section of the APTServer help file & copied here. These are limited by the values we spec in the stage manual & on the website. fMinVel - the minimum velocity at which to start and end a move (which we define as 0 in all cases). fAccn - the rate at which the velocity climbs from minimum to maximum slows from maximum to minimum. fMaxVel - the maximum velocity at which to perform a move. For Kinesis, this depends upon which method was used to set the velocity parameters of your device setup. In the .NET_API help file, we reference SetMoveRelativeDistance_DeviceUnit & SetMoveRelativeDistance, which enables the user to set velocities based on device encoder units (as defined in our communication protocol) & real world units respectively.
stone4  (posted 2015-01-12 11:24:13.407)
The TDC001 single cube PS has a plug on the bottom side. There is no reference to this in the manual. Can you provide details as to the function and use of this port? Also, how far can the TDC001 and Control computer be spaced? Can the system use a USB - RJ45 ethernet bride to position them farther than a powered USB extender? Thanks for your help. Cheers G Stone - stone4@llnl.gov
msoulby  (posted 2015-01-13 11:14:22.0)
Response from Mike at Thorlabs: The port on the bottom of the TDC001 is for when it is used with our TCH002 T-cube control hub. Up to six cube can all be powered on the hub without the need for additional USB or power cables. If using the T-cube as a standalone item then we would recommend not using a USB cable that is any longer than a couple of meters to avoid any communication problems with the PC. However if you do need to extend the cable then we would recommend using a powered USB hub to do this.
dodge.charger.r.t.69  (posted 2014-03-04 21:46:15.517)
I am controlling a MTS25/M-Z8E stage via LabView and noticed the reverse movement specified by a displacement of say 10um from 2000um overshoots the desired mark(1990um) by a random value (say 50um thus reaching 1940um)and then the stage travels forward again to the 1990um mark. How can i rectify it? Solution would be of really great help. Thanks
msoulby  (posted 2014-03-06 10:05:39.0)
Response from Mike at Thorlabs: This extra movement is caused by the backlash correction setting; this backlash correction is designed to make sure that all positions are approached from one direction which has the effect of improving the overall repeatability of the stage. The default correction amount for the MTS25/M-Z8E is 0.050mm (50um) which matches the effect you are observing. To remove backlash correction you can simply set this setting to ZERO in either the APT user settings or by calling the ActiveX method SetBLashDist.
twizypivo89  (posted 2014-01-08 21:52:36.917)
I am planning to purchase a MTS25/M-Z8 stage and to know if the product would be suitable for me, I would like to know the minimum achievable speed of movement of the stage (linear speed of the stage). Thanks.
msoulby  (posted 2014-01-09 06:16:06.0)
Response from Mike at Thorlabs: The minimum velocity value you can enter for the MTS50-Z8 is limited by the APT software code, so the smallest value you can enter and still get movement is the minimum velocity, which is about 40um/s. Also at these velocities the velocity may not be as stable as at higher velocities and the motion be jumpy and not smooth. If you need high resolution sub-micron positioning you would get better results using a piezo actuated stage or a direct drive linear stage such as the DDS220/M.
hadi.abidin  (posted 2013-04-22 12:40:00.75)
How will this linear stage perform when mounted vertically under low vacuum(100mbar). Can you provide a quotation for a vacuum version of this stage
tcohen  (posted 2013-04-25 11:09:00.0)
Response from Tim at Thorlabs: The stage itself should be fine for this low vacuum. The motor, however, would likely require adding vacuum compatible greases. We will contact you with a quotation.
jlow  (posted 2012-12-27 11:11:38.363)
Response from Jeremy at Thorlabs: It could be that the velocity and acceleration settings are set too low. I will get in contact with you directly to discuss about this.
ggjmlee  (posted 2012-12-26 18:54:28.867)
I bought two MTS25/M-Z8s' with controllers. When I bought them, they moved fast. But moving speed of them has slowed down now. Could you let me know any possible causes and how to solve this problem? I like to move the stage faster as when I bought them. Thanks
tcohen  (posted 2012-06-13 09:16:00.0)
Response from Tim at Thorlabs: Thank you for your feedback! I will contact you directly to discuss your measurements and operating conditions to determine the performance of your stage and provide support.
aboudreault  (posted 2012-06-07 15:30:53.0)
Hello, recently we have bought two motorized stages, a MTS25 and a MTS50. The MTS25 respect the spec for bidirectional repeatability and home location accuracy but the MTS50 is less good. Instead to have bidirectional of 1.6um it is more like 5 or 6um and the home location accuracy is around 25um. Do you have an idea why my MTS50 is less good.
bdada  (posted 2011-07-18 12:07:00.0)
Response from Buki at Thorlabs: Our motion control products use APT software, which use ActiveX control for various programming environments such as LabVIEW. We have some tutorials online available to help you get started. You can find them at: http://www.thorlabs.de/images/TabImages/GuideToLabVIEWandAPT.pdf http://www.thorlabs.de/tutorials/Intro.cfm You can also download the APT software package at http://www.thorlabs.de/software_pages/ViewSoftwarePage.cfm?Code=APT and run it in simulation mode to get familiar with the software. Please contact TechSupport@thorlabs.com if you have further questions
luis.ferreira  (posted 2011-07-15 17:12:58.0)
Is it possible to provide LabView Drivers for these translators ?
bdada  (posted 2011-04-26 12:00:00.0)
Response from Buki at Thorlabs: Thank you for your feedback. A position error of 3mm is much higher than normal. We will contact you directly to get your serial number. In the meantime, please check that you have set up the APT config programme to the correct stage type.
sema  (posted 2011-04-26 05:33:37.0)
I am using the MTS25 with a t-cube controller. For a 10 mm step entered in the software, I get approx. 7 mm actual translation. Can that be corrected with a calibration file? If so, can I do the calibraiton myself, or where do I get such a file?

Motorized Linear Translation Stages

Thorlabs' motorized linear translation stages are offered in a range of maximum travel distances, from a stage with 20 µm of piezo translation to our 600 mm direct drive stage. Many of these stages can be assembled in multi-axis configurations, providing XY or XYZ translation. For fiber coupling applications, please see our multi-axis stages, which offer finer adjustment than our standard motorized translation stages. In addition to motorized linear translation stages, we offer motorized rotation stages and goniometers. We also offer manual translation stages.

Piezo Stages

These stages incorporate piezoelectric elements in a variety of drive mechanisms. ORIC® stages incorporate piezo inertia drives that use "stick-slip" friction properties to obtain extended travel ranges. Our Nanoflex™ translation stages use standard piezo chips along with manual actuators. Elliptec® stages use resonant piezo motors to push and pull the moving platform through resonant elliptical motion. Our LPS710E z-axis stage features a mechanically amplified piezo design and includes a matched controller.

Piezoelectric Stages
Product Family ORIC®
PD2 Open-Loop
5 mm Stage
ORIC®
PDX2 Closed-Loop
5 mm Stage
ORIC®
PD1 Open-Loop
20 mm Stage
ORIC®
PD1D Open-Loop
20 mm
Monolithic XY Stage
ORIC®
PDX1 Closed-Loop
20 mm Stage
ORIC®
PD3 Open-Loop
50 mm Stage
Click Photo
to Enlarge
Travel 5 mm 20 mm 50 mm
Maximum Velocity 10 mm/sa 8 mm/s (Typ.)b 3 mm/sc 20 mm/sb 10 mm/sa
Drive Type Piezoelectric Inertia Drive
Possible Axis Configurations X, XY, XYZ X, XY, XYZ XY, XYZ X, XY, XYZ X, XY, XYZ
Mounting
Surface Size
13 mm x 13 mm 30 mm x 30 mm 80 mm x 30 mm
Additional Details
  • Specified using PDXC and PDXC2 Benchtop Controllers. For performance when controlled with a KIM001 or KIM101 K-Cube Controller, see the Specs tab of the PD2 or PD3 stage presentation.
  • Specified using PDXC and PDXC2 Benchtop Controllers.
  • Specified using KIM101 K-Cube Controller.
Piezoelectric Stages
Product Family Nanoflex™
20 µm Stage
with 5 mm Actuator
Nanoflex™
25 µm Stage
with 1.5 mm Actuator
Elliptec® 28 mm Stage Elliptec® 60 mm Stage LPS710E 1.1 mm Vertical Stage
Click Photo
to Enlarge
Travel 20 µm + 5 mm Manual 25 µm + 1.5 mm Manual 28 mm 60.0 mm 1.1 mm
Maximum Velocity - 180 mm/s 90 mm/s -
Drive Type Piezo with Manual Actuator Resonant Piezoelectric Motor Amplified Piezo
Possible Axis Configurations X, XY, XYZ X Z
Mounting Surface Size 75 mm x 75 mm 30 mm x 30 mm 15 mm x 15 mm 21 mm x 21 mm
Additional Details

Stepper Motor Stages

These translation stages feature removable or integrated stepper motors and long travel ranges up to 300 mm. Many of these stages either have integrated multi-axis capability (PLSXY) or can be assembled into multi-axis configurations (PLSX, LNR Series, NRT Series, and LTS Series stages). The MLJ150 stage also offers high load capacity vertical translation.

Stepper Motor Stages
Product Family PLSX with and without PLST(/M) Top Plate
1" Stage
PLSXY with and without PLST(/M) Top Plate
1" Stage
LNR Series
25 mm Stage
LNR Series
50 mm Stage
Click Photo
to Enlarge
Travel 1" 25 mm 50 mm
Maximum Velocity 7.0 mm/s 2.0 mm/s 50 mm/s
Possible Axis
Configurations
X, XY X, XY, XYZ X, XY, XYZ
Mounting
Surface Size
3" x 3" 60 mm x 60 mm 100 mm x 100 mm
Additional Details

Stepper Motor Stages
Product Family NRT Series
100 mm Stage
NRT Series
150 mm Stage
LTS Series
150 mm Stage
LTS Series
300 mm Stage
MLJ250
50 mm Vertical Stage
Click Photo
to Enlarge
Travel 100 mm 150 mm 150 mm 300 mm 50 mm
Maximum Velocity 30 mm/s 50 mm/s 3.0 mm/s
Possible Axis
Configurations
X, XY, XYZ X, XY, XYZ Z
Mounting
Surface Size
84 mm x 84 mm 100 mm x 90 mm 148 mm x 131 mm
Additional Details

DC Servo Motor Stages

Thorlabs offers linear translation stages with removable or integrated DC servo motors. These stages feature low profiles and many can be assembled in multi-axis configurations.

DC Servo Motor Stages
Product Family MT Series
12 mm Stages
PT Series
25 mm Stages
MTS Series
25 mm Stage
MTS Series
50 mm Stage
Click Photo
to Enlarge
Travel 12 mm 25 mm 25 mm 50 mm
Maximum Velocity 2.6 mm/s 2.4 mm/s
Possible Axis Configurations X, XY, XYZ X, XY, XYZ
Mounting
Surface Size
61 mm x 61 mm 101.6 mm x 76.2 mm 43 mm x 43 mm
Additional Details
DC Servo Motor Stages
Product Family M30 Series
30 mm Stage
M30 Series
30 mm Monolithic
XY Stage
M150 Series
150 mm XY Stage
KVS30
30 mm Vertical Stage
Click Photo
to Enlarge
Travel 30 mm 150 mm 30 mm
Maximum Velocity 2.4 mm/s X-Axis: 170 mm/s
Y-Axis: 230 mm/s
8.0 mm/s
Possible Axis Configurations X, Z XY, XZ XY Z
Mounting
Surface Size
115 mm x 115 mm 272.4 mm x 272.4 mm  116.2 mm x 116.2 mm
Additional Details

Direct Drive Stages

These low-profile stages feature integrated brushless DC servo motors for high speed translation with zero backlash. When no power is applied, the platforms of these stages have very little inertia and are virtually free running. Hence these stages may not be suitable for applications where the stage's platform needs to remain in a set position when the power is off. We do not recommend mounting these stages vertically.

Direct Drive Stages
Product Family DDS Series
50 mm Stage
DDS Series
100 mm Stage
DDS Series
220 mm Stage
DDS Series
300 mm Stage
DDS Series
600 mm Stage
Click Photo
to Enlarge
Travel 50 mm 100 mm 220 mm 300 mm 600 mm
Maximum Velocity 500 mm/s 300 mm/s 400 mm/s 400 mm/s
Possible Axis Configurations X, XY X, XY X X
Mounting Surface Size 60 mm x 52 mm 88 mm x 88 mm 120 mm x 120 mm
Additional Details
Back to Top

25 mm (0.98") Low-Profile Motorized Translation Stage

MTS25/M-Z8 DrawingClick for Details
Schematic of Metric Version
MTS25-Z8 DrawingClick for Details
Schematic of Imperial Version
  • Built-In 25 mm (0.98") DC Servo Actuator
  • Includes One 8-32 (M4) and Eighteen 4-40 (M3) Tapped Holes
  • Bundles Available with KDC101 Controller and KPS101* Power Supply

Thorlabs' MTS25-Z8 (MTS25/M-Z8) Motorized Translation Stage provides linear motion in one dimension. One centered 8-32 (M4) tapped hole and eighteen 4-40 (M3) tapped holes allow small optomechanics to be directly mounted to the moving platform. Based upon a dual set of linear rails with continuously recirculating ball bearings, the translation mechanism provides smooth, low-friction movement.

The stage requires a standalone controller unit and power supply. For this purpose, we recommend our KDC101 K-Cube™ Motor Controller and Power Supply, which are described in more detail below. For convenience, we offer a stage, KDC101 DC Servo controller, and KPS101* power supply in a bundle at a significant savings over purchasing these items individually. The power supply you receive will be compatible with outlets in your region. Please contact Tech Support prior to ordering if you require a different plug.

The motor cable that is built into the stage is 0.5 m (1.64 ft) long. If more length is required for your application, we recommend our PAA632 Extension Cable, which provides an additional 2.5 m (8.20 ft).

*This previous-generation item is not available for individual purchase. If a replacement is needed, the KPS201 Power Supply can be used.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
MTS25-Z8 Support Documentation
MTS25-Z825 mm (0.98") Motorized Translation Stage, 8-32 and 4-40 Taps
$1,100.03
Today
KMTS25E Support Documentation
KMTS25E25 mm (0.98") Motorized Translation Stage Bundled with Controller and Power Supply, 8-32 and 4-40 Taps
$1,689.55
Today
+1 Qty Docs Part Number - Metric Price Available
MTS25/M-Z8 Support Documentation
MTS25/M-Z825 mm (0.98") Motorized Translation Stage, M4 and M3 Taps
$1,100.03
7-10 Days
KMTS25E/M Support Documentation
KMTS25E/M25 mm (0.98") Motorized Translation Stage Bundled with Controller and Power Supply, M4 and M3 Taps
$1,689.55
Today
Back to Top

Base Plate for Breadboards and Optical Tables

MTS25A-Z8 Base PlateClick to Enlarge
MTS25-Z8 Attached to Breadboard Using MTS25A-Z8 Base Plate
  • Mount an MTS25-Z8 Stage to a Breadboard or Optical Table
  • Contains Four 1/4" (M6) Counterbored Slots for Imperial and Metric Compatibility
  • Includes All Necessary Mounting Hardware and Alignment Pins for Parallelism

The MTS25A-Z8 Base Plate contains four 1/4" (M6) counterbored slots that allow an attached MTS25-Z8 (MTS25/M-Z8) to be positioned on a breadboard, as shown in the photo to the right. The bottom of the translation stage is connected to the base plate using four 4-40 or M3 cap screws. Two alignment pins ensure that the translation axis is parallel to the length of the plate.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
MTS25A-Z8 Support Documentation
MTS25A-Z8Base Plate for MTS25 Series Translation Stages
$79.29
7-10 Days
Back to Top

Accessory Mounting Plate

MTSA1 ApplicationClick to Enlarge
View Imperial Product List
Item #QtyDescription
Imperial Product List
MTS25A-Z81Base Plate for MTS25 Series Translation Stages
MTS25-Z8125 mm (0.98") Motorized Translation Stage, 8-32 and 4-40 Taps
MTSA11Adapter Plate with 1/4"-20 and 8-32 Tapped Holes for MTS25 and MTS50 Stages
View Metric Product List
Item #QtyDescription
Metric Product List
MTS25A-Z81Base Plate for MTS25 Series Translation Stages
MTS25/M-Z8125 mm (0.98") Motorized Translation Stage, M4 and M3 Taps
MTSA1/M1Adapter Plate with M6 and M4 Tapped Holes for MTS25 and MTS50 Stages
MTSA1 Adapter Plate Attached to
MTS25-Z8 Stage
  • Mount Standard Optical Accessories
  • Contains Seven 1/4"-20 (M6) and Six 8-32 (M4) Mounting Holes
  • Includes All Necessary Mounting Hardware

The MTSA1(/M) adapter plate fixes to the top platform of the MTS25 stages via the through holes in each corner and 4 screws (supplied). It has an array of seven 1/4"-20 (M6) and six 8-32 (M4) mounting holes to offer increased mounting options when used with general-purpose accessories and components. The working height of the stage with an adapter plate and base plate fitted is 1.4" (35.5 mm). The plate is finished in a black, low reflective anodized coating.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
MTSA1 Support Documentation
MTSA1Customer Inspired! Adapter Plate with 1/4"-20 and 8-32 Tapped Holes for MTS25 and MTS50 Stages
$51.98
Today
+1 Qty Docs Part Number - Metric Price Available
MTSA1/M Support Documentation
MTSA1/MCustomer Inspired! Adapter Plate with M6 and M4 Tapped Holes for MTS25 and MTS50 Stages
$51.98
Today
Back to Top

XY Mounting Adapter

MTS25B-Z8 XY Adapter PlateClick to Enlarge
Two MTS25-Z8 Stages Stacked in an XY Configuration Using an MTS25B-Z8 Adapter
  • Stack Two MTS25-Z8 Stages in an XY Configuration
  • Includes All Necessary Mounting Hardware and Alignment Pins for Orthogonality

The MTS25B-Z8 XY Adapter Plate is designed to orient two MTS25-Z8 (MTS25/M-Z8) stages orthogonally in the XY plane, as shown in the photo to the right. This plate may also be used to stack our 50 mm (1.97") MTS50-Z8 stage with a 25 mm (0.98") MTS25-Z8 stage, but the MTS50-Z8 must be on the bottom.

To begin the assembly process, fasten the plate to the top of the lower stage using four of the provided 4-40 or M3 cap screws. Then insert the provided alignment pins. To complete the assembly, use the remaining 4-40 or M3 cap screws to fasten the plate to the bottom of the upper stage.

In order to mount an MTS25-Z8 stage in the vertical plane, please see the MTS25C-Z8 Right-Angle Bracket shown below.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
MTS25B-Z8 Support Documentation
MTS25B-Z8XY Adapter Plate for MTS25 Series Translation Stages
$50.80
Today
Back to Top

Right-Angle Bracket

MTS25C-Z8 Right-Angle BracketClick to Enlarge
Two MTS25-Z8 Stages Stacked in an XZ Configuration Using an MTS25C-Z8 Right-Angle Bracket
  • Vertically Mount an MTS25-Z8 Translation Stage
  • Designed for XZ or XYZ Configurations
  • Includes All Necessary Mounting Hardware and Alignment Pins for Orthogonality

The MTS25C-Z8 Right-Angle Bracket orients an MTS25-Z8 (MTS25/M-Z8) stage along the vertical axis. It is needed when configuring multiple MTS25-Z8 stages into XZ or XYZ arrangements. This bracket may also be used to stack our 50 mm (1.97") MTS50-Z8 stage with a 25 mm (0.98") MTS25-Z8 stage, but the vertical stage must be an MTS25-Z8.

To create the XZ configuration shown to the right, insert two of the provided alignment pins into the horizontal stage. Then fasten the bracket to the top of the horizontal stage using four of the provided 4-40 or M3 cap screws. Next, insert the two remaining alignment pins into the vertical mounting surface. Finally, attach the bracket to the vertical stage with the remaining cap screws.

For XYZ configurations, follow the steps in the previous paragraph, but attach the stage and bracket to an existing XY configuration instead.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
MTS25C-Z8 Support Documentation
MTS25C-Z8Right-Angle Bracket for MTS25 Series Translation Stages
$109.00
Today
Back to Top

MTS25-Z8 Adapter for 60 mm Cage Systems

MTS25CSA 60 mm Cage AdapterClick to Enlarge
View Imperial Product List
Item #QtyDescription
Imperial Product List
LCP08260 mm Cage Plate, SM2 Threads, Enhanced Clamping, 0.5" Thick, 8-32 Tap (One SM2RR Retaining Ring Included)
ER8-P41Cage Assembly Rod, 8" Long, Ø6 mm, 4 Pack
MTS25CSA160 mm Cage System Adapter for MTS25 Series Translation Stages
MTS25-Z8125 mm (0.98") Motorized Translation Stage, 8-32 and 4-40 Taps
TR62Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 6"
View Metric Product List
Item #QtyDescription
Metric Product List
LCP08/M260 mm Cage Plate, SM2 Threads, Enhanced Clamping, 0.5" Thick, M4 Tap (One SM2RR Retaining Ring Included)
ER8-P41Cage Assembly Rod, 8" Long, Ø6 mm, 4 Pack
MTS25CSA160 mm Cage System Adapter for MTS25 Series Translation Stages
MTS25/M-Z8125 mm (0.98") Motorized Translation Stage, M4 and M3 Taps
TR150/M2Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 150 mm
MTS25-Z8 Mounted in a 60 mm Cage System
  • Mount an MTS25-Z8 Translation Stage in a 60 mm Cage System
  • Installation Does Not Require Cage System to be Disassembled
  • Includes All Necessary Mounting Hardware and Alignment Pins for Parallelism

The MTS25CSA Adapter Plate orients an MTS25-Z8 (MTS25/M-Z8) stage parallel to the optical axis in a 60 mm cage system. This allows optics within the cage to be translated over a 25 mm (0.98") range. Approximately 6.25" (159 mm) of cage rod length is needed to mount the stage. An example of the MTS25CSA in use is shown to the right.

To install, insert the two provided alignment pins into the bottom of the stage. Then fasten the adapter to the stage using the four provided 4-40 or M3 cap screws. At this point, the assembly can be inserted through the cage rods in an existing setup. Finally, tighten the two nylon-tipped setscrews against the rods.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
MTS25CSA Support Documentation
MTS25CSA60 mm Cage System Adapter for MTS25 Series Translation Stages
$56.43
Today
Back to Top

K-Cube™ DC Servo Motor Controller

photo of power supply adaptersClick to Enlarge
KCH601 USB Controller Hub (Sold Separately) with Installed K-Cube and T-Cube™ Modules (T-Cubes Require the KAP101 Adapter)
  • Front Panel Velocity Wheel and Digital Display for Controlling Motorized Stages or Actuators
  • Two Bidirectional Trigger Ports to Read or Control External Equipment
  • Interfaces with Computer Using Included USB Cable
  • Fully Compatible with Kinesis® or APT™ Software Packages
  • Compact Footprint: 60.0 mm x 60.0 mm x 49.2 mm (2.42" x 2.42" x 1.94")
  • Power Supply Not Included (See Below)

Thorlabs' KDC101 K-Cube Brushed DC Motor Controller provides local and computerized control of a single motor axis. It features a top-mounted control panel with a velocity wheel that supports four-speed bidirectional control with forward and reverse jogging as well as position presets. A backlit digital display is also included that can have the backlit dimmed or turned off using the top-panel menu options. The front of the unit contains two bidirectional trigger ports that can be used to read a 5 V external logic signal or output a 5 V logic signal to control external equipment. Each port can be independently configured.

The unit is fully compatible with our new Kinesis software package and our legacy APT control software. Please see the Motion Control Software tab for more information.

Please note that this controller does not ship with a power supply. Compatible power supplies are listed below. Additional information can be found on the main KDC101 DC Servo Motor Controller page.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
KDC101 Support Documentation
KDC101K-Cube Brushed DC Servo Motor Controller (Power Supply Not Included)
$772.66
Today
Back to Top

Compatible Power Supplies

photo of power supply adapters
Click for Details

Each KPS201 power supply includes one region-specific adapter, which can be selected upon checkout.
photo of power supply options
Click to Enlarge

The KPS201 Power Supply Unit
  • Individual Power Supply
    • KPS201: For K-Cubes™ or T-Cubes™ with 3.5 mm Jacks
  • USB Controller Hubs Provide Power and Communications
    • KCH301: For up to Three K-Cubes or T-Cubes
    • KCH601: For up to Six K-Cubes or T-Cubes

The KPS201 power supply outputs +15 VDC at up to 2.66 A and can power a single K-Cube or T-Cube with a 3.5 mm jack. It plugs into a standard wall outlet.

The KCH301 and KCH601 USB Controller Hubs each consist of two parts: the hub, which can support up to three (KCH301) or six (KCH601) K-Cubes or T-Cubes, and a power supply that plugs into a standard wall outlet. The hub draws a maximum current of 10 A; please verify that the cubes being used do not require a total current of more than 10 A. In addition, the hub provides USB connectivity to any docked K-Cube or T-Cube through a single USB connection.

For more information on the USB Controller Hubs, see the full web presentation.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
KPS201 Support Documentation
KPS20115 V, 2.66 A Power Supply Unit with 3.5 mm Jack Connector for One K- or T-Cube
$40.33
Today
KCH301 Support Documentation
KCH301USB Controller Hub and Power Supply for Three K-Cubes or T-Cubes
$598.63
Today
KCH601 Support Documentation
KCH601USB Controller Hub and Power Supply for Six K-Cubes or T-Cubes
$724.52
Today
Back to Top

Motor Extension Cable

The PAA632 Extension Cable provides an additional 2.5 m (8.20 ft) of cable length for the 15-pin D-type connectors used throughout our motorized actuator selection. The male end connects to the controller, while the female end connects to the motor.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PAA632 Support Documentation
PAA632APT DC Servo Motor Cable for Z9 Motors, DE15 Male to DE15 Female, 2.5 m
$65.93
Today
