FiberBench Polarization Modules


  • Polarization Optics Modules Designed for FiberBench Systems
  • Interchangeable Modules Maintain Optical Axis Height
  • Polarizers Available for Visible through Mid-IR

LPR-1550

Linear Polarization
Reference Module

FBR-LPVIS

Rotating Linear
Polarizer Module

PBB-VIS-10-L

Beam Displacer Module

Application Idea

Variable Optical Attenuator Constructed Within a FiberBench System (See Applications Tab)

Related Items


Please Wait

Download a FiberBench Assembly File

Thorlabs offers several polarization modules that can be used with our FiberBenches. Each module has two dowel pins on its base that precisely align it on a FiberBench. The Rotating Linear Polarizer Modules are made from nanoparticle film polarizers held in FBR Rotation Mounts that allow the user to easily adjust the State of Polarization (SOP) and are ideal for use in the 500 nm - 5.0 µm wavelength range. The Linear Polarization Reference Module is ideal for use in PM fiber alignment, polarimetry, and extinction ratio measurements. The left-/right-handed Beam Displacer Modules consist of an AR-coated Calcite crystal on a static mounting base. They are designed to displace the horizontal polarization for a variety of wavelength ranges. For more information or custom requests, please contact Tech Support.

Fiber Polarization Management Selection Guide
Polarization Controllers Linear Polarizers

Paddle Operated Rotatable Fiber Squeezer Free-Space FiberBench In-Line Package Polarizing Fiber Free-Space FiberBench Modules
FiberBench Accessories
FiberPorts Optic Mounts Alignment Tools Polarizers
Beamsplitter Modules Mirror Modules Rotating Wave Plates FiberBenches

Rotating Linear Polarizer Modules

Item # Wavelength Transmission Extinction Ratioa Damage Threshold Alignment Accuracy
FBR-LPVIS 500 - 720 nm >65% >40 dB (10 000:1) 1 W/cm(Continuous Block)
5 W/cm2 (Continuous Pass)
±3° (Typical)
FBR-LPNIR 650 - 2000 nm >76% >30 dB (1 000:1) 1 W/cm(Continuous Block)
5 W/cm2 (Continuous Pass)
750 - 1800 nm >80% >40 dB (10 000:1)
850 - 1600 nm >82% >50 dB (100 000:1)
FBR-LPMIR 1.5 - 5.0 µm >35% >30 dB (1 000:1) 10 W/cm(Continuous Block)
25 W/cm2 (Continuous Pass)
2.0 - 4.5 µm >65% >40 dB (10 000:1)

Linear Polarization Reference Module

Item # Wavelength Transmission Extinction Ratioa
LPR-1550 1500 - 1600 nm >98% >40 dB

Calcite Beam Displacer Modules

Item # Wavelength Transmission Extinction Ratioa
PBB-VIS-10-L 620 - 690 nm >96% >50 dB
PBB-VIS-10-R 620 - 690 nm >96% >50 dB
PBB-NIR-10-L 770 - 870 nm >97% >50 dB
PBB-NIR-10-R 770 - 870 nm >97% >50 dB
PBB-YAG-10-L 970 - 1080 nm >97% >50 dB
PBB-YAG-10-R 970 - 1080 nm >97% >50 dB
PBB-IR-10-L 1280 - 1625 nm >97% >50 dB
PBB-IR-10-R 1280 - 1625 nm >97% >50 dB
  • The extinction ratio (ER) is the ratio of maximum to minimum transmission of a sufficiently linearly polarized input. When the transmission axis and input polarization are parallel, the transmission is at its maximum; rotate the polarizer by 90° for minimum transmission. These polarizers maintain an extinction ratio of at least 1000:1 over the full operating bandwidth.
Variable Optical Attenuator
Click to Enlarge
Variable Optical Attenuator
Item #a Qty Description
FB-51W 1 Single-Axis FiberBench
HCA3 2 FiberBench Wall Plate
- 2 FiberPort Collimator/Coupler
- 1 Calcite Beam Displacer (Left-Handed)b
- 1 Calcite Beam Displacer (Right-Handed)b
- 1 Rotating Half-Wave Plate
- 2 SM or PM Fiber Patch Cable
  • Please select individual components suitable for your application.
  • Our beam displacers (sold below) are available with AR coatings for various wavelength regions.

Variable Optical Attenuator Application

A continuously variable attenuator can be assembled using the FiberBench components listed in the table to the right. Since a variety of AR coatings and connectors are available, we recommend selecting individual components suited to your application.

The FiberPort collimates the beam from a SM or PM fiber, and the collimated beam then goes through a calcite beam displacer (walk-off polarizer) where it is split into its respective horizontal (P) and vertical (S) components. The orientation of the wave plate controls how much energy is in the beam. It can be rotated to give the desired attenuation - zero, partial, or full. The signal then enters a reversed beam displacer where it will be recombined or further separated. The only energy that will couple back into the output fiber is the signal on the central axis. The central beam will then be focused into the output fiber by the output FiberPort.

Zero Attenuation
Click to Enlarge

The half-wave plate is rotated so that there is only one output beam; this also means that the input and output polarizations are the same.
Partial Attenuation
Click to Enlarge

The half-wave plate is rotated so that there are three output beams. Its orientation will control how much energy is in each beam. The only energy that will couple into the fiber is the energy in the central beam. The attenuation range is 1 to 40 dB with any value in-between.
Full Attenuation
Click to Enlarge

The half-wave plate is rotated so that there are two output beams, which will be displaced to the left and to the right of the center. In this position, there will be minimal coupling efficiency, resulting in a maximum attenuation of 40 dB.


Click to Enlarge

Polarization Beamsplitter

Polarization Splitter

A polarization splitter can be assembled using the components listed in the table below. Since a variety of AR coatings, connectors, and configurations are available, we recommend selecting individual components suited to your application.

The offset (pickoff) mirror is positioned such that it will intersect the displaced beam from the preceding calcite beam displacer (walk-off polarizer) and reflect it by 90°. This combination simplifies the alignment of complex systems by decoupling the reflected beam from the transmitted beam, thus allowing for the independent adjustment of the reflected beam path. Alignment is critical when aligning systems with a walk-off/pickoff combination as clipping can occur if the beam is too large or not centered.

Item #a Qty Description
FT-51X60 1 Multi-Axis FiberBench
HCA3 2b FiberBench Wall Plate
- 2b FiberPort Collimator/Couplerc
- 1 Calcite Beam Displacer Module
FBT-P01 1 Adjustable Offset Mirror Module
- 2b SM or PM Fiber Patch Cable
  • Please select individual components suitable for your application.
  • One to three wall plates, FiberPorts, and patch cables can be used depending on the application.
  • A FiberPort with an output beam waist diameter of <1 mm is recommended for the non-displaced beam to pass between the two offset mirrors.

Click to Enlarge

Diagram of Polarization Splitter Using
Beam Displacer (Right) and Offset Mirror (Left)

Posted Comments:
user  (posted 2013-06-25 14:59:10.19)
How can I clean the PCB-2.5-1550 polarizer without damaging it?
jlow  (posted 2013-06-25 12:35:00.0)
Response from Jeremy at Thorlabs: Dust and other loose contaminants can be usually be blown off using canned air. We also have an optic cleaning tutorial available at http://www.thorlabs.com/tutorials.cfm?tabID=26066 that details other cleaning methods as well.
jjurado  (posted 2011-03-31 17:57:00.0)
Response from Javier at Thorlabs to Benjamin: Thank you for contacting us. The fiber bench components are attached to the bench through a slip fit of the dowel pins into the mounting holes. The diameter of the dowel pins is 0.125" and the mounting hole diameter is 0.126" (+0.001"/-0.000"), which provides a tight fit between these mating parts. As a result, our fiber tables provide a stable support for polarizer modules and a variety of other optical components, and is also suitable for interferometry applications.
benju  (posted 2011-03-31 14:46:38.0)
How are items fastened/secured to the fiber table? Do they just slot in? Does that provide sufficient stability for interferometry applications? Thanks, Benjamin

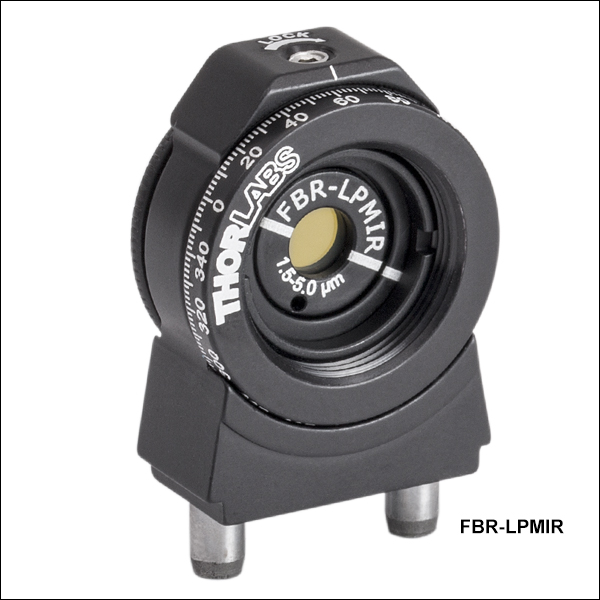

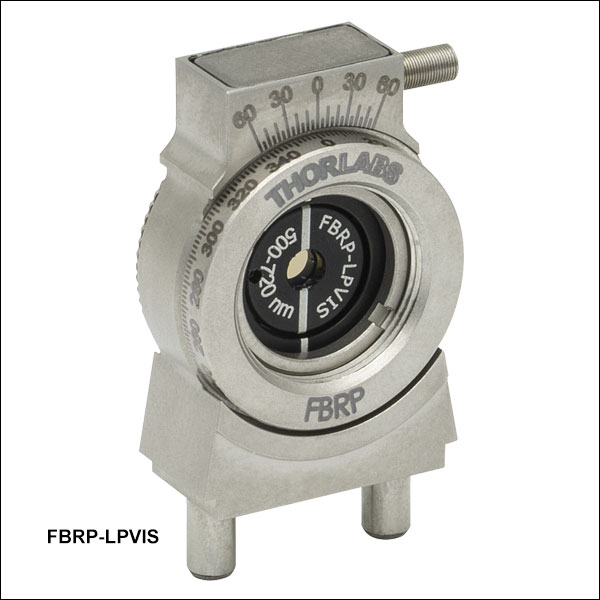

Rotating Linear Polarizer Modules

Applications
  • Create a Variable Beamsplitter when used in conjunction with Thorlabs' Beam Displacer Modules.
  • Useful for monitoring polarization, especially in applications where the polarization could shift over time (e.g., due to changes in temperature) because the user can rotate the polarizer to compensate for the shift.
  • Polarization Extinction Ratio Measurements
  • Polarimetry
  • Nanoparticle Film Polarizers
  • >10 000:1 Extinction Ratio
  • 360° Continuous Rotation
  • Engraved Scale with 2° Increments
  • Ø2.5 mm Clear Aperture for FBR-LPVIS and FBR-LPNIR
  • Ø4.0 mm Clear Aperture for FBR-LPMIR

Thorlabs' FiberBench Rotating Linear Polarizer Modules utilize a thin layer of sodium-silicate polarizer mounted in FBR Rotation Mounts. These modules absorb light that is not aligned to the transmission axis of the polarizer and are designed for the 500 - 720 nm, 650 - 2000 nm, or 1.5 - 5.0 µm wavelength range. These polarizers provide an excellent extinction ratio of >10,000:1 over most of their specified wavelength range (see Specs tab for details).

The mount for these polarizers features a rotating cell with a knurled edge and a 360° laser-engraved scale marked at 2° increments for precise, repeatable positioning and fine angular adjustment. A convenient top-located setscrew (0.050" hex) secures the rotational position of the stage. The transmission axis is marked by the engraved line on the front of the polarizer cells. The FBR mount can be coupled with an FBA post-mountable adapter for use in other applications.

The mount is SM05 threaded and the removable polarizer cell is held in the mount with an SM05 retaining ring for holding Ø1/2" optics (SM05RR). The polarizer cells in these modules are also compatible with other Ø1/2" optic mounts. When replacing a polarizer in the mount, be sure to align the engraving on the polarizer with the 0° engraving on the scale. Please note that the thin film in these polarizers is very delicate and should not be touched.

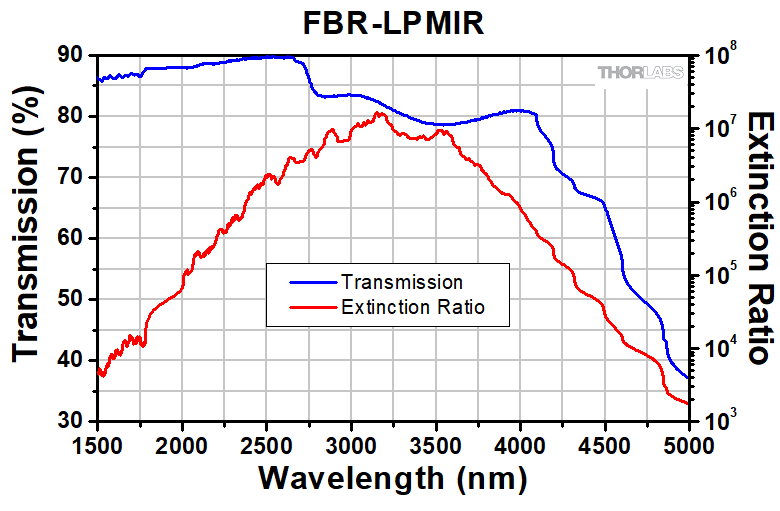

LPMIR Data
Click to Enlarge

(Transmission Data Includes Fresnel Reflections)
LPNIR Data
Click to Enlarge

(Transmission Data Includes Fresnel Reflections)

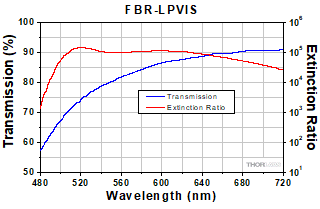

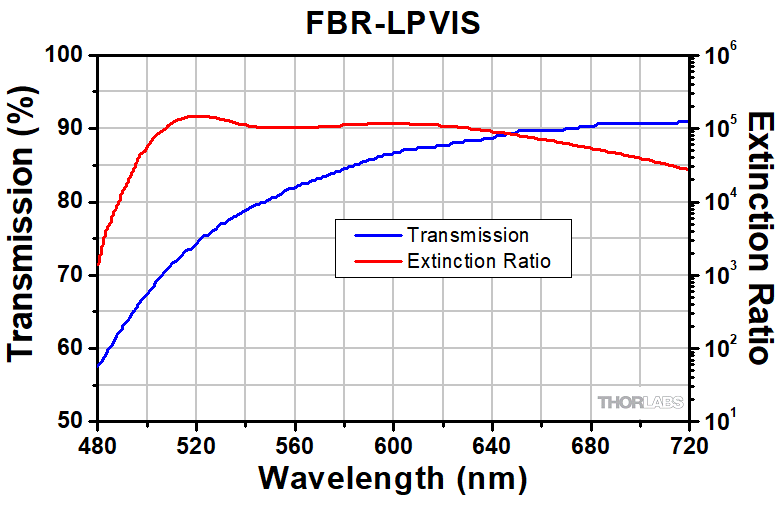

LPVIS Data
Click to Enlarge

(Transmission Data Includes Fresnel Reflections)
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
FBR-LPVIS Support Documentation
FBR-LPVISRotating Linear Polarizer Module, 500 - 720 nm, Ø2.5 mm CA
$192.26
Today
FBR-LPNIR Support Documentation
FBR-LPNIRRotating Linear Polarizer Module, 650 - 2000 nm, Ø2.5 mm CA
$192.26
Today
FBR-LPMIR Support Documentation
FBR-LPMIRRotating Linear Polarizer Module, 1.5 - 5.0 µm, Ø4.0 mm CA
$308.88
Today

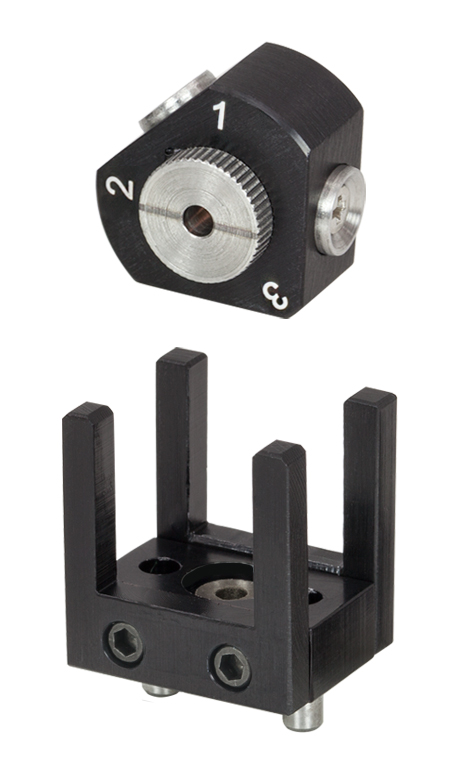

Linear Polarization Reference Module


Click for Details

Four Available Orientations (Fourth orientation not shown)
Applications
  • Polarization Extinction Ratio Measurements
  • Polarimetry
  • PM Fiber Alignment
  • See the Applications Tab
  • Precision Linear Polarization Reference
  • 0°, 45°, 90°, and 135° Orientations
  • Angle Tolerance <30 arcmin
  • Highly Repeatable Positioning by Magnetic Contact
  • Wavelength Range: 1510 - 1590 nm

The Linear Polarization Reference Module consists of a Linear Polarizer held in a capture cage. The polarizer is set in the silver wheel on the front of the module, seen on the left, and can be rotated by adjusting the setscrew using a 0.035" hex key

To use the module, place the front of the module into the cage facing your source with the 1 located at the top. Rotate the front wheel so that it matches the polarization of your source, and tighten the setscrew using a 0.035" hex key, located on the face to the left of the 2. This corresponds to a 0° rotation with respect to the input polarization. From here, the module can be easily positioned to the 2, 3, or 4 settings, which correspond to a 90°, 45°, and 135° clockwise shift of the input polarization, respectively. Position 4 is achieved by flipping the module; the wheel on this side of the housing does not rotate the polarizer but can be adjusted for use as a reference.

Please note that this linear polarization reference module does not incorporate a quarter-wave plate. However, other wavelengths and units with an integrated quarter-wave plate (to function as a manual polarimeter) are available by request. Please contact Tech Support for details.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
LPR-1550 Support Documentation
LPR-1550Linear Polarizer Reference Module, 1510 - 1590 nm
$902.47
Today

Beam Displacer Modules

Applications
  • Create Multilevel Optical Systems
  • Use in Conjunction with Mirror Modules to Pick Off
    Displacement Beam in Custom Optical Systems
  • Variable Optical Attenuator
  • Polarization Splitter
  • See the Applications Tab
  • AR-Coated Calcite Polarizer
  • 100 000:1 Extinction Ratio
  • Broadband Operation
  • Clear Aperture: 6.0 mm x 3.5 mm
  • 500 W/cm2 Power Handling
  • Input Diameter: 1 mm (Max)
  • Beam Displacement: 1 mm
  • Surface Quality: 40-20 Scratch-Dig
  • Please See the Specs Tab for More Details

Each Beam Displacer Module consists of an AR-coated Calcite crystal mounted on a static base so that it can be inserted at the correct height into a FiberBench setup. It is primarily designed to displace the horizontal polarization state by 1 mm. The beam displacing polarizers listed below are designed for use in different wavelength ranges (Visible, NIR, YAG, or IR), offering both left- and right-handed orientations.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PBB-VIS-10-L Support Documentation
PBB-VIS-10-LBeam Displacer Module, AR Coating: 620-690 nm, Left-Handed
$219.58
Today
PBB-VIS-10-R Support Documentation
PBB-VIS-10-RBeam Displacer Module, AR Coating: 620-690 nm, Right-Handed
$219.58
Today
PBB-NIR-10-L Support Documentation
PBB-NIR-10-LBeam Displacer Module, AR Coating: 770-870 nm, Left-Handed
$219.58
5-8 Days
PBB-NIR-10-R Support Documentation
PBB-NIR-10-RBeam Displacer Module, AR Coating: 770-870 nm, Right-Handed
$219.58
5-8 Days
PBB-YAG-10-L Support Documentation
PBB-YAG-10-LBeam Displacer Module, AR Coating: 970-1080 nm, Left-Handed
$219.58
Today
PBB-YAG-10-R Support Documentation
PBB-YAG-10-RBeam Displacer Module, AR Coating: 970-1080 nm, Right-Handed
$219.58
Today
PBB-IR-10-L Support Documentation
PBB-IR-10-LBeam Displacer Module, AR Coating: 1280-1625 nm, Left-Handed
$219.58
Today
PBB-IR-10-R Support Documentation
PBB-IR-10-RBeam Displacer Module, AR Coating: 1280-1625 nm, Right-Handed
$219.58
Today
