Collimated LED Light Sources for Microscopy


  • UV, Visible, and IR LEDs
  • Mounted LED with Adjustable Collimation Optic
  • Compatible with Epi-Illumination Port on Olympus, Leica, Nikon,
    and Zeiss Microscopes

M625L4-C1

For Olympus
BX/IX Microscopes

M590L4-C5

For Nikon Eclipse
Microscopes

M405LP1-C2

For Leica DMI
Microscopes

M850L3-C4

For Zeiss Axioskop
Microscopes

M505L4-C1 Used
as a Light Source for
an Olympus IX71

Related Items


Please Wait

Features

  • Illumination Source for Microscope Epi-Illumination Ports, Projectors, and Custom Imaging Systems
  • Optimized Thermal Management Provides Output Intensity Stability
  • Adjustable Aspheric Collimation Optic with Low f/# (Approximately 0.8)
  • Integrated Identification Chip (EEPROM) Stores LED Operating Parameters
  • Higher Power LEDs Mounted to Larger Heat Sink with Ø57.0 mm Plastic Housing (See the Tables Below for Details)
  • 4-Pin Female Mating Connector for Custom Power Supplies can be Purchased Separately
  • Custom Adapters Available - Contact Tech Support for Details

Thorlabs' collimated LED assemblies can be easily connected to standard and epi-illumination ports on most readily available commercial microscopes, including OlympusLeica, Nikon, and Zeiss. Each collimated LED consists of a mounted LED and a lamphouse-port-compatible housing that contains an AR-coated aspheric collimation optic (see the Specs tab for details). If the wavelength or output power you require is not sold on this page, our mounted LEDs and Solis® High-Power LEDs are available in additional wavelengths and output powers.

Note: Please ensure your microscope is configured to directly accept an external light source. Some microscope assemblies have a permanently installed illuminator or may be otherwise incompatible with the LED light sources below.

The collimation of the beam can be adjusted by changing the position of the aspheric lens with respect to the LED. Interchanging LEDs is easy; simply unscrew one LED from the housing and replace it with a different mounted LED (sold separately). We also offer collimation packages, which can be purchased separately from these LEDs.

The approximate total beam power through the collimation adapter is given in the tables below and on the Specs tab. The actual power at the sample plane will be lower due to losses specific to the optical set up of the microscope. If you wish to measure the power at the sample plane for your particular microscope setup, Thorlabs also offers a microscope slide power meter sensor.

Like our mounted LEDs, the package of these collimated LEDs is in direct contact with the heat sink to provide excellent thermal management. This minimizes the degradation of optical output power caused by increased LED temperatures. Please see the Stability tab for information on the stable output intensity of these collimated LEDs. Additionally, our M365LP1, M385LP1, and M405LP1 LEDs feature a higher power output and are mounted to a larger Ø57.0 mm heat sink to increase heat dissipation and thermal stability.

For microscope applications requiring compatibility with SM1 (1.035"-40) threading, our mounted LEDs (sold separately) can be collimated using a Ø1" lens and lens tubes. This collimation method also allows for a smaller beam size than the collimators on this page. Please see the Collimation tab on our Mounted LEDs presentation for a detailed item list and instructions.

Driver Options
Thorlabs offers six drivers compatible with these LEDs: LEDD1B, UPLED, DC40, DC2200, DC4100, and DC4104 (the latter two require the DC4100-HUB). The UPLED, DC40, DC2200, DC4100, and DC4104 drivers are capable of reading the current limit from the EEPROM chip of the connected LED and automatically adjusting the maximum current setting to protect the LED. See the LED Drivers tab for specifications and comparison between the drivers.

Common LED Specificationsa

Legend
LED Mounted to a Heat Sink in a Ø57.0 mm Red Housing LED Mounted to a Heat Sink in a Ø30.5 mm Black Housing

The section of the housing that holds the collimation optics is the same size for all LEDs that share the same item # suffix, regardless of the size of the heat sink.

Item # Prefix Nominal
Wavelengthb,c
Colorb Min LED
Powerb,d
Typ. LED Powerb,d Max Drive
Current (CW)
Forward
Voltage (Typ.)
Irradiance
(Typical)d
Electrical
Power
Typical
Lifetime
Emitter
Size
M365L3e 365 nm UV 880 mW 1290 mW 1000 mA 3.85 V 14.4 µW/mm2 3.850 W >10 000 h 2.5 mm x 2.5 mm
M365LP1e,f 365 nm UV 1350 mW 2000 mW 1700 mA 4.0 V 21.0 µW/mm2 6.800 W >10 000 h 2.5 mm x 2.5 mm
M385L2e 385 nm UV 270 mW 430 mW 700 mA 4.3 V 11.8 µW/mm2 3.010 W >10 000 h 1 mm x 1 mm
M385L3e 385 nm UV 1240 mW 1780 mW 1000 mA 3.7 V 19.9 µW/mm2 3.700 W >10 000 h 2.5 mm x 2.5 mm
M385LP1e,f 385 nm UV 1650 mW 1830 mW 1700 mA 3.9 V 23.3 µW/mm2 6.630 W >10 000 h 1.4 mm x 1.4 mm
M405L4e 405 nm UV 1000 mW 1300 mW 1000 mA 3.4 V 14.53 µW/mm2 3.400 W > 1 000 h 1.4 mm x 1.4 mm
M405LP1e,f 405 nm UV 1500 mW 1700 mW 1400 mA 3.45 V 24.6 µW/mm2 4.830 W >10 000 h 1.4 mm x 1.4 mm
M455L4 455 nm Royal Blue 1150 mW 1445 mW 1000 mA 3.25 V 32 µW/mm2 1.900 W >100 000 h 1 mm x 1 mm
M470L5 470 nmg,h Blue 809 mWg,h 1161.7 mWg,h 1000 mAg 3.8 V 21.4g,h,i µW/mm2 3.820 Wg,h >100 000 hg 1 mm x 1 mm
M505L4 505 nm Cyan 400 mW 520 mW 1000 mA 3.5 V 5.94 µW/mm2 3.500 mW >100 000 h 1 mm x 1 mm
M530L4 530 nm Green 370 mW 480 mW 1000 mA 3.6 V 9.46 µW/mm2 3.600 W >100 000 h 1 mm x 1 mm
M590L4 590 nm Amber 230 mW 300 mW 1000 mA 2.5 V 6.0 µW/mm2 2.500 W >100 000 h 1 mm x 1 mm
M617L5 617 nm Orange 737.4 mWg,h 1006.2 mWg,h 1000 mAg 2.9 Vg,h 19.4 µW/mm2 g,h,i 2.915 Wg >100 000 hg 1 mm x 1 mm
M625L4 625 nm Red 700 mW 920 mW 1000 mA 2.5 V 21.9 µW/mm2 2.500 W 100 000 h 1 mm x 1 mm
M660L4 660 nm Deep Red 940 mW 1050 mW 1200 mA 2.6 V 20.88 µW/mm2 3.120 W >10 000 h 1.5 mm x 1.5 mm
M780L3 780 nm IR 200 mW 300 mW 800 mA 2.0 V 47.3 µW/mm2 1.600 W >10 000 h 1 mm x 1 mm
M850L3 850 nm IR 900 mW 1100 mW 1200 mA 2.95 V 22.9 µW/mm2 3.540 W 100 000 h 1 mm x 1 mm
M940L3 940 nm IR 800 mW 1000 mW 1000 mA 2.75 V 19.1 µW/mm2 2.750 W 100 000 h 1 mm x 1 mm
MCWHL8 N/Aj Cold White 1300.9 mWg,h 1882.0 mWg,h 1400 mAg 3.6 Vg,h 22.5 µW/mm2 g,h,i 5040 mWg >100 000 hg Ø3 mm
  • Specifications for the LEDs without collimating adapters are given in this table. Please see the second table on this tab for specifications pertaining to the LED with the collimating adapter attached.
  • Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual spectral output of any given LED will vary. Output plots and nominal wavelength specs are only intended to be used as a guideline.
  • For LEDs in the visible spectrum, the nominal wavelength indicates the wavelength at which the LED appears brightest to the human eye. For UV and IR LEDs, the nominal wavelength corresponds to the peak wavelength. The nominal wavelength for visible LEDs may not correspond to the peak wavelength as measured by a spectrograph.
  • For the bare LED. See the table below for total beam power with the collimation package.
  • Our 365 nm to 405 nm LEDs radiate intense UV light during operation. Precautions must be taken to prevent looking directly at the UV light and UV light protective glasses must be worn to avoid eye damage. Exposure of the skin and other body parts to the UV light should be avoided.
  • These LEDs have a higher output power (see tables below for total beam power) and are mounted to a Ø57.0 mm heat sink for increased heat dissipation.
  • Measured at 25 °C.
  • When driven with the maximum current.
  • Measured at a distance of 200 mm.
  • Correlated Color Temperature of 6500 K

Specifications for LED with Collimating Microscope Adapter Attached

Legend
LED Mounted to a Heat Sink in a Ø57.0 mm Red Housing LED Mounted to a Heat Sink in a Ø30.5 mm Black Housing

The section of the housing that holds the collimation optics is the same size for all LEDs that share the same item # suffix, regardless of the size of the heat sink.

Item # Suffix -C1 -C2 -C4 -C5
Compatible Microscopea Olympus BX and IX Leica DMI Zeiss Axioskop and Examinerb Nikon Eclipse (Bayonet Mount)
Beam Diameterc,d 50 mm 37 mm 44 mm 43 mm
Beam Areac 1960 mm² 1080 mm² 1520 mm² 1450 mm²
Item # Prefix Included Collimation Lens Total Beam Powerc,d
M365L3 ACL5040U-A 520 mW 320 mW 430 mW 320 mW
M365LP1 ACL5040U-A 745 mW 435 mW 615 mW 435 mW
M385L2 ACL5040U-A 170 mW 90 mW - 120 mW
M385L3 ACL5040U-A 680 mW 450 mW 570 mW 410 mW
M385LP1 ACL5040U-A 795 mW 520 mW 660 mW 630 mW
M405L4 ACL5040U-A 510 mW 310 mW 410 mW 380 mW
M405LP1 ACL5040U-A 750 mW 450 mW 580 mW 570 mW
M455L4 ACL5040U-A 630 mW 490 mW 690 mW 630 mW
M470L5 ACL5040U-A 487 mW 402 mW 521 mW 487 mW
M505L4 ACL5040U-A 220 mW 170 mW 240 mW 220 mW
M530L4 ACL5040U-A 200 mW 160 mW 220 mW 200 mW
M590L4 ACL5040U-A 130 mW 100 mW 140 mW 130 mW
M617L5 ACL5040U-A 484 mWe 362 mWe 474 mWe 441 mWe
M625L4 ACL5040U-A 630 mW 490 mW 690 mW 630 mW
M660L4 ACL5040U-A 590 mW 400 mW 570 mW 520 mW
M780L3 ACL5040U-B 210 mW 130 mW 180 mW 170 mW
M850L3 ACL5040U-B 480 mW 330 mW 400 mW 370 mW
M940L3 ACL5040U-B 430 mW 320 mW 380 mW 340 mW
MCWHL8 ACL5040U-A 658 mWf 419 mWf 596 mWf 549 mWf
  • Standard or Epi-Illumination Port Required.
  • These adapters are compatible with any Zeiss microscopes that use the same dovetail as the Zeiss Axioskop and Examiner microscopes.
  • Due to variations in the manufacturing process and operating parameters such as temperature and current, the total beam power, beam diameter, and beam area of any given LED will vary.
  • At the output aperture of the collimation package.
  • Measured at the Maximum Current
  • Measured at 25 °C

The actual spectral output and total output power of any given LED will vary due to variations in the manufacturing process and operating parameters, such as temperature and current. The typical total beam power of each collimated LED is specified to help you select an LED that suits your needs. In order to provide a point of comparison for the relative powers of LEDs with different nominal wavelengths, the spectra in the plots below have been scaled to the typical total beam power of each collimated LED. This data is representative, not absolute. An Excel file containing the normalized and scaled spectra for each collimation package can be downloaded using the link below each plot.

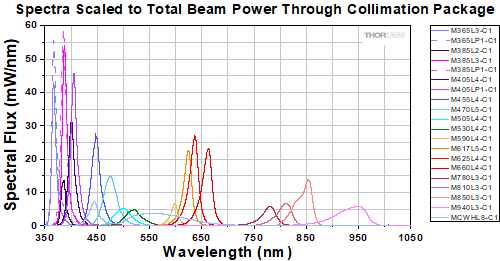

Collimated LEDs for Olympus BX and IX Microscopes

Olympus BX and IX Collimated LED
Click to Enlarge

An Excel file containing the data shown in the plot above may be found here.

Collimated LEDs for Leica DMI Microscopes

Leica DMI Collimated LED
Click to Enlarge

An Excel file containing the data shown in the plot above may be found here.

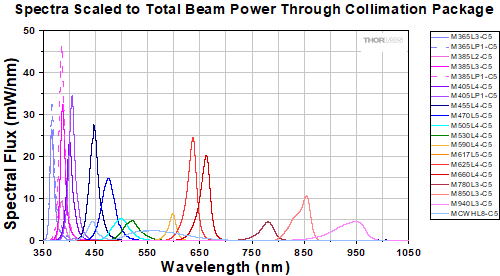

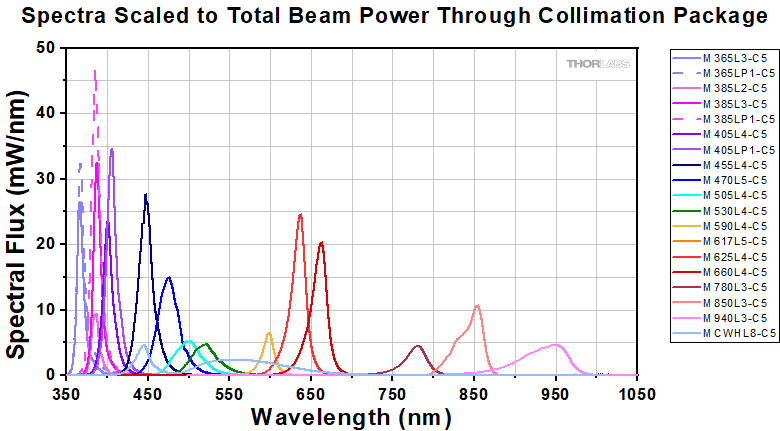

Collimated LEDs for Nikon Eclipse Microscopes

Nikon Eclipse Collimated LED
Click to Enlarge

An Excel file containing the data shown in the plot above may be found here.

Collimated LEDs for Zeiss Axioskop and Examiner Microscopes

Zeiss Axioskop Collimated LED
Click to Enlarge

An Excel file containing the data shown in the plot above may be found here.

LED Lifetime and Long-Term Power Stability

One characteristic of LEDs is that they naturally exhibit power degradation with time. Often this power degradation is slow, but there are also instances where large, rapid drops in power, or even complete LED failure, occur. LED lifetimes are defined as the time it takes a specified percentage of a type of LED to fall below some power level. The parameters for the lifetime measurement can be written using the notation BXX/LYY, where XX is the percentage of that type of LED that will provide less than YY percent of the specified output power after the lifetime has elapsed. Thorlabs defines the lifetime of our LEDs as B50/L50, meaning that 50% of the LEDs with a given Item # will fall below 50% of the initial optical power at the end of the specified lifetime. For example, if a batch of 100 LEDs is rated for 150 mW of output power, 50 of these LEDs can be expected to produce an output power of ≤75 mW after the specified LED lifetime has elapsed.

Optimized Thermal Management

The thermal dissipation performance of these collimated LEDs has been optimized for stable power output. The heat sink is directly mounted to the LED mount so as to provide optimal thermal contact. By doing so, the degradation of optical output power that can be attributed to increased LED junction temperature is minimized (see the graph to the right).

PinSpecificationColor
1LED AnodeBrown
2LED CathodeWhite
3EEPROM GNDBlack
4EEPROM IOBlue

Pin Out

Pin Connection - Male

The diagram to the right shows the male connector of the collimated LED assembly. It is a standard M8 x 1 sensor circular connector. Pins 1 and 2 are the connection to the LED. Pin 3 and 4 are used for the internal EEPROM in these LEDs. If using an LED driver that was not purchased from Thorlabs, be careful that the appropriate connections are made to Pin 1 and Pin 2 and that you do not attempt to drive the LED through the EEPROM pins.

To fully support the max optical power of the LED you intend to drive, ensure that the max voltage and max current of the driver are equal to or greater than those of the LED.

Compatible Drivers LEDD1B UPLEDa DC40a DC2200a DC4100a,b DC4104a,b
Click Photos to Enlarge LEDD1B Driver upLED Driver DC40 Driver DC2200 Driver DC4100 Driver DC4104 Driver
LED Driver Current Output (Max)c 1.2 A 1.2 A 4.0 Ad LED1 Terminal: 10.0 A
LED2 Terminal: 2.0 Ae
1.0 A per Channel 1.0 A per Channel
LED Driver Forward Voltage (Max)f 12 V 8 V 14.0 Vd 50 V 5 V 5 V
Modulation Frequency Using External Input (Max) 5 kHz - 5 kHz 250 kHzg,h 100 kHzh
(Simultaneous Across all Channels)
100 kHzh
(Independently Controlled Channels)
External Control Interface(s) Analog (BNC) USB 2.0 USB 2.0, TTL, and Analog (BNC) USB 2.0 and Analog (BNC) USB 2.0 and Analog (BNC) USB 2.0 and Analog (8-Pin)
Main Driver Features Very Compact Footprint
60 mm x 73 mm x 104 mm
(W x H x D)
USB-Controlled Driver Current Up to 4.0 A,
Manual and USB-Controlled
Touchscreen Interface with Internal and External Options for Pulsed and Modulated LED Operation 4 Channelsb 4 Channelsb
EEPROM Compatible: Reads Out LED Data for LED Settings - Yes Yes Yes Yes Yes
LCD Display - - - Yes Yes Yes
  • Automatically limits to LED's max current via EEPROM readout.
  • The DC4100 and DC4104 can power and control up to four LEDs simultaneously when used with the DC4100-HUB. The LEDs on this page all require the DC4100-HUB when used with the DC4100 or DC4104.
  • LEDs with maximum current ratings higher than the driver's maximum current output can be driven, but will not reach full power. See the Specs tab for the maximum current rating of each LED.
  • The DC40 LED Driver is designed to automatically select the appropriate current/voltage combination for the LED on this page. Please note that the maximum current and forward voltage are interdependent; the DC40 driver cannot drive an LED with a 14.0 V forward voltage at 4.0 A. Please see the full web presentation for more information.
  • The collimated LEDs sold below are compatible with the LED2 Terminal.
  • LEDs with forward voltage greater than the driver's maximum forward voltage cannot be driven. See the Specs tab for the forward voltage specification of each LED.
  • Small Signal Bandwidth: Modulation not exceeding 20% of full scale current. The driver accepts other waveforms, but the maximum frequency will be reduced.
  • The MCWHL8-C LEDs may not turn off completely when modulated at frequencies above 5 kHz, as the white light is produced by optically stimulating emission from phosphor.
