Products Home / Electrical and Shielding Tools and Supplies / Cables and Cords / High-Speed USB 2.0 and 3.0 Cables and USB Power CablesHigh-Speed USB 2.0 and 3.0 Cables and USB Power Cables
- USB 3.0 Type-A to Micro-B
- USB 2.0 Type-A to Mini-B or Type-B
- USB 2.0 Extension Cables
USB-A-79
USB 2.0 Type-A Male to
Type-B Male
USB-C-72
USB 2.0 Type-A Male to
Type-A Female
USB-AB-72
USB 2.0 Type-A Male to
Type Mini-B Male
CABU31
USB 3.0 Type-A Male to
Type Micro-B Male
Please Wait
All the cables sold by Thorlabs with a USB 3.0 or 2.0 compatible connector are displayed on this page. We also offer a USB 3.0 PCIe card.
The links in the table below will take you to web pages containing our other varieties of electrical cables.
| Electrical Cables Selection Guide | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BNC | SMA | Premium Microwave Cables | SMB | SMC | SHV | MMCX | 6-Pin HIROSE | USB | Banana Patch Cords | Piezo | Stepper & DC Servo | Detector Power Cable |
| Posted Comments: | |
Adarsha D
(posted 2020-11-25 01:38:02.707) Hi,
We would like to buy two numbers, can you please check and let us know the stock availability
Adarsh
________________________________
R&D, BTL India Pvt Ltd
1st Floor Delta, Sigma Soft Tech Park,
Whitefield, Bangalore 560066 India
mobile +91 8147827123
www.btlnet.com, www.medictech.com YLohia
(posted 2020-11-25 01:43:37.0) Hello, quotes for stock items can be requested by emailing our Sales Team (sales@thorlabs.com) or by adding the items to your cart and clicking on the "Request a Quote" button. Sean Leavey
(posted 2020-09-30 10:21:04.823) It would be nice if there were right-angled connector USB cables available. Some of our lab equipment (like a beam CCD camera) has to fit into tight locations and being able to fit a lower profile right-angled cable on the side of such devices would be useful. YLohia
(posted 2020-10-01 03:48:31.0) Hello, thank you for your feedback. We will consider adding such cables to our catalog in the future. Laurie
(posted 2009-02-25 08:13:23.0) Response from Laurie at Thorlabs to ghernandex: Thanks a lot for your interest in our products. The spec sheet for this item can be found via the following link: http://www.thorlabs.com/Thorcat/16300/16349-S01.pdf. Someone from our technical support staff will be contacting you, as we are not exactly sure what you mean by "the conductors color." ghernandez
(posted 2009-02-23 11:44:41.0) Hello,
i need more information about your product usb-c-72, i need to know what are the conductors color , if you have and specification sheet that will help
thanks
griselle |
Zoom
Click to Enlarge

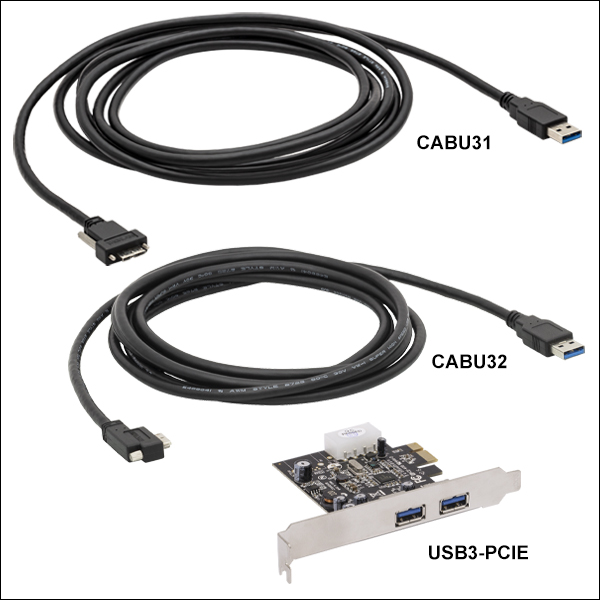

CABU31 Straight Cable
Click to Enlarge
CABU32 Right-Angle Cable
- Super Speed USB 3.0 Type-A to Micro-B Cables
- Straight or Right-Angle Micro-B Connector
- Super Speed USB 3.0 PCIe Card with Maximum Data Transfer Rate of 5 Gbps
- Both Compatible with our USB 3.0 Scientific Cameras
The CABU31 and CABU32 cables are USB 3.0 Type-A to Micro-B cables that support USB 3.2 Gen1 5 Gbps data rates and measure 118" (3 m) long. The CABU31 cable has a straight Micro-B connector that features screws on either side that mate with tapped holes for securing the connector to the device. The CABU32 cable has a right-angle Micro-B connector with a single locking screw, as shown in the photo the right. These cables can be used as drop-in replacements for the cable included with our USB 3.0 scientific cameras.
The USB3-PCIE USB 3.0 PCI Express card is also provided for computers that do not natively offer USB 3.0 ports or require additional USB 3.0 ports. The card has two Type-A USB 3.0 ports, is equipped with a standard profile bracket, and includes a low-profile bracket for installation in small form-factor computers.
Zoom
- USB 2.0 Type-A Connector to Mini-B Connector
- USB-AB-72 Cable Compatible with DXM Series of Ultrafast Photodetectors
- USB-ABL-60 Cable with Locking Screw Compatible with PM101, PM102, and PM103 Series of Power Meters
These durable USB 2.0 cables feature a Type-A male connector on one end and a Mini-B male connector on the other. This allows any device with a USB Mini B port to be connected to a computer with a USB port. The USB-ABL-60 cable also features an M2.5 locking screw to prevent accidental disconnects on compatible ports, like those featured on our PM101, PM102, and PM103 series of power meters.
Zoom
- High-Speed USB 2.0 Type-A Plug to Type-B Cable
- Molded Jacket and Double Cable Shielding
- Length: 79" ± 2" (2 m ± 0.05 m)
- 28 AWG Twisted Pair Conductors for Signal Carriers
- 24 AWG Conductors for Power/Ground Connections
These industry standard, USB 2.0 cables directly interface most standard USB peripherals to a PC or Mac. The cable includes a Type A plug, for PC/Mac interface, on one side and a Type B plug, for standard peripheral connection, on the other. These durable cables are molded in a black jacket and are fully compliant with the USB 2.0 protocol.
Note: Cable color may vary without notice.
Zoom
- USB 2.0 Extension Cables
- High-Speed 480 Mbps Transmission*
- 28-Gauge Conductors
- Various Lengths Available
The USB 2.0 Type-A high-speed, black extension cables come in various lengths.
*This represents a maximum speed. The actual speed will depend on the system in which the cable is used. USB 2.0 specification limits the length of a cable for full-speed devices to 5 meters; low-speed devices to 3 meters.
Zoom
- Wall Mount Cable Racks
- Store Cables Straight and Untangled
- T1508 is Ideal for Fiber Optic Patch Cables
The T1508 is a test lead holder for wires up to 0.210" (5.33 mm) in diameter and has 14 slots for cables. It is ideal for holding fiber optic patch cables.
The T2708 is a test lead holder for wires up to 0.450" (11.43 mm) in diameter and has 9 slots for cables.
The cable racks are made from cold rolled steel with a baked enamel finish. The wall mounting holes are separated by 3" (76.2 mm). Both racks are 11" (279 mm) long and extend outward from the wall by 3.5" (88.9 mm).
