Fixed Microscope Objective Mounts, RMS Threaded


  • Internally RMS Threaded
  • Four-Position SM1-Compatible Objective Lens Turret
  • Post Mountable and Cage Compatible Mounts for Single Objectives

OT1

Objective Lens Turret,
SM1-Compatible

OT1 Objective Lens Turret with Four Microscope Objectives

OMR

Objective Mount, Post Mountable

Application Idea

CP16

30 mm Cage Plate for Objectives, Post Mountable

Related Items


Please Wait

Thorlabs offers several RMS-threaded, fixed mounting options for securing microscope objectives. The OT1 Objective Lens Turret enables repeatable positioning of up to four microscope objectives and has an externally SM1-threaded mounting interface. The CP16 Cage Plate can hold a single microscope objective, has a universal tap compatible with both 8-32 and M4 threads for post mounting, and has four through holes for mounting into a 30 mm cage system. The OMR(/M) Objective Mount also holds a single objective with an 8-32 or M4 tap for post mounting.


Posted Comments:
No Comments Posted

Microscope Objective Turret, SM1-Compatible

  • 4 RMS-Threaded Objective Lens Ports
  • SM1-Threaded Mounting Interface
  • Bi-Directional Repeatability: ±2.5 µm

The OT1 is a compact objective lens turret with four RMS-threaded ports. The aluminum housing has steel inserts at critical points to ensure the durability and precision of the detent mechanism, which reproducibly positions the objective lenses with a high degree of accuracy. The mounting interface for the OT1 objective lens turret has SM1 (1.035"-40) threading so that it can be easily integrated into custom imaging systems built using Thorlabs' Lens Tube and Cage Systems. To mount the OT1 in a cage system, use a CP02 or CP02T for a 30 mm cage system and an LCP02 for a 60 mm cage system.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
OT1 Support Documentation
OT1Objective Lens Turret, 4 RMS-Threaded Objective Ports
$330.94
Today

RMS-Threaded Cage Plate

CP16 Cage Plate Application IdeaClick to Enlarge

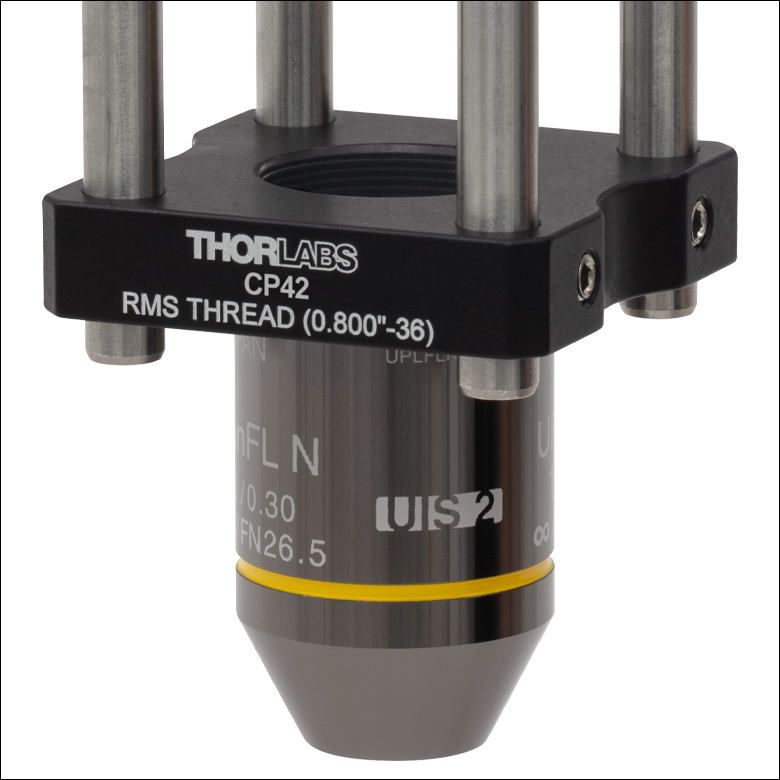

The CP16 mounting an RMS-threaded objective into a 30 mm cage system.
  • Integrates RMS Components with a 30 mm Cage System Assembly
  • Tapped with RMS Threading (0.800"-36)
  • Post Mountable via Universal Tap for 8-32 and M4
  • Thickness: 0.35" (8.9 mm)

The CP16 Cage Plate allows for RMS-threaded components, including many of our microscope objectives, to be incorporated with our 30 mm cage systemEach cage rod through hole is accompanied by a side-located locking M4 setscrew, which can be secured using a 5/64" (2.0 mm) balldriver or hex key. The CP16 can also be post mounted using a universally-threaded bottom hole compatible with both 8-32 and M4 threads.

We also offer the RMSRR RMS Retaining Ring (not included) for positioning components within the cage plate.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CP16 Support Documentation
CP16Customer Inspired! RMS-Threaded 30 mm Cage Plate, 0.35" Thick, Universal 8-32 / M4 Tap
$31.83
Today

Microscope Objective Post Mount

OMR Post Mount
Click to Enlarge

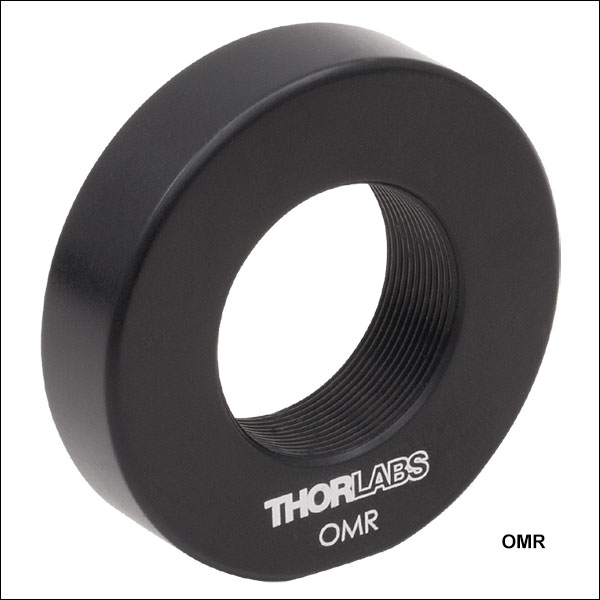

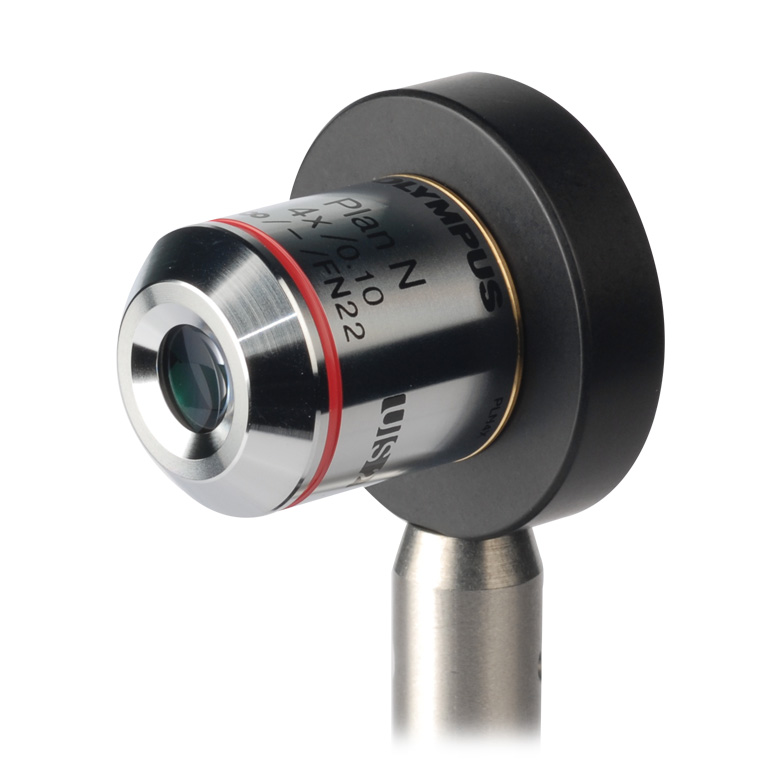

OMR Mount with Microscope Objective
  • Tapped with RMS Threading (0.800"-36)
  • 8-32 (M4) Tap for Post Mounting
  • Thickness: 0.37" (9.4 mm)

The OMR Objective Mount directly mounts a microscope objective with standard RMS (0.800"-36) threads to our Ø1/2" Posts via an 8-32 (M4 x 0.7) tapped mounting hole. The mount has an outer diameter of Ø1.49" (Ø37.8 mm).

We also offer the RMSRR RMS Retaining Ring (not included) for positioning components within the cage plate.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
OMR Support Documentation
OMRRMS Microscope Objective Mount, 8-32 Tap
$28.89
Today
+1 Qty Docs Part Number - Metric Price Available
OMR/M Support Documentation
OMR/MRMS Microscope Objective Mount, M4 Tap
$28.89
Today
