- 12- and 24-Outlet Power Strips with US-, EU-, and UK-Style Connectors
- Power Cords with US-Style Connectors
- Cable Racks
T1508
14-Slot Wall-Mounted Cable Rack
T2708
9-Slot Wall-Mounted Cable Rack
T17251
US-Style (110 VAC)
Power Cord
HDPS12-UK
12-Outlet Surge-Protected
Power Strip with
UK-Style Connectors
Please Wait
| Cables and Cords Selection Guide | |
|---|---|
| BNC Cables | Banana Cables |
| SMC Cables | Stepper Motor Cables |
| SMA Cables | Piezo Cables |
| USB Cables | Detector Power Cords |

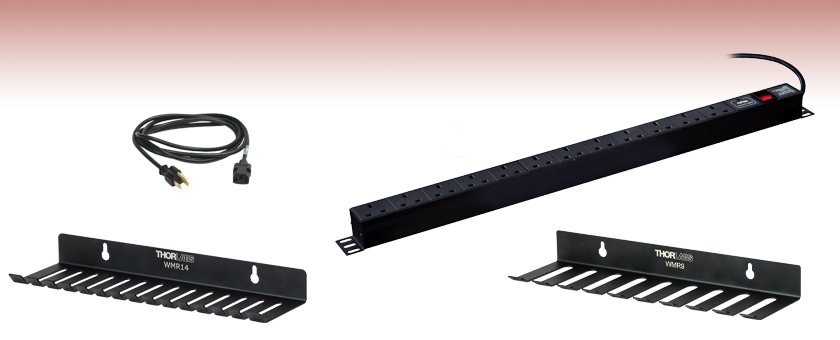

Thorlabs offers a selection of power cords, power strips, and cable racks to meet your needs. The T17251 power cord is 7.5' (2.3 m) long, has US-style connectors, and is sold in packs of 5. Additionally, 12- and 24-outlet power strips with your choice of US-, EU-, or UK-style connectors are available. To view our selection of other cable types, please use the links to the right.
| Posted Comments: | |
user
(posted 2018-07-18 22:03:04.55) Please consider adding 5V USB ports on your power outlet strips. Nowadays, many devices can be powered off USB, having direct USB ports out of power plug would be very useful. bhallewell
(posted 2018-07-19 05:06:12.0) Response from Ben at Thorlabs: Thank you for your feedback. I've fed the idea into our internal Product Ideas forum for further discussion. You will see Customer Inspired products across the Thorlabs website which have evolved from valuable posts such as this. jjurado
(posted 2011-08-02 14:08:00.0) Response from Javier at Thorlabs to last poster: Thank you for your feedback. We will increase the size of the photos used in the presentation for the 2 and 3-way outlets shortly. Also, we currently do not offer 2 or 3 way power cords with the US plug, but we can help you find a supplier of these. Please contact us at techsupport@thorlabs.com and we will gladly assist you. user
(posted 2011-08-01 14:19:17.0) 2 Way and 3 Way power cords are hard to make out as the photos are so small, do you have these use in the USA. |
Zoom| Specifications | |||
|---|---|---|---|
| Electrical | Physical | ||
| Voltage Rating | 125 V | Cord Length | 7.5' (2.3 m) |
| Current Rating | 10 A | Cord Gauge | 14 AWG (2.08 mm2) |
| Conductor Size | 18 AWG (0.82 mm2) | Flame Rating | FT2 |
| Plug | NEMA 5-15 P, PVC | Rated Temperature | 60 °C |
| Receptacle | IEC 320 C13, PVC | Approval | UL Listed, CSA Certified |
- Detachable Power Supply Cord
- 3 Conductor
- Rated for 10 A/125 V
- Black PVC Jacket, 18 Gauge Conductor Wire
- Cord Length: 7.5' (2.3 m)
- Sold in Packs of 5
Zoom| Item # | HDPS12-US | HDPS12-EU | HDPS12-UK |
|---|---|---|---|
| Electrical Specifications | |||
| Voltage Rating | 125 VAC | 220 to 250 VAC | 250 VAC |
| Current Rating | 15 A | 16 A | 13 A |
| Frequency | 50/60 Hz | ||
| Power Rating | 1800 W | 3520 W | 3250 W |
| Full Surge Protection |
3 kA for 1 µs | 5 kA for 1 µs | 3 kA for 1 µs |
| EMI / RFI Filtering |
Yes | ||
| CE Approved | Yes | ||
| Physical Specifications | |||
| Cord Length | 3 m (9.8') | ||
| Cord Gauge | 1.5 mm2 (16 AWG) | ||
| Number of Outlets |
12 | ||
| Body Material | Aluminum | ||
| Dimensions (L x W x H) |
708 x 45 x 45 mm (27.87" x 1.77" x 1.77") |
802 x 46.5 x 55 mm (31.57" x 1.83" x 2.17") |
803 x 45 x 45 mm (31.61" x 1.77" x 1.77") |
Attention:
These power strips are designed for indoor use only. These devices should not be installed in wet or damp areas exposed to moisture. They are not recommended for use with aquariums. We do not recommend plugging one HDPS12 into another HDPS12 or similar surge-protecting device.
- 12-Outlet, Surge-Protected Power Strips
- Three Outlet Types: US, EU, or UK
- Electrically Grounded Outlets
- Cord Length: 3 m (9.8')
These 12-outlet power strips are available with US-, EU-, and UK-style outlets. Each is designed for indoor use and is housed within an impact-resistant, sturdy metal case. The units are turned on and off with a rocker switch. The power strips are fitted with clearance holes for 1/4"-20 (M6) cap screws and are shipped complete with two brackets for mounting to the rear rail of our ScienceDesks, as shown in the photo below.
Zoom| Item # | HDPS24-US | HDPS24-EU | HDPS24-UK |
|---|---|---|---|
| Electrical Specifications | |||
| Voltage Rating | 125 VAC | 220 to 250 VAC | 250 VAC |
| Current Rating | 15 A | 16 A | 13 A |
| Frequency | 50/60 Hz | 50 Hz | 60 Hz |
| Power Rating | 1800 W | 3680 W | 3120 W |
| Full Surge Protection | 3 kA for 1 µs | 1.75 kA for 8/20 µs | |
| EMI / RFI Filtering | Yes | ||
| CE Approved | Yes | ||
| Physical Specifications | |||
| Cord Length | 9.83' (3.0 m) | 3 m (9.8') | |
| Cord Gauge | 1.5 mm2 (16 AWG) | ||
| Number of Outlets | 24 | ||
| Body Material | Aluminum | ||
| Dimensions (L x W x H) |
(68.27" x 2.46" x 1.77") 1734.0 x 62.5 x 45.0 mm |
1717 x 67.5 x 58.0 mm (67.6" x 2.66" x 2.28") |
|
Attention:
These power strips are designed for indoor use only. These devices should not be installed in wet or damp areas exposed to moisture. They are not recommended for use with aquariums. We do not recommend plugging one HDPS24 into another HDPS24 or similar surge-protecting device.
- 24-Outlet, Surge-Protected Power Strips
- Three Outlet Types: US, EU, or UK
- Electrically Grounded Outlets
These 24-outlet power strips are available with US-, EU-, and UK-style outlets. Each is designed for indoor use and is housed within an impact-resistant, sturdy metal case. The units are turned on and off using the built-in rocker switch. All power strips are fitted with clearance holes for standard 1/4"-20 or M6 cap screws.
The HDPS24-UK Power Strip is shown installed on the front of an Optical Table Shelf. It can also be installed to the underside of the shelf.
Zoom
- Wall Mount Cable Racks
- Store Cables Straight and Untangled
- T1508 is Ideal for Fiber Optic Patch Cables
The T1508 is a test lead holder for wires up to 0.210" (5.33 mm) in diameter and has 14 slots for cables. It is ideal for holding fiber optic patch cables.
The T2708 is a test lead holder for wires up to 0.450" (11.43 mm) in diameter and has 9 slots for cables.
The cable racks are made from cold rolled steel with a baked enamel finish. The wall mounting holes are separated by 3" (76.2 mm). Both racks are 11" (279 mm) long and extend outward from the wall by 3.5" (88.9 mm).
ZoomThese magnetic bases can be used to mount a 12- or 24-outlet power strip with the use of a #6 washer (not included). These bases allow the power strip to be mounted onto any magnetic surface, such as a stainless steel tabletop. The magnets offer a total mounting force of 52 lbs.
To use, slide an included cap screw with a #6 washer into one of the slots on the edge of the power strip. Slide the magnet over the screw threads and secure using an included nut. Repeat this process for the other three bases.
