Aluminum Breadboards: High Stiffness, 25 mm (0.98") Thick


  • Aluminum Plates and Core Minimize Thermal Instabilities
  • High Strength-to-Weight Ratio
  • Non-Magnetic Material
  • Breadboards with Rail-Compatible Sides Available

PBG11119

12" x 18" UltraLight™ Optical Breadboard

PBG1212F

12" x 12" UltraLight™ Optical Breadboard

See BB Selection Guide Tab

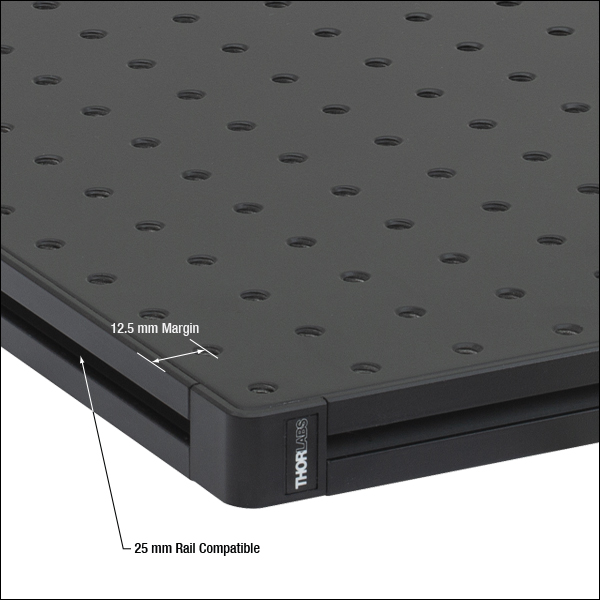

T-Slot for 25 mm Rail Compatibility
Related Items


Please Wait
General Specificationsa
Breadboard Thickness 25 mm (0.98")
Top Skin Flatness ±0.15 mm (±0.006") Over Any 0.3 m2
Construction Double-Plate, Single-Honeycomb Core,
Athermalized Aluminum Design
Top Plate 6 mm Thick Aluminum
Bottom Plate 3 mm Thick Aluminum
Core High-Density Plated Aluminum Honeycomb
Finish Matte Black Paint
Maximum Screw Depth 6 mm (0.24") from Top Surface
Breadboard Mounting 1/4"-20 (M6) Taps on Bottom Plate
  • For additional specifications that include specific breadboard dimensions and weights, see the tables below.

Features

  • Thickness: 25 mm (0.98")
  • Sides with Smooth Finish or T-Slot for 25 mm Rail Compatibility
  • Lighter than Equivalent Surface Area Solid Aluminum Surface Plates
  • All-Aluminum Plates and Core for Matching CTE to Reduce Thermal Effects
  • Large Range of Sizes (W x L):
    • Imperial: 1' x 1' to 3' x 4'
    • Metric: 300 mm x 300 mm to 900 mm x 1500 mm
  • More Rigid than 0.5" Thick Solid Aluminum Breadboards (See Construction Tab for Details)
  • Matte Black Painted Surface Reduces Reflectivity and Backscatter
  • High-Density Honeycomb Core Provides Static and Dynamic Rigidity
  • Custom Sizes Available; Contact Tech Support for Details
Rail Compatible Breadboard Enclosure
Click to Enlarge
View Imperial Product List
Item #QtyDescription
PBG1824F1UltraLight Breadboard, 18" x 24" x 0.98", 1/4"-20 Taps
XE25L0989" Long Construction Rail
XE25L12412" Long Construction Rail
RM1S81" Construction Cube with Slotted Corners, Three 1/4" (M6) Counterbored Holes
TB41Black Hardboard, 24" x 24" (610 mm x 610 mm), 3/16" (4.76 mm) Thick, 3 Sheets
XE25H2Hinge for 25 mm Rail Enclosures
XE25T21Drop-In T-Nut, 8-32 Tapped Hole, Qty: 10
View Metric Product List
Item #QtyDescription
PBG4560A1UltraLight Breadboard, 450 mm x 600 mm x 25 mm, M6 Taps
XE25L225/M8225 mm Long Construction Rail
XE25L300/M4300 mm Long Construction Rail
RM1S81" Construction Cube with Slotted Corners, Three 1/4" (M6) Counterbored Holes
TB41Black Hardboard, 24" x 24" (610 mm x 610 mm), 3/16" (4.76 mm) Thick, 3 Sheets
XE25H2Hinge for 25 mm Rail Enclosures
XE25T2/M1Drop-In T-Nut, M4 Tapped Hole, Qty: 10

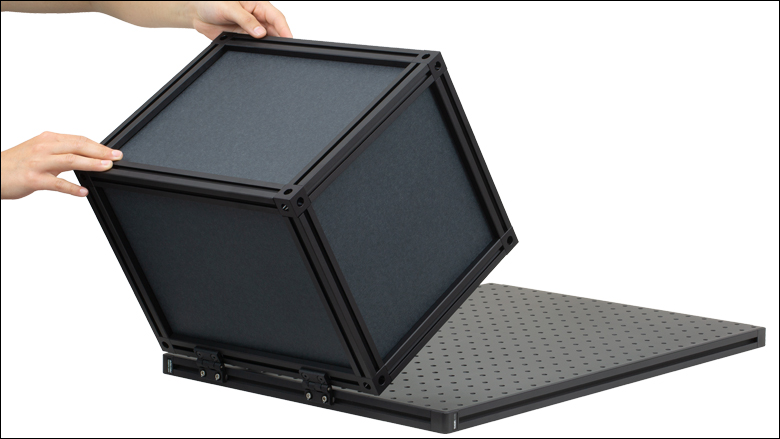

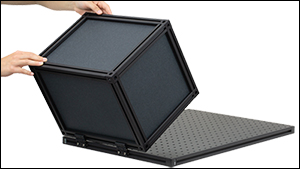

An optical enclosure can be constructed and attached to the side of a 25 mm rail compatible breadboard for easy placement of the enclosure. Please note this application requires the use of drop-in T-Nuts and standard 8-32 cap screws for attaching the hinges to the breadboard.
Breadboard T-SlotClick for Details
The T-Slot located on the sides is compatible with our 25 mm rails and accessories.

Thorlabs' UltraLight™ Honeycomb Breadboards offer a high strength-to-weight ratio and all-aluminum plates and core. Due to this construction, each breadboard has similar coefficients of thermal expansion throughout, which minimizes thermal instabilities. These breadboards are ideal for optical setups where portability and dynamic rigidity are important. They are typically used as replacements for aluminum, steel, or granite surface plates, as well as for applications demanding a totally nonmagnetic surface. Additionally, breadboards ending in "F" or "A" feature a t-slot that is compatible with our 25 mm rails and accessories. This allows for construction of rail systems or optical enclosures without the loss of taps. These breadboards also have plastic covers on the corners; two have labels with either the item number or serial number.

Choosing an Optical Breadboard
When choosing an aluminum optical breadboard, stiffness is a major consideration. For aluminum optical breadboards, Thorlabs offers two levels of stiffness: high and enhanced. Although most people associate deflection under load with thickness, it is actually the stiffness of a board that determines the deflection.

Vibration Isolation Tutorial
Optical Tables Capabilities

The higher the stiffness, the better the breadboard's ability to resist bending when a load or force is applied to it. Therefore, when a heavy load is placed in the center of a breadboard with high stiffness, the board will deflect more than it would if the same load were placed on an enhanced stiffness breadboard. This deflection can create misalignment between two components on opposite ends of the breadboard. This is especially important, for example, when conducting experiments that require sliding optical setups across the breadboard while maintaining a straight optical axis.

We also offer a broad selection of Nexus® Steel Honeycomb Breadboards, which provide greater stiffness and vibration damping. For a quick comparison of our different breadboard options, please see the BB Selection Guide tab.

Frame and Isolation Options
We offer a number of support options for breadboards. Our standard breadboard frames are available with rigid supports, or with passive or self-leveling active vibration isolation. We also offer passive and electronic isolator feet for mounting a breadboard on top of a table.

Ultralight construction diagram
Click to Enlarge
Construction Features

Ultralight™ Honeycomb Aluminum Breadboard Construction

Thorlabs UltraLight™ optical breadboards offer high strength-to-weight ratio and excellent thermal stability. These breadboards are ideal for optical setups where portability and dynamic rigidity are important. Breadboards with item numbers that do not have a letter at the end feature standard aluminum side panels, while those with item numbers ending in F or A feature t-slots with compatiblity with our 25 mm rails and their accessories.

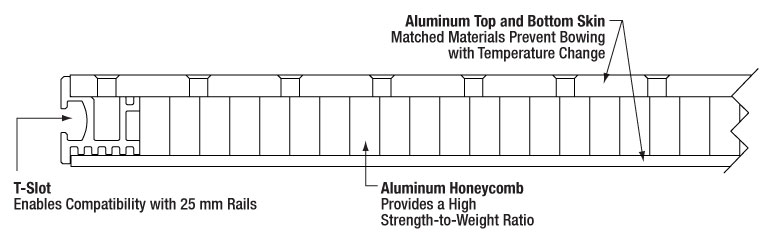

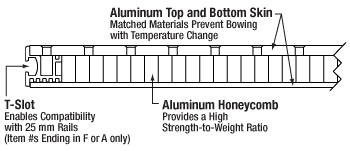

As shown in the diagram to the right, these breadboards incorporate a double-plate, single-honeycomb design, providing excellent stiffness and dynamic rigidity (see test performed below). The top layer consists of a 6 mm aluminum top plate. The second layer adds the main aluminum honeycomb structure and the 3 mm aluminum bottom plate. The main honeycomb core is fabricated from strips of precision-formed plated aluminum, which is bonded together with a high tensile strength epoxy adhesive. This all-aluminum construction minimizes thermal bowing effects caused by temperature variations.

Excellent Surface Flatness
Breadboard flatness is critically important during many experimental setups. Lack of local flatness requires readjustment of components for height variations across the breadboard and can cause component “wobble”. Thorlabs breadboards offer an unsurpassed flatness of ±0.15 mm (±0.006") over any 0.3 m2 area due to the high-precision aluminum plates which are specially handled to maintain superior flatness throughout the manufacturing process. A unique thermal bonding process ensures that stress is not induced during manufacture, thereby retaining the flatness of the top plate.



Stiffness Comparison Testing: Honeycomb Aluminum Breadboards vs. Solid Aluminum Breadboards

Plot of Breadboard Stiffness

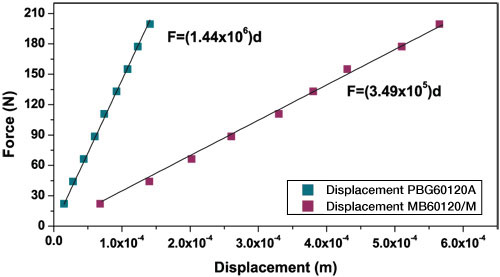

Figure 2: Plot Showing the Overall Displacement of the PBG60120A and MB60120/M After a Uniform Force was Applied to the Center of the Breadboard (See Diagram to the Left)

Purpose: Show that an UltraLight PBG60120A breadboard measuring 600 mm x 1200 mm x 25 mm with an unpackaged mass of 20.3 kg has a greater stiffness then the equivalent size MB60120/M solid aluminum breadboard that is 0.5" thick and has an unpackaged mass of 23.49 kg.

Procedure: As shown in Figure 1 below, each table was supported by fulcrum points that were spaced 1 m apart. Then, various loads were applied uniformly across the center of the breadboard and the amount of deflection was measured. From the data collected, a plot of Force vs. Displacement was created as shown to the right.

Breadboard Stiffness Measurment

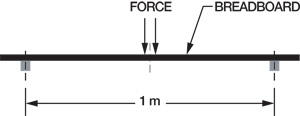

Figure 1: Both breadboards were reinforced at two defined fulcrum points. A uniform
force was then applied to the center of each board and deflection measured.

Results: The result shown in figure 2 shows that the PBG60120A honeycomb aluminum breadboard, which is 14% lighter than the MB60120/M solid aluminum breadboard, is 4.1 times stiffer. This can be found by dividing the two stiffness values, 1.44 x 106 and 3.49 x 105.

Conclusions: As can be seen in Figure 2, it is clear that the PBG60120A UltraLight honeycomb aluminum breadboards, though lighter by 3.19 kg, have a greater stiffness than the MB60120/M 0.5" thick solid aluminum breadboards. Therefore, our UltraLight series of breadboards is an excellent choice if you are looking for a light-weight breadboard with extremely good rigidity.
