Pedestal Base Adapters


  • Ideal for Building High Density Tabletop Optical Assemblies
  • Adapters for Ø1" and Ø1.5" Posts
  • Converts Pillar Post to Pedestal Style Post

BE1

Ø1.25" Pedestal Base Adapter

BE1R

Ø1.25" Magnetic Pedestal Base Adapter

PB4

Ø1.85" Pedestal Base Adapter

Ø1" Post with BE1 Post Adapter and CF125 Clamp

Ø1.5" Post with PB4 Adapter and PF175 Clamp

Magnet in Base Provides Stability During Alignment

Related Items


Please Wait
1" and 1.5" Bases and Clamps
Click to Enlarge

Ø1" and Ø1.5" Posts can be Secured to an Optical Table Using Pedestal Base Adapters and Clamping Forks

Features

  • Adapters for Converting Ø1/2" Post Holders, Ø1" Post Extensions and Ø1.5" Posts into Pedestal-Style Posts
  • Large Bottom Relief Cuts in Base for Exceptional Stability
  • Magnetic Pedestal Base Adapter Provides Stability During Alignment for Temporary Setups

Ø1" Pedestal Base Adapters
The BE1(/M) and BE1R(/M) fasten directly to a
Ø1" post extension or a Ø1/2" post holder via the provided 1/4"-20 (M6) stud, converting a standard post or post holder into a pedestal-style mount. Once an adapter is fastened, these Ø1" pedestal configurations are directly compatible with our CF125, CF125C(/M), CF175, and CF175C(/M) solid stainless steel clamping forks, which provide for the greatest overall positional flexibility when mounting to an optical table. For additional stability in temporary setups, the BE1R(/M) base provides a high-strength magnet in the base.

Ø1.5" Pedestal Base Adapter
The PB4 fastens directly to a Ø1.5" post via the provided 1/4"-20 (M6) stud, converting a standard post into a pedestal-style post. This pedestal configuration is directly compatible with the PF175 clamping fork which provides high positional flexibility when mounting to an optical table.


Posted Comments:
No Comments Posted

Ø1.25" Pedestal Base Adapters


Click to Enlarge

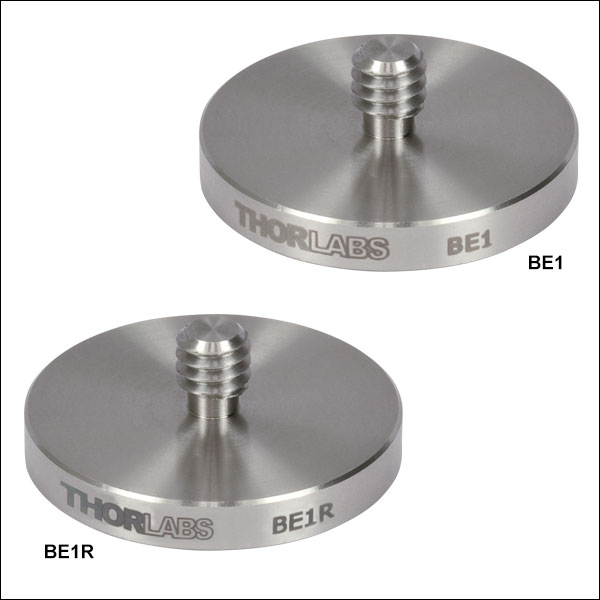

The BE1R has a magnet in the base for stability in temporary setups.
PH2 on a BE1 Base
Click to Enlarge

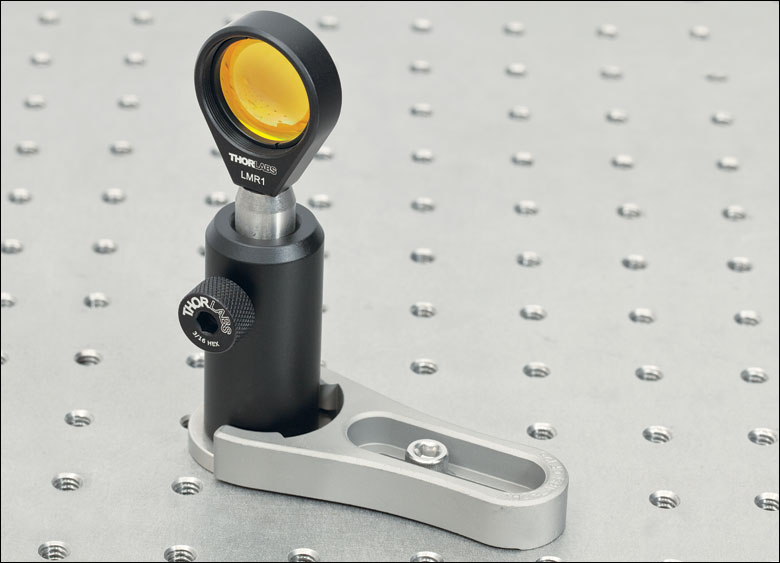

A CF125 fork is used to secure a Ø1/2" post holder to an optical table with a BE1 base.
  • BE1(/M) and BE1R(/M) Adapters Convert Standard Ø1/2" Post Holders and Ø1" Posts into Pedestal-Style Mounts
  • Clamping Fork or CL8 Table Clamp Secures Base to a Breadboard or Table
  • 1/8" (3 mm) Hex Socket on Bottom for Tightening
  • Machined Bottom Relief Cut for Added Stability
  • BE1(/M) Adapter Available in Packs of Five

The BE1(/M) and BE1R(/M) pedestal base adapters feature a 1/4"-20 (M6)-threaded stud that fit into the bottom of our standard Ø1/2" post holders or Ø1" posts to convert them into pedestal-style mounts for added stability. The BE1R(/M) adapters have a magnet in the base that is sufficiently strong to securely hold the base in place without clamping to an optical table (see photo to the right). Made from solid 303 stainless steel with a 1.25" (31.8 mm) outer diameter, this adapter allows standard Ø1" posts to be used with clamping forks, and can be tightened onto the post or postholder using a 1/8" (3 mm) hex or ball driver.

The BE1(/M) is available in a pack of five for ease of ordering.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
BE1 Support Documentation
BE1Ø1.25" Studded Pedestal Base Adapter, 1/4"-20 Thread
$10.06
Today
BE1-P5 Support Documentation
BE1-P5Customer Inspired! Ø1.25" Studded Pedestal Base Adapter, 1/4"-20 Thread, 5 Pack
$50.30
Today
BE1R Support Documentation
BE1RCustomer Inspired! Ø1.25" Magnetic Studded Pedestal Base Adapter, 1/4"-20 Thread
$17.75
Today
+1 Qty Docs Part Number - Metric Price Available
BE1/M Support Documentation
BE1/MØ31.8 mm Studded Pedestal Base Adapter, M6 Thread
$10.06
Today
BE1/M-P5 Support Documentation
BE1/M-P5Customer Inspired! Ø31.8 mm Studded Pedestal Base Adapter, M6 Thread, 5 Pack
$50.30
Today
BE1R/M Support Documentation
BE1R/MCustomer Inspired! Ø31.8 mm Magnetic Studded Pedestal Base Adapter, M6 Thread
$17.75
Today

Ø1.85" Pedestal Base Adapters

Clamping Fork with Pedestal Post
Click to Enlarge

The PF175 fork is used to secure a Ø1.5" post to an optical table with a PB4 base.
P2 Clamping Fork with PB4

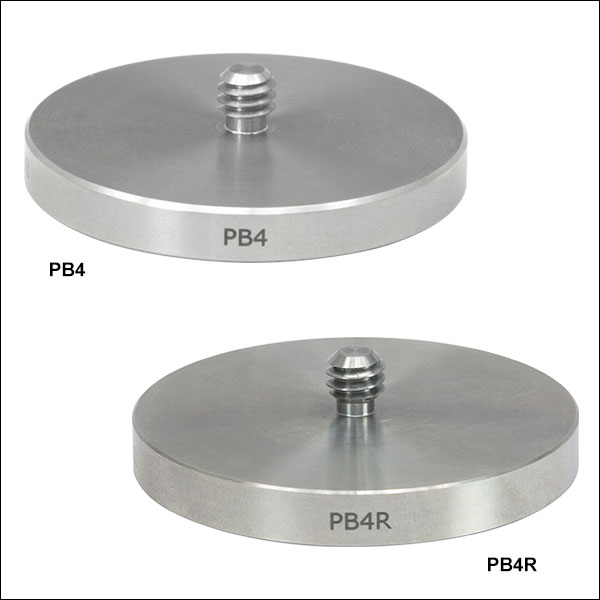

A Ø1.5" post is converted to a pedestal-style post with a PB4 base adapter.
  • Mount 1/4"-20 (M6) Tapped Components in an Arbitrary Position 0.24" (6.1 mm) Above the Breadboard
  • PF175 Clamping Fork or CL8 Table Clamp Secures Base to a Breadboard or Table
  • 1/8" (3 mm) Hex Socket on Bottom for Tightening
  • Machined Bottom Relief Cut for Added Stability

The PB4(/M) pedestal base adapter features a 1/4"-20 (M6)-threaded stud, which fits into the bottom of our Ø1.5" posts to convert them into pedestal-style mounts. They are manufactured using solid 303 stainless steel with a 1.85" (47.0 mm) outer diameter. To secure the base, a PF175 clamping fork or a CL8 table clamp (shown in the photo to the right) can be used. However, using these items will restrict the width of the component being mounted to a maximum of 1.5".

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
PB4 Support Documentation
PB4Studded Pedestal Base Adapter, 1/4"-20 Thread
$13.74
Today
+1 Qty Docs Part Number - Metric Price Available
PB4/M Support Documentation
PB4/MStudded Pedestal Base Adapter, M6 x 1.0 Thread
$13.74
Today
