Products HomeK-Cube® and T-Cube™ Power Supply Options
- External Power Supplies for K-Cube® and T-Cube™ Controllers
- USB Controller Hubs Provide Power and Communication for K-Cubes and T-Cubes
KCH301
USB Controller Hub for Three
K-Cubes and T-Cubes
TPS002
For Two K- or T-Cubes
KPS201
For One K- or T-Cube
One Region-Specific Plug Included
KCH601
USB Controller Hub for Six
K-Cubes and T-Cubes
Please Wait
| K-Cube® Motion Control Modules |
|---|
| Brushed DC Servo Motor Controller |
| Brushless DC Servo Motor Controller |
| Fiber Alignment Controllers |
| Four-Channel Piezo Inertia Actuator Controller |
| PSD Auto Aligner |
| Single-Channel Piezo Controller and Strain Gauge Reader |
| Solenoid Controller |
| Stepper Motor Controller |
| Compact Light Source & Driver Modules |
| Laser Sources |
| Laser Diode Driver |
| High Power LED Driver |
| Compact Temperature Control Module |
| Temperature Controller |
Features
- Power Supplies for Individual K-Cubes® and T-Cubes™
- Power Supply for Up to Two K-Cubes and T-Cubes
- USB Controller Hubs Combine Power and Communications for Up to Three or Six K-Cubes or T-Cubes
- Adapter Plates for Using T-Cubes with USB Controller Hubs
Please note that with the exception of the USB Controller Hubs, each power supply is not compatible with all K-Cubes and T-Cubes. Please verify that the power supply can provide the required voltage and amperage for the K-Cubes and T-Cubes being used. See Table 1.2 for more details on choosing the correct option.
| Table 1.2 Power Supply Compatibility | |||
|---|---|---|---|
| Item # | Max Number of Modules Powered |
Motion Control Modules | Light Source & Driver Modules |
| KPS201 | One | KBD101, KDC101, KIM001, KIM101, KPC101, KSC101, and KST201 | KLS635, KLS1550, and LEDD1B |
| TPS002 | Two | KNA-VISa, KNA-IRa, KPA101 | KLD101 |
| KCH301 | Three | Compatible with All Variantsb | |
| KCH601 | Six | ||
| Posted Comments: | |
ursula gibson
(posted 2024-10-25 12:30:26.19) documentation for TPS002 - ±15 V/5 V Power Supply Unit with Mini-DIN Connectors for up to Two K- or T-Cubes doesn't say what voltages are on what terminals, which might allow a person to use the adapter for other instruments. Is that info available somewhere?
thanks-
ursula spolineni
(posted 2024-11-06 04:52:43.0) Thank you for reaching out! I will contact you directly to assist further with your inquiry. Joseph Tokarski
(posted 2024-10-01 16:23:11.693) I am looking for the Specification Sheet for the KP201 for my records and BOM.
I appreciate any assistance you can provide. dnewnham
(posted 2024-10-07 10:51:44.0) Thank you for your inquiry I will reach out to you directly to discuss this with you. Wolfgang Kilian
(posted 2024-10-01 10:21:09.177) Is there any information available on the currents the power supply can deliver on the various output voltages? And can you provide the pinout of the Mini-DIN connector? spolineni
(posted 2024-10-07 06:15:44.0) Thank you for your inquiry. I will reach out to you personally with the details on the power supply and the Mini-DIN connector pinout. Joey Tan
(posted 2022-06-27 18:06:06.997) We lost the Mini-DIN Connectors for TPS002, how can I get it in China? Thanks. Yunwei Sheng
(posted 2021-04-13 08:37:09.307) Hello,
We bought the KPRM1E/M including the rotation stage and the motor driver.
Now we cannot find the power supply and the USB cable of the KDC101 motor controller.
I suppose we should buy a KPS101 as the power supply, but which one should I buy as the USB cable?
Thank you.
Yunwei cwright
(posted 2021-04-14 11:18:29.0) Response from Charles at Thorlabs: Hello and thank you for your query. Unfortunately the exact cables we send out (the locking USB 3.0 type) are not available on our site but we can provide a replacement. I will reach out to you about this. It may be helpful to know that it is actually possible to use these with any micro-USB 2.0 cable with no ill-effects. user
(posted 2019-04-15 17:17:26.69) P/S has no output (0V) after about 1 year in operation. Is it more likely to fail if it's plugged in all the time? rmiron
(posted 2019-04-16 10:46:34.0) Response from Radu at Thorlabs: We are sorry to hear that your power supply had such a short lifetime. We aim to only sell high-quality power supplies with our devices, but failures can still occur. There are multiple mechanisms by which a supply can fail. Keeping them continuously plugged into the mains, even if the device is switched off or disconnected, can make some of these failure mechanisms more likely. This is due to an increased exposure to input voltage fluctuations and surge currents. Even with anti-surge protection circuitry in place, this still makes the internal ceramic capacitors more likely to crack and the semiconductor-based elements (diodes & switches) more likely to get damaged. With that being said, your supply is still under warranty. Therefore, I recommend that you contact your local technical support team and ask for a replacement. neuhaus
(posted 2013-09-11 16:34:18.31) Dear Sir or Madame,
please specify the inner diameter of the connector (for TDC001) (inner: 1.3 or 1.45 mm; outer: 3.5mm).
Thank you with best regards,
Jörg Neuhaus jlow
(posted 2013-09-11 13:28:00.0) Response from Jeremy at Thorlabs: The barrel size is 1.3mm. mthiel
(posted 2007-12-20 09:08:25.0) I did not see that the
TPS002 power supply that we ordered is not compatible with our T-cubes
for LEDD1 (actually this is not very logical because you sell TPS001 and
TPS008 compatible, but not TPS002, this should be made clearer on your
website because there is a denomination"T-cube" for all the T-cubes
TDC001, TST001, LEDD1, TSC001 etc, although they are very different...) |
Zoom
Click for Details

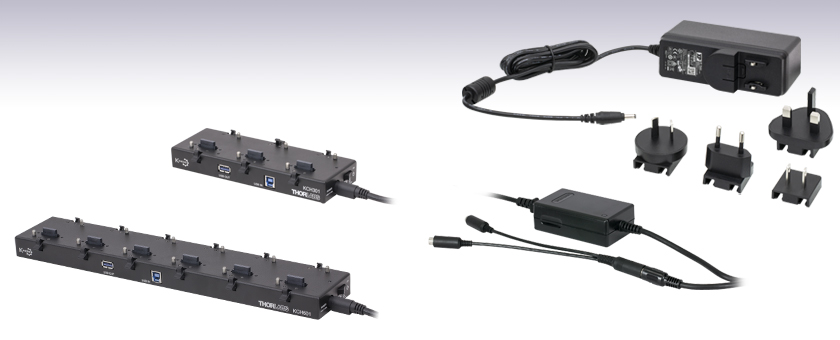

Figure G1.1 Region-Specific Adapters for KPS201
| Input Specifications | |
|---|---|
| Item # | Mains Voltage Requirements |
| KPS201 | 100 - 240 V, 1 A Max, 47 - 63 Hz |
| TPS002 | 90 - 264 V, 0.8 A Max, 47 - 63 Hz |
- Individual Power Supplies for One K-Cube® or T-Cube

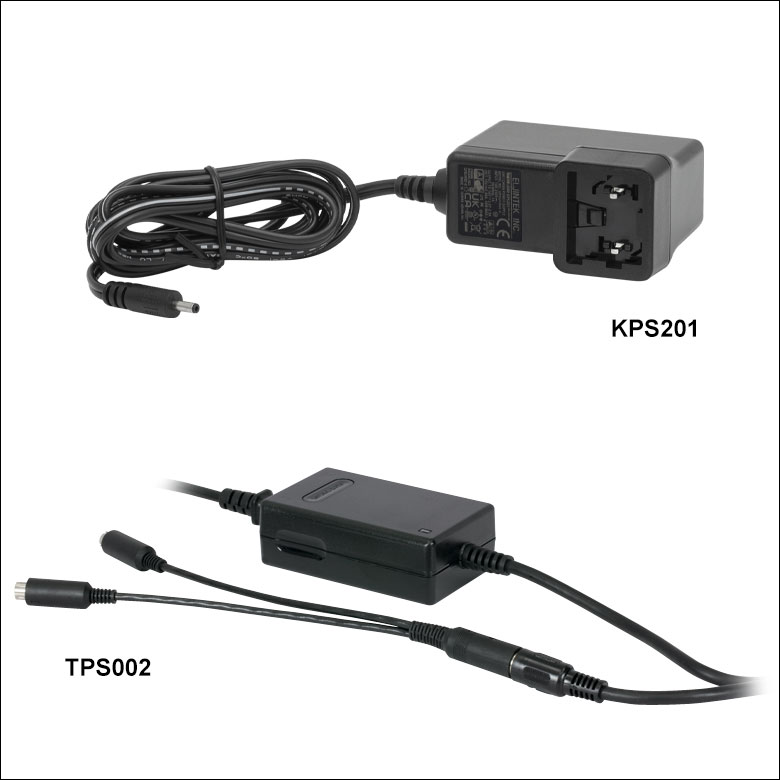

- KPS201: For K-Cubes or T-Cubes with 3.5 mm Jacks
- Power Supply for up to Two K-Cubes or T-Cubes
- TPS002: For K-Cubes or T-Cubes with Mini-DIN Input
The KPS201 offers a simple power supply for select individual K-Cubes or T-Cubes, while the TPS002 supplies power for one or two select K-Cubes or T-Cubes. Please refer to the compatibility information in Table 1.2. The TPS002 can only support one KNA-VIS or KNA-IR controller and should not be used to power any additional units due to potentially exceeding the current limit.
The cubes need to be hooked up individually to a computer via a USB cable to use them with the motion control software. One region-specific plug adapter, selectable at checkout, is included with each power supply. The adapter plugs for the KPS201 are shown in Figure G1.1.
Zoom
Click to Enlarge
Figure 578A KCH301 USB Controller Hub with Installed K-Cube and T-Cube Modules
| Input Specifications | |
|---|---|
| Item # | Mains Voltage Requirements |
| KCH301 KCH601 |
80 - 264 V, 1.8 A Max, 47 - 63 Hz |
- USB Controller Hubs for up to Three or Six K-Cubes® or
T-Cubes - Provide Power and Communication with a Single USB Cable and a Single Power Connection
- Adapter Plate Connects T-Cube to Hub
These USB Controller Hubs have been designed specifically with multiple K-Cube and T-Cube operation in mind. The hub vastly reduces the number of USB and power cables required when operating multiple K-Cubes or T-Cubes. Furthermore, a USB output connector can be connected to the USB input on another unit, allowing multiple Controller Hubs to be connected together while still only using a single USB cable from the host control PC.
The hub draws a maximum current of 10 A; please verify that the cubes being used do not require a total current of more than 10 A.
The KCH301 and KCH601 Controller Hubs are compatible with all K-Cube and T-Cube modules. A KAP101 or KAP102 Adapter Plate (sold separately) is required for each T-Cube to operate on the controller hub. The KAP101 is designed to adapt 60 mm wide T-Cubes to the hubs, while the KAP102 is designed to adapt 120 mm wide T-Cubes to the hubs.
For more information on the USB Controller Hubs, see the full web presentation.
K-Cube and T-Cube Power Supplies
