Essentials Kits: Cabinets

Heavy-Duty, Welded-Steel Frame
Stackable and Wall Mountable
Available with 9, 16, 20, or 28 Drawers
Easy Identification and Organization of Stored Components

Cabinets Can Be Stacked

ST9

9-Drawer Cabinet

S19320

20-Drawer Cabinet

Related Items

Table
Frame
Rack
Chassis

Optics Cart

Please Wait

Overview
Feedback

Click to Enlarge

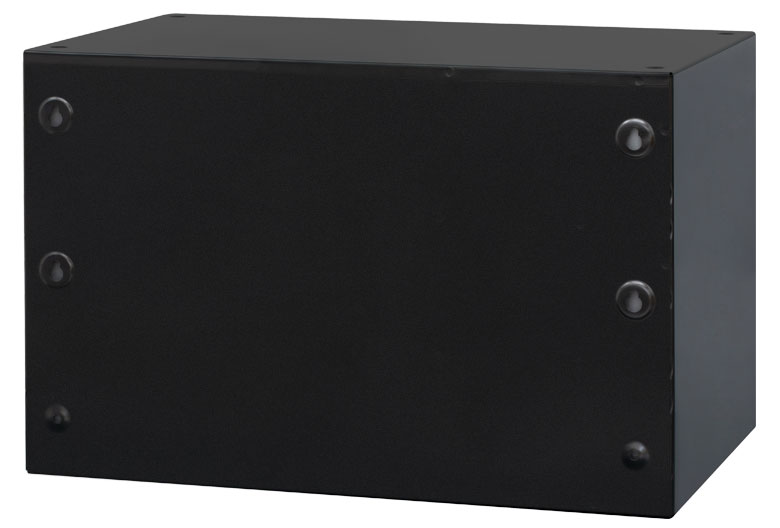

Figure 1.1 Each cabinet features rear slots for wall mounting.

Features

Available with 9, 16, 20, or 28 Drawers
Stackable and Wall Mountable
Rear Stops on Each Drawer
Removable Drawer Dividers and Blank Labels Included

These heavy-duty storage cabinets feature sturdy, welded steel frames and durable plastic drawers. Available with 9, 16, 20, or 28 drawers, each cabinet is suitable for storing a range of optomechanical and electrical components as well as optics. Our 9- and 16-drawer cabinets feature a powder-coated, glossy, black metallic finish. Our 20- and 28-drawer cabinets feature a powder-coated, glossy, gray metallic finish.

These cabinets can be stacked on top of each other without tools; four small feet on the bottom of each cabinet fit snugly into matching receptacles on the top of each cabinet. The cabinets can be mounted directly to a laboratory wall via four rear slots (see Figure 1.1). Cabinets can also be mounted in our equipment racks, where a maximum of 7 cabinets can be mounted on RK4101 shelves within the rack. In addition, our 19" rack chassis for optical table workstations can mount these cabinets.

Item #	Number of Drawers	Number of Included Dividers	Drawer Length	Drawer Width	Drawer Height	Stackable	Wall Mountable	Lockable Drawers
ST9	9	18	10.89" (276.5 mm)	5.50" (139.7 mm)	3.15" (79.9 mm)^a	Yes	Yes	No
ST16	16	32	10.90" (276.9 mm)	4.14" (105.3 mm)	2.27" (57.5 mm)^a
S19320	20	40	10.56" (268.2 mm)	3.30" (83.8 mm)	2.18" (55.4 mm)
S19228	28	56	10.56" (268.2 mm)	2.36" (59.9 mm)	2.18" (55.4 mm)

For details on how the drawer height is specified, refer to Figures G1.1, G2.1, G3.1, and G4.1.

Posted Comments:

Mikael Leduc (posted 2023-08-21 07:14:16.8)

Hi, I would like to know if I can get a .doc ou .pdf file that contains names or pictures of all optomecanics parts, so I can print them on adhesive label to identify our drawer of all size? thank you very much and have a great day, Mikael

jpolaris (posted 2023-08-21 08:09:56.0)

Thank you for contacting Thorlabs. We provide images and CAD PDF's of nearly every item in our catalog. If you have already purchased items that you intend to place in the cabinet, you could get their part numbers from the sales order we would have provided to you. Then, you could search those part numbers in our catalog and print out their images. The CAD PDF's will likely have an image of the part as well.

tbaker1 (posted 2018-06-29 14:15:08.197)

Is it possible to order extra dividers?

llamb (posted 2018-07-07 12:01:43.0)

Thank you for contacting Thorlabs. I will reach out to you directly to discuss a quote for extra dividers.

tupa (posted 2015-07-22 16:07:53.41)

I find your cabinets extremely useful in the lab and have even bought many sets for my workshop at home. For the optics lab, it would be great if you guys sold the same style cabinet with short, wide drawers that would work for the standard packaging for fiber optics components like your beamsplitters, circulators, etc. It would help greatly in keeping my components organized.

besembeson (posted 2015-09-23 05:52:59.0)

Response from Bweh at Thorlabs USA: For now you may consider the 19" rack drawers like the RAU200 on the following page: http://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=1455. That is a good idea we will look into.

david.grunwald (posted 2013-06-27 12:09:05.94)

Hi, The cabinets come with small plastic dividers for the drawers. It would be great if I could buy more of those! Especially for the S19228 cabinet. David

cdaly (posted 2013-07-02 11:14:00.0)

Response from Chris at Thorlabs: Thank you for your feedback. I will see if we can add this to our standard offerings, but in the mean time, I will contact you directly about getting these as separate components.

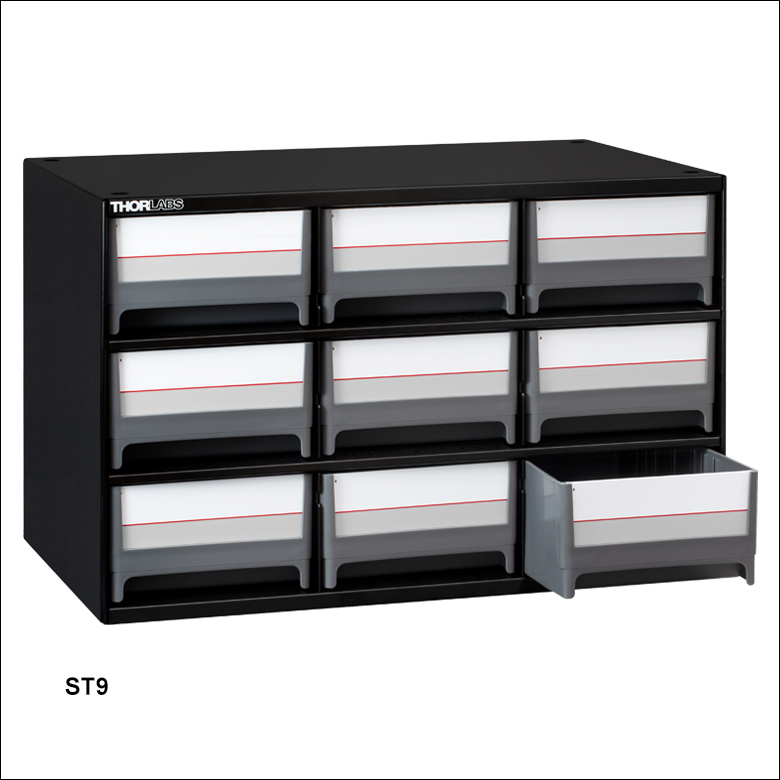

9-Drawer Cabinet

Zoom

Click to Enlarge

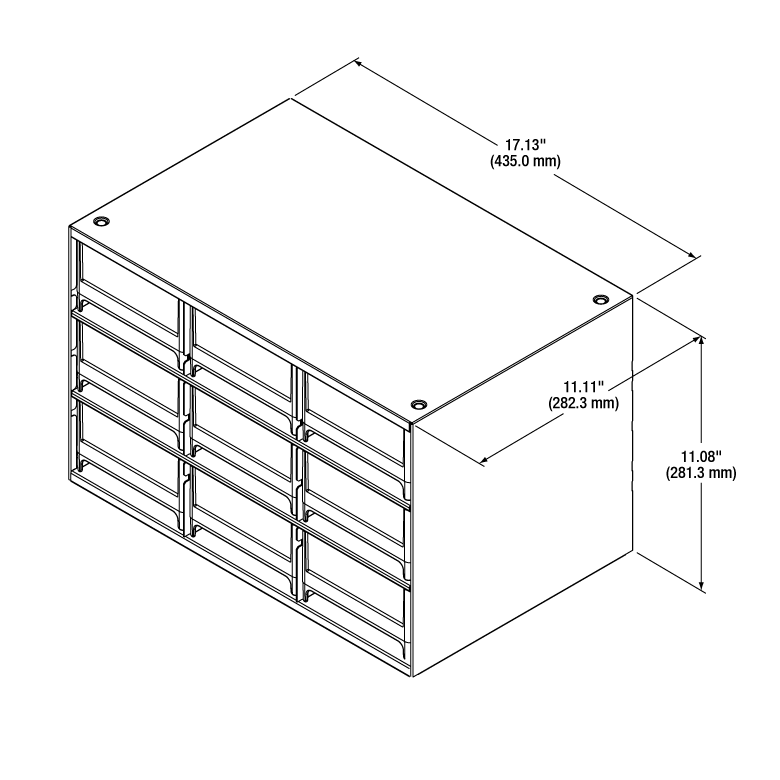

Figure G1.2 ST9 Cabinet Dimensions

Click to Enlarge

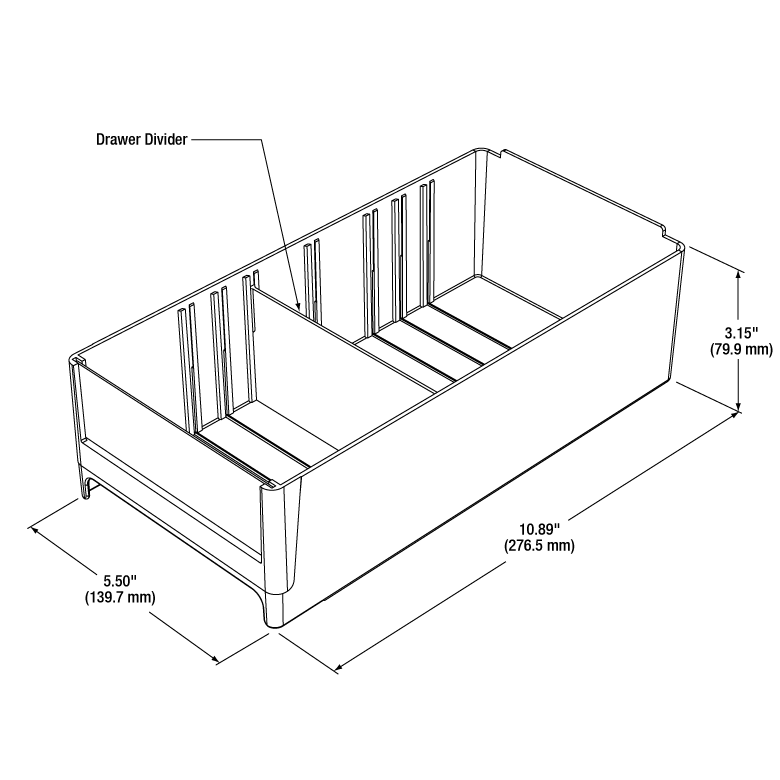

Figure G1.1 ST9 Cabinet Drawer Dimensions

Drawer Dimensions (L x W x H): 10.89" x 5.50" x 3.15" (276.5 mm x 139.7 mm x 79.9 mm)
Cabinet Dimensions (L x W x H): 17.13" x 11.11" x 11.08" (435.0 mm x 282.3 mm x 281.3 mm)
18 Drawer Dividers Included
Color: Black

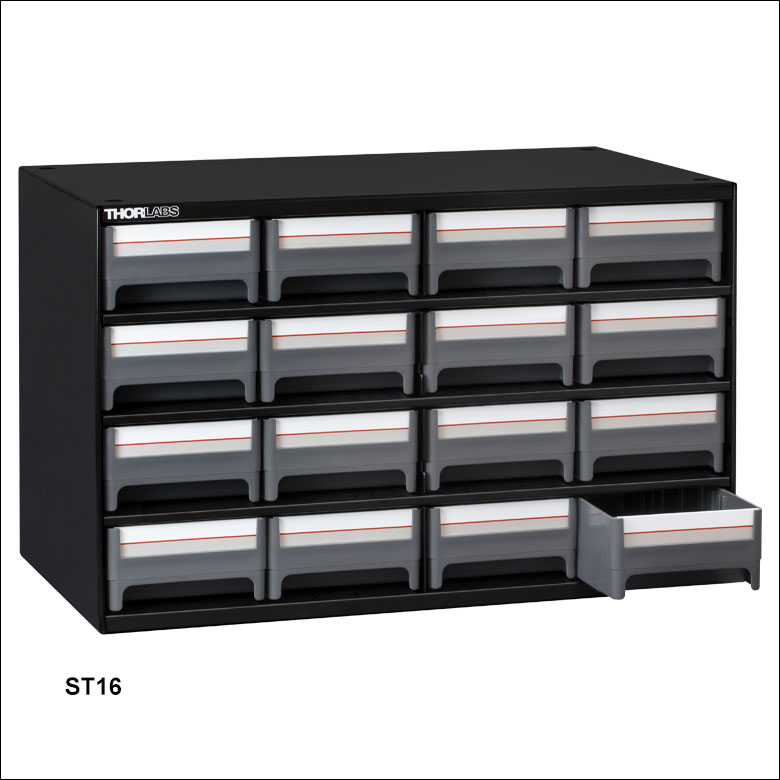

16-Drawer Cabinet

Zoom

Click to Enlarge

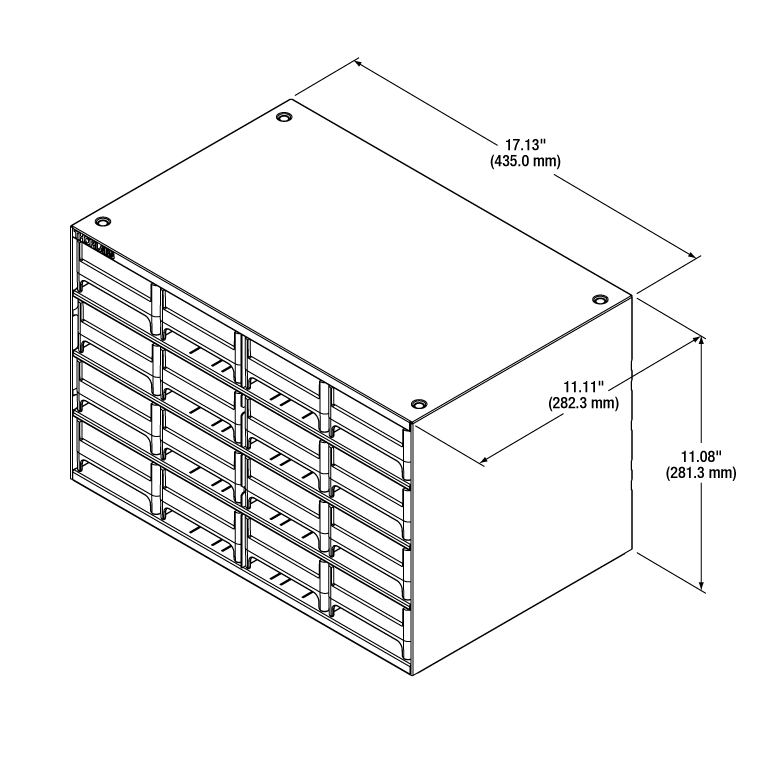

Figure G2.2 ST16 Cabinet Dimensions

Click to Enlarge

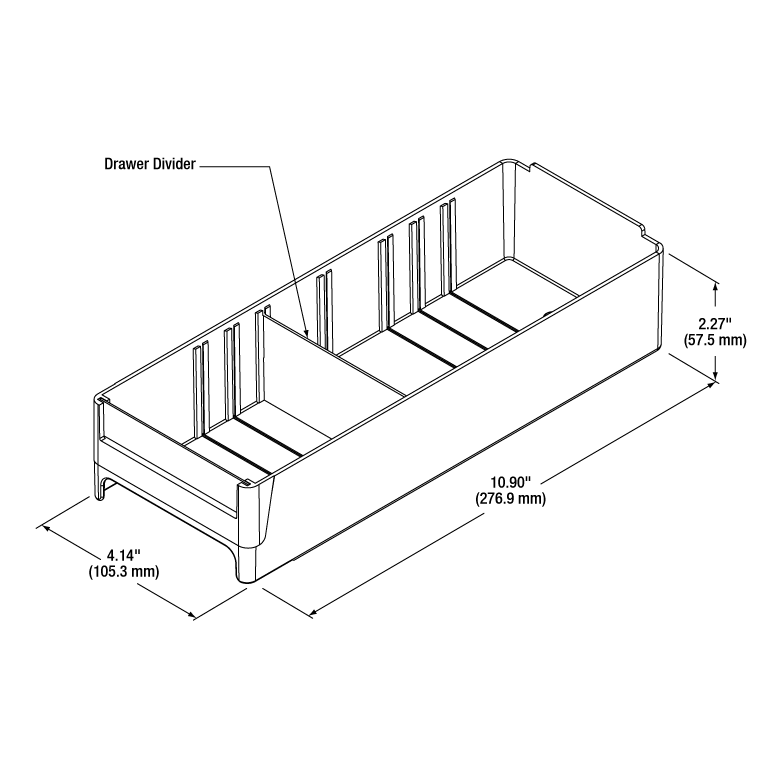

Figure G2.1 ST16 Cabinet Drawer Dimensions

Drawer Dimensions (L x W x H): 10.90" x 4.14" x 2.27" (276.9 mm x 105.3mm x 57.5 mm)
Cabinet Dimensions (L x W x H): 17.13" x 11.11" x 11.08" (435.0 mm x 282.3 mm x 281.3 mm)
32 Drawer Dividers Included
Color: Black

20-Drawer Cabinet

Zoom

Click to Enlarge
Figure G3.2 S19320 Cabinet Dimensions

Click to Enlarge
Figure G3.1 S19320 Cabinet Drawer Dimensions

Drawer Dimensions (L x W x H): 3.30" x 10.56" x 2.18" (83.8 mm x 268.2 mm x 55.4 mm)
Cabinet Dimensions (L x W x H): 17.00" x 11.00" x 11.00" (431.8 mm x 279.4 mm x 279.4 mm)
40 Drawer Dividers Included
Drawers Fit Our Standard Boxes for Ø1" Optics
Color: Gray

28-Drawer Cabinet

Zoom

Click to Enlarge

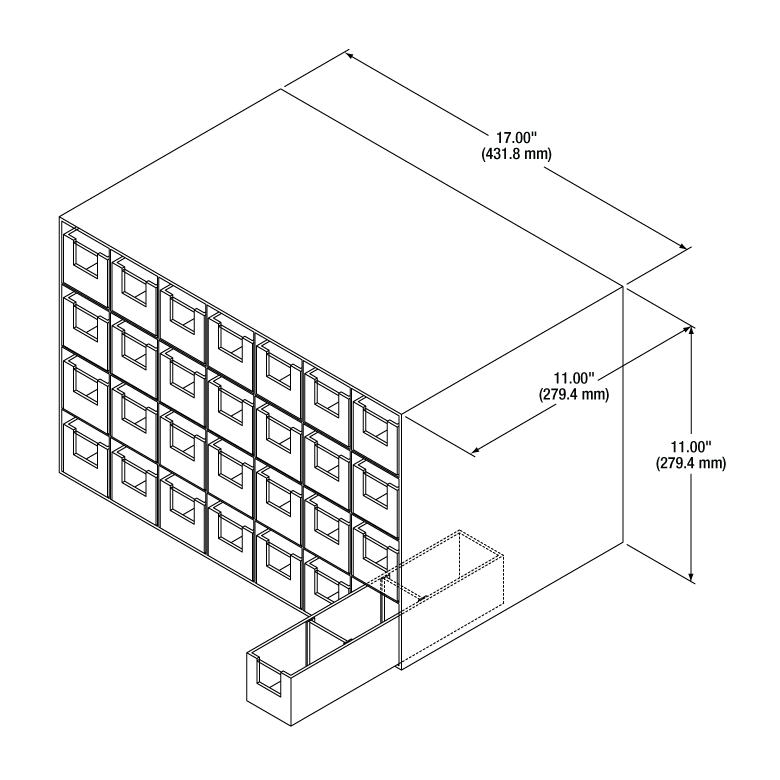

Figure G4.2 S19228 Cabinet Dimensions

Click to Enlarge

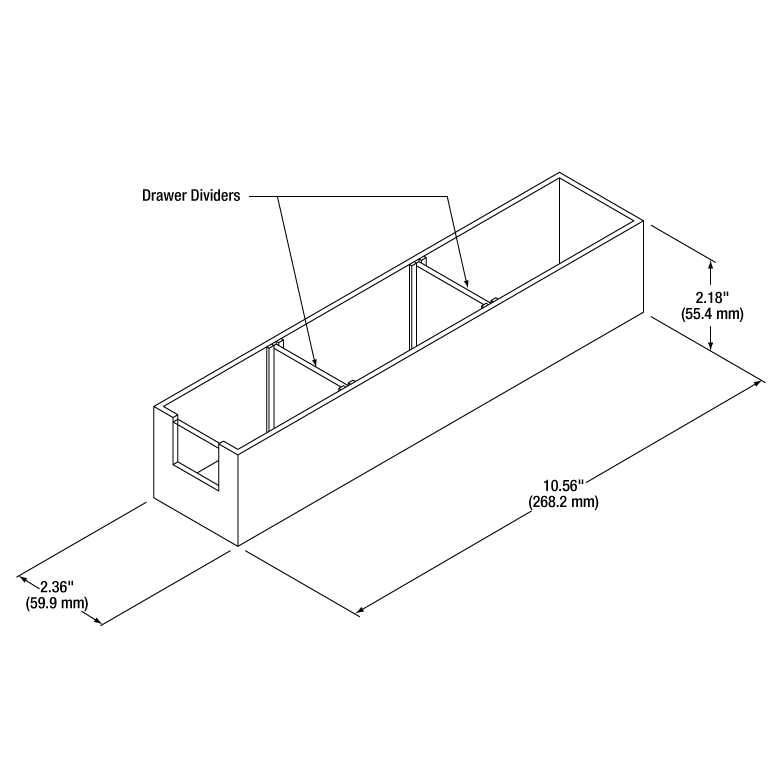

Figure G4.1 S19228 Cabinet Drawer Dimensions

Drawer Dimensions (L x W x H): 2.36" x 10.56" x 2.18" (59.9 mm x 268.2 mm x 55.4 mm)
Cabinet Dimensions (L x W x H): 17.00" x 11.00" x 11.00" (431.8 mm x 279.4 mm x 279.4 mm)
56 Drawer Dividers Included
Color: Gray
