Vapor Reference Cells


  • Different Vapors for Frequency and Wavelength Reference
  • Cells Made from Either Quartz or Borosilicate
  • Custom Reference Cell Capabilities
  • Reference Cell Heater for Vapor Excitation

GC25075-RB

GC19100-I

Application Idea

The perpendicular 16 mm cage system mounted using the SP30 Adapter Plate
can be used to detect fluorescence from the vapor cell,
which is mounted in a GCH25-75 Glass Cell Heater.

Related Items


Please Wait
Reference Cell Setup

Features

  • Vapor Cells for Frequency and Wavelength Reference
  • Borosilicate Glass Reference Cells
    • Cesium (Cs)
    • Potassium (K)
    • Sodium (Na)
    • Rubidium (Rb)
  • Quartz Glass Reference Cells
    • Cesium (Cs)
    • Iodine (I)
    • Rubidium (Rb)
    • Enhanced Rubidium 87 (87Rb)
  • Glass Cell Heaters Available

Reference cells contain vapors of specific atomic elements or molecular compounds, each of which has a well-defined absorption spectrum. These cells are commonly used in spectroscopic applications such as tunable diode laser calibration, stabilization of laser frequencies, and calibration of wavelength meters. Thorlabs offers both pyrex and quartz reference cells that contain a range of standard fill materials. All of the cells offered here have been baked and evacuated to 10-8 torr in order to remove contaminants. Additionally, each cell is helium leak checked to ensure the longevity of the vapor cell. Custom reference cells can be manufactured upon request.

Since each fill material is associated with a unique absorption spectrum that serves as its fingerprint, the contents of a reference cell can be determined via a linear absorption measurement (as depicted by the simplified schematic above). By scanning a tunable diode laser over a wavelength range and detecting light absorption (A) with a photodetector, a series of peaks will be recorded, which is characteristic of the vapor inside the cell. We also offer pre-assembled Herriott cells for gas absorption spectroscopy applications as well as empty glass cells for custom spectroscopic applications.

Mounting & Heating Options
These cells can be mounted in our V-Clamp Mounts, which are available in standard, kinematic, or Ø1.5" post-compatible versions. Please check that the cell diameter is supported by the mount. The cells can be heated using the GCH25-75 Glass Cell Heater, illustrated in the photo at the top of the page. Our HT10K and TLK-H Resistive Foil Heaters wrap around Ø25.4 mm glass cells and feature adhesive backing.

Please note: These reference cells are subject to hazardous goods regulations and must be shipped separately using specifically regulated shipping methods and may require special shipping and handling charges. Next day delivery is not available. All orders will ship from our US warehouse regardless of destination and cannot be returned. Due to hazardous materials shipping regulations, we are currently unable to ship our reference cells to Brazil, China, or Uruguay.

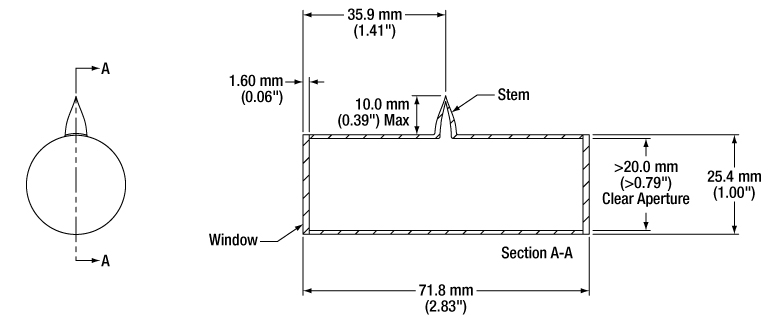

Borosilicate Reference Cells

Specifications
Material Borosilicate Glass
Cell Diameter 25.4 mm
Cell Length 71.8 mm
Pressure @ 25 °C >10-7 Torr
Fill Stem <10 mm
Window Angle
Window Type Flat
Window Thickness 1.6 mm
Minimum Transmission (350 nm - 2.2 µm) >84%
Vapor Typical Wavelength
Sodium (Na) 589 nm
Potassium (K) 764 nm
Rubidium (Rb) 780 nm
Cesium (Cs) 852 nm

Quartz Reference Cells

Item # GC19075-CS GC19100-I GC19075-RB GC19075-RB87
Material Quartz
Cell Diameter Ø19.0 mm
Cell Length 75.0 mm 100.0 mm 75.0 mm 75.0 mm
Pressure @ 25 °C > 0.1 - 1.2 Torr
Fill Stem <10 mm
Window Angle 11° ± 1°
Window Type Wedged 2°
Window Thickness 3 mm
Window Surface Quality 60-40 Scratch-Dig
Window Flatness λ/4

Posted Comments:
Seokjin Kim  (posted 2019-08-19 04:24:26.477)
Dear Sir or Madam. Hello. Since I saw that thorlab could make custom cell with request, i send a email. Could we make custom cell with below condition? 1. Polygonal column(like triangular, rectangular and etc) 2. AR coating for all plane or plat window for cylindrical cell. 3. Cs with 500torr ethane buffer gas. Thank you. Best regards, Seokjin Kim
YLohia  (posted 2019-08-20 08:30:25.0)
Hello Seokjin, custom vapor reference cells can be requested by emailing techsupport@thorlabs.com. We will reach out to you directly.
fshlomo  (posted 2018-11-26 02:26:14.967)
Hi, Actually a question, could you please quote for an optical cell with 129I or 127/129I ratio, spectroscopic research of the hyper fine structure shifts of the two isotopes. Salomon Fastig
YLohia  (posted 2018-11-26 10:01:52.0)
Hello Salomon, thank you for contacting Thorlabs. Custom vapor reference cells can be requested by emailing techsupport@thorlabs.com. We will reach out to you directly to discuss your requirements and the possibility of a quote.
b.goldberg  (posted 2018-03-29 16:24:34.117)
I'm interested in the I2 cell, but concerned with the statement of, "Although quartz will survive temperatures up to 800 °C, the reference vapor will be consumed by reactions with the wall of the cell at temperatures significantly lower than quartz's melting temperature." I want to use the cell at near room temp. Is the suggestion that I would be losing I2 there? Additionally, it seems that the cell has a small pressure of the I2 vapor and some buffer gas. What is the pressure of the vapor and the pressure of the buffer gas? Lastly, can you send my a reference spectra at 18788 cm-1 nm?
nbayconich  (posted 2018-04-02 10:40:08.0)
Thank you for contacting Thorlabs. For the Iodine vapor reference cells there is no indication that the Iodine vapor will react with the quartz cell or glass at any temperature. Most reactions occur with alkali metal vapor reference cells at high temperatures around 110 degrees Celsius. The quartz cell alone can handle temperatures up to 800C however we recommend the operating temperature of the vapor inside the reference cells to be below 110 degrees Celsius for any reference cell using an alkali metal vapor such as Cesium or Sodium. These cells are sealed at a pressure of 1 x 10-8 Torr 25 °C and the buffer gas is helium. We do not have any reference spectra at the moment for these particular iodine vapor cells but I will reach out to you directly with some references.
aspitarte  (posted 2018-02-13 16:47:13.76)
I am currently trying to measure the transmission of these quartz vapor tubes containing Potassium, Sodium, Rubidium, and Cesium. I would appreciate transmission data on these tubes at room temperature and elevated temperatures, if possible. Thank you.
YLohia  (posted 2018-03-29 03:39:42.0)
Hello, thank you for contacting Thorlabs. We will reach out to you directly to discuss the possibility of performing these tests.
hoeffner  (posted 2017-11-04 11:53:22.35)
My application is a Faraday-cell which is a potassium cell operating at high temperatures up to 140°C with a magnetic field of ~2000 Gauss. Different to reference cells such a cell is a extrem narrowband filter of a few pm depending on the combination of temperature and magnetic field. Is it possible to achieve such high temperatures with the controller/heater? Can they be modfied according to this requirements? regards J. Hoeffner
tfrisch  (posted 2018-01-03 02:06:17.0)
Hello, thank you for contacting Thorlabs. Unfortunately, our GCH25-75 is only suitable up to 50°C. I can reach out to you directly about your applications.
peter.a.ketteridge  (posted 2017-09-28 15:45:57.21)
Can you supply me with absorption spectra for cell GC19075-CS. The pressure stated at 25C is the filled cell with residual air only...as its below Cs melting. What is the mass/molarity of Cs in the cell as supplied? Thanks for help.
tfrisch  (posted 2017-12-04 04:53:09.0)
Hello, thank you for contacting Thorlabs. Cs will be gasseous at such low pressure. The cell is sealed at about 10^-8 Torr, and the Cs purity is better than 99.99%, so there would be no contamination from air or other materials. I will reach out to you with typical absorption data on Cs.
mugreen  (posted 2016-07-07 08:03:21.22)
Hello. I'm a graduate school student in KAIST, South Korea. I found that custom reference cell can be manufactured from the Overview of the Gas reference cells. Actually I'm finding a Borosilicate reference cell doubly filled with Rb and Cs, with other properties same with the other products.(size, etc.) I need this cell to do an experiment with femtosecond laser in this Summer. Please let me know whether it is possible to make. Thanks. Sincerely, Min-Hyuk Kim
nfredman  (posted 2016-06-14 14:53:03.22)
We've made a small oven for our rubidium vapor cell to keep it at 40 C to improve the absorption spectrum, but some of the rubidium has started to condense on the exposed windows, and cloud our view. Any permanent solutions on reducing condensation?
besembeson  (posted 2016-06-15 02:46:29.0)
Response from Bweh at Thorlabs USA: You would need to improve your heating design to include the windows. You could improvise a means to achieve this, or maybe consider our GCH25-75 that is designed to uniformly heat the entire cell.
eddie.ross  (posted 2016-05-06 04:18:02.45)
Could you please provide a rough mass estimate of the GC25075-NA cell? Thanks.
besembeson  (posted 2016-05-10 02:44:04.0)
Response from Bweh at Thorlabs USA: If you are interested in the sodium mass, this will be typically 5-10 mg.
JHansell  (posted 2016-02-02 10:12:40.903)
What is the lifetime of the cell? Does the Iodine react, get absorbed or leak over a period of time?
besembeson  (posted 2016-02-04 02:12:25.0)
Response from Bweh at Thorlabs USA: These should last for a very long time. To our knowledge, there is no reaction between the glass and the iodine. The only consideration is the rate of He (buffer gas) permeation until naturally occurring atmospheric levels (equilibrium) is reached.
marries  (posted 2015-11-16 09:57:03.047)
Please could you let me know if there is an MSDS or COSH health and safety leaflet for the Rb cells. Also what is the quantity of Rb in a cell? Regards Mark Farries
besembeson  (posted 2015-11-19 09:47:01.0)
Response from Bweh at Thorlabs USA: Yes we have the MSDS safety leaflet at the following link: http://www.thorlabs.com/thorcat/24000/GC25075-RB-MSDS.pdf. The quantity of Rb in a cell is typically 5-10mg.
cg8  (posted 2015-10-30 08:40:28.21)
Do you make any of the molecular reference cells referenced? In particular, we are interested in hydrogen chloride.
besembeson  (posted 2015-11-04 05:38:32.0)
Response from Bweh at Thorlabs USA: We provide several special reference cells with different molecules but we don't do HCl at this time.
aw00239  (posted 2015-07-21 11:39:05.06)
Hi, can anyone advise me on the possibility of custom cells? I'm looking for some cells that are similar to your Rubidium products but have different specs. Thanks in advance for you help
besembeson  (posted 2015-07-23 05:56:46.0)
Response from Bweh at Thorlabs USA: We can provide custom cells with different reference gases, pressures and dimensions. I will follow-up by email regarding providing this to you.
marina.kauffeldt  (posted 2015-02-27 16:19:36.21)
I have a questions concerning the absorbtion spectrum of the iodin cell. Do you have any overiew spectra for the wavelength region fo 520-540 nm? If yes it would be very helpful if you can provide me the spectra or any references to such spectra! Thank you for your help in advance!
besembeson  (posted 2015-03-26 04:14:26.0)
Response from Bweh at Thorlabs USA: We don't have this currently and we typically have not been collecting spectra from users that we can share. I will email you a few helpful links regarding reference spectra.
yogeshwar.kale  (posted 2014-12-10 00:30:52.643)
Dear Sir/Madam, Can you able to provide the gas cells similar to GC25075-Na for the atomic hydrogen gas filled in it? Regards, Dr. Y. B. Kale RRCAT, Indore, India
jlow  (posted 2014-12-11 11:12:38.0)
Response from Jeremy at Thorlabs: We can provide custom gas reference cells upon request. I will contact you directly to discuss about your requirements.
johannes.wein  (posted 2014-05-09 13:05:13.603)
Is it possible to get the transmission values for GC19075-RB at wavelengths: 193,420,1323,1366,1475,1528 nm? The transmission curves are to small to get any accurate numbers out of it.
besembeson  (posted 2014-05-15 09:02:27.0)
Response from Bweh E at Thorlabs: I will be sending you the excel data file by email for that plot. We will subsequently include this data on the website. Thanks for bringing this to our attention.
cbxie  (posted 2014-03-19 10:21:36.977)
I want to check if only one TC200 (with one output) can control the GCH25-75 with two heat elements (there have two 6-pin connectors).
jlow  (posted 2014-03-19 08:06:05.0)
Response from Jeremy at Thorlabs: Yes, you only need one TC200 to drive both heating elements in the GCH25-75. There's a main output and an auxiliary output on back of the TC200. The auxiliary output is detailed in Chapter 11 of the manual.
Varberg  (posted 2013-06-16 00:10:03.267)
I am wondering if you can make me a quartz iodine cell that is 500 mm long ( instead of the standard 100 mm). Thanks.
tcohen  (posted 2013-06-19 17:49:00.0)
Response from Tim at Thorlabs: Thank you for your inquiry. Yes, we can provide this. Custom requirements can be discussed and quoted directly through our applications engineers at techsupport@thorlabs.com.
cbxie  (posted 2013-03-07 03:34:51.337)
I want to order the I2 cell for research, but I can not find the suitbale one in the product list. Could your company produce the I2 cell for our specialization-Diameter of 25mm and Length of 400mm.
jlow  (posted 2013-03-07 12:35:00.0)
Response from Jeremy at Thorlabs: We could possibly make this depending on the specs needed. I will get in contact with you to discuss about this directly.
jlow  (posted 2012-08-23 08:10:00.0)
Response from Jeremy at Thorlabs: We are able to customize our gas reference cells. I will get in contact with you directly regarding this.
zelensky  (posted 2012-08-23 09:35:29.0)
I need RB87 cell with buffer gas (e.g. Ne, 5-30 torr) Is this option available?
jlow  (posted 2012-08-16 11:24:00.0)
Response from Jeremy at Thorlabs: These gas reference cells must be shipped with a hazardous cargo charge and specifically it must be sent via FedEx Air Freight Cargo as the mode of delivery. This is a regulation and there is no way that we can circumvent this. I will get in contact with you to discuss more about this.
scholten  (posted 2012-08-15 23:57:25.0)
Good to see these as being available again. However, do you charge "Hazardous cargo" shipping charges for these? To ship to Australia, other suppliers say they must specify hazardous cargo, which means they cannot go on passenger planes, and the additional cost is very high (approx. $500). If you can circumvent that it makes your cells significantly lower in cost. Thanks
user  (posted 2011-11-23 17:24:16.0)
A response from Tyler at Thorlabs: Hello acable, Unfortunately we recently discontinued our line of gas cells and as a result this page is no longer a good place to put this data. If you already have a reference cell from us could you please contact our technical support group and they will provide you with any absorption data we have.
acable  (posted 2011-11-19 18:13:55.0)
The catalog page gives some absorption plots, would it be possible for you to post these to the web for easy access.
bdada  (posted 2011-08-24 14:28:00.0)
Response from Buki at Thorlabs: Thank you for your feedback. Our Sales Department will contact you to discuss shipping methods.
ding  (posted 2011-08-23 19:05:55.0)
I am not able to buy the water vapor cell in the Netherlands. I was wondering if I can ask someone to order it in US and bring it to Europe with him. How long does it take to ship it within US? Shall I expect long waiting period even in US? Thanks a lot!
technicalmarketing  (posted 2007-11-26 08:22:01.0)
Dear Kevin, The yellowish gold film that you see on the cell is most likely condensed Na. As you heat the cell, the vapor pressure increases, causing the vapor will coat the cell walls themselves. If you blow warm air onto the areas of the cell where this condensation has occured using a heat gun (or even a hairdryer) while keeping the rest of the cell cooler, youll be able to remove the condesed vapor from the surfaces that you need access to for your experiment.
Kevin.lyon  (posted 2007-11-21 11:50:22.0)
We have purchased this cell along with the heater GCH09-150 and the associated controller. The cell works fine however the heater was only rated for 80 C which does not provide hardly any vapor pressure for sodium. It may be enough if you are looking at absorption however for any fluorescence it is insufficient heat. We then used heater tape to heat the cell to around 150 degrees and got the results we needed however the cell turned an odd yellowish gold. I am not yet sure what reaction may be responsible for this however the cell still provides an atomic sodium spectra despite the discoloration.

Borosilicate Reference Cells

UVFS Transmission
Click to Enlarge

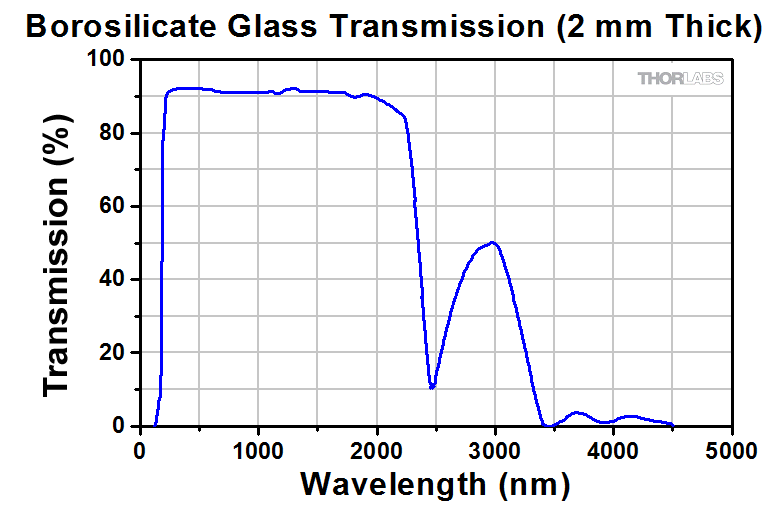

Borosilicate Glass Transmission

These reference cells are fabricated from borosilicate glass, a rugged material known to resist chipping and cracking. They are tested to ensure that the transmission through the cell exceeds 84% for light in the 350 nm to 2.2 µm range.

MSDS sheets are available and can be found by clicking on the red Docs icon () below.

For vapor excitation, please see our selection of glass cell heaters.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
GC25075-CS Support Documentation
GC25075-CSCesium Borosilicate Reference Cell, Ø25.4 mm x 71.8 mm
$523.74
Today
GC25075-K Support Documentation
GC25075-KPotassium Borosilicate Reference Cell, Ø25.4 mm x 71.8 mm
$523.74
Today
GC25075-NA Support Documentation
GC25075-NASodium Borosilicate Reference Cell, Ø25.4 mm x 71.8 mm
$523.74
Today
GC25075-RB Support Documentation
GC25075-RBRubidium Borosilicate Reference Cell, Ø25.4 mm x 71.8 mm
$523.74
Today

* Vapor Cell Purchases are not eligible for return.

Quartz Reference Cells

UVFS Transmission
Click to Enlarge

UV Fused Silica Transmission
Click Here for Raw Data

Thorlabs' quartz reference cells feature UV fused silica windows for superior transmission in the UV spectral range. The windows, which are angled to compensate for beam offset, are designed with a 2 degree wedge so as to eliminate etalon effects.

The rubidium reference cell (GC19075-RB) is sold with the natural isotope ratio of Rb, which is 72.15% 85Rb and 27.85% 87Rb . A version is also available with 98% pure 87Rb (GC19075-RB87).

Although quartz will survive temperatures up to 800 °C, the reference vapor will be consumed by reactions with the wall of the cell at temperatures significantly lower than quartz's melting temperature.

MSDS sheets are available and can be found by clicking on the red Docs icon () below.

For vapor excitation, please see our selection of glass cell heaters.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
GC19075-CS Support Documentation
GC19075-CSCesium Quartz Reference Cell, Ø19 mm x 75 mm
$665.50
Today
GC19100-I Support Documentation
GC19100-IIodine Quartz Reference Cell, Ø19 mm x 100 mm
$665.50
Today
GC19075-RB Support Documentation
GC19075-RBRubidium Quartz Reference Cell, Ø19 mm x 75 mm
$665.50
Today

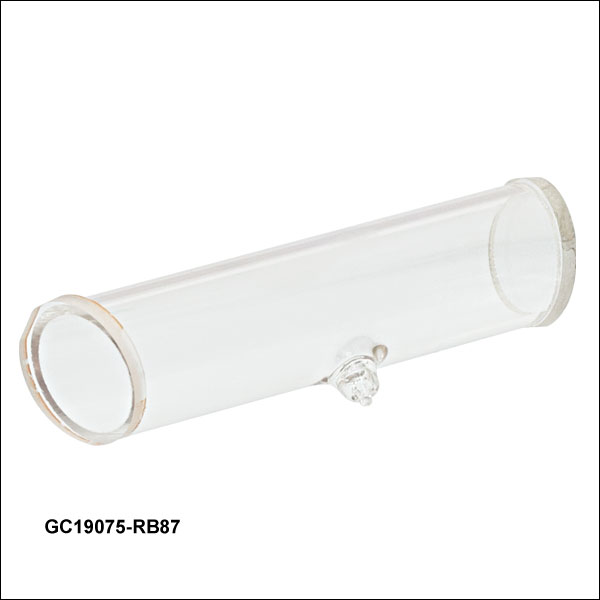

GC19075-RB87 Support Documentation
GC19075-RB87Enhanced Rubidium 87 [87Rb], Quartz Reference Cell, Ø19 mm x 75 mm
$996.63
Today

* Vapor Cell Purchases are not eligible for return.
