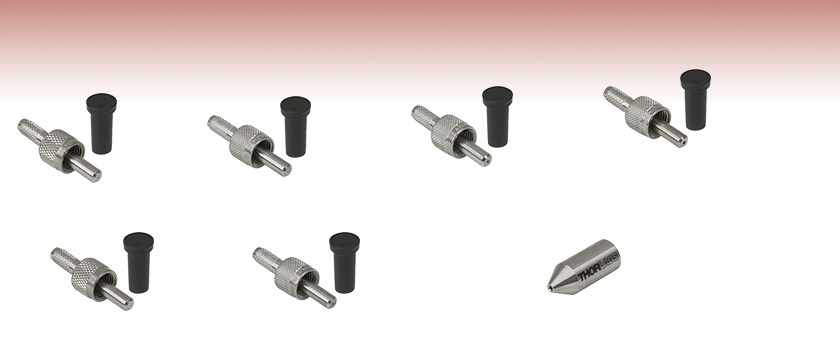

High-Temperature, Vacuum-Compatible SMA905 Stainless Steel Connectors


  • High-Temperature Connectors for Environments up to 250 °C
  • Bore Sizes for Claddings Between Ø128 µm and Ø720 µm
  • Ideally Suited for Large Core Fibers

FTSB1

Stainless Steel Sleeve

10720V

720 µm Bore Diameter

10490V

490 µm Bore Diameter

10245V

245 µm Bore Diameter

10385V

385 µm Bore Diameter

10145V

145 µm Bore Diameter

10128V

128 µm Bore Diameter

Related Items


Please Wait

Features

  • 304 Stainless Steel SMA905 Connectors for Continuous Use in Extreme Environments
  • Vacuum Compatible Down to 10-10 Torr
  • Operating Temperatures up to 250 °C
  • Ideally Suited for Large Core Fibers
  • Stainless Steel Sleeves Available Separately

SMA905 connectors, which are most commonly used with multimode fibers, have a stainless steel ferrule design that is ideally suited for large core fibers. The connectors offered here have bore sizes ranging from Ø128 µm to Ø720 µm. For our complete selection of SMA905 connectors, which have bore sizes up to 1580 µm, visit the full web presentation.

These high-temperature connectors, manufactured using 304 stainless steel, are designed for continuous operation in high-temperature environments up to 250 °C or vacuum down to 10-10 Torr when used with the FTSB1 Stainless Steel Sleeve and 353NDPK Epoxy. They are ideal for use with polyimide-coated fiber.


Posted Comments:
No Comments Posted

High-Temperature, Vacuum-Compatible SMA905 Stainless Steel Ferrule Connectors

High-temperature connectors manufactured using 304 stainless steel are designed for continuous operation in high-temperature environments up to 250 °C or vacuum down to 10-10 Torr when used with the FTSB1 Stainless Steel Sleeve and 353NDPK Epoxy. These high-temperature connectors are ideal for use with polyimide-coated fiber.

Item # Style Bore Diameter Bore Diameter Tolerance Ferrule Recommended
Boot
Recommended Epoxy Operating Temperature Range Vacuum Compatibility
10128V SMA905 128 µm +5/-0 µm Ø3.2 mm
304
Stainless Steel
FTSB1
Stainless Steel Boot
(Sold Separately Below)
353NDPK -40 to 250 °Ca 10-10 Torr
10145V 145 µm +5/-0 µm
10245V 245 µm +10/-0 µm
10380V 380 µm +15/-0 µm
10490V 490 µm +15/-0 µm
10720V 720 µm +15/-0 µm
  • The specified operating temperature is limited by the epoxy used. Connectors can be used continuously at temperatures up to 250 °C only when using the recommended boot and epoxy.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
10128V Support Documentation
10128VHigh-Temp., Vacuum-Compatible SMA905 MM Connector, Ø128 µm Bore, SS Ferrule
$22.28
5-8 Days
10145V Support Documentation
10145VHigh-Temp., Vacuum-Compatible SMA905 MM Connector, Ø145 µm Bore, SS Ferrule
$22.28
5-8 Days
10245V Support Documentation
10245VHigh-Temp., Vacuum-Compatible SMA905 MM Connector, Ø245 µm Bore, SS Ferrule
$22.28
Today
10380V Support Documentation
10380VHigh-Temp., Vacuum-Compatible SMA905 MM Connector, Ø380 µm Bore, SS Ferrule
$22.28
Today
10490V Support Documentation
10490VHigh-Temp., Vacuum-Compatible SMA905 MM Connector, Ø490 µm Bore, SS Ferrule
$22.28
Today
10720V Support Documentation
10720VHigh-Temp., Vacuum-Compatible SMA905 MM Connector, Ø720 µm Bore, SS Ferrule
$22.28
Today

Stainless Steel Sleeve

  • Stainless Steel Sleeve for Temperatures up to 250 °C or Vacuum down to 10-10 Torr

The FTSB1 Stainless Steel Sleeve fits fibers with outer diameters up to 720 µm, such as polyimide-coated fiber. It is intended to be used with our high-temperature SMA905 multimode connectors and can withstand environments with temperatures up to 250 °C or vacuum down to 10-10 Torr.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
FTSB1 Support Documentation
FTSB1304 SS Sleeve for High-Temperature, Vacuum-Compatible SMA905 Connectors
$18.04
Today
