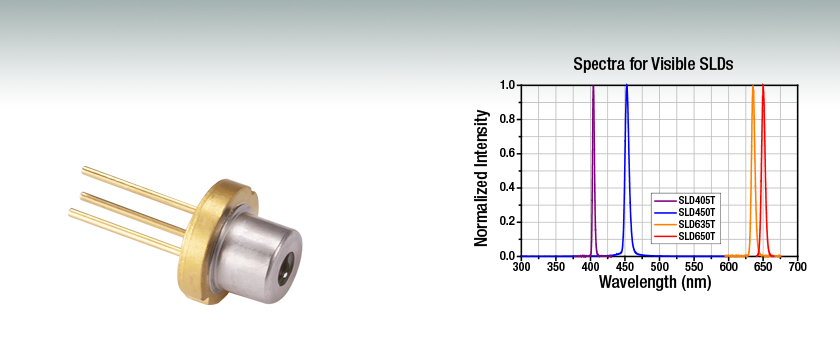

Visible Superluminescent Diodes (SLDs), TO-56 Can

Ø5.6 mm TO Can Package with H Pin Codes
Broad Emission with Center Wavelengths from 405 nm to 650 nm
10 mW Typical Output Power

SLD450T

450 nm SLD, 10 mW, TO-56 Can

Related Items

Visible SLDs, Butterfly Package

NIR Superluminescent Diodes

Benchtop SLDs for the IR

Diode Sockets

Free-Space Optical Isolators

Power and Energy Meters

ESD Wrist Straps

Please Wait

Overview
Feedback
Selection Guide

Pin Code

The pin code indicates which mounts and diodes are compatible. The drawing does not represent an exact wiring diagram.

Recommended Controller / Mount Options
Item #	Mount	Diode Driver	TEC Controller
LDM56		-	-
ITC4000 Series	Use with LDM56 Mount
LDC200 Series	Use with LDM56 Mount		-
TED200C	Use with LDM56 Mount	-

Features

Center Wavelengths from 405 nm to 650 nm
4 nm or 5 nm Typical 3 dB Bandwidth
Compatible with Thorlabs' Laser Diode Mounts and Controllers (See Table to the Right)

Superluminescent Diodes (SLDs) are excellent high-power, broadband light sources that are ideal for use in applications such as display technology, holography, metrology, and spectroscopy. When fit into an external cavity, these SLDs can be used as a tunable laser. This page contains Thorlabs' SLDs with center wavelengths from 405 nm to 650 nm that are built into a TO-56 package with pin code H. Visible SLDs in a butterfly package are also available, as well as NIR SLDs for wavelengths from 810 nm to 1550 nm, many of which are ideal for spectral-domain optical coherence tomography.

The SLDs featured on this page are single spatial mode and have a near-Gaussian optical spectrum. More detailed typical specifications for each item, as well as mechanical drawings, are available in the tables below.

With an H pin code, these visible SLDs are compatible with Thorlabs' S7060R diode socket and the LDM56 laser diode mount, which has an integrated thermoelectric cooler (TEC). These mounts are compatible with Thorlabs' laser diode and temperature controllers; see the table above for details. Please note that optical feedback can diminish the output power or damage the SLD and back-reflections should be avoided. SLDs are also sensitive to electrostatic shock, and proper precautions must be taken when handling the device (see our electrostatic shock accessories).

Posted Comments:

Junhyeok Hur (posted 2022-08-17 15:43:08.13)

Dear Thorlabs We are looking for a laser diode mount to drive SLD650T. Because SLD650T has a wide diverging angle, it requires high NA. Currently, we are usingLDM9T/M but it has large averation due to the short focal length(3.1mm) compared to the margin of the thread mount. Therefore, we want to use LTN330-B but it does not contain the TEC. Could you recommend any other laser diode mount for SLD650T? Best regards.

fmortaheb (posted 2022-08-18 05:09:08.0)

Thank you very much for contacting us! Our recommended mount for these SLDs is LDM56. We will reach out to you directly to discuss your application in detail.

Superluminescent Diode Performance:

Item #	Center Wavelength	Package	Output Power^a	Bandwidth (3 dB)	Equivalent Benchtop Source
SLD405B	405 nm	Butterfly, SM Pigtail	5 mW	3 nm	N/A
SLD450B	450 nm	Butterfly, SM Pigtail	5 mW	6 nm	N/A
SLD450T	450 nm	TO-56	10 mW	5 nm	N/A
SLD510B	510 nm	Butterfly, SM Pigtail	1.5 mW	8 nm	N/A
SLD635B	635 nm	Butterfly, SM Pigtail	3 mW	6 nm	N/A
SLD635T	635 nm	TO-56	10 mW	5 nm	N/A
SLD650B	650 nm	Butterfly, SM Pigtail	3 mW	6 nm	N/A
SLD650T	650 nm	TO-56	10 mW	5 nm	N/A
SLD770S	770 nm^c	Butterfly, SM Pigtail	5.5 mW	18 nm	N/A
SLD810S	810 nm^c	Butterfly, SM Pigtail	15 mW	30 nm	N/A
SLD830S-A10W	830 nm^c	Butterfly, SM Pigtail	10 mW (Min)	60 nm	N/A
SLD830S-A20W	830 nm^c	Butterfly, SM Pigtail	20 mW (Min)	55 nm	N/A
SLD830S-A10	830 nm^c	Butterfly, SM Pigtail	13 mW	20 nm	N/A
SLD830S-A20	830 nm^c	Butterfly, SM Pigtail	22 mW	20 nm	N/A
SLD850S-A10W	850 nm^c	Butterfly, SM Pigtail	10 mW (Min)	60 nm	N/A
SLD850S-A20W	850 nm^c	Butterfly, SM Pigtail	20 mW (Min)	55 nm	N/A
SLD880S-A7	880 nm^c	Butterfly, SM Pigtail	7 mW	40 nm	N/A
SLD880S-A25	880 nm^c	Butterfly, SM Pigtail	25 mW	40 nm	N/A
SLD920S	920 nm^c	Butterfly, SM Pigtail	15 mW	65 nm	N/A
SLD920P	920 nm^c	Butterfly, PM Pigtail	15 mW	65 nm	N/A
SLD930S-A40W	930 nm^c	Butterfly, SM Pigtail	40 mW	45 nm	N/A
SLD930P-A40W	930 nm^c	Butterfly, PM Pigtail	40 mW	45 nm	N/A
SLD970S-A40W	970 nm^c	Butterfly, SM Pigtail	40 mW	50 nm	N/A
SLD970P-A40W	970 nm^c	Butterfly, PM Pigtail	40 mW	50 nm	N/A
SLD1050S	1050 nm^c	Butterfly, SM Pigtail	8 mW	50 nm	N/A
SLD1050P	1050 nm^c	Butterfly, PM Pigtail	8 mW	50 nm	N/A
SLD1050S-A60	1050 nm^c	Butterfly, SM Pigtail	60 mW	70 nm	N/A
SLD1050P-A60	1050 nm^c	Butterfly, PM Pigtail	60 mW	70 nm	N/A
SLD1021S	1310 nm^c	Butterfly, SM Pigtail	12.5 mW	85 nm	S5FC1021S
SLD1018S	1310 nm^c	Butterfly, SM Pigtail	30 mW	45 nm	S5FC1018S S5FC1018P
SLD1018P	1310 nm^c	Butterfly, PM Pigtail	30 mW	45 nm	S5FC1018S S5FC1018P
SLD1325	1325 nm^c	Butterfly, SM Pigtail	10 mW (Min)	100 nm (Min)	N/A
SLD1450S	1450 nm^c	Butterfly, SM Pigtail	25 mW	54 nm	N/A
SLD1450P	1450 nm^c	Butterfly, PM Pigtail	25 mW	54 nm	N/A
SLD1550S-A1	1550 nm^c	Butterfly, SM Pigtail	1.0 mW	110 nm	N/A
SLD1550P-A1	1550 nm^c	Butterfly, PM Pigtail	1.0 mW	110 nm	N/A
SLD1550S-A2	1550 nm^c	Butterfly, SM Pigtail	2.5 mW	90 nm	S5FC1550S-A2 S5FC1550P-A2
SLD1550P-A2	1550 nm^c	Butterfly, PM Pigtail	2.5 mW	90 nm	S5FC1550S-A2 S5FC1550P-A2
SLD1005S	1550 nm^c	Butterfly, SM Pigtail	22 mW	50 nm	S5FC1005S
SLD1550S-A40	1550 nm^c	Butterfly, SM Pigtail	40 mW	33 nm	N/A
SLD1550P-A40	1550 nm^c	Butterfly, PM Pigtail	40 mW	33 nm	N/A
SLD1610	1610 nm^c	Butterfly, SM Pigtail	27 mW	57 nm	N/A
SLD1610P	1610 nm^c	Butterfly, PM Pigtail	27 mW	57 nm	N/A

Values are typical unless otherwise noted.
Basic superluminescent diode characteristics can be measured by increasing current (I) while measuring the device voltage (V) and light output (L). The resulting data is usually referred to as an LIV curve.
For more information on how the center wavelength for our NIR SLDs is defined, please see the Specs tab on the NIR Superluminescent Diodes presentation.

Visible Superluminescent Diodes, TO-56 Can

Item #^a	Center Wavelength	Power	Forward Current (Max)	3 dB Bandwidth	Pin Code	Spectral Shape	Spatial Mode
SLD405T	405 nm	10 mW	110 mA	4 nm	H	Near Gaussian	Single Mode
SLD450T	450 nm	10 mW	180 mA	5 nm
SLD635T	635 nm	10 mW	60 mA	5 nm
SLD650T	650 nm	10 mW	60 mA	5 nm

All values are typical unless otherwise indicated.
Additional specifications are available by clicking on the blue icon.
