Vytran® Fiber Recoaters with UV Curing LEDs


  • Recoat Spliced Fibers for Full Protection and Flexibility
  • UV Curing LEDs Provide Fast Curing Times and Long Lifetimes
  • Available with Manual or Automatic Mold Assembly and Recoat Injector

PTR403B

Fiber Recoater with Manual Mold Assembly and Recoat Injector

PTR305

Fiber Recoater with Automatic Mold Assembly and Recoat Injector

RM430UVA

Mold Assembly for Manual Recoaters (Sold Separately)

VHJT

Fiber Holding Block Top Insert (Sold Separately)

VHV400

Fiber Holding Block Bottom Insert for Ø400 µm Fiber (Sold Separately)

Related Items


Please Wait

Building a Complete Fiber Processing System?

To build a complete system, you will need to purchase a base unit plus additional components that are dependent upon the size of the fiber being processed. We recommend that you contact us prior to ordering for assistance with choosing a system and all the necessary components. This also allows us to install and factory-align all system components within the base unit prior to shipping, ensuring optimal performance out-of-the-box.

To take advantage of this assistance, please e-mail us directly at techsupport@thorlabs.com and a representative will contact you shortly.

Fiber Recoaters with UV Curing LEDs
Item # Mold Assembly Recoat Injector
PTR305 Automatic Automatic
PTR403 Manual Automatic
PTR403B Manual Manual
Fiber Recoater
Click to Enlarge

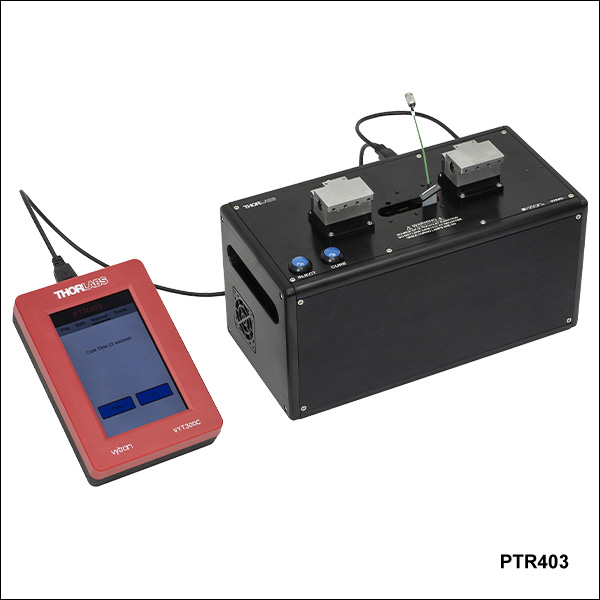

Thorlabs' PTR403B Fiber Recoater Indicating the Mold Assembly, Fiber Holding Blocks, and Inserts

Features

  • Recoat Fusion-Spliced Fibers to Protect Splice and Restore Flexibility
  • Manual and Automatic System Options
    • Automatic Mold Assembly and Recoat Injector for High-Volume Production
    • Manual Mold Assembly with Automatic Recoat Injector
    • Manual Mold Assembly with Manual Recoat Injector
  • Fully Programmable Using the Included Controller
  • Push Buttons on Recoaters Start and Stop Recoat Process
  • 50 mm Maximum Recoat Length
  • Durable Quartz Mold Plate Capable of >10 000 Recoats
  • Replacement Components Sold Separately Below

Thorlabs' Vytran® Fiber Recoaters restore the coating to a fusion-spliced fiber. The recoat material is injected through a cross-channel in the top plate into the mold assembly and then cured by ultraviolet (UV) LEDs. The LEDs provide faster cure times and longer lifetimes than the halogen lamps used in other fiber recoaters. One recoater with an automatic mold assembly is available; other recoaters use manual mold assemblies. Our automatic recoater utilizes a pneumatic mold assembly that directly injects recoat material into the mold cavity while our manual recoaters use a hinged top that can be opened and closed by hand. Both the automatic and manual recoaters use a split-quartz mold. The mold's surface is coated to prevent any recoat material that migrates between the plates from curing and forming imperfections on the finished recoat.

Each recoater uses a volumetric dispensing pump to inject the recoat material into the mold cavity. This pump is available with an automatic injection system (item #s PTR305 and PTR403) or a manual injection system (item # PTR403B). The recoated fiber is then cured by UV LEDs integrated within the mold assembly housing. The fiber recoating process restores the buffer coating to a stripped fiber, giving it the same flexibility as when originally manufactured. Unlike standard heat shrink protection sleeves, a recoated fiber can be handled and coiled normally, without risking the fusion-spliced section of fiber.

The recoat process starts with the fusion-spliced section of fiber being placed in the middle of the mold assembly. Once set in position, inserts in the fiber holding blocks secure the spliced fiber in place. Recoat material is pumped into the cavity and then UV-cured. Due to their ability to restore a fusion-spliced fiber to original condition, fiber recoaters are ideal for manufacturing high-stress or sensitive fibers such as undersea optical fiber cables, submarine communication cabling, fiber lasers, or Distributed Bragg Reflector (DBR) lasers.

We also offer fiber recoaters with halogen lamps for curing the fiber.

Mold Assemblies
The PTR305 automatic recoater comes standard with a mold assembly for Ø430 µm coated fibers. For our recoaters using manual mold assemblies, the mold assemblies are sold separately so that customers can choose the right mold for the coating diameter in their application. Custom mold coating sizes are available up to Ø900 µm. Pre-installation of the mold assembly at the factory is also available. Contact Tech Support for more information on custom molds or factory assembly.

Inserts for Fiber Holding Blocks
We offer a variety of inserts for use in the fiber holding blocks of the recoaters in order to support a wide range of fiber coating diameters. The inserts cover a range of fiber coatings from Ø125 µm to Ø900 µm; a total of four inserts are necessary for each recoater (two top inserts and two bottom inserts).

Recoat Materials
Thorlabs offers both high-index (item # AB950200) and low-index (item # PC373) recoat materials for use in these recoaters. The manual injection pump of the PTR403B recoater is compatible with both types of recoat material; the automatic injection pump of the PTR305 and PTR403 recoaters is compatible with the high-index material only. The automatic injector can be customized to work with both the low- and high-index recoat material; please contact Tech Support for more information.

Item # PTR305 PTR403 PTR403B
Recoater Type Automatic Manual
Recoater Mold Pneumatic Split Quartz Platesa Hinged Split Quartz Plates
Recoat Diameterb 430 µm 280 µm, 430 µm, or 600 µmc
UV Curing Source 32 UV LEDs 14 UV LEDs (Integrated in Mold Assembly)
Maximum Recoat Length 50 mm
Recoat Material High-Index UV Curable Acrylate High- or Low-Index
UV Curable Acrylate
Recoat Injection Automatic Manuald
Recoat Volume Programmable (µL) Manual
Recoat Injection Rate Programmable (≤1.8 µL/s) Manual
Cure Timee 17 s (Typical) 15 s (Typical)
Mold Cleaning Requirementf At Start Up and Shut Downg After Every Recoat
Total Cycle Time 45 s (Typical) 60 s (Typical)
Dimensions (L × W × H) 10.14" × 5.77" × 6.50"
(257.6 mm × 146.7 mm × 165.1 mm)
10.14" × 5.30" × 6.88"
(257.4 mm × 134.6 mm × 174.8 mm)
AC Power 110 - 120 V / 200 - 240 V, 47-63 Hz 100 - 240 VAC; 47 - 63 Hz
Controller Type Handset (Item # VYT300C)
  • Requires an 80 - 120 psi Dry Compressed Air Source
  • Custom sizes available; contact Tech Support.
  • Depends on the Mold Assembly (See the Mold Assembly Presentation Below)
  • Replacement Item # PTRRRM, Available Separately Below
  • Programmable via Controller; Mold Size and Recoat Material Dependent
  • The mold should be cleaned with either acetone or isopropyl alcohol, applied with a cotton swab. If the mold has an accumulation of cured material stuck on the plates, allow the cleaning solution (preferably acetone) about 60 - 90 seconds to soften and lift the material from the surface.
  • The mold assembly should be cleaned before the first recoating process of the day and then again after the last recoating process of the day.

The VYT300C handset controller is shipped with the recoaters sold below. One handset controller can be used to configure parameters on multiple fiber processing units in succession. Full instructions for using the handset controller can be found in the manual for each device. The screenshots below highlight key features of the graphical user interface.


Click to Enlarge

The initial screen on the VYT300C Handset Controller gives the option to begin curing. Other menus can be accessed by swiping the touchscreen left or right, or by tapping the options at the top of the screen.

Click to Enlarge

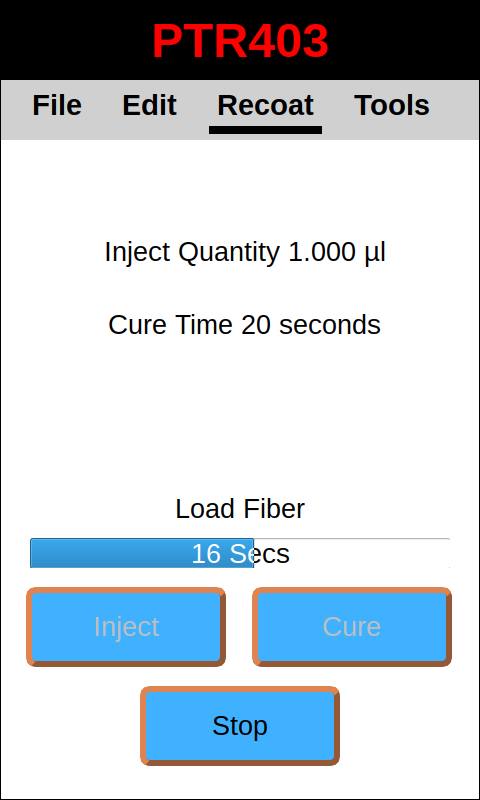

While curing, the controller displays the parameters defined on the Edit tab and the progress of the cure. The Stop button can be used to end the active cure.

Click to Enlarge

The Recoat screen will also show the status of any macro that the device is currently running.

Click to Enlarge

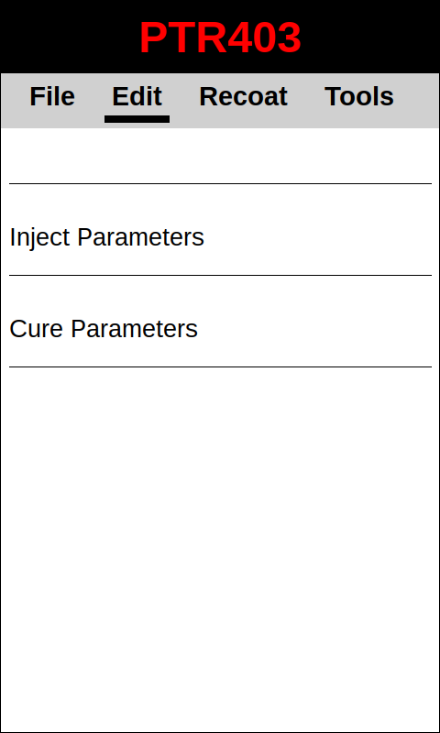

The Edit menu allows the user to set inject parameters, such as quantity, rate, shrink time, and purge cycles; these settings are available only when using the PTR403. Cure parameters on both PTR403 and PTR403B include start and stop times for each pair of UV curing LEDs, as well as LED power.

Click to Enlarge

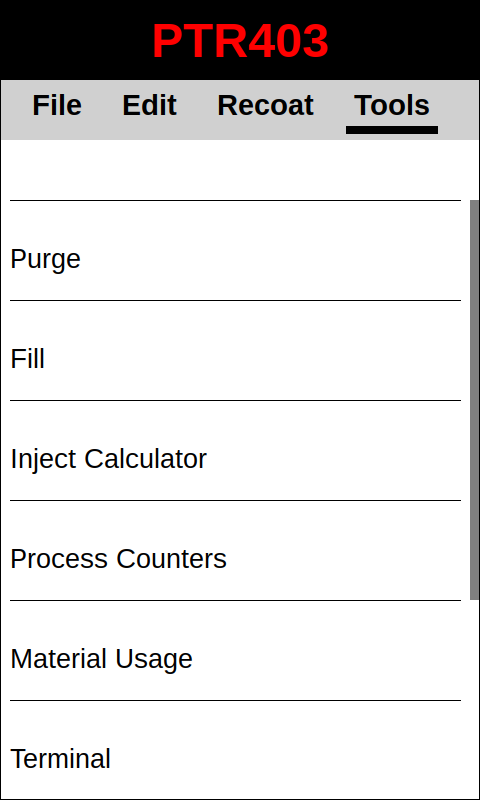

The suite of tools available through the handset controller includes a record of the total cure time of the machine (under Process Counters) that is not shown on the tablet controller. See the manuals of the compatible fiber recoaters for more information on these tools.

Click to Enlarge

The handset controller can open, save, delete, export, and import files containing parameters for compatible systems. Exporting or importing a file will require a memory device to be connected to the Program Port of the handset controller.

Product Demonstrations

Thorlabs has demonstration facilities for the Vytran® fiber glass processing systems offered on this page within our Morganville, New Jersey; Shanghai, China; and Exeter, Devonshire offices. We invite you to schedule a visit to see these products in operation and to discuss the various options with a fiber processing specialist. Please schedule a demonstration at one of our locations below by contacting technical support. We welcome the opportunity for personal interaction during your visit!

Thorlabs Vytran Europe
Exeter, United Kingdom

2 Kew Court
Exeter EX2 5AZ
United Kingdom

Appointment Scheduling and Customer Support

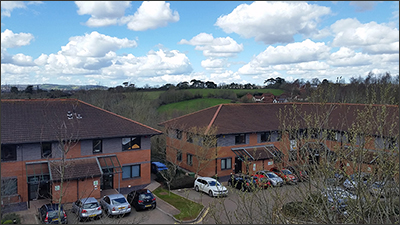

Thorlabs' Exeter Office
Click to Enlarge

Thorlabs China
Shanghai, China

Room A101, No.100, Lane 2891, South Qilianshan Road
Shanghai 200331
China

Appointment Scheduling and Customer Support

Thorlabs' China Office
Click to Enlarge

Thorlabs Vytran USA
Morganville, New Jersey, USA

1400 Campus Dr
Morganville, NJ 07751
USA

Appointment Scheduling and Customer Support

Thorlabs' Morganville Office
Click to Enlarge


Posted Comments:
No Comments Posted

The table below outlines the entire PTR series to directly compare the capabilities across the whole line.

Vytran® PTR Series Recoater and Proof Tester Selection Guide
Item # PTR301 PTR302 PTR303 PTR303B PTR403 PTR403B PTR304 PTR304B PTR305 PTR306 PTR306B PTR307 PTR307B PTR308
Type Proof Tester Recoatera Recoater and Proof Testera
Mold Assembly N/A Manual Automatic Manual Automatic
Proof Tester Linear Rotary N/A Linear Rotary Linear
Recoat Injection Pump N/A Automatic Manual Automatic Manual Automatic Manual Automatic Automatic Manual Automatic Manual Automatic
Maximum Recoat Length N/A 50 mm 100 mm 50 mm
Recoat Material High Index
(Item # AB950200)
- - yes yes yes yes yes yes yes yes yes yes yes yes
Low Index
(Item # PC373)
- - - yes - yes - yes - - yes - yes -
UV Curing Source N/A Halogen Lamps LEDs Halogen Lamps LEDs Halogen Lamps LEDs
Mold Cleaning Requirement N/A After Every Recoat Process Dailyb After Every Recoat Process Dailyb
  • These recoaters are designed to be used with high- or low-index recoater material. Thorlabs also offers the PRL201, which is designed for polyimide-coated fibers.
  • The mold assembly of these recoaters should be cleaned before the first recoating process of the day and then again after the last recoating process of the day.

Fiber Recoater with Automatic Mold Assembly and Recoat Injector

Included

  • Automatic Fiber Recoater
  • Pneumatic Mold Assembly for Ø430 µm Coatings
  • Quick Snap-On Connectors for Compressed Air Source
  • Location-Specific Power Cord
  • Handset Controller
  • 1/8" Outer Diameter Pressure Supply Tubing and Fittings Kit

Must be Purchased Separately

  • Fiber Holding Block Top Inserts (Two Required)
  • Fiber Holding Block Bottom Inserts (Two Required)
  • High-Index Recoat Material (One Bottle Required)
  • 80 - 120 psi Compressed Air/Gas Source (Not Available from Thorlabs)
  • Available Standard for Ø430 µm Coatings
  • Recoats Fibers up to 50 mm in Length
  • Compatible with High-Index Recoat Material
  • Ideal for Medium- to High-Volume Manufacturing

Thorlabs' Automatic Fiber Recoater completely automates the fiber recoat process; fully programmable, it can be operated either through the handset controller (which gives full programming capabilities) or via buttons on the top of the machine.

Our PTR305 Automatic Fiber Recoater uses a pneumatic mold assembly to control the mold plates. This design allows the recoat material to be directly injected into the mold cavity, eliminating any excess material, which would require cleaning after every recoat. Additionally, once the fiber is secured in the fiber holding blocks, the entire recoat process is performed automatically. This clean, automated process makes the PTR305 ideal for high-volume manufacturing. This recoater is designed for fiber coatings of Ø430 µm and requires the purchase of fiber block inserts (sold below). Choose the inserts that match the coating diameter of the fiber being used. It is compatible with high-index recoat material only (sold below). The pneumatic design of the mold assembly requires an external 80 - 120 psi compressed air source (not available from Thorlabs).

A handset controller, which comes standard with the PTR305, allows the user to control and program the unit. All recoat parameters can be set through this controller.

Customized mold sizes for recoat diameters up to 900 µm are available; please contact Tech Support for more information.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PTR305 Support Documentation
PTR305Fiber Recoater with Automatic Mold Assembly and Recoat Injector with Handset Controller
$27,675.17
Today

Fiber Recoater for Manual Mold Assembly and Automatic Recoat Injector

Included

  • Fiber Recoater
  • Location-Specific Power Cord
  • Handset Controller

Must be Purchased Separately

  • Mold Assembly (One Required)
  • Fiber Holder Top Inserts (Two Required)
  • Fiber Holder Bottom Inserts (Two Required)
  • High-Index Recoat Material (One Bottle Required)

Replacement Parts

  • Injection Tube
  • Compatible with Mold Assemblies for Coating Diameters of 280 µm, 430 µm, or 600 µm
  • 50 mm Maximum Recoat Length
  • UV LEDs Provide Fast Curing Times and Long Lifetimes
  • Compatible with High-Index Recoat Material
  • Ideal for Low-Volume Manufacturing and R&D

The PTR403 fiber recoater uses a hinged mold assembly (sold separately below) to form the mold cavity for recoating. This design allows the recoat material to be injected through a cross-channel in the mold's top plate. Intended for low-volume manufacturing and R&D applications, the mold assembly can be easily swapped out and the process parameters can be easily changed, providing flexibility and adaptability, but the mold assembly requires cleaning between each recoat process.

This recoater features an automated pump to inject the recoat material. The amount of material dispensed by the automatic injector is controlled by hand via the top-mounted "Inject" button or programmed into the machine by the included VYT300C controller. The automatic injector is only compatible with high-index recoat material (sold below); however, an add-on unit that can use both low- and high-index recoat materials is available. Please contact Tech Support for more information.

When purchasing a fiber recoater, both a mold assembly and a set of appropriately sized fiber holding block inserts must be purchased separately. A handset controller is included with the PTR403 recoater.

Mold Assembly
Compatible mold assemblies are available for coating diameters of 280 µm, 430 µm, and 600 µm. Customized recoat diameters up to 900 µm are also available; please contact Tech Support for more information. The UV curing LEDs are housed within the mold assemblies for the PTR403 recoater; there is no UV curing source within the unit itself. See compatible mold assemblies below.

Fiber Holding Block Inserts
A total of four inserts (two top and two bottom) are required for the recoater unit. Inserts are available for fiber diameters from 90 µm to 1000 µm. See compatible fiber holding block inserts below.

Included Controller
The PTR403 recoater is shipped with the VYT300C handset controller, which allows the user to program and control the recoater unit. Adjustable settings include the inject rate, inject amount, cure time, lamp power, and programming custom recipes. An injection calculator provides an estimate of recoat parameters that can be refined by the user. Please see the Controller tab for details.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PTR403 Support Documentation
PTR403Fiber Recoater with Manual Mold Assembly and Automatic Recoat Injector with Handset Controller, 50 mm Max Fiber Recoat Length
$7,995.00
Lead Time

Fiber Recoater for Manual Mold Assembly and Manual Recoat Injector

Included

  • Fiber Recoater
  • Location-Specific Power Cord
  • Handset Controller

Must be Purchased Separately

  • Mold Assembly (One Required)
  • Fiber Holder Top Inserts (Two Required)
  • Fiber Holder Bottom Inserts (Two Required)
  • High- or Low-Index Recoat Material (One Bottle Required)

Replacement Parts

  • Manual Injector
  • Injection Tube
  • Syringe Barrel
  • Compatible with Mold Assemblies for Coating Diameters of 280 µm, 430 µm, or 600 µm
  • 50 mm Maximum Recoat Length
  • UV LEDs Provide Fast Curing Times and Long Lifetimes
  • Ideal for Low-Volume Manufacturing and R&D
  • Compatible with High- and Low-Index Recoat Material

The PTR403B fiber recoater uses a hinged mold assembly (sold separately below) to form the mold cavity for recoating. This design allows the recoat material to be injected through a cross-channel in the mold's top plate. Intended for low-volume manufacturing and R&D applications, the mold assembly can be easily swapped out and the process parameters can be easily changed, providing flexibility and adaptability, but the mold assembly requires cleaning between each recoat process.

This recoater features a manual recoat injection system. The user is required to dispense the recoat material into the mold cavity. This manual injection system is compatible with both low- and high-index recoat material (sold below). Additionally, a replacement injector is available below (item # PTRRRM).

When purchasing a fiber recoater, both a mold assembly and a set of appropriately sized fiber holding block inserts must be purchased separately. A handset controller is included with the PTR403B recoater.

Mold Assembly
Compatible mold assemblies are available for coating diameters of 280 µm, 430 µm, and 600 µm. Customized recoat diameters up to 900 µm are also available; please contact Tech Support for more information. The UV curing LEDs are housed within the mold assemblies for the PTR403B recoater; there is no UV curing source within the unit itself. See compatible mold assemblies below.

Fiber Holding Block Inserts
A total of four inserts (two top and two bottom) are required for the recoater unit. Inserts are available for fiber diameters from 90 µm to 1000 µm. See compatible fiber holding block inserts below.

Included Controller
The PTR403B recoater is shipped with the VYT300C handset controller, which allows the user to program and control the recoater unit. Adjustable settings include the inject rate, inject amount, cure time, lamp power, and programming custom recipes. An injection calculator provides an estimate of recoat parameters that can be refined by the user. Please see the Controller tab for details.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PTR403B Support Documentation
PTR403BFiber Recoater with Manual Mold Assembly and Manual Recoat Injector with Handset Controller, 50 mm Max Fiber Recoat Length
$6,540.00
Today

Mold Assemblies - One Required for Manual Fiber Recoaters

Item # Coating Size Max Recoat Length Compatible Recoaters
RM280UVA Ø280 µm 50 mm PTR403, PTR403B
RM430UVA Ø430 µm
RM600UVA Ø600 µm
  • Compatible with PTR403 and PTR403B Fiber Recoaters
  • UV LEDs Integrated Inside Mold Assembly Housing
  • Three Available Mold Coating Sizes: Ø280 µm, Ø430 µm, and Ø600 µm
  • 50 mm Maximum Recoat Length

The Mold Assemblies are composed of split quartz mold plates which, when closed, form the cylindrical mold cavity around the exposed section of the fiber being recoated. They are available for Ø280 µm, Ø430 µm, or Ø600 µm fiber coatings. Custom mold sizes up to Ø900 µm are available; please contact Tech Support for more information. These mold assemblies have a maximum fiber recoat length of 50 mm. Each unit features a lever to assist with opening or closing the mold.

Recoat material (sold below) is injected into the mold assembly by either an automatic or manual injection system. Then, UV light from the integrated LEDs cures the recoat material. Cure times range from 15 s to 90 s depending on mold size and recoat material. The recoater mold assembly should be cleaned throughly with isopropyl alcohol or acetone between each recoating process; reliable and repeatable performance is highly dependent on the cleanliness of the mold.

When purchasing a manual fiber recoater for the first time, it is necessary to choose a mold assembly that is appropriate for the desired fiber coating diameter. Additional mold assemblies may also be purchased and swapped out by the user. The assembly simply screws to the top of the device, making the removal and install simple and easy. Because of this, our manual recoaters are adaptable and flexible in the field and can be modified to accept varying diameters of fiber quickly. It is also necessary to order the proper inserts (sold below) that best match the fiber diameter being used, whether purchasing a fiber recoater for the first time or updating a current recoater for a different fiber diameter.

Please note that these mold assemblies are only for the manual recoaters (item #s PTR403 and PTR403B). The automatic recoater (item # PTR305) is sold with its own assembly already installed.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
RM280UVA Support Documentation
RM280UVARecoater Mold Assembly with UV LEDs, Ø280 µm Coating, 50 mm Max Recoat Length
$4,595.00
Today
RM430UVA Support Documentation
RM430UVARecoater Mold Assembly with UV LEDs, Ø430 µm Coating, 50 mm Max Recoat Length
$4,595.00
Today
RM600UVA Support Documentation
RM600UVARecoater Mold Assembly with UV LEDs, Ø600 µm Coating, 50 mm Max Recoat Length
$4,595.00
Today

Inserts for Fiber Holding Blocks - Two Top and Two Bottom Required

  • Fiber Block Inserts for Thorlabs' Fiber Recoaters
  • PTR305-Compatible Inserts Accept Fiber Coating Diameters from 90 µm to 990 µm
  • PTR403(B)-Compatible Inserts Accept Fiber Coating Diameters from 167 µm to 733 µm
  • Choose Two Top Inserts and Two Bottom Inserts

For all the recoaters sold above, the proper set of inserts needs to be selected. A total of four inserts (two top and two bottom) are required for a full unit. The inserts are seated in and secured to the fiber holding blocks. They can easily be swapped out for different sizes, allowing our recoaters to adapt quickly should different fiber coating sizes be desired. These inserts are compatible with fiber coatings ranging from Ø167 µm to Ø733 µm.

Custom sizes are available; please contact Tech Support for additional information.

Top and Bottom Inserts for PTR305 Recoater
Item # Top or Bottom Nominal Diameter Min Diameter Max Diameter
VHH000 Top - 90 µm 660 µm
VHH900a Top 900 µm 700 µm 1000 µm
VHH100 Bottom 100 µm 90 µm 110 µm
VHH125 Bottom 125 µm 113 µm 137 µm
VHH160 Bottom 160 µm 144 µm 176 µm
VHH250 Bottom 250 µm 225 µm 275 µm
VHH300 Bottom 300 µm 250 µm 350 µm
VHH400 Bottom 400 µm 350 µm 450 µm
VHH500 Bottom 500 µm 450 µm 550 µm
VHH600 Bottom 600 µm 540 µm 660 µm
VHH900Sa Bottom 900 µm 810 µm 990 µm
  • Custom mold sizes are available for Ø900 µm fiber coatings for both our automatic and manual fiber recoaters. Please contact Tech Support for more information.
Top and Bottom Inserts for PTR400 Series Recoaters
Item # Top or Bottom Nominal Diameter Min Diameter Max Diameter
VHJT Top - 90 µm 700 µm
VHJT900a Top 900 µm 700 µm 1000 µm
VHV250 Bottom 250 µm 167 µm 333 µm
VHV400 Bottom 400 µm 266 µm 533 µm
VHV550 Bottom 550 µm 367 µm 733 µm
VHJ900Sa Bottom 900 µm 700 µm 1000 µm
  • Custom mold sizes are available for Ø900 µm fiber coatings for both our automatic and manual fiber recoaters. Please contact Tech Support for more information.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
VHH000 Support Documentation
VHH000Top Insert for Fiber Holding Blocks, Flat
$54.11
Today
VHH900 Support Documentation
VHH900Top Insert for Fiber Holding Blocks, Clearance Slot for Large-Diameter Fiber
$172.06
Today
VHH100 Support Documentation
VHH100Bottom V-Groove Insert for Fiber Holding Blocks, Ø90 µm - Ø110 µm Coating
$172.06
Today
VHH125 Support Documentation
VHH125Bottom V-Groove Insert for Fiber Holding Blocks, Ø113 µm - Ø137 µm Coating
$172.06
Today
VHH160 Support Documentation
VHH160Bottom V-Groove Insert for Fiber Holding Blocks, Ø144 µm - Ø176 µm Coating
$172.06
Today
VHH250 Support Documentation
VHH250Bottom V-Groove Insert for Fiber Holding Blocks, Ø225 µm - Ø275 µm Coating
$172.06
Today
VHH300 Support Documentation
VHH300Bottom V-Groove Insert for Fiber Holding Blocks, Ø250 µm - Ø350 µm Coating
$172.06
Today
VHH400 Support Documentation
VHH400Bottom V-Groove Insert for Fiber Holding Blocks, Ø350 µm - Ø450 µm Coating
$172.06
Today
VHH500 Support Documentation
VHH500Bottom V-Groove Insert for Fiber Holding Blocks, Ø450 µm - Ø550 µm Coating
$172.06
Today
VHH600 Support Documentation
VHH600Bottom V-Groove Insert for Fiber Holding Blocks, Ø540 µm - Ø660 µm Coating
$172.06
Today
VHH900S Support Documentation
VHH900SBottom V-Groove Insert for Fiber Holding Blocks, Ø810 µm - Ø990 µm Coating
$172.06
Today
VHJT Support Documentation
VHJTTop Insert for Fiber Holding Blocks, Flat
$110.37
Today
VHJT900 Support Documentation
VHJT900Top Insert for Fiber Holding Blocks, Clearance Slot for Large-Diameter Fiber
$143.92
Today
VHV250 Support Documentation
VHV250Bottom V-Groove Insert for Fiber Holding Blocks, Ø167 µm - Ø333 µm Coating
$210.00
Today
VHV400 Support Documentation
VHV400Bottom V-Groove Insert for Fiber Holding Blocks, Ø266 µm - Ø533 µm Coating
$210.00
Today
VHV550 Support Documentation
VHV550Bottom V-Groove Insert for Fiber Holding Blocks, Ø367 µm - Ø733 µm Coating
$210.00
Today
VHJ900S Support Documentation
VHJ900SBottom Guide Insert for Fiber Holding Blocks, Ø700 µm - Ø1000 µm Coating
$143.92
Today

Recoat Materials - Choose Appropriate Material

Item # Recoat Material Compatible Recoaters
AB950200 High Index PTR303, PTR303B, PTR304,
PTR304B, PTR305, PTR403, & PTR403B
PTR203a, PTR203Ba, PTR204a, PTR204Ba, & PTR205a
PC373 Low Index PTR303B, PTR304B, & PTR403B
PTR203B& PTR204Ba
  • Discontinued Products
  • AB950200: High-Index Recoat Material
  • PC373: Low-Index Recoat Material

Thorlabs offers UV-curable acrylate recoat materials to be used in our PTR series fiber recoaters. We offer both high-index (item # AB950200) and low-index (item # PC373) material in 1 oz bottles. The high-index material can be used in all recoaters (except the PRL201), whereas the low-index material can only be used in recoaters with the manual injection pump option.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
AB950200 Support Documentation
AB950200High-Index Recoat Material, 1 oz
$287.84
Today
PC373 Support Documentation
PC373Low-Index Recoat Material, 1 oz
$419.86
Today

Replacement Manual Injector and Components

System Compatibilitya
Recoater
Item #
Replacement Parts
PTRRRM
Manual Injector
RRMTA
Injection Tube
RRMS
Syringe Barrel
PTR303B
PTR304B - -
PTR306B
PTR307B
PTR403B
  • These replacement parts are also compatible with the discontinued PTR203B, PTR206B, and PTR207B recoaters.

Click to Enlarge
The PTRRRM is mounted to a recoater via two 4-40 mounting screws.
  • Replacement Manual Injector for Dispensing Recoat Material into the Mold
    • For Vytran Fiber Recoaters with Manual Injectors that Use 50 mm Manual Mold Assemblies (See List to the Right)
    • Accepts PC373 and AB950200 Recoat Materials
  • Replacement Injection Tube for Recoaters with Manual Injectors that Use 50 mm Manual Mold Assemblies
  • Replacement Syringe Barrel for Manual Injectors

The PTRRRM Manual Injector and RRMTA Injection Tube are available as replacement parts for Thorlabs' Vytran Fiber Recoaters with Manual Injectors that use 50 mm manual mold assemblies; compatible systems are listed to the right. We also offer a replacement syringe barrel that is compatible with all of our Vytran fiber recoaters with manual injection systems.

The injector can be mounted to compatible fiber recoaters via two 4-40, 3/32" hex screws on the recoater housing (see photo to the right). To connect the PTRRRM to the recoater mold, tighten the connector at the end of the green plastic tubing, then loosen by a 1/4 turn to allow for rotation.

The injector is equipped with a distribution valve and two-position selection lever for directing the flow of recoat material. A knurled dispensing screw with an internal plunger acts as a syringe for the recoat material. To fill the syringe, point the lever downward (i.e., toward the recoat bottle), then rotate the knurled dispensing screw counterclockwise until it spins freely to fill the syringe (shown in the photo to the right). Then, to inject the recoat material into the mold, point the lever horizontally (i.e., facing the knurled screw) and rotate the screw clockwise until near the end of the travel range is reached. Avoid bottoming out the dispenser as this may damage the internal plunger; also take care when re-engaging the threads to avoid cross threading the dispensing screw. Several fill/inject steps may be needed until air is displaced within the system. Use lens tissue and an acetone or alcohol cleaning solution to collect any excess recoat material that flows from the mold.

The RRMTA injection tube and RRMS syringe barrel are available as replacement parts for the PTRRRM manual injector. The injection tube should be changed out if the knurl fitting breaks off the end, it leaks recoat material, or a clog forms that cannot be cleared with acetone. If the syringe no longer injects or an excessive number of air bubbles are visible in the recoat material (even after flushing the system), the syringe barrel should be replaced. A 5/16" thin spanner wrench is required for securing the syringe onto the recoat injector. Detailed installation instructions are provided in the support documentation, which can be found by clicking on the red documents icon () next to each item number.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PTRRRM Support Documentation
PTRRRMReplacement Injector for Vytran Recoaters with 50 mm Manual Mold Assemblies and Manual Injectors
$1,327.76
Today
RRMTA Support Documentation
RRMTAReplacement Injection Tube for Vytran Recoaters with 50 mm Manual Mold Assemblies and Manual Injectors
$350.00
Today
RRMS Support Documentation
RRMSReplacement Syringe Barrel for Vytran Recoaters with Manual Injectors
$625.00
Lead Time

Replacement Injection Tube for Recoaters with Manual Mold Assemblies and Automatic Injectors

Compatible Systems

  • PTR303, PTR304, and PTR403 Manual Fiber Recoaters, Automatic Recoat Injector
  • PTR306 and PTR307 Manual Fiber Recoaters with Proof Testers, Automatic Recoat Injector
  • Replacement Injection Tube for Dispensing Recoat Material into the Mold
  • Compatible with Vytran Fiber Recoaters with Manual Mold Assemblies that Use Automatic Injectors (See List to the Right)
  • For Use with AB950200 and PC373 Recoat Materials

This replacement injection tube is compatible with Thorlabs' Vytran Fiber Recoaters that use Manual Mold Assemblies and Automatic Injection Systems (Item #s listed to the right). Though each system comes with an injection tube installed, it may need to be replaced if the knurled fitting breaks off the end, it leaks recoat material, or a clog forms that cannot be cleared with acetone.

Detailed installation instructions for the RRATA injection tube are provided in the support documentation, which can be found by clicking on the red documents icon () next to the item number.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
RRATA Support Documentation
RRATAReplacement Injection Tube for Vytran Recoaters with Manual Mold Assemblies and Automatic Injectors
$350.00
Today

Replacement Handset Controller


Click to Enlarge

Screenshot of VYT300C Controller When Used with PTR403 Recoater

Compatible Systems

  • LDC401(A) Fiber Cleavers
  • LDC450B Portable Fiber Cleaver
  • PTR303(B), PTR304(B), PTR306(B), and PTR307(B) Manual Mold Fiber Recoaters
  • PTR305 and PTR308 Automatic Mold Fiber Recoaters
  • PTR403(B) Fiber Recoaters
  • PTR301 and PTR302 Fiber Proof Tester
  • Replacement for Included Controller
  • Provides Full Functionality for Compatible Systems (See Compatible Systems List to the Right)
  • Intuitive GUI
  • Capacitive Touchscreen

This handset controller is available as an replacement for the included controller. A single handset controller can be used with multiple systems; after configuring parameters for one fiber processing unit, the controller can be disconnected and then connected to a different unit, of the same or a different type, to configure its parameters.

The handset controller must be connected via the included cable in order to use it. The controller automatically turns on when the connected system is turned on. Upon startup, the handset controller will always read parameters from the connected system; i.e., the parameters that appear on the screen will always be the parameters that have been uploaded to the connected unit. If the parameters read from the unit match the parameters of the most recently opened file on the handset controller, the screen will display the file name.

The suite of tools available through the handset controller includes a record of the total cure time of the machine (under Process Counters). This value may be reset each time the bulbs are replaced.

The handset controller can open, save, delete, export, and import files containing parameters for compatible systems. Exporting or importing a file will require a memory device to be connected to the Program Port of the handset controller.

Instructions for using this controller can be found in the manuals for the compatible Vytran systems.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
VYT300C Support Documentation
VYT300CHandset Controller for LDC401(A) Cleavers, LDC450B Portable Cleaver, PTR30x(B) and PTR403(B) Recoaters, and PTR30x Proof Testers
$895.00
Lead Time
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites: West Coast US | Europe | Asia | China | Japan
Copyright © 1999-2020 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px:Save this Image
