25 mm Travel, Self-Contained Stages for Rigid Stands


  • Manual Positioning of Rigid Stands
  • 25 mm Travel Range in One or Two Horizontal Axes
  • Dedicated Single- or Two-Axis Versions

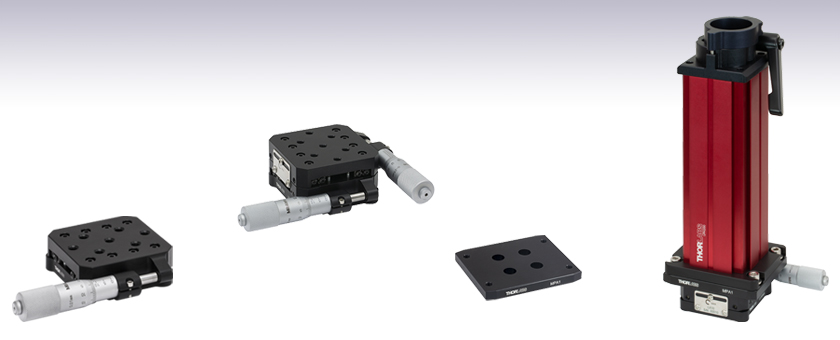

LX10

Single-Axis Stage

LX20

Two-Axis XY Stage

MPA1

Rigid Stand Adapter Plate

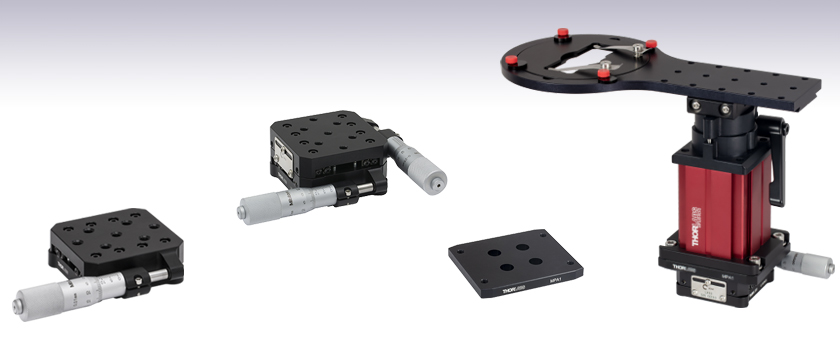

Application Idea

Mount an MP100-RCH2 Rigid
Stand on an LX10 Stage
using an MPA1 Adapter

Related Items


Please Wait
Specifications
Item # LX10(/M) LX20(/M)
Stage Specifications
Translation Axes One Two (XY)a
Travel 25 mm
Angular Deviationb <125 µrad
Vertical Straightnessb,c <10.0 µm
Deck Height 0.98" (25.0 mm) 1.50" (38.0 mm)
Platform Size 2.56" x 2.56"
(65.0 mm x 65.0 mm)
Top Plate Mounting Holes Seven 1/4"-20 (M6) Taps
Bottom Plate Mounting Holes Four 1/4" (M6) Counterbores
Four Ø0.095" (Ø2.4 mm) Alignment Holes
Horizontal Load Capacity (Max) 41 kg (90 lbs)
Vertical Load Capacity (Max)d 4 kg (8.8 lbs)
Bearing Type Crossed Roller Bearings
Micrometer Specifications
Micrometer Item # 150-801ME-H
Resolution 500 µm Translation Per Revolution
Travel 25 mm
Micrometer Barrel Size Ø3/8" (Ø9.5 mm)
  • The LX20(/M) XY Stage cannot be disassembled into two single-axis stages.
  • Specified per Axis, Over the Full Travel Range
  • Vertical straightness is the maximum linear deviation from straight motion per axis, measured on a plane normal to the plane of motion.
  • Limited by the Micrometer
Quick Connect Translation Stages
Click to Enlarge
These stages can be secured to a breadboard using two counterbored holes on either end. The holes can be accessed by translating the platform, as shown with the LX10 stage above.
Selection Guide for Rigid Stand Translation Stages


Manual Stages with Quick Connect Self-Contained Manual Stages Motorized Stages

Features

  • Translate Rigid Stands up to 25 mm in One or Two Horizontal Axes
  • Compatible with Rigid Stands via an Adapter Plate
  • Crossed Roller Bearings for High-Load Capacity and Low Angular Deviation
  • Side-Mounted Metric Micrometer(s) with Ø3/8" (Ø9.5 mm) Barrel
  • Each Stage Individually Tested and Shipped with Test Data Certificate
  • Mount to an Optical Table Using Four 1/4" (M6) Counterbores

Thorlabs' LX Series Translation Stages and MPA1(/M) Rigid Stand Adapter Plate are designed to be used together with our line of Rigid Stands, which support slide holders, petri dishes, recording chambers, micromanipulators, and other samples that will be inserted into a Cerna® or other microscope's optical path. When assembled together, the rigid stand, adapter plate, and translation stage maintain a slim profile that consumes a minimal amount of space in and around the optical path, making them ideal for space-constrained microscopy systems where a larger number of stands will need to be used.

For our rigid stands, we also offer 1" motorized translation stages, which feature a stepper motor, as well as our 25 mm manual translation stages with quick connect, which have dovetails for constructing multi-axis stages.

LX Series Translation Stages
Thorlabs' LX series stages are constructed with a full aluminum body and crossed-roller steel bearings for precision motion and high load capacities. See the table to the right for complete stage specifications. The combination of these stages and the adapter plate provides a convenient solution for translating a rigid stand up to 25 mm in one or two horizontal axes with less than 125 µrad of deviation per axis in pitch and yaw over the full range of the stages. Each stage is designed as a standalone stage with a specific number of axes; as such, single-axis stages cannot be combined into multi-axis stages and multi-axis stages cannot be disassembled into single-axis stages.

The stages feature monolithic top and bottom plates that integrate the micrometer mounts for increased stability. The mounting surface includes an array of seven 1/4"-20 (M6) tapped holes. Each stage axis is lockable via a side-located 5/64" (2.0 mm) hex screw in a locking bracket to guard against accidental movement. These stages come equipped with a metric micrometer head for each axis, graduated in millimeters, with 500 µm of travel per revolution. The micrometer can be translated using the knurled knob or, for finer translation, a 5/64" (2.0 mm) hex key. The micrometer can be removed and replaced at any time by loosening the side-located flexure clamp with a 5/64" (2 mm) hex key.

After each stage is manufactured, the pitch and yaw of the stage are tested. This ensures that each stage meets the stated specifications over the full translation range of the stage. They are shipped with an individualized data sheet providing a summary of these test results. Click here for a sample data sheet for one of our LX10 stages.

Note: The flexure clamp can hold any micrometer that has a Ø3/8" (Ø9.5 mm) mounting barrel. Do not remove the micrometer until the leadscrew is no longer engaged with the moving body of the stage or the locking bracket is fully tightened. Not doing this can damage the stage or require it to be recalibrated to meet its specified performance.

Rigid Stand Adapter Plate
The MPA1(/M) adapter plate is required to mount a rigid stand onto an LX series translation stage. This aluminum adapter plate is designed to have a compact footprint that matches the base of the rigid stand holder. The combination of the adapter plate and translation stage provides a compact manual solution for translating a rigid stand within a setup.


Posted Comments:
No Comments Posted

Single-Axis 25 mm Translation Stage and Adapter Plate

LX Stage with Rigid Stage Adapter
Click to Enlarge

The MPA1 Adapter Used to Mount the
MP100-RCH2 Rigid Stand onto the LX10 Translation Stage
  • Translate Rigid Stands up to 25 mm in One or Two Horizontal Axes
  • Compatible with Rigid Stands via an Adapter Plate
  • Ideal for Space-Constrained Microscopy Systems

The LX10(/M) single-axis translation stage provides 25 mm of travel for our rigid stands when used with the MPA1(/M) adapter plate. This compact stage features a side-mounted micrometer, which gives 500 µm translation per revolution. Designed only for single-axis translation, this stage cannot be combined into a dual-axis stage. Please note that this stage is shorter than the multi-axis LX20(/M) stage by 0.52" (13 mm). Directly replacing one with the other might require realignment of other fixtures.

The adapter plate has a footprint designed to match the base of the rigid stand holder. To assemble, attach the adapter plate onto the translation stage via the four 1/4" (M6) counterbored holes that accept 1/4"-20 (M6) cap screws. Then mount the rigid stand onto the adapter plate using the four 1/4"-20 (M6) tapped holes; see the image to the right.

The stage can be bolted directly to the optical table using four counterbored 1/4" (M6) holes that are revealed by translating the top plate. The base has four Ø2.4 mm alignment holes for use with Ø3/32" dowel pins.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LX10 Support Documentation
LX10Self-Contained 25 mm Translation Stage, 1/4"-20 Taps
$530.45
Today
MPA1 Support Documentation
MPA1Customer Inspired! Rigid Stand Adapter Plate, 1/4"-20 Taps
$32.96
Today
+1 Qty Docs Part Number - Metric Price Available
LX10/M Support Documentation
LX10/MSelf-Contained 25 mm Translation Stage, M6 x 1.0 Taps
$530.45
Today
MPA1/M Support Documentation
MPA1/MRigid Stand Adapter Plate, M6 Taps
$32.96
Today

Two-Axis 25 mm Translation Stage and Adapter Plate

  • Translate Rigid Stands up to 25 mm in One or Two Horizontal Axes
  • Compatible with Rigid Stands via an Adapter Plate
  • Ideal for Space-Constrained Microscopy Systems

The LX20(/M) two-axis translation stage provides 25 mm of travel in the X and Y for our rigid stands when used with the MPA1(/M) adapter plate. This compact stage features two side-mounted micrometers, which each give 500 µm translation per revolution. Designed only for two-axis translation, this stage cannot be disassembled into a single-axis stage. Please note that this stage is taller than the single-axis LX10(/M) stage by 0.52" (13 mm). Directly replacing one with the other might require realignment of other fixtures.

The adapter plate has a footprint designed to match the base of the rigid stand holder. To assemble, attach the adapter plate onto the translation stage via the four 1/4" (M6) counterbored holes that accept 1/4"-20 (M6) cap screws. Then mount the rigid stand onto the adapter plate using the four 1/4"-20 (M6) tapped holes.

The stage can be bolted directly to the optical table using four counterbored 1/4" (M6) holes that are revealed by translating the middle plate of the stage. Note that this stage has a mounting hole below the top micrometer that may not be accessible without first removing the micrometer. The base has four Ø2.4 mm alignment holes for use with Ø3/32" dowel pins.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LX20 Support Documentation
LX20Self-Contained XY 25 mm Translation Stage, 1/4"-20 Taps
$901.25
Lead Time
MPA1 Support Documentation
MPA1Customer Inspired! Rigid Stand Adapter Plate, 1/4"-20 Taps
$32.96
Today
+1 Qty Docs Part Number - Metric Price Available
LX20/M Support Documentation
LX20/MSelf-Contained XY 25 mm Translation Stage, M6 x 1.0 Taps
$901.25
5-8 Days
MPA1/M Support Documentation
MPA1/MRigid Stand Adapter Plate, M6 Taps
$32.96
