Xenon Arc Light Sources


  • >1.3 W Power Light Sources with 240 - 2400 nm Output
  • Mercury-Xenon Lamp with Increased UV Emission Available
  • Long Lamp Lifespan: 2000 Hours (Average)

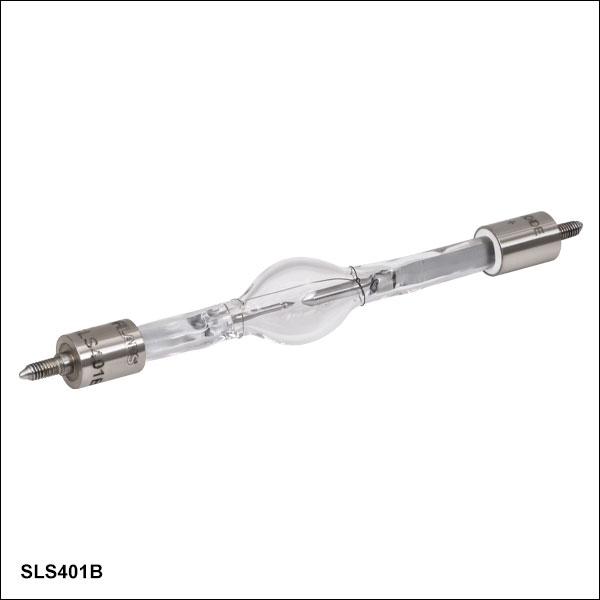

SLS401B

Replacement Xenon Arc Lamp

SLS401

Xenon Short-Arc Light Source,
240 - 2400 nm, >1.3 W Output

Controller Included

SLSLLG2

Liquid Light Guide
Adapter with Shutter
and Controller

Related Items


Please Wait
Key Specificationsa
Item # SLS401 SLS402
Lamp Type Xenon Arc Mercury-Xenon Arc
Wavelength Range 240 - 2400 nm
Color Temperature 5800 K 6000 K
Output Optical Power >1.3 Wb
Output Beam Diameter 35 mm 35 mm
Output Power Stabilityc <0.3%
Optical Drift per Hour (Typical) 0.1%
Optical Power Drift per °C (Typical) 0.12%
Lamp Electrical Power 150 W
Lamp Lifespan (Average) 2000 Hoursd
  • Complete specifications can be found on the Specs tab.
  • At the beginning of the lamp lifetime.
  • The standard deviation of optical output power in percentage, measured at room temperature over 1 hour with a 1 Hz sampling rate after 45 minutes warm-up.
  • Defined as the time it takes for the lamp output power to decrease to 50% of its initial level.

Features

  • Two Options:
    • SLS401 Light Source with Xenon Arc Lamp for 240 - 2400 nm, 5800 K
    • SLS402 Light Source with Mercury-Xenon Arc Lamp for 240 - 2400 nm, 6000 K
  • Collimated Output for Free-Space Applications
  • Internally SM2-Threaded Aperture
  • Four 4-40 Threaded Holes for 60 mm Cage System at Front Output

Optional Accessories

  • Liquid Light Guide Adapters with or without Integrated Electronic Shutter
  • Replacement Lamps

Thorlabs' SLS401 and SLS402 Xenon Short-Arc Light Sources provide stable, high-power illumination from UV to NIR wavelengths. The SLS402 source incorporates a mercury-xenon lamp for additional strong lines in the blue to UV spectral region. See the Specs tab above for complete specifications. Since the blackbody spectrum of these sources covers a wide spectral range, these sources are ideal for integration into optical measurement equipment, such as back illumination for a test target as part of a detector calibration system.

Each short-arc light source includes a lens to collimate the high-power, broadband output into a Ø35 mm beam for free-space applications. For convenience, the position of the collimation lens is factory set; however, it is also user-adjustable should slight tweaks to the collimation be necessary. For additional mechanical stability, the feet are removable, allowing the source to be bolted directly to any standard imperial or metric optical table with user supplied 1/4"-20 or M6 screws, respectively. The front face features four 4-40 taps (as shown in the image to the lower right) for 60 mm cage rods, making these devices compatible with Thorlabs' 60 mm cage system. Using the cage system, it is possible to incorporate various optic mounts that are centered along the optical center of the lamp.

A variety of accessories is available separately below. Adapters designed to integrate Ø3 mm or Ø5 mm core liquid light guides are threaded directly onto the output port of the lamp; this does not require the removal of the collimating lens. The adapters are available with or without an integrated electronic shutter. Replacement lamps are also available. Please see the Lamp Installation tab for detailed instructions.

If a higher color temperature is desired, our color-balancing filters can be used to attenuate red light from a light source while passing blue light. This results in a beam with a higher color temperature and lower total power.


Click to Enlarge

SLS402 Light Source, SLSLLG2 Adapter with Shutter,
and Liquid Light Guide
Filter Holder Attached to Benchtop Light Source
Click to Enlarge

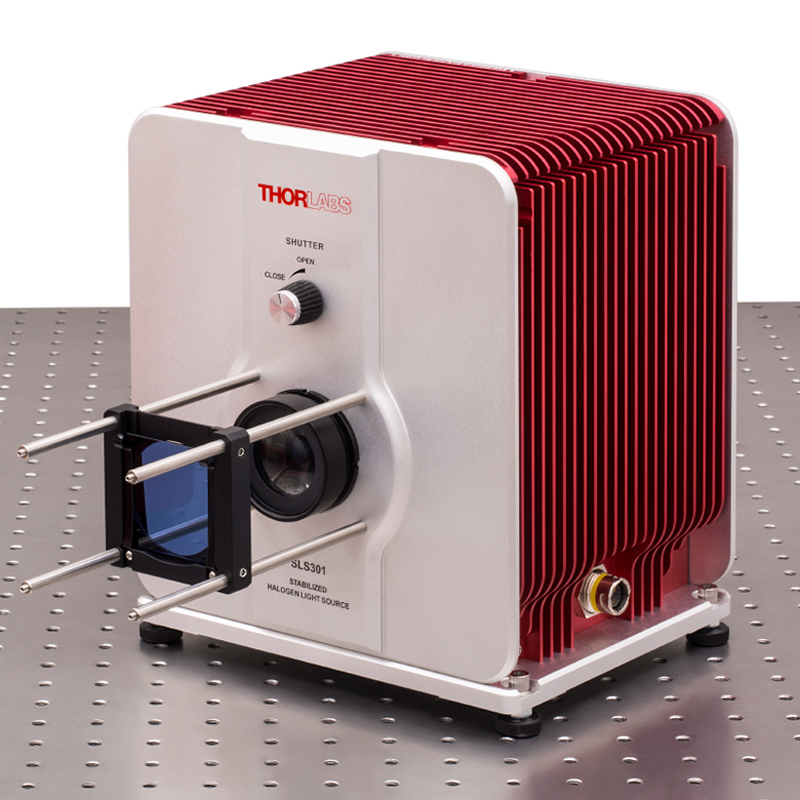

Benchtop Light Source with 60 mm Cage System and
LCP05A(/M) Filter Mount with Color-Balancing Filter

Click to Enlarge

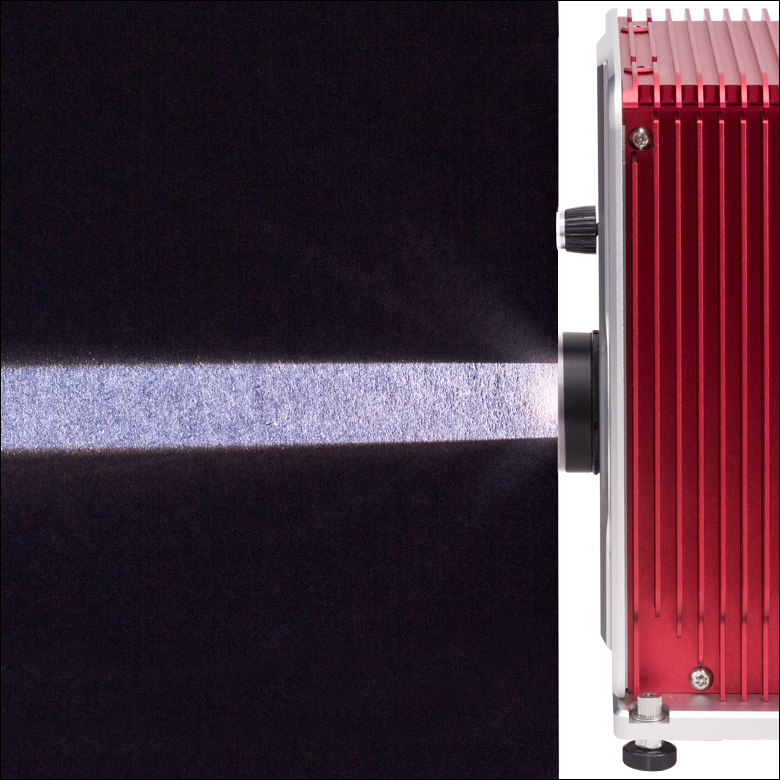

Collimated Output
Item # SLS401 SLS402
Lamp Type Xenon Arc Mercury-Xenon Arc
Wavelength Range 240 - 2400 nm
Color Temperature 5800 K 6000 K
Output Optical Power >1.3 Wa
Typical Spectral Output 0.1 W (200 - 400 nm)
0.2 W (400 - 700 nm)
1 W (700 - 2800 nm)
0.16 W (200 - 400 nm)
0.24 W (400 - 700 nm)
0.9 W (700 - 2800 nm)
Optical Power Stabilityb <0.3%
Optical Drift per Hour (Typical) 0.1%
Optical Power Drift per °C (Typical) 0.12%
Output Beam Diameter 35 mm
Beam Divergencec 3.2°
Lamp Electrical Power 150 W
Lamp Lifespan (Average) 2000 Hoursd
Lamp Housing Dimensions
(L x W x H)
214.7 mm x 217.0 mm x 261.2 mm
(8.41" x 8.54" x 10.28")
Controller Dimensions
(L x W xH)
350.0 mm x 200.0 mm x 82 mm
(13.75" x 7.87" x 3.23")
Operating Temperature 0 °C to 45 °C
Storage Temperature -15 °C to 70 °C
  • At the beginning of the lamp lifetime.
  • Standard deviation of optical output power in percentage, measured at room temperature over 1 hour with a 1 Hz sampling rate after 45 minutes warm-up.
  • Half Angle at 587 nm
  • Defined as the time it takes for the lamp output power to decrease to 50% of its initial level.
Lamp Specifications
Item # SLS401B SLS402B
Wavelength Range 240 - 2400 nm
Lamp Type Xenon Mercury-Xenon
Color Temperature 5800 K 6000 K
Lamp Electrical Power 150 W
Glass Envelope Material Ozone-Free Quartz
Arc Gap 1.9 mm
Brightness (Average) 18 000 Cd/cm2
Luminous Flux 2800 Lumens
Light Intensity 280 Cd
Solid Angle of Output 10 Steradians
Lifespan (Average) 2000 Hours
Operating Voltage 17.5 VDC
Current 8.5 A (Nominal)

Liquid Light Guide Adapter Specifications

Item # SLSLLG1 SLSLLG2 SLSLLG3
Wavelength Range Uncoated: 185 nm - 2.1 µm AR Coated: 350 nm - 700 nm; Ravg < 0.5%
Integrated Electronic Shutter No Yesa No
Lens LA4464 ACL5040U-A
Lens Material UV Fused Silica B270 Optical Crown Glass
Coupling Efficiency (with SLS401 / SLS402) >30% (3 mm LLG); >35% (5 mm LLG) >30% (3 mm LLG); >40% (5 mm LLG)
  • The external controller included with the SLSLLG2 is the same as the one included with the SHB1. For additional information, please see the full presentation here.
Mercury Xenon Arc Lamp Spectrum
Click to Enlarge

Click for Raw Data

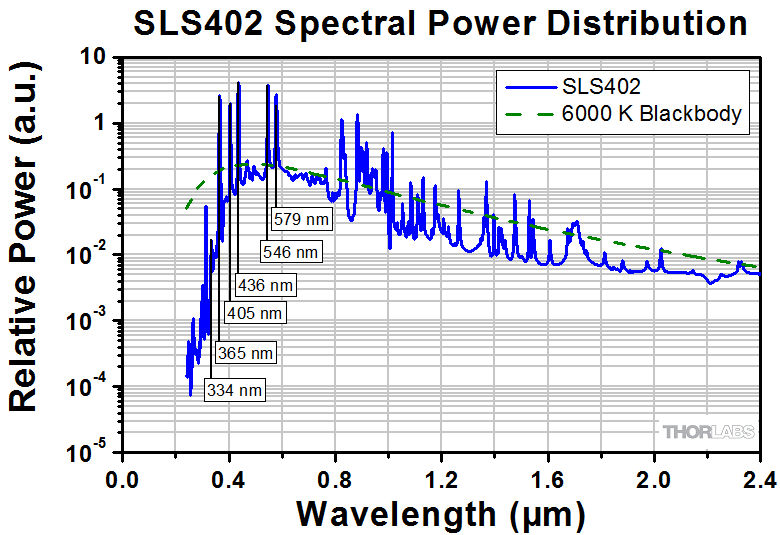

The measured spectral power distribution for the SLS402 Light Source. This source uses a mercury-xenon bulb that features stronger emission lines in the blue and UV region of the spectrum. The spectrum is plotted on a log scale so that both the underlying shape and spectral lines are visible; prominent mercury lines are called out in the graph.
Xenon Arc Lamp
Click to Enlarge

Click for Raw Data
The measured spectral power distribution for the SLS401 Light Source. The spectrum is plotted on a log scale so that both the underlying shape and spectral lines are visible.
Bulb Handling
Click to Enlarge

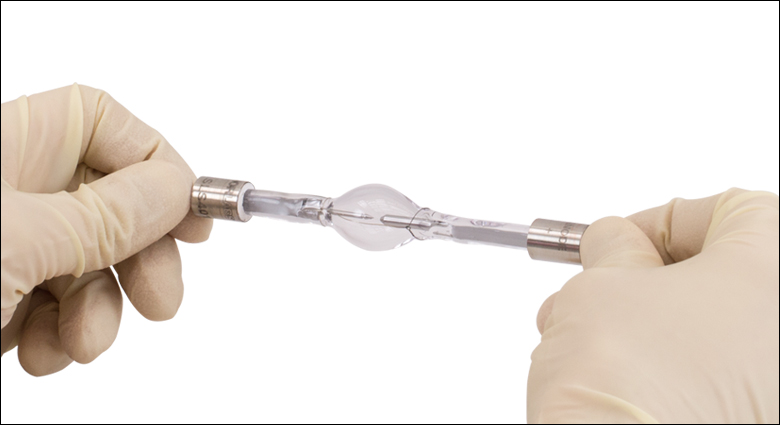

The lamp can be held by its electrodes with gloved hands. Avoid making contact with the glass envelope.

Lamp Handling

The lamps used in broadband light sources have a high internal pressure and operate at a very high temperature. If handled incorrectly, they will become a serious hazard to users and could potentially cause severe injury. It is critical to follow safety instructions when handling them.

The guidelines below describe safe lamp handling.

  • Due to the high internal pressure, the glass of a broadband light source can burst when handled incorrectly, even when not in operation, causing serious injuries. Always wear eye/face and body protection when handling a lamp.
  • Never bump, drop, apply excessive stress, or scratch the lamp. This could cause it to burst.
  • Always transport the lamp in the provided protective case or cover until installation.
  • Save the protective case or cover and packaging materials (box) for lamps that have been used to their rated service life.
  • Any dust or grease on the lamp will compromise the integrity of the glass envelope, increasing the chance that the lamp will burst. Clean any dirt, oil, or lint away from the lamp with alcohol and a lint free cloth or tissue.
  • Always wear gloves when handling the lamp; never hold the lamp by its envelope. Thorlabs offer gloves that can be used for lamp handling.
  • The lamp generates very high-intensity light output; never stare directly into the lamp.
  • The lamp gets very hot during operation. Always wait at least 30 minutes after operation for the lamp to cool down before handling.
  • Electrostatic discharge (ESD) protection is recommended when handling the lamp.

Lamp Installation/Replacement

The installation instructions and video below detail the recommended procedure for installing or replacing the lamps in our SLS401 and SLS402 Short-Arc Light Sources using either the SLS401B Xenon or SLS402B Mercury-Xenon Lamps. Do not attempt to change the lamp while the lamp and lamp housing are hot. Allow at least 30 minutes after turning the light source off before attempting to replace the lamp.

We strongly recommend wearing gloves when replacing the lamp to prevent skin oils from being deposited onto the lamp. If you suspect the lamp is dirty, carefully clean it with alcohol before connecting it to a power supply.

Lamp Handling

Short-arc lamps require caution during handling. When handled correctly, the lamp is a very safe instrument; however, improper handling can be hazardous to users.

  • Always wear proper protective gloves when handling the lamp. Moisture and grease from the hands left on the lamp may affect the integrity of the glass envelope, shortening the lamp lifetime. In the most extreme cases, it can cause the lamp to explode.
  • Only hold the lamp at its electrodes. Avoid holding the lamp by the glass envelope.
  • Keep the glass envelope clean at all times.
  • When not using the lamp, always seal it in the plastic case in the original package.
  • The temperature of the lamp may reach several hundred degrees Celsius during operation. Always wait at least 30 minutes for the lamp to cool down before handling.

Open the Lamp Housing

  1. Using a 4 mm hex key, remove the screws on the side plate. An engraving on the top of the unit indicates which side plate to remove.

Remove the Old Lamp

  1. Loosen the two thumbscrews locking the lamp in place by turning them counterclockwise.
  2. Remove the anode (+) connector from the top of the lamp.
  3. Remove the old lamp by lifting it out of the bottom holder while holding onto the top electrode. Place it in the original lamp box.

Install the New Lamp

  1. Orient the new lamp so that the anode is at the top.
  2. Insert the cathode into the base.
  3. Place the anode connector over the anode and make sure that the lamp is securely inserted.
  4. Tighten both thumbscrews by rotating them clockwise.
  5. Replace the side panel and secure with the four M5 cap screws.

SLS401 and SLS402 Connector

Connector Diagram4-Pin Female Connector
4-Pin Female Connector
Pin Connection
1 Bulb Cathode
2 Bulb Anode
3 Bulb Detection Resistor
4 Bulb Detection Resistor

SLSLLG2 Shutter Interface Connector

SHB1 4-Pin Mini-Din Female Plug
Male Plug on 35" (889 mm) Long Shutter Cord
SHB1 4-Pin Mini-Din Female Plug
Female Jack on Controller
4-Pin Mini-DIN Connector
Pin Connection
1 Shutter Detect
2 Modulation +
3 +5 VDC
4 Modulation -
Shield GND

External Modulation Input: TTL 0 to 5 V, Female BNC

Interlock Output: 2.5 mm Mono Phone Jack


Posted Comments:
Elif Nur Dayi  (posted 2024-04-10 09:03:05.887)
Hi, We are interested in purchasing a Xe lamp and the SLS401 is one of our strong options. However, we have questions about the spectral power. On the spectra provided here, the Y axis is relative power, which makes it hard to understand/compare. Is there any data for the actual spectral power, especially in the visible range? Thank you very much. Best regards, Elif
cdolbashian  (posted 2024-04-26 02:54:36.0)
Thanks for contacting Thorlabs! The estimated absolute power can be calculated from the total output power spec and the measured relative power spectrum. We will contact you to provide it.

Below is a selection guide for all of our white-light, broadband, lamp-based light sources. In addition to these sources, Thorlabs also offers unmounted white-light LEDs, white-light mounted LEDs, white-light fiber-coupled LEDs, and high-powered, white-light Solis® LEDs.

Broadband Light Source Selection Guide
Item # (Click to
Enlarge;
Not to Scale)
Emitter Type Wavelength
Range
(Click for Plot)
Output Coupling Output Power Lamp
Electrical
Power
Color
Temperature
Lamp
Lifetime
Replacement
Lamp
SLS204 Deuterium 200 - 700 nm Free Space or
Fiber Coupled (SMA)
2 mWa
0.1 mWb
(Typ.)
30 W N/A 2000 hc SLS254B
SLS205 Xenon Arc 240 - 1200 nm Free Space or
Fiber Coupled (SMA)
290 mWa
5 mWd
(Typ.)
75 W 5800 Ka
5400 Kd
2000 hc SLS255B
SLS401 Xenon Arc 240 - 2400 nm Free Spacee >1.3 Wa 150 W 5800 K 2000 hc SLS401Bf
or SLS402B
SLS402 Mercury-Xenon Arc 240 - 2400 nm Free Spacee >1.3 Wa 150 W 6000 K 2000 hc SLS401B
or SLS402Bf
SLS302 Quartz
Tungsten-Halogen
360 - 2500 nm Free Spacee >10 Wa 150 W 3400 K 1000 hg SLS301B
SLS201L(/M) Quartz
Tungsten-Halogen
360 - 2600 nm Free Spacee or
Fiber Coupled (SMA)
500 mWa
10 mWh
9 W 2796 K 10 000 h SLS251
SLS301 Quartz
Tungsten-Halogen
360 - 3800 nm Free Spacee >1.6 Wa 150 W 3400 K 1000 hg SLS301B
SLS603 Xenon Arc 380 - 780 nm Ø3 mm
Liquid Light Guide
>7 Wh 300 W 6000 Ki 1000 hc SLS600B
SLS605 Xenon Arc 380 - 780 nm Ø5 mm
Liquid Light Guide
>15 Wh 300 W 6000 Ki 1000 hc SLS600B
OSL2 Tungsten-Halogen 400 - 1600 nm
(Typical)
Fiber Bundle 1.4 Wk 150 W 3200 K 1000 hc OSL2Bf,
OSL2B2,
or OSL2BIR
OSL2IR Tungsten-Halogen 400 - 1750 nm
(Typical)
Fiber Bundle 3.8 Wk 150 W 3200 K 200 hc OSL2B,
OSL2B2,
or OSL2BIRf
QTH10(/M) Quartz
Tungsten-Halogen
400 - 2200 nm Free Space 50 mW (Typ.) 10 W 2800 Kl (Typ.) 2000 h QTH10B
SLS203F(/M) Silicon Carbide Globar 500 nm - 9 µm Free Spacee or
Fiber Coupled (SMA)
1.8 Wa 24 W 1500 K 10 000 h SLS253
SLS303 Silicon Nitride Globar 550 nm - 15 µm Free Space 4.5 Wa 70 W 1200 K 5000 hg SLS303B
  • Free-space optical power measured without adapters at the beginning of lamp lifetime.
  • Measured with Thorlabs' M114L01 solarization-resistant patch cable at beginning of lamp lifetime.
  • Operation time before the maximum optical output power of the lamp reaches 50% of its original output.
  • Measured with Thorlabs' M111L01 solarization-resistant patch cable at beginning of lamp lifetime.
  • Adapters are available separately to couple the free-space output into liquid light guides (LLGs).
  • This lamp is identical to the original lamp that comes with the light source.
  • Operation time before the controller cannot stabilize the output power of the lamp.
  • Measured at the liquid light guide tip at the beginning of lamp lifetime.
  • Prior to LLG
  • Fiber-coupled optical power, measured with included fiber patch cable at beginning of lamp lifetime.
  • Power at Fiber Tip at Maximum Lamp Intensity
  • Color temperature will vary from unit to unit.
Back to Top

Xenon and Mercury-Xenon Short-Arc Sources: 240 - 2400 nm

Xenon Arc Lamp Spectrum
Click to Enlarge

Click for Raw Data
The measured spectral power distribution for the SLS401 Light Source. The spectrum is plotted on a log scale so that both the underlying shape and spectral lines are visible.
Mercury Xenon Arc Lamp Spectrum
Click for Details

Click for Raw Data
The measured spectral power distribution for the SLS402 Light Source. The spectrum is plotted on a log scale so that both the underlying shape and spectral lines are visible.
Xenon Arc Lamp Power Supply
Click to Enlarge

The control unit for the SLS401 or SLS402.
Xenon Arc Lamp Adjusters
Click to Enlarge

While the mirror alignment is pre-set to the optimal position, three knobs on the back of the housing allow the user to make further adjustments if desired.
Xenon Arc Lamp Mirror
Click to Enlarge

These short-arc sources include a concave mirror to focus light radiated behind the lamp back towards the front aperture.
  • Short-Arc Sources for 240 - 2400 nm
  • >1.3 W Output Power Collimated in a Ø35 mm Beam
  • Low Power Fluctuations of <0.3% within 1 Hour
  • Optical Drift: 0.1% per Hour / 0.12% per °C
  • Ozone Free
  • 60 mm Cage System Compatible
  • Manual Shutter

Thorlabs' Xenon and Mercury-Xenon Short-Arc Light Sources are designed to provide >1.3 W of free-space illumination over the 240 - 2400 nm range. The spectrum of each source is shown in the graphs to the right. Compared to the xenon arc lamp, the mercury-xenon lamp provides additional strong lines in the blue to UV spectral region. The lamps are interchangeable between the SLS401 and SLS402 light sources and each source provides stable illumination with power fluctuations smaller than 0.3% per hour.

The >1.3 W output is collimated into a Ø35 mm beam for free-space applications. A silver-coated mirror at the back of the housing collects light from behind the lamp and reflects it towards the front of the housing in order to maximize the output power. The mirror alignment is factory set to maximize the output, but it can also be adjusted by the user using the three adjustment knobs on the back of the housing.

These light sources are shipped with factory-installed collimation lenses. The lens tube of the collimation lens features internal SM2 (2.035"-40) threading for easy integration of SM2-threaded parts, including the liquid light guide adapter sold below. A knob on the front of the lamp housing allows a manual shutter to block the output if desired. The front face of the lamp housing can also integrate a 60 mm cage system.

The included controller, pictured to the upper right, has two LED indicator lights for temperature and lamp status. During normal operation, both lights will be green. If the controller becomes overheated, the "Temperature" indicator will switch to red and the lamp will be automatically shut off. The "Lamp Status" indicator will show green if the correct lamp is installed or red if no lamp is present or if the wrong lamp is installed. The LCD display of the controller also shows a timer that counts down the lamp's lifespan. Note that this is estimated using the typical 2000 hour lifetime of the compatible lamp; the actual lifetime will vary from lamp to lamp.

The large box design of the arc lamp housing allows for the safe dissipation of thermal energy produced by the 150 W lamp. When used for an extensive amount of time, the housing can heat up to ~60 °C, so extensive contact should be avoided. Replacement lamps are sold below.

The arc lamps are ozone free: they do not produce enough deep UV radiation to convert oxygen to ozone within the beam path, allowing the light source to be safely used without the need for a system to purge the environment around the light source of ozone.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SLS401 Support Documentation
SLS401Xenon Short-Arc Light Source with Control Unit, 240 - 2400 nm
$7,234.43
Today
SLS402 Support Documentation
SLS402Mercury-Xenon Short-Arc Light Source with Control Unit, 240 - 2400 nm
$7,234.43
Today
Back to Top

Liquid Light Guide Adapters

  • Couples the Output of the Broadband Light Source into a Liquid Light Guide
  • Adapters Designed for 185 nm - 2.1 µm or 350 - 700 nm Wavelength Range
  • Compatible with Ø3 mm and Ø5 mm Core Liquid Light Guides
  • SLSLLG2 Includes Integrated Electronic Shutter with External Controller

These Liquid Light Guide Adapters are designed to quickly and easily integrate with the Broadband Light Sources to couple the output into Ø3 mm or Ø5 mm core Liquid Light Guides (LLGs). The adapters contain a collimating lens and are externally SM2 threaded (2.035"-40), allowing them to directly thread onto the collimation lens assembly without the need to remove or adjust either lens.

The SLSLLG1 is designed with an uncoated collimating lens, which provides a wide operating range from 185 nm - 2.1 µm. For superior performance from 350 nm - 700 nm, the SLSLLG2 and SLSLLG3 lenses use an AR-coated lens that provides improved coupling efficiency in this wavelength range. Transmission of wavelengths longer than 800 nm through the LLG for longer than an hour may result in permanent damage to the LLG tip; to reduce damage during extended use, incorporate a filter to limit transmission of IR wavelengths.

Liquid Light Guide in Stabilized Lamp
Click to Enlarge

The SLSLLG2, with a liquid light guide, attached to the SLS402 Light Source.

The SLSLLG2 features an integrated diaphragm shutter and an external controller that can operate at continuous frequencies up to 10 Hz and burst frequencies up to 15 Hz. For more information on the integrated shutter, please refer to the manual.

All liquid light guide adapters come with the AD3LLG adapter preinstalled, making them compatible with Ø3 mm LLGs out of the box. They are also shipped with the Ø5 mm LLG-compatible AD5LLG adapter, which can be swapped in by unthreading the AD3LLG and replacing it with the AD5LLG.

Item # SLSLLG1 SLSLLG2 SLSLLG3
Wavelength Range Uncoated: 185 nm - 2.1 µm AR Coated: 350 nm - 700 nm; Ravg < 0.5%
Integrated Electronic Shutter No Yesa No
Lens LA4464 ACL5040U-A
Lens Material UV Fused Silica B270 Optical Crown Glass
Coupling Efficiency (with SLS401 / SLS402) >30% (3 mm LLG); >35% (5 mm LLG) >30% (3 mm LLG); >40% (5 mm LLG)
  • The external controller included with the SLSLLG2 is the same as the one included with the SHB1. For additional information, please see the full presentation here.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SLSLLG1 Support Documentation
SLSLLG1Liquid Light Guide Adapter for Broadband Light Sources, 185 nm - 2.1 µm
$424.09
Today
SLSLLG2 Support Documentation
SLSLLG2Liquid Light Guide Adapter with Shutter for Broadband Light Sources, 350 nm - 700 nm
$1,519.35
Today
SLSLLG3 Support Documentation
SLSLLG3Liquid Light Guide Adapter for Broadband Light Sources, 350 nm - 700 nm
$256.59
Today
Back to Top

Replacement Lamps

Item # SLS401B SLS402B
Compatible Light Sources SLS401, SLS402
Lamp Type Xenon Arc Mercury-Xenon Arc
Electrical Power 150 W
Color Temperature
(Click for Spectrum)
5800 K 6000 K
  • SLS401B Replacement Xenon Short-Arc Lamp
  • SLS402B Replacement Mercury-Xenon Short-Arc Lamp
  • Both Lamps Compatible with SLS401 and SLS402 Light Sources
  • Ozone Free Lamps

The SLS401B and SLS402B replacement lamps are compatible with the SLS401 and SLS402 short-arc light sources. Each lamp offers a different output spectrum and is cross-compatible with the SLS401 and SLS402 sources. Please see the Lamp Installation tab for detailed instructions.

These arc lamps are ozone free: they do not produce enough deep UV radiation to convert oxygen to ozone within the beam path, allowing the lamp to be safely used without the need for a system to purge the environment around the light source of ozone.

Note: We strongly recommend wearing gloves when replacing the lamps in our light sources to prevent skin oils from being deposited onto them. If you suspect the lamp is dirty, carefully clean it with alcohol before connecting it to a power supply.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SLS401B Support Documentation
SLS401BReplacement Xenon Short-Arc Lamp for SLS401 and SLS402 Light Sources
$437.16
Today
SLS402B Support Documentation
SLS402BReplacement Mercury-Xenon Short-Arc Lamp for SLS401 and SLS402 Light Sources
$437.16
Today
