Double-Density Aluminum Breadboards with 45° Hole Pattern
6" x 6"
4" x 6"
6" x 12"
These breadboards allow components with standard 1" mounting hole spacing to be mounted at 45°.
Click for Details

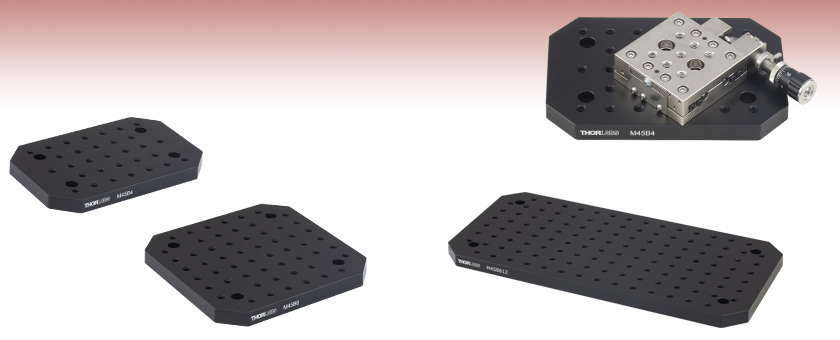

The LNR25D stage with 1"-spaced mounting holes can be mounted at 45° to the hole pattern on a standard optical table using the M45B6 breadboard.
Click for Details

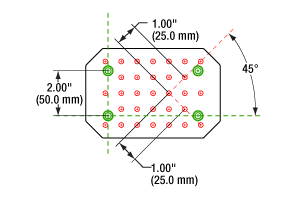

The tapped holes on the M45B4 (M45B1015/M) breadboard are arranged at 45° to the counterbored mounting holes.
These breadboards feature a tapped hole pattern aligned at 45° compared to traditional aluminum breadboards. The 45° hole matrix is laid out as a double-density matrix with the tapped holes on 1" (25 mm) centers, allowing optomechanical components and bases with standard 1" mounting hole spacing to be mounted to these breadboards as shown in the image to the far right.
Each breadboard features four counterbored mounting holes aligned with the standard 1" (25 mm) spacing on traditional optical tables and breadboards. The mounting holes are located at each corner of the breadboard, inset 1" from each edge (25 mm on metric). These counterbored mounting holes may be used to attach the breadboards to variety of surfaces and mounts, including optical tables, other breadboards, mounting posts, and brackets.
The chamfered corners serve to visually distinguish these breadboards from traditional breadboards. These 1/2" (12.7 mm) thick breadboards are finished with a black, minimally reflective anodized coating, and the holes aligned at 45° are threaded completely through, allowing components to be mounted on both sides at once.
Optical Breadboard Selection Guides
The selection guides below list every size offered for our honeycomb, solid aluminum, and acrylic breadboards. Simply locate the specific width and length needed and then select the type of breadboard. Expand each table by clicking the More [+] button within the header.
