Fluorescent Calibration Slides


  • Set of 5 Fluorescent Slides: Red, Orange, Blue, Yellow, and Green
  • Made of Cast Acrylic Substrate
  • Provides a Uniform Fluorescent Field

FSK5

Set of 5 Fluorescent Slides

Every Set Includes a Storage Box

Related Items


Please Wait

Click to Enlarge
The Red Slide from the FSK5 Fluorescent Slide Set Mounted Using the MP100-RCH2 Rigid Stand Slide Holder
Specificationsa
Material  Cast Acrylic Substrate
Thickness 1.7 mm ± 0.2 mm
Dimensions 25.4 mm x 76.2 mm (1" x 3")
  • Sample data can be viewed on the Fluorescence Graphs and Transmission Graphs tabs.

Features

  • Set of 5 Slides with Spectra Similar to a Variety of Fluorophores (See the Fluorescence Graphs Tab)
  • Ideal for Calibrating Fluorescence Imaging Systems
  • Compatible with Our Slide Holders for 26 mm x 76 mm Slides Up to 1.7 mm Thick

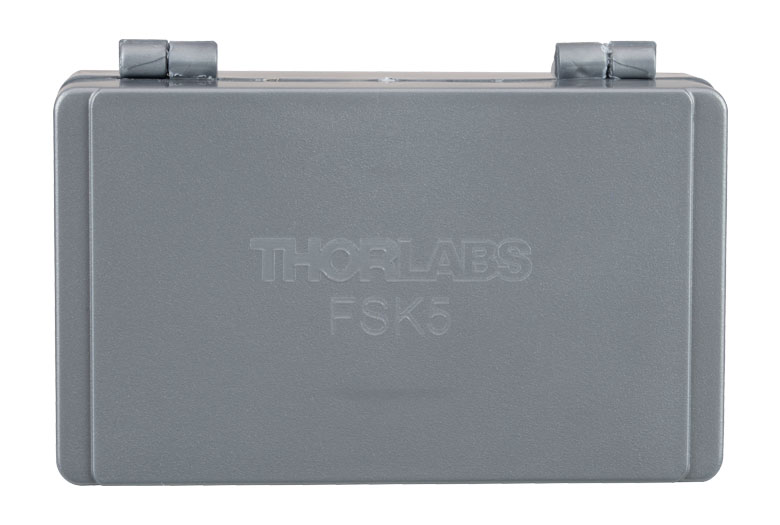

  • Engraved Storage Box Included

This Fluorescent Calibration Slide Set includes 5 colored slides: red, orange, blue, yellow and green. These slides are designed to be used to calibrate fluorescence imaging systems. They provide a uniform fluorescent field and have spectra similar to a variety of fluorophores. Each slide is manufactured from a cast acrylic substrate and has a thickness of 1.7 mm. To keep the slides clean and dust-free, a plastic storage box is included with every set. The box is engraved with the Thorlabs logo and item # on the top.

These slides are compatible with our sample holders that fit 26 mm x 76 mm slides up to 1.7 mm thick. Please note that our C4SH01 Four-Position Microscope Slide Holder is not compatible with these slides.


Click to Enlarge
Raw Data

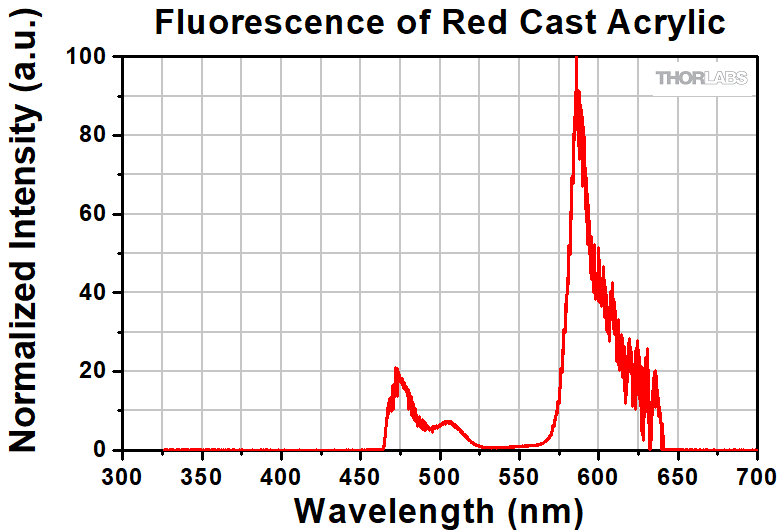

Measured fluorescence spectrum of the red slide in the FSK5 Slide Set when illuminated with the M565F3 565 nm Fiber-Coupled LED. This data is typical; performance may vary from lot to lot.

Click to Enlarge
Raw Data

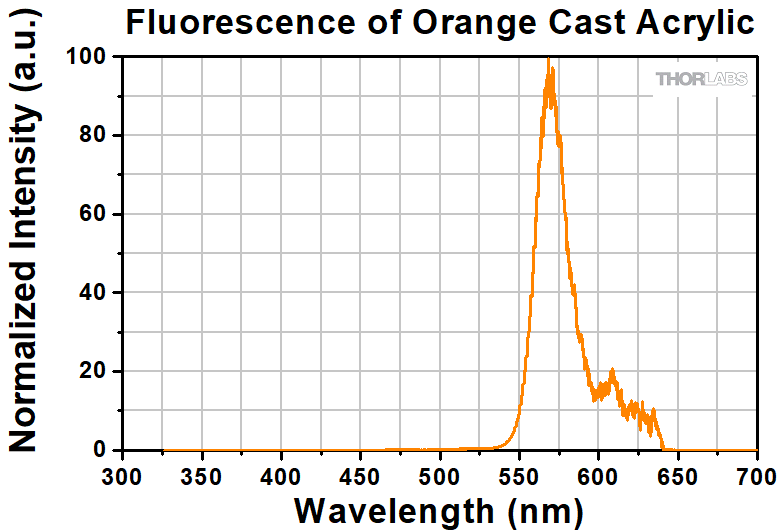

Measured fluorescence spectrum of the orange slide in the FSK5 Slide Set when illuminated with the M565F3 565 nm Fiber-Coupled LED. This data is typical; performance may vary from lot to lot.

Click to Enlarge
Raw Data
Measured fluorescence spectrum of the blue slide in the FSK5 Slide Set when illuminated with the M365FP1 365 nm Fiber-Coupled LED. This data is typical; performance may vary from lot to lot.

Click to Enlarge
Raw Data
Measured fluorescence spectrum of the yellow slide in the FSK5 Slide Set when illuminated with the M365FP1 365 nm Fiber-Coupled LED. This data is typical; performance may vary from lot to lot.

Click to Enlarge
Raw Data
Measured fluorescence spectrum of the green slide in the FSK5 Slide Set when illuminated with the M470F3 470 nm Fiber-Coupled LED. This data is typical; performance may vary from lot to lot.

All transmission data presented here is typical.


Click to Enlarge

Raw Data
Comparison of transmission measurements of the 5 slides included in the FSK5 Fluorescent Slide Set from 300 nm to 700 nm.

Click to Enlarge
Transmission measurements of the red slides from two FSK5 Fluorescent Slide Sets.

Click to Enlarge

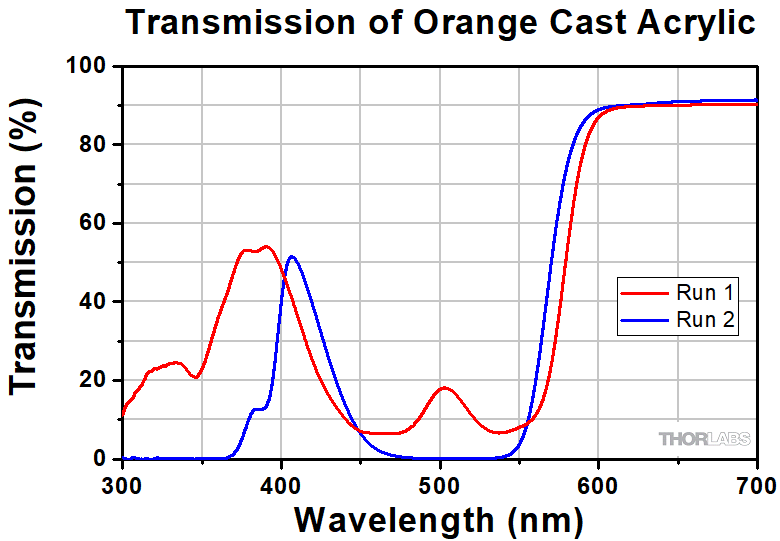

Transmission measurements of the orange slides from two FSK5 Fluorescent Slide Sets.

Click to Enlarge
Transmission measurements of the blue slides from two FSK5 Fluorescent Slide Sets.

Click to Enlarge
Transmission measurements of the yellow slides from two FSK5 Fluorescent Slide Sets.

Click to Enlarge
Transmission measurements of the green slides from two FSK5 Fluorescent Slide Sets.

Posted Comments:
No Comments Posted

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
FSK5 Support Documentation
FSK5NEW!Fluorescent Calibration Microscope Slides, Set of 5
$18.00
