Products Home / Optomechanical Components / Optical Cage Systems / 30 mm Cage Components / 30 mm Cage System Optic Mounts / Right-Angle Beamsplitter Mounts for 30 mm Cage SystemsRight-Angle Beamsplitter Mounts for 30 mm Cage Systems
- Split a Beam at 90° with Ø1" Beamsplitters or Dichroic Mirrors
- Available with Kinematic Tip/Tilt or Rotation
- 30 mm Cage System Compatible

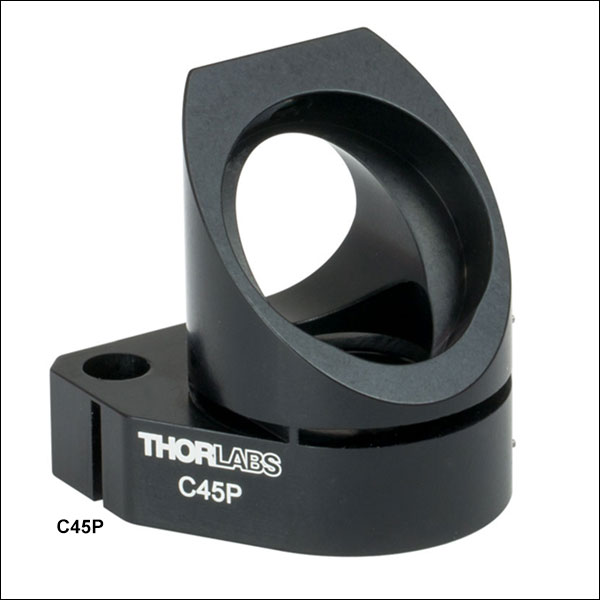

C45P
Kinematic Mount
±1° Tip and Tilt Adjustment
Application Idea
Split a beam at 90° using the C45P Right-Angle Kinematic Cage Mount and create a perpendicular arm with the CP30 Right-Angle Cage Adapter.
C45M1
Nested Rotation Mount
360° Optic Cell Rotation
Please Wait
Features
- Mount Ø1" Optics at a 45° Angle to the Cage System's Optical Axis
- Kinematic Mount for Tip and Tilt Adjustment
- Rotation Mount with Nested Optic Cell for 360° Adjustment
- 30 mm Cage System Compatibility
These Right-Angle Beamsplitter Cage Mounts secure a Ø1" optic within a 30 mm cage system at a 45° angle to the optical axis. Both mounts have two through holes at 90° for perpendicular transmitted beams. The C45P mount incorporates a flexure mechanism that provides ±1° of kinematic pitch and yaw adjustment. The C45M1 incorporates a nested optic cell that provides 360° of rotation adjustment.
The C45P is ideal for mounting transmissive optics like beamsplitters and beam samplers. The kinematic pitch and yaw adjustment can direct the reflected or transmitted beam to center the beam in a cage system or direct the beam to a specific target. The C45P secures the optic with a 5/64" (2.0 mm) nylon-tipped setscrew and features two 6.0 mm through holes with locking setscrews for cage rods to pass through.
The C45M1 can be used to rotate optics mounted at 45° in a cage system. The mount rotates in the 45° plane. The rotation mount can be used to mount wedged compensation plates to correct for angular deviation in the beam introduced by wedged optics upstream. The C45M1 can also rotate polarizing plate beamsplitters to align the reflected and transmitted polarization states relative to the cage system. The SM1-threaded, nested optic cell is removable to allow for quick optic changes, and the flexure locks allow the mount to snap into existing cage systems.
