Achromatic Doublets Essentials Kits


  • Mounted Lenses in Protective Case
  • Available with Three Broadband AR Coating Ranges
  • Focal Lengths from 30 mm to 500 mm

LSB08-A

Mounted Ø1"
Achromatic Lens Kit,
400 - 700 nm

Each Lens and
Location is Clearly Marked

LSB08-B

Mounted Ø1"
Achromatic Lens Kit,
650 - 1050 nm

Related Items


Please Wait
Optical Coatings and Substrates
Optic Cleaning Tutorial

Features

  • Cemented Achromatic Doublets Kits
  • 14-Piece Mounted Lens Kit
  • Storage Cases Included
  • AR-Coated Doublets with One of Three Coatings

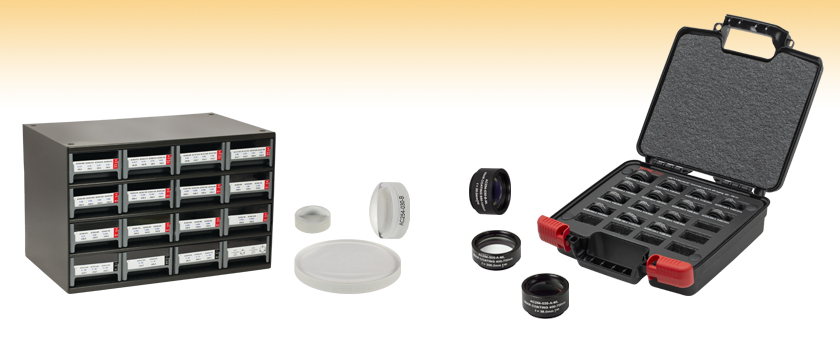

Thorlabs offers achromatic doublet kits containing mounted optics. The LSB08 Series of mounted kits contain 14 of our most popular Ø1" cemented achromatic doublets premounted in SM1-compatible lens cells.

The most typical application of achromatic doublet lenses is to reduce the chromatic aberration that is symptomatic of spherical lenses as well as to reduce other aberrations such as coma. Other applications of achromatic doublets include the diffraction limited focusing of laser beams and the focusing or imaging of white light within the design wavelength range.

These achromatic doublets are also available individually by visiting our Achromatic Doublet Navigation.

LSB08 Series of Mounted Achromatic Lenses
Our LSB08 kit comes with 14 of our most popular A- (400 - 700 nm), B- (650 - 1050 nm), or C- (1050 - 1620 nm) coated Ø1" achromatic doublets premounted in SM1-compatible (1.035"-40) lens cells. The mounted optics are housed in a plastic case. See the LSB08 Series tab for detailed information on the optics included in each kit.

General Specifications
Design Wavelength for -A-ML Doublets 486.1 nm, 587.6 nm, 656.3 nm
Design Wavelength for -B-ML Doublets 706.5 nm, 855 nm, 1015 nm
Design Wavelength for -C-ML Doublets 1016 nm, 1330 nm, 1550 nm
Lens Diameter 25.4 mm
Diameter Tolerance +0.00/-0.10 mm
Mounting Thread SM1 (1.035"-40)
Focal Length Tolerance ±1%
Surface Quality 40-20 Scratch-Dig
Centration ≤3 arcmin
Clear Aperture >90% of Diameter
A Coating Range Ravg <0.5% over 400 - 700 nm
B Coating Range Ravg <0.5% over 650 - 1050 nm
C Coating Range Ravg <0.5% over 1050 - 1620 nm
Operating Temperature -40 to +85 oC



Contents of LSB08-A Kita

Item # f (mm) fb (mm) r1 (mm) r2 (mm) r3 (mm) tc1 (mm) tc2 (mm) te (mm) Materialsb
AC254-030-A-ML 30 22.9 20.89 -16.73 -79.8 12 2 8.8 N-BAF10/N-SF6HT
AC254-035-A-ML 35 27.3 23.99 -19.1 -102.09 12 2 9.6 N-BAF10/N-SF6HT
AC254-040-A-ML 40 33.4 23.66 -20.09 -57.68 10 2.5 7.4 N-BK7/SF5
AC254-045-A-ML 45 40.2 31.24 -25.94 -130.62 7 2 5.7 N-BAF10/N-SF6HT
AC254-050-A-ML 50 43.4 33.34 -22.28 -291.07 9 2.5 8.7 N-BAF10/N-SF10
AC254-060-A-ML 60 54.3 41.69 -25.88 -230.7 8 2.5 8.2 E-BAF11/FD10
AC254-075-A-ML 75 70.3 46.54 -33.91 -95.54 7 2.5 6.9 N-BK7/SF5
AC254-100-A-ML 100 97.1 62.75 -45.71 -128.23 4 2.5 4.7 N-BK7/SF5
AC254-150-A-ML 150 146.1 91.62 -66.68 -197.7 5.7 2.2 6.6 N-BK7/SF5
AC254-200-A-ML 200 194 77.4 -87.57 291.07 4 2.5 5.7 N-SSK5/LAFN7
AC254-250-A-ML 250 246.7 137.09 -111.51 -459.2 4 2 5.2 N-BK7/SF2
AC254-300-A-ML 300 297 165.2 -137.09 -557.4 4 2 5.4 N-BK7/SF2
AC254-400-A-ML 400 396 219.8 -181.55 -738.5 4 2 5.5 N-BK7/SF2
AC254-500-A-ML 500 499.9 337.3 -186.75 -557.4 4 2 5.6 N-BK7/SF2
  • LSB08 kits include 14 achromatic doublets individually mounted in a Ø1" SM1-threaded mount. Each kit comes with one (1) of each listed lens.
  • Substrate materials often have multiple names, which vary depending upon the supplier of the bulk material. Most of the materials listed are the Schott glass type with the exception of E-BAF11 (Hikari) and FD10 (Hoya).



Contents of LSB08-B Kita

Item # f (mm) fb (mm) r1 (mm) r2 (mm) r3 (mm) tc1 (mm) tc2 (mm) te (mm) Materialsb
AC254-030-B-ML 30 23 21.09 -16.18 -79.08 12 1.5 8.2 N-BAF10/N-SF6HT
AC254-035-B-ML 35 28.4 23.99 -18.62 -97.27 10.5 1.5 7.5 N-BAF10/N-SF6HT
AC254-040-B-ML 40 32.8 26.12 -21.28 -137.09 10 2.5 8.6 N-BAF10/N-SF6HT
AC254-045-B-ML 45 39.6 29.38 -25.05 -127.06 7.8 1.6 5.9 N-LAK22/N-SF6HT
AC254-050-B-ML 50 45 33.55 -27.05 -125.6 7.5 1.8 6.2 N-LAK22/N-SF6HT
AC254-060-B-ML 60 55.8 39.48 -33 -165.2 6 1.7 5.1 N-LAK22/N-SF6HT
AC254-075-B-ML 75 69.9 36.9 -42.17 417.8 5 1.6 4.5 N-BAF10/N-SF6HT
AC254-100-B-ML 100 97.1 66.68 -53.7 -259.41 4 1.5 4 N-LAK22/N-SF6HT
AC254-150-B-ML 150 144.6 83.6 -89.33 -1330.5 4 3.5 6.5 N-LAK22/N-SF6HT
AC254-200-B-ML 200 194.8 106.41 -96.61 2000 4 4 7.3 N-LAK22/N-SF10
AC254-250-B-ML 250 237.5 52 -65.31 111.51 4 1.5 4.7 SF5/N-SF6HT
AC254-300-B-ML 300 290 62.4 -77.4 134 4 2 5.3 SF5/N-SF6HT
AC254-400-B-ML 400 391.1 83.6 -106.41 181.55 3.5 1.8 4.8 SF5/N-SF6HT
AC254-500-B-ML 500 480.8 60.6 -62.75 87.57 4 2 5.6 N-SF10/N-SF6HT
  • LSB08 kits include 14 achromatic doublets individually mounted in a Ø1" SM1-threaded mount. Each kit comes with one (1) of each listed lens.
  • Substrate materials often have multiple names, which vary depending upon the supplier of the bulk material. The names listed here are the Schott glass types.



Contents of LSB08-C Kita

Item # f (mm) fb (mm) r1 (mm) r2 (mm) r3 (mm) tc1 (mm) tc2 (mm) te (mm) Materialsb
AC254-030-C-ML 30 22.2 21.09 -15.24 -71.12 13 1.8 9.4 N-BAF10/N-SF6HT
AC254-035-C-ML 35 27.4 23.15 -17.87 -105.2 11.5 1.8 8.7 N-BAF10/N-SF6HT
AC254-040-C-ML 40 32.8 24.43 -21.09 -143.92 10 1.8 7.7 N-LAK22/N-SF6HT
AC254-045-C-ML 45 36.7 22.94 -23.66 900 9.6 1.8 7.7 N-LAK22/N-SF6HT
AC254-050-C-ML 50 41.2 22.94 -25.88 194.54 9 1.8 7.4 N-LAK22/N-SF6HT
AC254-060-C-ML 60 50.5 23.88 -28.12 112.08 8.3 1.8 7.2 N-LAK22/N-SF6HT
AC254-075-C-ML 75 64.9 26.36 -29.38 84.92 7.6 1.8 7.1 N-BAF10/N-SF6HT
AC254-100-C-ML 100 90.3 32.14 -38.02 93.54 6.5 1.8 6.6 N-BAF10/N-SF6HT
AC254-150-C-ML 150 140.6 42.69 -52 111.51 5 2.5 6.3 N-BAF10/N-SF6HT
AC254-200-C-ML 200 193.1 70 -95.94 274.31 4 3 6.1 N-LAK22/N-SF6HT
AC254-250-C-ML 250 235.3 43.95 -57.68 93.11 4.5 2.5 6 SF2/N-SF6HT
AC254-300-C-ML 300 285.9 52.48 -68.54 112.21 4.5 2.5 6.2 SF2/N-SF6HT
AC254-400-C-ML 400 386.8 70 -93.11 151.36 4.2 2.5 6.1 SF2/N-SF6HT
AC254-500-C-ML 500 486.9 87.9 -115.45 194.54 3.5 2 5 SF2/N-SF6HT
  • LSB08 kits include 14 achromatic doublets individually mounted in a Ø1" SM1-threaded mount. Each kit comes with one (1) of each listed lens.
  • Substrate materials often have multiple names, which vary depending upon the supplier of the bulk material. The names listed here are the Schott glass types.

Posted Comments:
No Comments Posted
Back to Top

Mounted Achromatic Lens Sets

LSB08 Series
Mounted Ø1" Achromatic Doublets in Protective Metal Case
Three Broadband Antireflection Coatings: 400-700 nm (A Coating), 650-1050 nm (B Coating), 1050-1620 nm (C Coating)
14 Achromatic Doublets in Each Kit*
Ø1", Mounted in Engraved SM1-Threaded Lens Tubes
Focal Lengths from 30 mm to 500 mm

*Please refer to the LSB08 Series Tab for specific information on the included lenses

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
LSB08-A Support Documentation
LSB08-AMounted Ø1" Achromatic Lens Kit, AR Coating: 400 - 700 nm
$1,581.13
Today
LSB08-B Support Documentation
LSB08-BMounted Ø1" Achromatic Lens Kit, AR Coating: 650 - 1050 nm
$1,751.00
Today
LSB08-C Support Documentation
LSB08-CMounted Ø1" Achromatic Lens Kit, AR Coating: 1050 - 1620 nm
$1,860.30
Today
