Liquid Crystal Polarization Rotators


  • Smooth and Continuous Rotation of Linear Input Polarization
  • Compact Design with >1000:1 Extinction Ratio
  • 532 or 633 nm Design Wavelength Available from Stock
  • Custom Versions with Design Wavelengths from 400 to 1700 nm

LCR1-633

633 nm Polarization Rotator

LCC25

Voltage Controller

LCR1-532

532 nm Polarization Rotator

Input Polarization

Output Polarization

Related Items


Please Wait
Item # LCR1-532 LCR1-633
Operating Wavelength 532 nm 633 nm
Clear Aperture 10 mm
Thickness 9.4 mm
AR
Coating
Input Side Ravg < 0.5% from 350 to 700 nm
Output Side R < 0.25% at
532 nm (V-Coat)
R < 0.25% at
633 nm (V-Coat)
Extinction Ratioa,b >1000:1
TWEc λ/4 at 635 nm
Surface Quality 40-20 Scratch Dig
Angle of Incidence <1.5°
Rotation Angle -90° to +90° (>180° of Rotation)
Damage Threshold 1.0 J/cm2 (532 nm, 10 Hz, 8 ns, Ø200 µm)
0.01 J/cm2 (532 nm, 100 Hz, 76 fs, Ø162 µm)
  • The output ER is dependent on the ER of the input beam; the output will not be more polarized than the input.
  • Extinction Ratio (ER) is defined as the ratio of transmission with the desired polarization state to the transmission with a polarization state orthogonal to the desired polarization state.
  • Transmitted Wavefront Error

Features

  • Rotate Linear Input Polarization Continuously Through >180°
  • Extinction Ratio: >1000:1
  • AR Coatings on Air-to-Glass Interfaces
  • 532 nm or 633 nm Operating Wavelength from Stock
  • Other Wavelengths Available by Contacting Tech Support

Thorlabs' Liquid Crystal (LC) Polarization Rotators can continuously rotate the polarization state of a linearly polarized input beam through more than 180° with no mechanical movement involved. A minimum extinction ratio of 1000:1 is guaranteed over the entire rotation range.

An LC polarization rotator consists of a liquid crystal variable retarder and a quartz zero-order quarter-wave plate; the LC retarder and wave plate have their fast axes oriented at 45° with respect to each other, as shown in the drawing below. With linearly polarized light incident on the polarization rotator from the liquid crystal cell side, azimuth rotation of the output polarization can be achieved by adjusting the liquid crystal retardation. The input beam should be linearly polarized with the polarization direction aligned with one of the rotator input axes (marked on the front of the housing).

All liquid crystal polarization rotators are tested at the design wavelength before shipment. The output rotation versus control voltage curve for continuous rotation from -90° to +90° (at least 180° of rotation) is shipped with each device.


Click to Enlarge

A Schematic Showing the Operating Principle of the LC Polarization Rotator

Operating Principle
As shown in the drawing to the left, the input polarization should be aligned to either Axis 1 or Axis 2, as marked by the engraved lines on the front of the housing. In this orientation, the input polarization state is at a 45° angle to the fast and slow axes of the LC retarder. The difference in retardance between the fast and slow axes of the LC retarder converts the linear input polarization into an elliptical polarization that has its major and minor axis oriented at 45° with respect to the fast and slow axes of the LC retarder. The amount of ellipticity will vary depending on the phase difference between the fast and slow axes.

The quarter-wave plate is aligned so that its fast and slow axes are also at a 45° angle with respect to the fast and slow axes of the LC retarder; as a result, the elliptical polarization that exits the LC retarder will be converted back to a linear polarization by the quarter-wave plate, while the angle of the output linear polarization will be dependent on the ellipticity produced by the LC retarder.

Voltage Controller
The LCC25 controller, sold separately, can be used to provide active DC offset compensation, while applying an AC voltage (0 to 25 Vrms). The DC offset compensation automatically zeroes the DC bias across the LC cell within a polarization rotator in order to counteract the buildup of charges. It is fully compatible with all of the liquid crystal polarization rotators sold by Thorlabs. See the LC Controller tab for more information.

Performance

Our liquid crystal polarization rotators are each designed to operate at a specific wavelength. We provide polarization rotation data for each polarization rotator at its design wavelength with the input rotation set at 0° (horizontal). Additionally, the output beam polarization extinction ratio (ER) versus input wavelength shift is shown below. As input wavelength shifts away from the design wavelength, the output beam ER decreases. The data shown shows measurements for both alignment axes of the rotator, but only one is used during operation. All tests were obtained at the design wavelength using a LCC25 liquid crystal controller and a LPVISE100-A polarizer at the input.

LCR1-532 Rotation Angle, Extinction Ratio, and Control Voltage

Polarization Rotation Angle
Click to Enlarge

Click Here for Raw Data
This data was taken with 0° (horizontal) input polarization. The vertical dashed lines mark the control voltages corresonding to 90°, 0°, and -90°.
Polarization Rotator Extinction Ratio
Click to Enlarge

Click Here for Raw Data
This plot shows the calculated ER based on the measured ellipticity, where ER = arctan(ellipticity)-2. The data was taken with the input polarization precisely aligned to 0°, allowing the LCR1-532 to achieve ER > 1000:1 over the entire working control voltage range.
Polarization Rotator Extinction Ratio
Click to Enlarge

Click Here for Raw Data
The ER of the output light will decrease as the input wavelength deviates from the design wavelength. The ER data used in this plot for each wavelength is the lowest achievable ER for that wavelength.

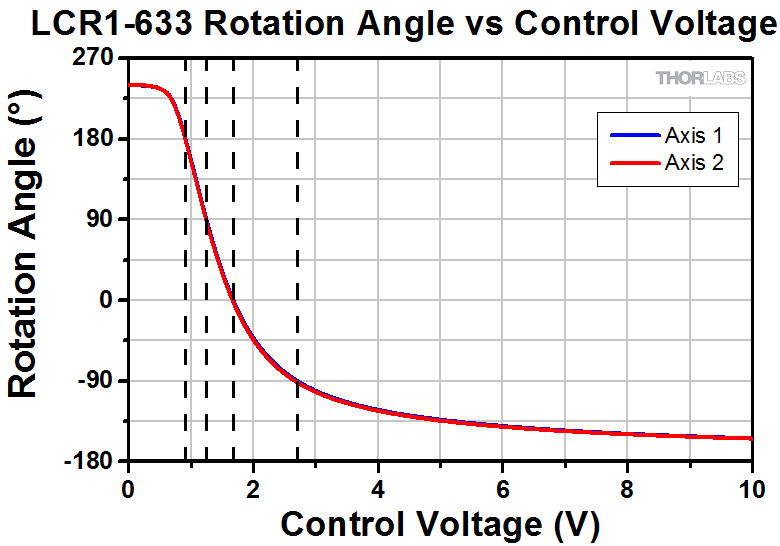

LCR1-633 Rotation Angle, Extinction Ratio, and Control Voltage

Polarization Rotation Angle
Click to Enlarge

Click Here for Raw Data
This data was taken with 0° (horizontal) input polarization. The vertical dashed lines mark the control voltages corresonding to 180°, 90°, 0°, and -90°.
Polarization Rotator Extinction Ratio
Click to Enlarge

Click Here for Raw Data
This plot shows the calculated ER based on the measured ellipticity, where ER = arctan(ellipticity)-2. The data was taken with the input polarization precisely aligned to 0°, allowing the LCR1-633 to achieve ER > 1000:1 over the entire working control voltage range.
Polarization Rotator Extinction Ratio
Click to Enlarge

Click Here for Raw Data
The ER of the output light will decrease as the input wavelength deviates from the design wavelength. The ER data used in this plot for each wavelength is the achievable ER for that wavelength.



Angle of Incidence
These LC Polarization Rotators are sensitive to the angle of incidence (AOI). The graphs below show the effect of AOI on the output beam rotation: an AOI <±1° is required to keep the change in output rotation angle within 3°.

Polarization Rotator Offset
Click to Enlarge

Click Here for Raw Data

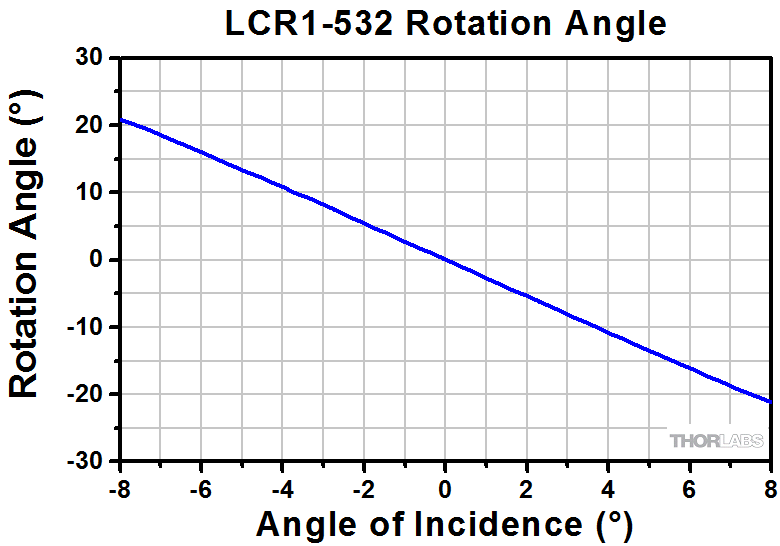

Change in the polarization rotation angle as the incident angle is changed from -8° to 8°. The rotator was set to produce an output polarization parallel to the input polarization when the AOI was 0°.
Polarization Rotator Offset
Click to Enlarge

Click Here for Raw Data

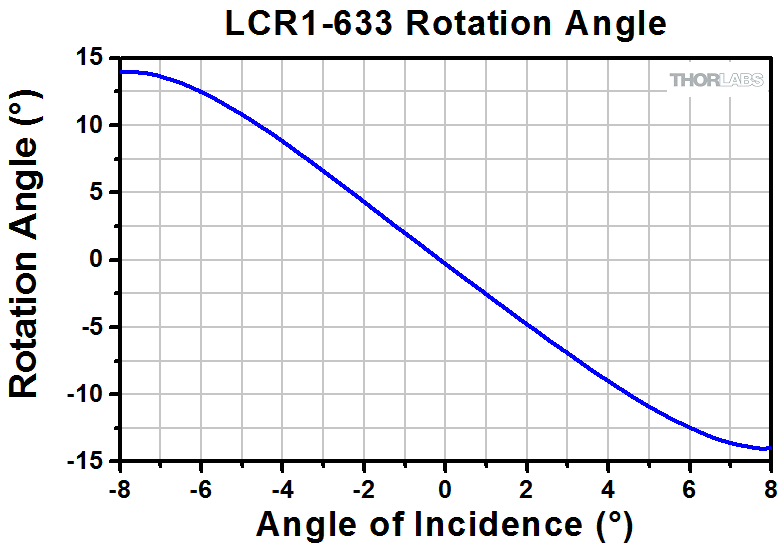

Change in the polarization rotation angle as the incident angle is changed from -8° to 8°. The rotator was set to produce an output polarization parallel to the input polarization when the AOI was 0°.



Transmission
To improve transmission through the device, both the LCR1-532 and LCR1-633 have a broadband AR coating on one outer optic surface (Ravg < 0.5% from 350 to 700 nm) and a V-Coat centered on the design wavelength on the other outer optic surface (R < 0.25% at design wavelength). The graphs below show typical transmission curves for these two rotators.

Polarization Rotator Transmission
Click to Enlarge

Click Here for Raw Data

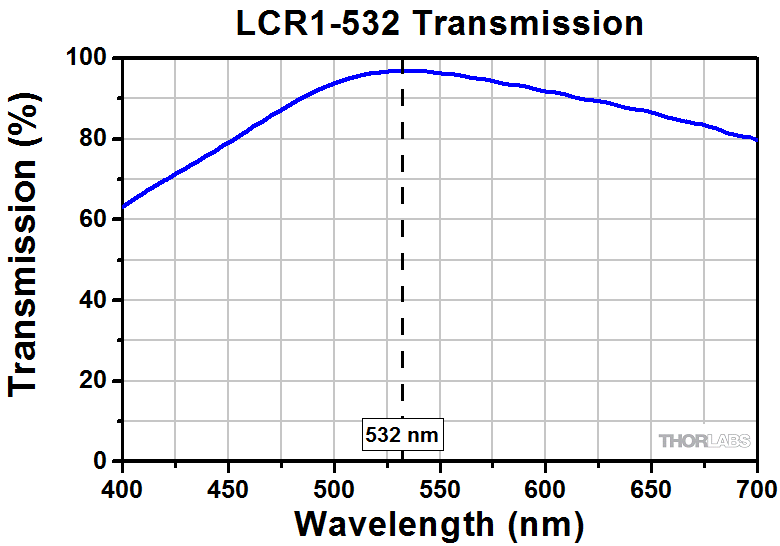

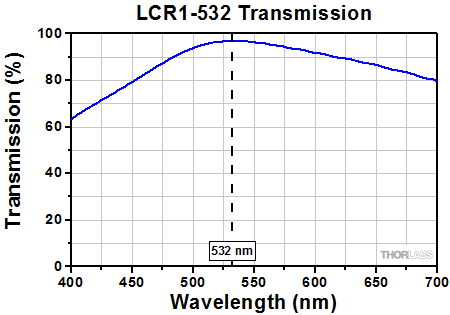

Typical Transmission of LCR1-532 Polarization Rotator
Polarization Rotator Transmission
Click to Enlarge

Click Here for Raw Data

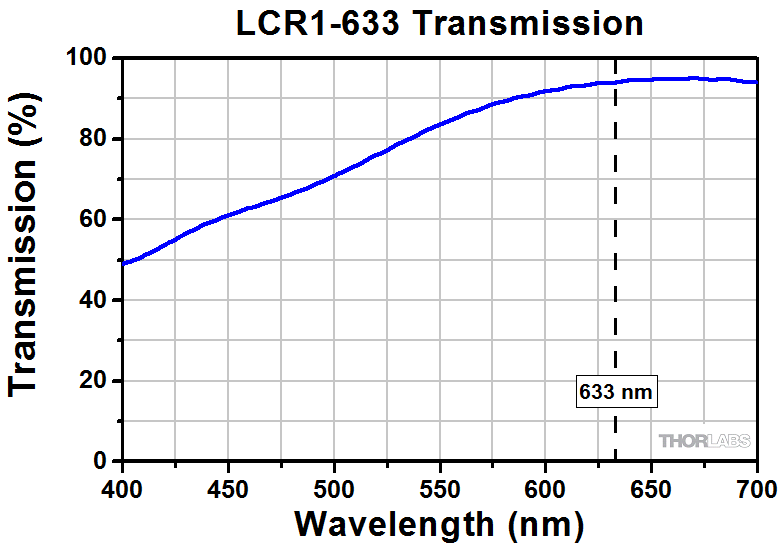

Typical Transmission of LCR1-633 Polarization Rotator

Click to Enlarge
Switching time for LCR1-532 measured at 23 °C. Switching times for different modes are indicated by different colors. Solid lines indicate fall times and dashed lines indicate rise times.

LC Polarization Rotator Switching Time

Liquid crystal polarization rotators feature a short switching time compared to mechanical variable wave plates due to the lack of moving parts. The switching time of a liquid crystal polarization rotator depends on several variables, some of which are controlled in the manufacturing process, and some by the user. An example of switching times for a single polarization rotator is shown in the graph to the right.

In general, liquid crystal polarization rotators will always switch faster at higher driving voltage than at lower driving voltage. Also, the fall time (from low voltage to high voltage) is faster than rise time (from high voltage to low voltage) when the LC polarization rotator is switched between two voltages.

In addition, the material's viscosity and hence the switching speed also depend on temperature of the LC material. As can be seen below, the switching speed can increase by as much as two times by heating the LC polarization rotator. Our standard LC polarization rotators are designed to work at temperatures up to 45 °C, where they can still maintain the specified rotation. If additional speed is required, the polarization rotators can work at temperatures up to 70 °C, but the maximum retardation value will be lower.

The switching speed is also related to the thickness of the LC polarization rotator, the rotational viscosity of the LC material, and the dielectric anisotropy of the LC material. However, since each of those variables affects other operating parameters as well, our LC polarization rotators are designed to optimize overall performance, with a special emphasis on switching time. We also offer custom and OEM LC polarization rotators optimized for other parameters, as well as faster liquid crystal rotators. See the Custom Rotators tab above, or contact techsupport@thorlabs.com for details.

Switching Times
Typical rotator switching times are shown here for three typical output rotations and four temperatures.

LCR1-532 Switching Times
Switching Mode V1 V2 Temperature Rise Timea Fall Timeb
90° and 0° 0.99 V 1.56 V 23 °C 85.00 ms 73.75 ms
45 °C 79.75 ms 43.70 ms
60 °C 77.25 ms 33.25 ms
70 °C 78.00 ms 26.75 ms
90° and -90° 0.99 V 2.67 V 23 °C 81.75 ms 21.25 ms
45 °C 66.00 ms 8.25 ms
60 °C 65.75 ms 8.25 ms
70 °C 64.25 ms 5.25 ms
0° and -90° 1.56 V 2.67 V 23 °C 37.25 ms 15.00 ms
45 °C 33.50 ms 5.00 ms
60 °C 25.25 ms 5.50 ms
70 °C 22.00 ms 4.75 ms
  • Time to change from a high voltage to a lower voltage.
  • Time to change from a low voltage to a higher voltage.
LCR1-633 Switching Times
Switching Mode V1 V2 Temperature Rise Timea Fall Timeb
90° and 0° 1.28 V 1.68 V 23 °C 122.00 ms 103.00 ms
45 °C 118.50 ms 66.50 ms
60 °C 108.25 ms 51.50 ms
70 °C 78.50 ms 39.25 ms
90° and -90° 1.28 V 2.71 V 23 °C 130.75 ms 31.75 ms
45 °C 108.50 ms 14.00 ms
60 °C 88.00 ms 8.75 ms
70 °C 83.25 ms 5.75 ms
0° and -90° 1.58 V 2.71 V 23 °C 75.25 ms 25.25 ms
45 °C 56.25 ms 10.25 ms
60 °C 42.75 ms 4.75 ms
70 °C 40.25 ms 11.00 ms
  • Time to change from a high voltage to a lower voltage.
  • Time to change from a low voltage to a higher voltage.


Click to Enlarge

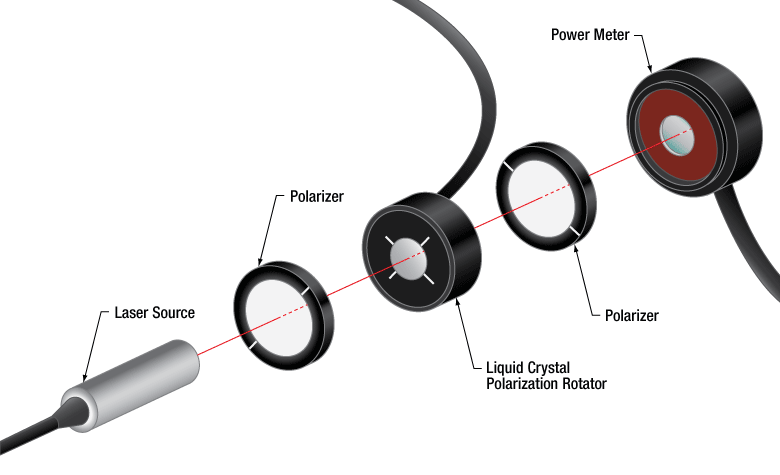

The LC Polarization Rotator should be aligned using two crossed polarizers, following the steps outlined to the left.

Alignment

In order to precisely align the axis of the liquid crystal polarization rotator, mount the rotator in an appropriate rotation mount (RSP1 or the CRM1P recommended). Then set up a detector or power meter to monitor the transmission of a beam through a pair of crossed linear polarizers. The input polarization should have an extinction ratio of at least 1000:1. Fine alignment for the LC rotator is accomplished using the following procedure:

  1. Place the LC polarization rotator between two crossed polarizers with one of its input axes roughly aligned with the transmission axis of the first polarizer.
  2. Using the LCC25 (or equivalent), apply the control voltage corresponding to zero degrees of rotation for the LC rotator (see the product report included in each package).
  3. Use the rotation mount to turn the LC polarization rotator slowly until the transmitted intensity is minimized. Then fine tune the control voltage to further reduce the transmitted power intensity.
  4. Repeat step 3 at least three times to ensure that the LC rotator is properly aligned with first linear polarizer.
  5. Remove second linear polarizer and power meter. The polarization rotator is now ready for use.
LCC25 Specifications
Electrical Specs
Adjustable Output Voltage ± 25 V
External Input Voltage 0 to 5 VDC Square Wave
Voltage Resolution 1.0 mV
Adjustable Internal Modulation Frequency 0.5 to 150 Hz @ 50% Duty Cycle
Switching Frequency 2,000 ± 5 Hz, 50% Duty Cycle
Slew Rate 10 V/µs
DC offset ±10 mV
Max Output Current 15 mA
AC Power 85 – 264 VAC, 47 – 63 Hz, 25 VA
Fuse Rating 125 mA, 5 x 20 mm SLO-BLO
Warm Up Time 30 Minutes
Physical Specs
External Input Connector BNC
External Input Enable Front Panel: INT/EXT enable Key
External Input Indicator Green LED
Output Connector BNC
Output Enable Front Panel: OUTPUT ENABLE Key
Output Indicator Green LED
Rotary Knob Digital Encoder
Display LCD 16 x 2
Power Switch Rocker Switch
USB interface USB Standard B Plug
Dimensions 5.75″ x 3″ x 12.2″
146 mm x 78 mm x 309 mm
Weight 3.6 lbs
Operating Temperature Range 10 to 40 °C
Maximum Relative Humidity 85%
Other Tilting Rubber-Padded Feet

The LCC25 liquid crystal variable retarder and polarization rotator controller produces a 2000 Hz square wave output with an amplitude that can be varied from 0 to 25 Vrms. The output amplitude can be set via the front panel controls, the USB interface, and the external input. Both the front panel and USB interface allow the user to select two voltage levels, Voltage 1 and Voltage 2. When the LCC25 is operated in the constant voltage mode, the output of the controller will be a 2000 Hz square wave with an amplitude equal to either of the two set voltage levels (Figure A). If the LCC25 controller is operating in the modulation mode, the output 2000 Hz square wave will be modulated in amplitude between the two voltage settings with a modulation frequency that can be set by the user to be between 0.5 and 150 Hz (Figure B).

The modulated mode can be used to measure the response time of the LC retarder.

External or remote control of the LCC25 is possible using the external input or the USB interface. The external input accepts a 0 to 5 VDC TTL signal that modulates the 0 to 25 Vrms output of the LCC25 between the two set voltages. The USB interface can be used to send line commands to the controller so that the LCC25 can be used in automated lab sequences.

In order to prevent the separation and build up of charges in the liquid crystal layer, the LCC25 will automatically detect and correct any DC offset in real time to within ±10 mV.

Mode 1
Figure A. A plot of the output voltage of the LCC25 Liquid Crystal Controller when it is being operated in the constant voltage mode.
Mode 2
Figure B. A plot of the output voltage of the LCC25 Liquid Crystal Controller when the output voltage is being modulated between the two set voltages.
Screen Shot of the LCC25 Software
Click to Enlarge

Screen shot of the GUI interface in Modulation Mode.

Software for the LCC25 Controller

Software

Version 3.2.0

GUI Interface for controlling the Liquid Crystal Retarder Controller via a PC. To download, Click the button below.

Software Download

GUI Interface
The GUI interface included with the software provides access to all of the settings of the liquid crystal retarder controller. For example, the user can select one of two user-defined voltages or a modulation mode that oscillates between these two voltages at a user-defined frequency. As shown in the above screen shot, the applied voltage is shown in a plot with respect to time. Both the output and external input can be turned on and off via the GUI. In addition, advanced features allow the user to define a custom waveform by specifying the starting voltage, ending voltage, the voltage step size, and the dwell time. The waveform may be previewed on the screen before it is output to the retarder, and it may be saved so that the LCC25 can be restarted quickly in the future. The GUI is available as a stand-alone or LabVIEW based version for flexibility in implementation.

Custom Software Development
Users may also use the provided C/C++ and LabVIEW software development kits for implementing the liquid crystal retarder controller with other instruments. Sample C++ code and LabVIEW programs help to illustrate how the C commands and LabVIEW VIs can be utilized. Full documentation on the available commands is provided with the software.

LC Rolling
Click to Enlarge
Liquid Crystal Cell Seal Application
LC Filling
Click to Enlarge
Liquid Crystal Cell Filling in a Vacuum Chamber
Liquid Crystal Cell Test Result
Click to Enlarge
Custom Liquid Crystal Cell Test Result

Custom Capability

In addition to our standard liquid crystal (LC) polarization rotators that provide >180° continuous rotation and a Ø10 mm clear aperture, Thorlabs can also produce custom and OEM rotators. The rotation range, coating, temperature stabilization, and dimension can be customized to meet many unique optical designs. We also offer other custom liquid crystal devices, such as empty LC cells, liquid crystal variable retarders, and noise eaters. For more information about ordering a customized liquid crystal device, please contact Thorlabs' Tech Support.

Our engineers work directly with our customers to discuss the specifications and other design aspects of a custom liquid crystal device. They will analyze both the design and feasibility to ensure the custom products are manufactured to high-quality standards and in a timely manner.

Liquid Crystal Polarization Rotator Manufacturing

  • Coating Glass Substrates with the Alignment Layer: Glass substrates are spin coated with a Polyimide (PI) solution. Then the coated substrate is baked at 250 °C so that the PI solution forms a thin film of alignment layer on the substrate.
  • Rubbing: A mechanical rubbing process is employed on the alignment layer. The micro-fiber on the rubbing cloth creates fine scratches on the alignment layer surface, which defines alignment direction and pre-tilt angle of liquid crystal molecules.
  • Drawing Sealant Lines on the Glass Substrates: Thermal sealant mixed with spacer particles is drawn into a frame around the clear aperture, determining the cell gap of the liquid crystal (LC) cell.
  • Coupling of Glass Substrates and Sealant Curing: Two glass substrates are coupled into a cell, and then the thermal sealant is baked into rigid solid lines.
  • Filling the Cell with Liquid Crystal: The empty cell is filled with liquid crystal while in a vacuum chamber, preventing air bubbles or dust from contaminating the LC. The opening in the sealant line is then sealed with glue.
  • Retardance-versus-Voltage Uniformity Test: The voltage-retardation (RV) characteristics of each LC cell are tested.
  • A Quartz Quarter Wave Plate is bonded onto the LC cell to complete the polarization rotator. The fast axis of the compensator is 45° to that of the LC retarder.
  • Final Rotation versus Control Voltage and ER versus Control Voltage Test: The voltage versus rotation and voltage versus ER characteristics of each rotator are tested and recorded for the test report included in package.
  • Assembly into Housing and Circuit Calibration (If Applicable): The LC polarization rotator is assembled into mechanical housing, which is compatible with Thorlabs' standard 1" or 2" mounts. The driving circuit can also be mounted into the housing and calibrated.
Polarization Rotator Customization Options
Feature Specification
Rotator Thickness
(without Mechanical Housing)
4 - 12 mm
Operating Wavelength 400 - 2020 nm
Continuous Rotation Range 0° - 1800°
AR Coating Wavelengths from 400 to 2020 nm
Clear Aperture ≤Ø2"
Other Features Mechanical Housing
Phase Compensator
Temperature Control
Integrated Control Unit

Customizable Features
The table below outlines LC polarization rotator features that can be customized. For specifications outside of the listed ranges, please contact Tech Support.

Thinner glass substrates enable more compact LC cells to be used in the rotator, at the cost of being easier to bend. Therefore, we recommend using thicker glass substrates for better consistency in the uniformity of the retardation.

We encourage customers to contact our Tech Support team and discuss their specific requirements for customized liquid crystal retarders. Our Tech Support and engineering teams will work together to make sure that our customers receive devices optimized to meet their requests.

Damage Threshold Specifications
Item # Laser Type Damage Threshold
LCR1-532 Pulsed (ns) 1.0 J/cm2 (532 nm, 10 Hz, 8 ns, Ø200 µm)
Pulsed (fs) 0.01 J/cm2 (532 nm, 100 Hz, 76 fs, Ø162 µm)
LCR1-633 Pulsed (ns) 1.0 J/cm2 (532 nm, 10 Hz, 8 ns, Ø200 µm)
Pulsed (fs) 0.01 J/cm2 (532 nm, 100 Hz, 76 fs, Ø162 µm)

Damage Threshold Data for Thorlabs' Liquid Crystal Polarization Rotators

The specifications to the right are measured data for Thorlabs' Liquid Crystal Polarization Rotators.



Laser Induced Damage Threshold Tutorial

The following is a general overview of how laser induced damage thresholds are measured and how the values may be utilized in determining the appropriateness of an optic for a given application. When choosing optics, it is important to understand the Laser Induced Damage Threshold (LIDT) of the optics being used. The LIDT for an optic greatly depends on the type of laser you are using. Continuous wave (CW) lasers typically cause damage from thermal effects (absorption either in the coating or in the substrate). Pulsed lasers, on the other hand, often strip electrons from the lattice structure of an optic before causing thermal damage. Note that the guideline presented here assumes room temperature operation and optics in new condition (i.e., within scratch-dig spec, surface free of contamination, etc.). Because dust or other particles on the surface of an optic can cause damage at lower thresholds, we recommend keeping surfaces clean and free of debris. For more information on cleaning optics, please see our Optics Cleaning tutorial.

Testing Method

Thorlabs' LIDT testing is done in compliance with ISO/DIS 11254 and ISO 21254 specifications.

First, a low-power/energy beam is directed to the optic under test. The optic is exposed in 10 locations to this laser beam for 30 seconds (CW) or for a number of pulses (pulse repetition frequency specified). After exposure, the optic is examined by a microscope (~100X magnification) for any visible damage. The number of locations that are damaged at a particular power/energy level is recorded. Next, the power/energy is either increased or decreased and the optic is exposed at 10 new locations. This process is repeated until damage is observed. The damage threshold is then assigned to be the highest power/energy that the optic can withstand without causing damage. A histogram such as that below represents the testing of one BB1-E02 mirror.

LIDT metallic mirror
The photograph above is a protected aluminum-coated mirror after LIDT testing. In this particular test, it handled 0.43 J/cm2 (1064 nm, 10 ns pulse, 10 Hz, Ø1.000 mm) before damage.
LIDT BB1-E02
Example Test Data
Fluence # of Tested Locations Locations with Damage Locations Without Damage
1.50 J/cm2 10 0 10
1.75 J/cm2 10 0 10
2.00 J/cm2 10 0 10
2.25 J/cm2 10 1 9
3.00 J/cm2 10 1 9
5.00 J/cm2 10 9 1

According to the test, the damage threshold of the mirror was 2.00 J/cm2 (532 nm, 10 ns pulse, 10 Hz, Ø0.803 mm). Please keep in mind that these tests are performed on clean optics, as dirt and contamination can significantly lower the damage threshold of a component. While the test results are only representative of one coating run, Thorlabs specifies damage threshold values that account for coating variances.

Continuous Wave and Long-Pulse Lasers

When an optic is damaged by a continuous wave (CW) laser, it is usually due to the melting of the surface as a result of absorbing the laser's energy or damage to the optical coating (antireflection) [1]. Pulsed lasers with pulse lengths longer than 1 µs can be treated as CW lasers for LIDT discussions.

When pulse lengths are between 1 ns and 1 µs, laser-induced damage can occur either because of absorption or a dielectric breakdown (therefore, a user must check both CW and pulsed LIDT). Absorption is either due to an intrinsic property of the optic or due to surface irregularities; thus LIDT values are only valid for optics meeting or exceeding the surface quality specifications given by a manufacturer. While many optics can handle high power CW lasers, cemented (e.g., achromatic doublets) or highly absorptive (e.g., ND filters) optics tend to have lower CW damage thresholds. These lower thresholds are due to absorption or scattering in the cement or metal coating.

Linear Power Density Scaling

LIDT in linear power density vs. pulse length and spot size. For long pulses to CW, linear power density becomes a constant with spot size. This graph was obtained from [1].

Intensity Distribution

Pulsed lasers with high pulse repetition frequencies (PRF) may behave similarly to CW beams. Unfortunately, this is highly dependent on factors such as absorption and thermal diffusivity, so there is no reliable method for determining when a high PRF laser will damage an optic due to thermal effects. For beams with a high PRF both the average and peak powers must be compared to the equivalent CW power. Additionally, for highly transparent materials, there is little to no drop in the LIDT with increasing PRF.

In order to use the specified CW damage threshold of an optic, it is necessary to know the following:

  1. Wavelength of your laser
  2. Beam diameter of your beam (1/e2)
  3. Approximate intensity profile of your beam (e.g., Gaussian)
  4. Linear power density of your beam (total power divided by 1/e2 beam diameter)

Thorlabs expresses LIDT for CW lasers as a linear power density measured in W/cm. In this regime, the LIDT given as a linear power density can be applied to any beam diameter; one does not need to compute an adjusted LIDT to adjust for changes in spot size, as demonstrated by the graph to the right. Average linear power density can be calculated using the equation below.

The calculation above assumes a uniform beam intensity profile. You must now consider hotspots in the beam or other non-uniform intensity profiles and roughly calculate a maximum power density. For reference, a Gaussian beam typically has a maximum power density that is twice that of the uniform beam (see lower right).

Now compare the maximum power density to that which is specified as the LIDT for the optic. If the optic was tested at a wavelength other than your operating wavelength, the damage threshold must be scaled appropriately. A good rule of thumb is that the damage threshold has a linear relationship with wavelength such that as you move to shorter wavelengths, the damage threshold decreases (i.e., a LIDT of 10 W/cm at 1310 nm scales to 5 W/cm at 655 nm):

CW Wavelength Scaling

While this rule of thumb provides a general trend, it is not a quantitative analysis of LIDT vs wavelength. In CW applications, for instance, damage scales more strongly with absorption in the coating and substrate, which does not necessarily scale well with wavelength. While the above procedure provides a good rule of thumb for LIDT values, please contact Tech Support if your wavelength is different from the specified LIDT wavelength. If your power density is less than the adjusted LIDT of the optic, then the optic should work for your application.

Please note that we have a buffer built in between the specified damage thresholds online and the tests which we have done, which accommodates variation between batches. Upon request, we can provide individual test information and a testing certificate. The damage analysis will be carried out on a similar optic (customer's optic will not be damaged). Testing may result in additional costs or lead times. Contact Tech Support for more information.

Pulsed Lasers

As previously stated, pulsed lasers typically induce a different type of damage to the optic than CW lasers. Pulsed lasers often do not heat the optic enough to damage it; instead, pulsed lasers produce strong electric fields capable of inducing dielectric breakdown in the material. Unfortunately, it can be very difficult to compare the LIDT specification of an optic to your laser. There are multiple regimes in which a pulsed laser can damage an optic and this is based on the laser's pulse length. The highlighted columns in the table below outline the relevant pulse lengths for our specified LIDT values.

Pulses shorter than 10-9 s cannot be compared to our specified LIDT values with much reliability. In this ultra-short-pulse regime various mechanics, such as multiphoton-avalanche ionization, take over as the predominate damage mechanism [2]. In contrast, pulses between 10-7 s and 10-4 s may cause damage to an optic either because of dielectric breakdown or thermal effects. This means that both CW and pulsed damage thresholds must be compared to the laser beam to determine whether the optic is suitable for your application.

Pulse Duration t < 10-9 s 10-9 < t < 10-7 s 10-7 < t < 10-4 s t > 10-4 s
Damage Mechanism Avalanche Ionization Dielectric Breakdown Dielectric Breakdown or Thermal Thermal
Relevant Damage Specification No Comparison (See Above) Pulsed Pulsed and CW CW

When comparing an LIDT specified for a pulsed laser to your laser, it is essential to know the following:

Energy Density Scaling

LIDT in energy density vs. pulse length and spot size. For short pulses, energy density becomes a constant with spot size. This graph was obtained from [1].

  1. Wavelength of your laser
  2. Energy density of your beam (total energy divided by 1/e2 area)
  3. Pulse length of your laser
  4. Pulse repetition frequency (prf) of your laser
  5. Beam diameter of your laser (1/e2 )
  6. Approximate intensity profile of your beam (e.g., Gaussian)

The energy density of your beam should be calculated in terms of J/cm2. The graph to the right shows why expressing the LIDT as an energy density provides the best metric for short pulse sources. In this regime, the LIDT given as an energy density can be applied to any beam diameter; one does not need to compute an adjusted LIDT to adjust for changes in spot size. This calculation assumes a uniform beam intensity profile. You must now adjust this energy density to account for hotspots or other nonuniform intensity profiles and roughly calculate a maximum energy density. For reference a Gaussian beam typically has a maximum energy density that is twice that of the 1/e2 beam.

Now compare the maximum energy density to that which is specified as the LIDT for the optic. If the optic was tested at a wavelength other than your operating wavelength, the damage threshold must be scaled appropriately [3]. A good rule of thumb is that the damage threshold has an inverse square root relationship with wavelength such that as you move to shorter wavelengths, the damage threshold decreases (i.e., a LIDT of 1 J/cm2 at 1064 nm scales to 0.7 J/cm2 at 532 nm):

Pulse Wavelength Scaling

You now have a wavelength-adjusted energy density, which you will use in the following step.

Beam diameter is also important to know when comparing damage thresholds. While the LIDT, when expressed in units of J/cm², scales independently of spot size; large beam sizes are more likely to illuminate a larger number of defects which can lead to greater variances in the LIDT [4]. For data presented here, a <1 mm beam size was used to measure the LIDT. For beams sizes greater than 5 mm, the LIDT (J/cm2) will not scale independently of beam diameter due to the larger size beam exposing more defects.

The pulse length must now be compensated for. The longer the pulse duration, the more energy the optic can handle. For pulse widths between 1 - 100 ns, an approximation is as follows:

Pulse Length Scaling

Use this formula to calculate the Adjusted LIDT for an optic based on your pulse length. If your maximum energy density is less than this adjusted LIDT maximum energy density, then the optic should be suitable for your application. Keep in mind that this calculation is only used for pulses between 10-9 s and 10-7 s. For pulses between 10-7 s and 10-4 s, the CW LIDT must also be checked before deeming the optic appropriate for your application.

Please note that we have a buffer built in between the specified damage thresholds online and the tests which we have done, which accommodates variation between batches. Upon request, we can provide individual test information and a testing certificate. Contact Tech Support for more information.


[1] R. M. Wood, Optics and Laser Tech. 29, 517 (1998).
[2] Roger M. Wood, Laser-Induced Damage of Optical Materials (Institute of Physics Publishing, Philadelphia, PA, 2003).
[3] C. W. Carr et al., Phys. Rev. Lett. 91, 127402 (2003).
[4] N. Bloembergen, Appl. Opt. 12, 661 (1973).

In order to illustrate the process of determining whether a given laser system will damage an optic, a number of example calculations of laser induced damage threshold are given below. For assistance with performing similar calculations, we provide a spreadsheet calculator that can be downloaded by clicking the button to the right. To use the calculator, enter the specified LIDT value of the optic under consideration and the relevant parameters of your laser system in the green boxes. The spreadsheet will then calculate a linear power density for CW and pulsed systems, as well as an energy density value for pulsed systems. These values are used to calculate adjusted, scaled LIDT values for the optics based on accepted scaling laws. This calculator assumes a Gaussian beam profile, so a correction factor must be introduced for other beam shapes (uniform, etc.). The LIDT scaling laws are determined from empirical relationships; their accuracy is not guaranteed. Remember that absorption by optics or coatings can significantly reduce LIDT in some spectral regions. These LIDT values are not valid for ultrashort pulses less than one nanosecond in duration.

Intensity Distribution
A Gaussian beam profile has about twice the maximum intensity of a uniform beam profile.

CW Laser Example
Suppose that a CW laser system at 1319 nm produces a 0.5 W Gaussian beam that has a 1/e2 diameter of 10 mm. A naive calculation of the average linear power density of this beam would yield a value of 0.5 W/cm, given by the total power divided by the beam diameter:

CW Wavelength Scaling

However, the maximum power density of a Gaussian beam is about twice the maximum power density of a uniform beam, as shown in the graph to the right. Therefore, a more accurate determination of the maximum linear power density of the system is 1 W/cm.

An AC127-030-C achromatic doublet lens has a specified CW LIDT of 350 W/cm, as tested at 1550 nm. CW damage threshold values typically scale directly with the wavelength of the laser source, so this yields an adjusted LIDT value:

CW Wavelength Scaling

The adjusted LIDT value of 350 W/cm x (1319 nm / 1550 nm) = 298 W/cm is significantly higher than the calculated maximum linear power density of the laser system, so it would be safe to use this doublet lens for this application.

Pulsed Nanosecond Laser Example: Scaling for Different Pulse Durations
Suppose that a pulsed Nd:YAG laser system is frequency tripled to produce a 10 Hz output, consisting of 2 ns output pulses at 355 nm, each with 1 J of energy, in a Gaussian beam with a 1.9 cm beam diameter (1/e2). The average energy density of each pulse is found by dividing the pulse energy by the beam area:

Pulse Energy Density

As described above, the maximum energy density of a Gaussian beam is about twice the average energy density. So, the maximum energy density of this beam is ~0.7 J/cm2.

The energy density of the beam can be compared to the LIDT values of 1 J/cm2 and 3.5 J/cm2 for a BB1-E01 broadband dielectric mirror and an NB1-K08 Nd:YAG laser line mirror, respectively. Both of these LIDT values, while measured at 355 nm, were determined with a 10 ns pulsed laser at 10 Hz. Therefore, an adjustment must be applied for the shorter pulse duration of the system under consideration. As described on the previous tab, LIDT values in the nanosecond pulse regime scale with the square root of the laser pulse duration:

Pulse Length Scaling

This adjustment factor results in LIDT values of 0.45 J/cm2 for the BB1-E01 broadband mirror and 1.6 J/cm2 for the Nd:YAG laser line mirror, which are to be compared with the 0.7 J/cm2 maximum energy density of the beam. While the broadband mirror would likely be damaged by the laser, the more specialized laser line mirror is appropriate for use with this system.

Pulsed Nanosecond Laser Example: Scaling for Different Wavelengths
Suppose that a pulsed laser system emits 10 ns pulses at 2.5 Hz, each with 100 mJ of energy at 1064 nm in a 16 mm diameter beam (1/e2) that must be attenuated with a neutral density filter. For a Gaussian output, these specifications result in a maximum energy density of 0.1 J/cm2. The damage threshold of an NDUV10A Ø25 mm, OD 1.0, reflective neutral density filter is 0.05 J/cm2 for 10 ns pulses at 355 nm, while the damage threshold of the similar NE10A absorptive filter is 10 J/cm2 for 10 ns pulses at 532 nm. As described on the previous tab, the LIDT value of an optic scales with the square root of the wavelength in the nanosecond pulse regime:

Pulse Wavelength Scaling

This scaling gives adjusted LIDT values of 0.08 J/cm2 for the reflective filter and 14 J/cm2 for the absorptive filter. In this case, the absorptive filter is the best choice in order to avoid optical damage.

Pulsed Microsecond Laser Example
Consider a laser system that produces 1 µs pulses, each containing 150 µJ of energy at a repetition rate of 50 kHz, resulting in a relatively high duty cycle of 5%. This system falls somewhere between the regimes of CW and pulsed laser induced damage, and could potentially damage an optic by mechanisms associated with either regime. As a result, both CW and pulsed LIDT values must be compared to the properties of the laser system to ensure safe operation.

If this relatively long-pulse laser emits a Gaussian 12.7 mm diameter beam (1/e2) at 980 nm, then the resulting output has a linear power density of 5.9 W/cm and an energy density of 1.2 x 10-4 J/cm2 per pulse. This can be compared to the LIDT values for a WPQ10E-980 polymer zero-order quarter-wave plate, which are 5 W/cm for CW radiation at 810 nm and 5 J/cm2 for a 10 ns pulse at 810 nm. As before, the CW LIDT of the optic scales linearly with the laser wavelength, resulting in an adjusted CW value of 6 W/cm at 980 nm. On the other hand, the pulsed LIDT scales with the square root of the laser wavelength and the square root of the pulse duration, resulting in an adjusted value of 55 J/cm2 for a 1 µs pulse at 980 nm. The pulsed LIDT of the optic is significantly greater than the energy density of the laser pulse, so individual pulses will not damage the wave plate. However, the large average linear power density of the laser system may cause thermal damage to the optic, much like a high-power CW beam.


Posted Comments:
No Comments Posted

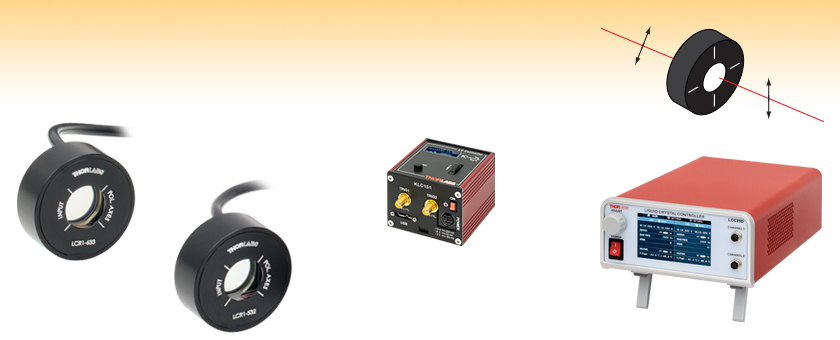

LC Polarization Rotators

Polarization Rotator
Click to Enlarge

The polarization rotators can be mounted in an RSP1(/M) rotation mount for ease of alignment.
  • 532 nm or 633 nm Operating Wavelength
  • Ø10 mm Clear Aperture
  • 1" Outer Diameter

Thorlabs' Ø10 mm clear aperture, LC polarization rotators are available with operating wavelengths of 532 nm or 633 nm. Acceptable input polarization axes are indicated by engraved lines on the front of the rotator housing. Each rotator has an approximately 930 mm long BNC cable for connecting the device to a driver, such as the LCC25 available below. These retarders have an outer diameter of 1", making them compatible with any of our Ø1" optic mounts for 9.4 mm thick optics, such as the RSP1(/M) rotation mount for post mounting or the CRM1P(/M) rotation mount for 30 mm cage system compatibility.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
LCR1-532 Support Documentation
LCR1-532LC Polarization Rotator, 532 nm
$1,166.99
Today
LCR1-633 Support Documentation
LCR1-633LC Polarization Rotator, 633 nm
$1,166.99
Today

Liquid Crystal Controller

TC200 Heater Controller GUI
Click to Enlarge

Back Panel of the LCC25 Liquid Crystal Controller

  • Output Voltage Adjustment Range: ± 25 VAC (f = 2000 ± 5 Hz)
  • Max Output Current: 15 mA
  • Output Connector: BNC
  • AC Power Requirements: 85 - 264 VAC, 47 - 63 Hz, 25 VA
  • See the LC Controller Tab Above for More Information

The LCC25 is a liquid crystal controller compatible with all Thorlabs LC Variable Retarders and Polarization Rotators, as well as being is ideal for driving most other nematic liquid crystal devices. Nematic LC retarders must be driven with an AC voltage in order to prevent the separation and build up of charge, which can cause the device to burn out. In addition to the 2000 Hz AC drive voltage, the LCC25 controller automatically zeros the DC bias across the LC device in order to counteract the buildup of charges. The AC output voltage of the LCC25 controller can be adjusted using the front panel controls, an external 0 - 5 VDC TTL input, and via the USB interface. For more information about the LCC25 controller and for a complete list of its specifications, please see the LC Controller tab.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
LCC25 Support Documentation
LCC25Liquid Crystal Controller, 0-25 VAC, Square Wave, 50% Duty Cycle
$1,405.67
Today
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites: West Coast US | Europe | Asia | China | Japan
Copyright 1999-2019 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px:Save this Image
