Heavy-Duty Rotation Stage with Stepper Motor


  • Continuous 360° Motorized Rotation
  • 50 kg (110 lbs) On-Axis Load Capacity
  • SM2 (2.035"-40) Threaded Central Bore
  • Variety of Mounting Options

NR360SP2

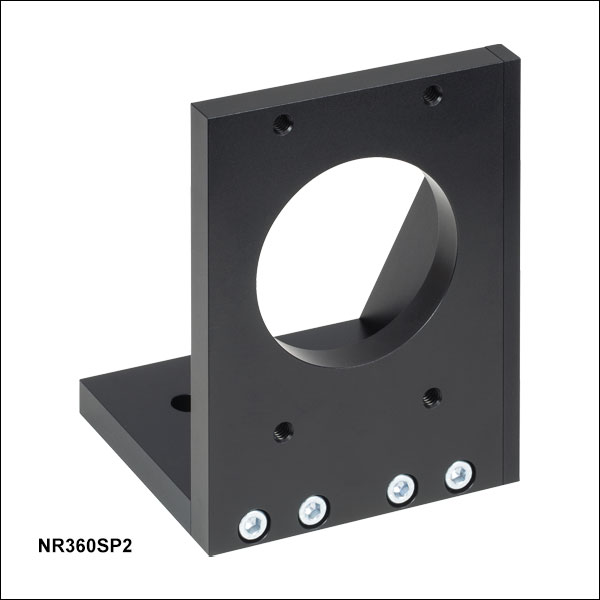

Vertical Mounting Bracket

NR360SP8

SM1 Threads and
30 mm Cage System Taps

NR360SP9

Seventeen 1/4"-20 Taps

NR360SP5

Adapter for Mounting HDR50 Stage to
LNR50 & NRT Series Translation Stages

HDR50

Heavy-Duty Rotation Stage with
SM2-Threaded Center Hole

NR360SP4

Groove for Fiber Alignment
Accessories

Top Plate Adapters

Related Items


Please Wait
Key Specificationsa
Travel 360° Continuous Rotation
Speedb,c 50 °/sec (Max)
Accelerationc 80 °/sec2 (Max)
Accuracy ±820 µrad
Bidirectional Repeatability ±350 µrad
Minimum Incremental Motion 0.8 µrad
On-Axis Load Capacity 50 kg (110 lbs)
Maximum Torque 6 N•m
Motor Type 2 Phase Stepper
Included Extension Cable PAA613, 3 m Long
  • Refer to the Specs Tab for Complete Specifications
  • The max speed is only achievable as long as the max torque is not exceeded.
  • Measured Using a BSC201 Controller

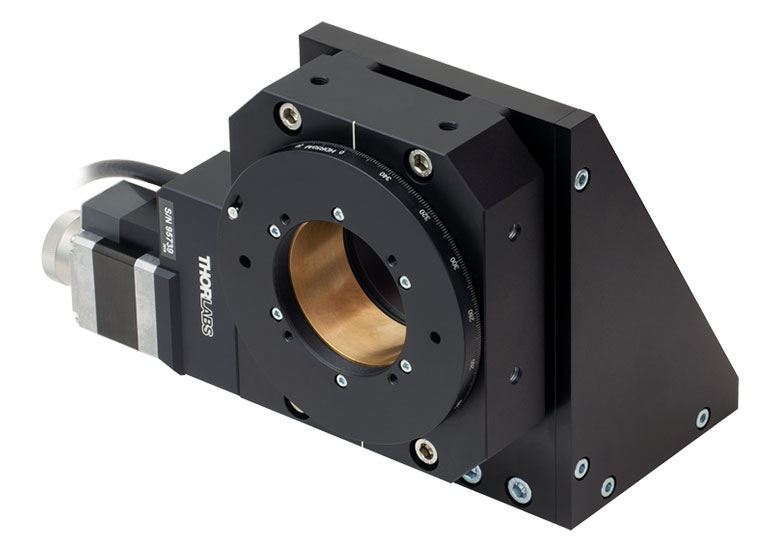

NR360SP2 Bracket and NR360SP8 Adapter Plate
Click to Enlarge

HDR50 Rotation Stage with
NR360SP8 Adapter Plate Mounted
Vertically Using NR360SP2 Bracket
(Each Sold Separately Below)

Features

  • 50 kg (110 lbs) Maximum On-Axis Load
  • SM2 (2.035"-40) Threaded Central Aperture
  • 8-32 (M4) Tapped Holes for Optomech or Top Plate Adapters
  • Preloaded Worm Gear Drive Mechanism Provides Minimal Backlash
  • Top Plate Adapters Attach Using 8-32 (M4) Taps for Additional Mounting Features:

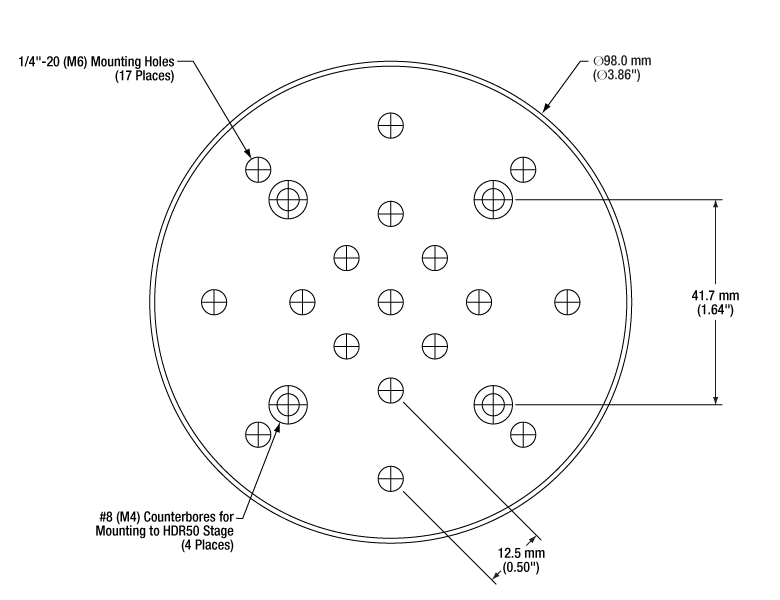

    • NR360SP9(/M) Adapter with Seventeen 1/4"-20 (M6) Taps
    • NR360SP8 Adapter with SM1 Threads and Taps for 30 mm Cage Systems

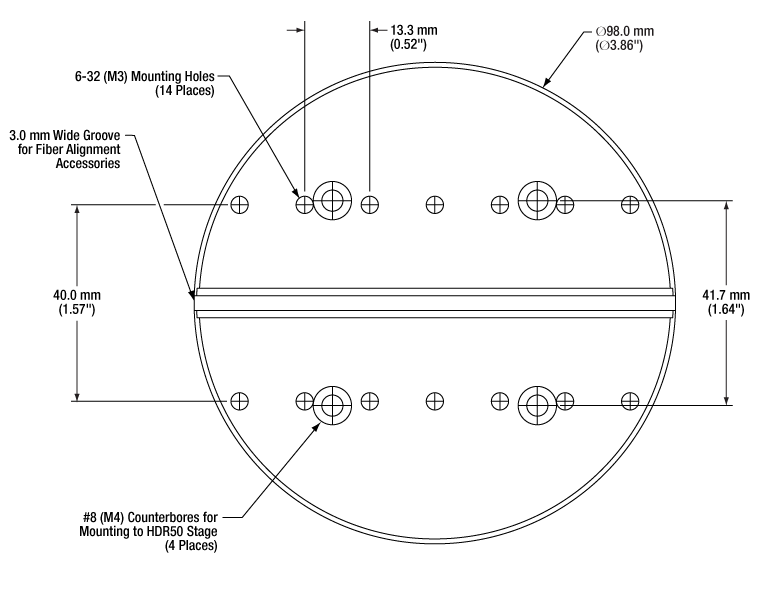

    • NR360SP4(/M) Adapter with Groove for Fiber Alignment Accessories
  • Mounting Adapters for Vertical Applications or Translation Stage Mounting
  • Full Kinesis® Software Control Suite (See Kinesis Software Tab for Details)
  • Recommended Controller: BSC201

The HDR50(/M) Heavy-Duty Rotation Stage provides motorized, continuous rotation and can support loads up to 50 kg (110 lbs). It incorporates a micro-stepping motor, worm gear assembly, precision bearings, and a low-profile design with a height of 44.0 mm. The central aperture features an SM2 thread on the rotating and the non-rotating parts, making the stage compatible with our SM2 lens tubes. The stage has four 1/4" (M6) countersunk holes that allow it to be secured directly to a breadboard. The holes are spaced apart such that an imperial stage may also be mounted to a metric breadboard and vice versa. The stage can also be post mounted using the six 1/4"-20 (M6) side-located mounting holes.

Accessories
We offer several types of top plate adapters which mount to the rotating world of the HDR50(/M) stage using 8-32 (M4) screws. We also offer two mounting adapters: the NR360SP2 bracket is designed for secure vertical mounting of the stage and the NR360SP5 adapter enables the HDR50 rotation stage to be mounted to select translation stages.

Software
This stage can be operated with the user friendly Kinesis software package, which allows the user to quickly set up complex move sequences. It also features .NET controls which can be used by 3rd party developers working in the latest C#, Visual Basic, LabVIEW™ or any .NET compatible languages to create custom applications. All relevant operating parameters are set automatically by the software for Thorlabs stage and actuator products. For more details, please see the Kinesis Software and Kinesis Tutorials tabs.

Stage Specifications
Translation and Motion Parameters
Travel 360° Continuous Rotation
Speeda,b 50 °/sec (Max)
Accelerationb 80 °/sec2 (Max)
On-Axis Load Capacity 50 kg (110 lbs)
Drive Mechanism Worm Drive
Gear Ratio 66:1
Homing Sensor Hall Effect, Non-Contact
Stage Bidirectional Repeatability ±350 µrad
Stage Bidirectional Accuracy ±820 µrad
Minimum Incremental Motion 0.8 µrad
Homing Bidirectional Repeatability ±203 µrad
Axis Wobble 65 µrad
Torque 6 N•m (Max)

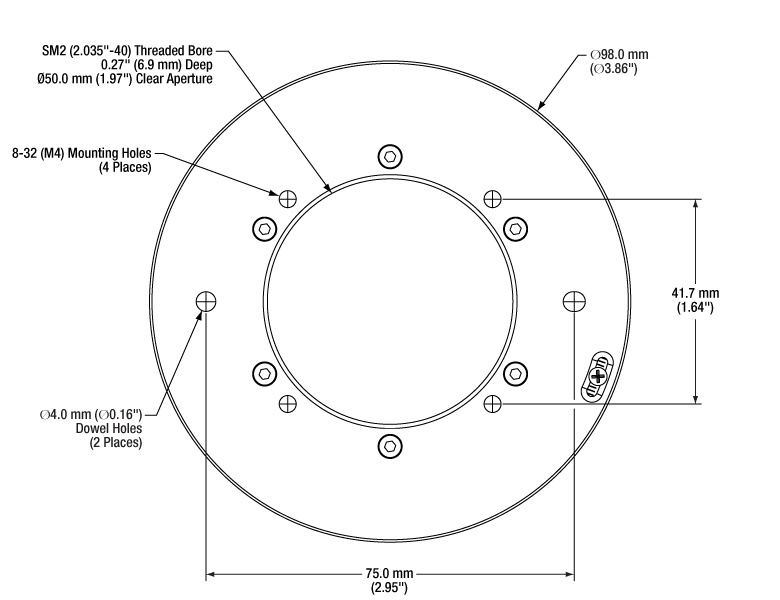

Physical Specifications
Platform Size Ø3.86" (Ø98.0 mm)
Central Aperture SM2 (2.035"-40) Threaded
Platform Mounting Holes Four 8-32 (M4)
Dimensions 7.46" x 4.55" x 1.73"
(189.4 mm x 115.5 mm x 44.0 mm)
Weight 3.34 lbs (1.52 kg)
Attached Cable Length 0.5 m
Included Extension Cable PAA613, 3 m Long
Operating Temperature Range 5 °C to 40 °C
Humidity 80% RH at 31 °C (Max)
  • The max speed is only achievable as long as the max torque is not exceeded.
  • Measured Using a BSC201 Controller
Motor Specifications
Motor Type 2-Phase Stepper
Step Angle 1.8° (200 Major Steps per Revolution)
Micro-Stepping 2048 Micro-Steps per Major Step
(Total of 409,600 Micro-Steps per Revolution)
Rated Phase Current 0.85 A
Resistance / Phase 3.6 Ω
Inductance / Phase 4.6 mH

Motor Cable Pin Connections

D-Type Male

DB15 Male

PIN Description
1 Limit Switch Grounda
2 Not Used
3 Clockwise Limit Switch Output
4 Phase B -ve
5 Phase B +ve
6 Phase A -ve
7 Phase A +ve
8 & 9 Not Used
10 5 Vb
11 & 12 Not Used
13 5 Vb
14 Not Used
15 Earth
  • The limit switch ground is connected to the motor body.
  • Pins 10 and 13 are connected inside the D-Type shell.

Software

Kinesis Version 1.14.50

The Kinesis Software Package, which includes a GUI for control of Thorlabs' Kinesis system controllers.

Also Available:

  • Communications Protocol
Software Download
Kinesis Software
Kinesis GUI Screen

Thorlabs offers the Kinesis® software package to drive our wide range of motion controllers. The software can be used to control devices in the Kinesis family, which covers a wide variety of motion controllers ranging from small, low-powered, single-channel drivers (such as the K-Cubes™) to high-power, multi-channel benchtop units and modular 19" rack nanopositioning systems (the MMR60x Rack System).

The Kinesis Software features .NET controls which can be used by 3rd party developers working in the latest C#, Visual Basic, LabVIEW™, or any .NET compatible languages to create custom applications. Low-level DLL libraries are included for applications not expected to use the .NET framework and APIs are included with each install. A Central Sequence Manager supports integration and synchronization of all Thorlabs motion control hardware.

By providing this common software platform, Thorlabs has ensured that users can mix and match any of our motion control devices in a single application, while only having to learn a single set of software tools. In this way, it is perfectly feasible to combine any of the controllers from single-axis to multi-axis systems and control all from a single, PC-based unified software interface.

The software package allows two methods of usage: graphical user interface (GUI) utilities for direct interaction with and control of the controllers 'out of the box', and a set of programming interfaces that allow custom-integrated positioning and alignment solutions to be easily programmed in the development language of choice.

Legacy Software
Select products are still capable of running the legacy APT™ software package. Information on software compatibility can be found in the product documentation (Docs Icon), and additional details about the APT software can be found here.

Thorlabs' Kinesis® software features new .NET controls which can be used by third-party developers working in the latest C#, Visual Basic, LabVIEW™, or any .NET compatible languages to create custom applications.

C#
This programming language is designed to allow multiple programming paradigms, or languages, to be used, thus allowing for complex problems to be solved in an easy or efficient manner. It encompasses typing, imperative, declarative, functional, generic, object-oriented, and component-oriented programming. By providing functionality with this common software platform, Thorlabs has ensured that users can easily mix and match any of the Kinesis controllers in a single application, while only having to learn a single set of software tools. In this way, it is perfectly feasible to combine any of the controllers from the low-powered, single-axis to the high-powered, multi-axis systems and control all from a single, PC-based unified software interface.

The Kinesis System Software allows two methods of usage: graphical user interface (GUI) utilities for direct interaction and control of the controllers 'out of the box', and a set of programming interfaces that allow custom-integrated positioning and alignment solutions to be easily programmed in the development language of choice.

For a collection of example projects that can be compiled and run to demonstrate the different ways in which developers can build on the Kinesis motion control libraries, click on the links below. Please note that a separate integrated development environment (IDE) (e.g., Microsoft Visual Studio) will be required to execute the Quick Start examples. The C# example projects can be executed using the included .NET controls in the Kinesis software package (see the Kinesis Software tab for details).

C Sharp Icon Click Here for the Kinesis with C# Quick Start Guide
Click Here for C# Example Projects
Click Here for Quick Start Device Control Examples
C Sharp Icon

LabVIEW
LabVIEW can be used to communicate with any Kinesis- or APT-based controller via .NET controls. In LabVIEW, you build a user interface, known as a front panel, with a set of tools and objects and then add code using graphical representations of functions to control the front panel objects. The LabVIEW tutorial, provided below, provides some information on using the .NET controls to create control GUIs for Kinesis- and APT-driven devices within LabVIEW. It includes an overview with basic information about using controllers in LabVIEW and explains the setup procedure that needs to be completed before using a LabVIEW GUI to operate a device.

Labview Icon Click Here to View the LabVIEW Guide
Click Here to View the Kinesis with LabVIEW Overview Page
Labview Icon

Posted Comments:
Thomas Arnold  (posted 2024-05-15 15:59:17.87)
Will the HDR50/M also work with a K-Cube stepper controller or is the BSC201 necessary?
spolineni  (posted 2024-05-21 09:29:42.0)
Thank you for your enquiry. The HDR50/M is specifically engineered to work optimally when paired with either the BSC20x benchtop stepper motor controllers or the MST602 modular stepper motor control unit. In the K-cube series, although the KST201 can control the HDR50/M, it may not deliver full performance across all speed ranges and load capacities.
Jingke Zhang  (posted 2024-03-25 21:35:18.26)
Hi, when I home my HDR50 stage, the stage does not stop when it reaches the 0/360 degrees and keep rotating until I manually stop it. How can i fix it? Thank you!
spolineni  (posted 2024-04-03 06:00:45.0)
Thank you for contacting us. Sorry to know that you’re experiencing an issue with this stage. Please be assured that I will personally reach out to you to address and resolve it.
DEUK NYEON KIM  (posted 2023-12-05 09:42:46.01)
Please inform the following situation First, I press the homming button HDR50/M rotation stage. but location of 0 position is not matched white line. I think that the calibration file needs to be correct position... Second, i moved somewhat travels. and matched 0 position and white line. i want to save some setting files that this position is new homming position, and reload setting files, then machine go homed position. but i dont know how save the settings.....
do'neill  (posted 2023-12-12 04:25:36.0)
Response from Daniel at Thorlabs. A change to the zero offset can be made using the custom settings. I will reach out to you directly to discuss your application and walk you through changing this.
Connor Flynn  (posted 2022-05-26 13:30:40.047)
Is is possible to obtain the HDR50 without the stepper motor? I have my own stepper motors that I already have software to drive so do not need or desire the HDR50 stepper motor. What would be the cost of an HDR50 without stepper motor included?
DJayasuriya  (posted 2022-05-27 09:34:18.0)
Thank you for your inquiry. Unfortunately this would not be possible due to the design of the device. We have got in touch with you to discuss your application.
Jussi Tykkä  (posted 2020-11-03 07:57:40.527)
What is the IP-rating of the HDR50?
cwright  (posted 2020-11-03 08:25:25.0)
Response from Charles at Thorlabs: Hello and thank you for your query. Our stages are designed to be used within an indoor lab environment and so have not been tested for ingress protection. We will reach out to see if we can advise on suitability for your application.
Warren Massey  (posted 2020-05-22 07:12:03.84)
The manual says that the homing/limit sensor is a 5VDC Hall switch and that the signal line from the switch is pin #3 on the 15-pin connector. What is the part number of that hall switch? When the stage is at its home position and the switch is in its active state, is pin #3 grounded or at 5 volts?
DJayasuriya  (posted 2020-06-02 03:26:51.0)
Thank you for your inquiry, we will get in touch with you directly to resolve your issue.
Wenzel Jakob  (posted 2020-05-20 17:56:27.293)
When I home my NR360S stage (predecessor of HDR50), the white marker line does not align with the "0" degree position. Is there any way to fix that? It's not a huge problem, but it can be convenient to know where the homed position will be when setting up an experiment.
DJayasuriya  (posted 2020-05-22 10:45:10.0)
Thank you for your inquiry. We will get in touch with you directly to assist you to adjust this.
Md Rashedul HUQE  (posted 2020-01-06 22:27:01.03)
Dear Concern, I have an inquiry regarding HDR50/M. We are plan to use HRD50/M for our ellipsometry project for polarizer and analyzer. Is that stepper motor have Zero position option. What do you mean by Homing Bidirectional Repeatability in the specification? Thank you Rashed
cwright  (posted 2020-01-07 09:16:27.0)
Response from Charles at Thorlabs: Hello Rashed, the repeatability specification is a measure of a stage's ability to return to a commanded position. i.e. how close it will be to the original position. Bidirectional repeatability is an average of the repeatability when the commanded position is approached from both directions and is regarded as a more descriptive way of specifying repeatability. Thorlabs specifies this value as the bidirectional repeatability with backlash correction enabled. The homing bidirectional repeatability is the bidirectional repeatability the stage can achieve when finding it's zero (home) position. "Is that stepper motor have Zero position option." I am unsure what you are referring to here so I will reach out to you directly to discuss your requirements.
Bob Minelli  (posted 2019-11-08 10:36:34.78)
the link to the manual sends me to to the PIA13VF piezo actuator not to the manual for the HDR50
cwright  (posted 2019-11-14 09:11:27.0)
Response from Charles at Thorlabs: Hello Bob. Thank you for bringing this error to our attention. You were quite right and we have now corrected this link.
Charles Dansereau  (posted 2019-07-23 15:53:58.617)
Hi, Is it possible to control the NR360S stepper motor with a brushed Motor Controller? I am unable to control the motor with the kinesis software. Thanks, Charles
AManickavasagam  (posted 2019-07-25 04:59:03.0)
Response from Arunthathi at Thorlabs: Thanks for your query. Since the NR360S is a stepper motor it would not work with a brushed motor controller. You would need to use a stepper motor controller such as the BSC201 (https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=1704&pn=BSC201). We will contact you directly to troubleshoot the issue you have with Kinesis.
Wenzel Jakob  (posted 2019-06-09 10:13:12.337)
Could you clarify the differences of HDR50 compared to the previous NR360S stage? I'm wondering why a different product was introduced (the specs look very similar to me).
AManickavasagam  (posted 2019-06-10 06:16:53.0)
Response from Arunthathi at Thorlabs: Thanks for your query. The NR360 is redesigned as HDR50 having performance specs with higher certainty level and for repeatable production process.
user  (posted 2019-05-09 16:17:04.293)
New products keep coming from Thorlabs, yet they cannot be used in environments where DUT requires a specific OS. Since DUT and equipment must share the same computer for automation, if equipment presents a limitation such as being locked to a specific OS, then DUT that requires a different OS cannot be tested on such station. Thorlabs fails to provide a simple OS agnostic API. Thorlabs equipment cannot be used on macOS, thus cannot be incorporated into large testing stations. Thorlabs claims that they do provide API for their controllers, but it's like a 400+ page technical document encompassing low level serial interface commands, rather than a high level simple API. Good luck understanding how to program using this low level API, I'd bet you'll spends months perfecting it.
bhallewell  (posted 2019-05-10 12:09:00.0)
Response from Ben at Thorlabs: Thank you for your feedback. We value your thoughts, which I’ve referred onto my colleagues at our Motion Control Engineering site. We are actively improving our Kinesis Motion Control software platform with regular updated releases. As you’ve identified, currently our high level Kinesis .NET and C APIs are targeted for use with modern Windows Operating Systems. For users wanting to connect with devices on non-Windows operating systems, we offer access through a low level communications protocol detailed in a comprehensive .pdf document found on our website. This is targeted at experienced developers and lists all available methods documented with code examples as well as details of device enumeration and device unit conversion. Should you need any assistance with interpreting the document you are welcome to contact your local Technical Support office. We hope to provide API support at higher level entries across multiple operating systems in the future.
user  (posted 2019-03-25 19:51:00.54)
Hello, One of our production machines uses this motor and I need to have a second one as spare just in case it breaks. Where and how I could get a one of these? Do you have a replacement for this obsolete item? Thank you
user  (posted 2019-03-27 08:05:44.0)
Response from Arunthathi at Thorlabs: Thanks for your query. A replacement for the NR360(/M) motor-driven stage will be available for purchase in the coming weeks.
matteo.tofanari  (posted 2019-01-17 08:20:08.72)
I heve to buy the nano rotator NR360S/M and i want know if it needs the controller BSC201 to works or i can only use a computer. Thank's.
bhallewell  (posted 2019-01-18 08:47:31.0)
Response from Ben at Thorlabs: You will require a BSC201 controller to drive the NR360S. This controller is a USB device which will connect with your computer through our Kinesis software which can be downloaded from the 'Software' section of our website.
ronald.poff  (posted 2018-12-11 16:20:51.373)
How can I get dimensions or a Solid Model of this? I can't even tell what size it is.
mmcclure  (posted 2018-12-12 08:57:00.0)
Hello, thank you for contacting us. You can view and download the CAD PDF, SolidWorks, and other relevant files by clicking on the red "Docs" icon to the left of the item number.
francesco.michelotti  (posted 2017-11-03 15:09:11.433)
I have troubles to "home" this stage with the APT user interface. I tried the home function provided but it does not work with my configuration (BSC202 and two nanor rotators). Is there an internal home defined inside each of my NR360S/M? Please help.
bhallewell  (posted 2017-11-07 08:08:24.0)
Response from Ben at Thorlabs: Thank you for contacting us regarding this issue. Each NR360S/M stage is fitted with a home limit switch which will provide a reference to the device Home Position when contacted. I will email you to troubleshoot the problem.
kmcpeak  (posted 2017-09-06 18:31:23.413)
Dear Sir or Ma'am, Similar to a previous post, can you provide me some insight on how to accurately set the position of the NR360S (since it doesn't have an encoder)? I am not using the apt controller but rather a third party driver being controlled via labview. Thank you. Regards, Kevin
AManickavasagam  (posted 2017-09-13 08:38:54.0)
Response from Arunthathi: Thank you for your question. In the NR360S with the stepper motor actuator, the position is determined by the number of steps taken by the stepper motor, which would be indicated by the controller. You can then calculate the degrees the platform has moved as each microstep equates to a movement of 13.3 x 10-6 micro-degrees. We strongly recommend to use our BSC stepper motor controllers to attain reliable accurate set positions.
lh.ji  (posted 2017-07-31 11:52:02.983)
I had a hard time to "home" this stage with Kinesis and Kinesis DLL library. I tired the two home function provided as Thorlabs example, none of them worked with my configuration (BSC202 and two nanor rotators). Please help.
bwood  (posted 2017-08-03 06:21:00.0)
Response from Ben at Thorlabs: Thank you for your feedback. The solution here will depend on the software you are using, and your particular code. I will be in direct contact with you shortly, to get this details and troubleshoot this issue.
v-ericz  (posted 2015-01-31 00:34:25.35)
Is there a calib.dat file (for use with the APT.Config application) available for NR360S/M on a BSC102 controller? If so, does it need to e downloaded or should it have been installed with APT software? Thanks.
rcapehorn  (posted 2015-02-04 08:34:34.0)
Response from Rob at Thorlabs: Thank you for your interest in our NR360S, rotation stage. The NR360S does not require a calibration file to operate within its specified range. Therefore at this moment in time we do not currently offer a calibration file for this product.
johndavidglover  (posted 2015-01-14 16:16:30.52)
We would like to use an NR360S/M in a remote positioning application, but it is critical that the required final position is reached (to avoid collisions with other moving parts). As there is no built - in position encoder, can you supply (or suggest) any other suitable method? e.g. a stepper motor with encoder, or an external encoder which could be fitted? Thanks in anticipation. John.
rcapehorn  (posted 2015-01-16 09:14:07.0)
Response from Rob at Thorlabs: Thank you for your question. We have multiple options for accurately setting a position with our NR360S, including our APT software and further integration with third party software suits such as LabView.I have emailed you directly to further discuss your application.
user  (posted 2014-06-30 17:26:53.853)
I am trying to find a way to mount 2 rotation stages on top of each other in a concentric way. Will this stage function to the specs if it is mounted upside down? BirX
msoulby  (posted 2014-07-02 09:47:55.0)
Response from Mike at Thorlabs: There is no direct way to attach two NR360S rotation stages concentrically, however without knowing more about your application I am not certain what benefit there would be by mounting two rotation stages on top of each other, if you can provide us with an email address or contact details we would be happy to discuss your application in more detail with you. Also the stage can operate mounted on its side or upside down, however we would advise caution to avoid overloading the stage. All of our specs are for horizontal, on axis, loads and can take up to 50kg in this configuration however we do not currently have any data for the load capacity for using the stage upside down.
wise.adam.jay  (posted 2014-03-23 21:01:05.353)
Can you tell me what sort of inertial load this stage can handle without skipping steps? Is it possible to calculate this from the rotor inertia / torque? Thanks!
msoulby  (posted 2014-03-24 09:50:20.0)
Response from Mike at Thorlabs: The NR360S can handle an on axis load of up to 50kg when mounted horizontally. We do not specify for using off axis loads or torques but the stage can certainly handle 3-4 kg on a lever arm of about 25m lon.
Paul.taylor  (posted 2013-10-24 09:49:28.047)
Hi. I am interested in using a nr360s to complete repeatable 180 degree moves. Is there a way to do this with the controller without permanent pc connection to the controller? Eg via a digital input or rs232 comma from a touchscreen ?
msoulby  (posted 2013-10-28 07:48:00.0)
Response from Mike at Thorlabs: It is possible to use the trigger pins on the control I/O connector on the rear panel of the stepper controller to make the stage respond to an external trigger. The stage can be set to make an absolute or relative move in response to the input trigger. The trigger settings can be accessed from the APT user settings or by using the ActiveX method SetTriggerParams.
jlow  (posted 2012-09-05 10:11:00.0)
Response from Jeremy at Thorlabs: The holding torque is the torque keeping the motor static. Please note that the 23.1N-cm spec is the holding torque spec for the motor only. The load capacity when the NR360S is mounted vertically is around 10kg. 90Ncm would be around the maximum that you should put on the stage.
czl0579  (posted 2012-09-02 17:14:48.0)
How do you define the holding torque of the stage? We vertically mounted the stage and applyed 90Ncm torque onto it. The stage seems can still handle it. What is the load capacity perpendicular to rotation axis?
tcohen  (posted 2012-03-29 12:38:00.0)
Response from Tim at Thorlabs to quyngoc89: Accuracy is a measure of how well the stage will move to the intended position. Resolution is a measurement of the smallest amount the stage can be moved.
quyngoc89  (posted 2012-03-29 12:10:35.0)
I looked at the specs sheet but I don't understand the different between the accuracy (5 arcmin) and the resolution (1 arcsec). Could you please explain it? Thank you.
Frank.Warner  (posted 2011-08-18 08:10:41.0)
What bending moment can the rotator manage? The application requires one rotator mounted horizontally, with a second rotator mounted vertically and offset from the first by say 0.5 meters horizontally and connected to the first rotator. The bending moment may reach 3 kg-m.
jjurado  (posted 2011-08-09 16:36:00.0)
Response from Javier at Thorlabs to tlorentz: The NR360S is not designed for vacuum compatibility. The grease used in the stage is vacuum compatible, but the plastic and rubber components, and the anodizing, will in all likelihood outgass in vacuum levels higher than 10^-3 Torr.
tlorentz  (posted 2011-08-08 17:32:07.0)
How serious of a concern is outgassing with this product -- is it compatible with vacuum environments? e.g., up to 10^-3 torr, up to 10^-6 torr
gdavis  (posted 2011-04-11 10:39:00.0)
A response from Greg at Thorlabs to cwliang: The resolution of the NR360S is derived from the micro step count of the motor itself as there is no rotary encoder incorporated within this rotation stage.
cwliang  (posted 2011-04-09 09:48:54.0)
Hi there, The stage has a 1-arcsec resolution. Does this resolution came from the circular encoder readout or the step motor micro-steps counting?
tor  (posted 2011-01-05 18:27:23.0)
Response from Tor at Thorlabs to Boris: You can expect < 50 um for the NR360S. We are working on providing more specs for this stage in the near-future.
boris.kling  (posted 2010-12-13 21:52:09.0)
What is TIR (Total indicated runout) of NR360S rotation stage?
Thorlabs  (posted 2010-12-08 11:46:02.0)
Response from Javier at Thorlabs to khadock: The NR360S stage is suitable for operation in a class 1000 clean room environment. We would not recommend it for class 100 clean rooms, as outgassing might occur.
khadcock  (posted 2010-12-07 16:51:23.0)
Is the NR360S rated for clean-room use?
apalmentieri  (posted 2010-01-29 18:11:46.0)
A response from Adam at Thorlabs to Mathieu: The maximum static torque this stage can handle is 23.1Ncm. What type of torque will you apply? We are currently testing the dynamic torque, but would like to know you load specifications to better answer your question.
mathieu.gibert  (posted 2010-01-28 18:27:02.0)
What is the torque that this rotating stage can handle? -in static (I want it to stay in a particular angle but I apply a "constant" torque to it). -in dynamic (The applied "constant" torque is still present and I want the stage to turn to another specified angle) Thanks a lot in advance, Mat
klee  (posted 2009-12-08 15:21:03.0)
A response from Ken at Thorlabs to skhan17: The apt software will show degrees of movement when using NR360S. Just make sure you choose the correct stage and controller in the APTConfig utility before you run the program.
skhan17  (posted 2009-12-08 15:07:05.0)
Does the APT software that is included show degrees of movement when using NR360? Reading the Controller manual only shows movement in millimeters.
klee  (posted 2009-08-12 14:35:49.0)
A response from Ken at Thorlabs to wu47: Yes, you can use LabView to control NR360S/M, but you will need the BSC101 controller as well . There are video tutorials available on our website. http://www.thorlabs.com/tutorials/APTProgramming.cfm
wu47  (posted 2009-08-12 13:43:04.0)
can I use labview to control NR360S/M?
Tyler  (posted 2008-06-13 08:43:14.0)
A response from Tyler at Thorlabs to Ian: The hole spacing is not symmetrical about the 50 mm center hole on the NR360S because the space occupied by the internal mechanisms prevented the symmetric placement of the mounting holes. The distance between the mounting holes of 101 and 51 allow the stage to be mounted on a metric or imperial optical breadboard with the use of an NR360SP1 spacer plate. In an effort to keep our drawings uncluttered enough to be readable we only display a limited number of dimensions. If the dimension you are looking for is not displayed you can contact an applications engineer at Thorlabs or load the ParaSolid, eDrawing, or Step file and measure the dimension using the softwares measurement tool. eDrawings is a free web browser download that can be used to view the ParaSolid and eDrawing files. I will have an applications engineer contact you to avoid confusion and make sure that you are getting the dimension that you have requested. Thank you for your interest in our rotation stage.
ian.mills2  (posted 2008-06-11 10:26:03.0)
Please explain the rationale behind the hole centre spacing of 101mm and 51mm. Also, please confirm whether the 101mm spacing is symmetrical about the 50mm centre hole, and if not symmetrical, please advise what the offset is.

Rotation Mount and Stage Selection Guide

Thorlabs offers a wide variety of manual and motorized rotation mounts and stages. Rotation mounts are designed with an inner bore to mount a Ø1/2", Ø1", or Ø2" optic, while rotation stages are designed with mounting taps to attach a variety of components or systems. Motorized options are powered by a DC Servo motor, 2 phase stepper motor, piezo inertia motor, or an Elliptec™ resonant piezo motor. Each offers 360° of continuous rotation.

Manual Rotation Mounts

Rotation Mounts for Ø1/2" Optics
Item # MRM05(/M) RSP05(/M) CRM05 PRM05(/M)a SRM05 KS05RS CT104
Click Photo
to Enlarge
Features Mini Series Standard External SM1
(1.035"-40) Threads
Micrometer 16 mm Cage-Compatible ±4° Kinematic Tip/Tilt Adjustment Plus Rotation Compatible with 30 mm Cage Translation Stages and 1/4" Translation Stagesb
Additional Details
  • This mount is available in the PRM05GL5 bundle, which includes the PRM05 rotation mount with the SM05PM5 polarizing prism mount.
  • The CT104 is complatible with the 1/4" translation stages using our MS103(/M) adapter plate.
  • The CT104 is compatible with the CT1A(/M) cage translation stage, which is designed for use with 30 mm cage systems.

Rotation Mounts for Ø1" Optics
Item # RSP1(/M) LRM1 RSP1D(/M) DLM1(/M) CLR1(/M) RSP1X15(/M) RSP1X225(/M) PRM1(/M)a
Click Photo
to Enlarge
LRM1
Features Standard External SM1
(1.035"-40) Threads
Adjustable Zero Two Independently Rotating Carriages Rotates Optic Within
Fixed Lens Tube System
Continuous 360° Rotation
or 15° Increments
Continuous 360° Rotation
or 22.5° Increments
Micrometer
Additional Details
  • This mount is available in the PRM1GL10 bundle, which includes the PRM1 rotation mount with the SM1PM10 polarizing prism mount.

Rotation Mounts for Ø1" Optics
Item # LM1-A &
LM1-B(/M)
CRM1T(/M) CRM1LT(/M) CRM1PT(/M) KS1RS K6XS
Click Photo
to Enlarge
Features Optic Carriage Rotates Within Mounting Ring 30 mm Cage-Compatiblea 30 mm Cage-Compatible
for Thick Opticsa
30 mm Cage-Compatible
with Micrometera
±4° Kinematic Tip/Tilt Adjustment Plus Rotation Six-Axis
Kinematic Mounta
Additional Details
  • This mount also features four 4-40 (M3) holes on the rotation dial for use with the K6A1(/M) prism platform.

Rotation Mounts for Ø2" Optics
Item # RSP2(/M) RSP2D(/M) PRM2(/M) LM2-A &
LM2-B(/M)
LCRM2A(/M) KS2RS K6X2
Click Photo to Enlarge
Features Standard Adjustable
Zero
Micrometer Optic Carriage Rotates Within Mounting Ring 60 mm Cage-Compatible ±4° Kinematic Tip/Tilt Adjustment Plus Rotation Six-Axis Kinematic Mount
Additional Details
Rotation Drive Mechanism and Adjustment Range Manual, 360° Continuous Coarse: Manual, 360° Continuous;
Fine: ±7° Micrometer
Manual, 360° Continuous
Optic Mounting Internally SM2-Threaded Carriage Internal SM2 Threads
in LM2-A
Internally SM2-Threaded Carriage
Maximum Accepted Optic Thickness 0.51" (13 mm) 0.54" (13.7 mm) 0.48" (12.2 mm) 0.46" (11.7 mm) 0.52" (13.2 mm) 0.47" (12 mm) 0.53" (13.4 mm)
Post Mounting 8-32 (M4) Tap 8-32 (M4) Tap in LM2-B 8-32 (M4) Tap Four Counterbores for 8-32 (M4) Cap Screws Six Counterbores for 8-32 (M4) Cap Screws
Cage System Compatibility N/A Four 4-40 (M3) Taps on Rotation Dial
with 60 mm Spacing
N/A Four Bores for
Ø6 mm Cage Rods
with 60 mm Spacing
N/A N/A

Manual Rotation Stages

Manual Rotation Stages
Item # RP005(/M) PR005(/M) MSRP01(/M) RP01(/M) RP03(/M) QRP02(/M)
Click Photo
to Enlarge
Continuous Rotation Mount
Features Standard Two Hard Stops
Additional Details

Manual Rotation Stages
Item # XRNR1(/M) XRR1(/M) PR01(/M) CR1(/M) XYR1(/M) OCT-XYR1(/M)
Click Photo
to Enlarge
Features Fine Rotation Adjuster and
2" Wide Dovetail Quick Connect
Fine Rotation Adjuster and
3" Wide Dovetail Quick Connect
Fine Rotation Adjuster and
SM1-Threaded Central Aperture
Fine Pitch Worm Gear Rotation and 1/2" Linear XY Translation
Additional Details
  • The stage profile is higher when it is mounted using the screw slots rather than stacked on another stage or accessory with mating dovetails.
  • The OCT-XYR1(/M) stage includes the XYR1A solid sample plate. This plate can be detached from the stage to reveal the same mounting features present on the XYR1(/M) stage.

Motorized Rotation Mounts and Stages

Motorized Rotation Mounts and Stages with Central Clear Apertures
Item # DDR25(/M) PDR1C(/M) PDR1(/M) PDR1V(/M) PDXR1(/M)
Click Photo
to Enlarge
DDR25 PDR1C PDR1 PDR1V PDXR1
Features Compatible with
SM05 Lens Tubes,
16 mm Cage System, &
30 mm Cage System
Compatible with
16 mm Cage System
Compatible with
SM05 Lens Tubes &
30 mm Cage System
Vacuum-Compatible;
Also Compatible with
SM05 Lens Tubes &
30 mm Cage System
Compatible with
SM05 Lens Tubes &
30 mm Cage System
Additional Details

Motorized Rotation Mounts and Stages with Central Clear Apertures
Item # K10CR1(/M) PRM1Z8(/M)a DDR100(/M) ELL14 HDR50(/M)
Click Photo
to Enlarge
ELL14
Features Compatible with SM1 Lens Tubes & 30 mm Cage System Compatible with
SM1 Lens Tubes,
16 mm Cage System,
30 mm Cage System
Compatible with
SM1 Lens Tubes,
Open Frame Design for
OEM Applications
Compatible with
SM2 Lens Tubes
Additional Details
  • This stage is available in the KPRMTE(/M), which includes the PRMTZ8(/M) Motorized Rotation Stage with the KDC101 K-Cube DC Servo Motor Controller.
Motorized Rotation Mounts and Stages with Tapped Platforms
Item # PRMTZ8(/M)a ELL18(/M)b
Click Photo
to Enlarge
Features Tapped Mounting Platform for Mounting Prisms or Other Optics Tapped Mounting Platform, Open Frame Design for OEM Applications
Additional Details
  • This stage is available in the KPRM1E(/M), which includes the PRMT1Z8(/M) Motorized Rotation Stage with the KDC101 K-Cube DC Servo Motor Controller.
  • This stage is available in the ELL18K(/M), which includes an interface board, mounting brackets, and connectors for PC control.
Back to Top

Heavy-Duty Rotation Stage

HDR50 Diagram
Click for Details

HDR50(/M) Rotating World Features
  • SM2 (2.035"-40) Threaded Central Aperture on Rotating and Non-Rotating Worlds
  • 8-32 (M4) Tapped Holes for Mounting Components or Top Plate Adapters (Available Below)
  • Stage Mounting Features
    • Four 1/4" (M6) Countersunk Holes
    • Four 1/4"-20 (M6) Tapped Mounting Holes (Two Each Side Face)
  • PAA613 3 m Long Extension Cable Included

The HDR50(/M) Heavy-Duty Rotation Stage features SM2-threaded central apertures on the rotating and non-rotating worlds (illustrated in the diagram to the right). The threaded section of the rotating world is 0.27" (6.9 mm) deep and the threaded section of the non-rotating world on the bottom side is 0.16" (4.0 mm) deep. Other mounting features are available using the top plate adapters below. These adapters attach using the 8-32 (M4) tapped holes in the stage's rotating world.

The HDR50(/M) stage can be mounted directly to a breadboard using 1/4"-20 (M6) cap screws (not included) that are at least 1.5" (35 mm) long. It can also be mounted vertically using the holes on each side face or by using the NR360SP2 bracket sold below. The NR360SP5 adapter enables the HDR50 stage to be mounted to an LNR50 or NRT Series Translation Stage.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
HDR50 Support Documentation
HDR50Customer Inspired! Heavy-Duty Rotation Stage with SM2-Threaded Center Hole, Imperial
$3,121.88
Today
+1 Qty Docs Part Number - Metric Price Available
HDR50/M Support Documentation
HDR50/MCustomer Inspired! Heavy-Duty Rotation Stage with SM2-Threaded Center Hole, Metric
$3,121.88
Lead Time
Back to Top

Top Plate Adapters

NR360SP4
Click for Details

NR360SP4(/M) Adapter
NR360SP8
Click for Details

NR360SP8 Adapter
NR360SP9
Click for Details

NR360SP9(/M) Adapter
  • Top Plate Adapters Attach Using #8 (M4) Counterbores
  • NR360SP9(/M) Adapter with Seventeen 1/4"-20 (M6) Taps
  • NR360SP8 Adapter Features:
  • NR360SP4(/M) Adapter with 3 mm Alignment Groove for Fiber Alignment Accessories

These top plate adapters provide additional mounting features for our HDR50(/M) Rotation Stage. The plates mount to the moving world at the top of the stage using four included 8-32 (M4) screws. Note that while imperial adapters come with imperial hardware and metric adapters come with metric hardware, the plates themselves are compatible with either type of stage. For example, an imperial adapter may be attached to a metric stage using four M4 screws. These adapters are also compatible with the retired NR360S(/M) Stage.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
NR360SP9 Support Documentation
NR360SP9Adapter Plate for HDR50 and DDR100 Stages, 1/4"-20 Taps
$109.88
Today
NR360SP8 Support Documentation
NR360SP8Adapter Plate for HDR50 Stage, SM1 Threaded, 30 mm Cage Compatible, 1/4"-20 and 8-32 Taps
$58.53
Today
NR360SP4 Support Documentation
NR360SP4Adapter Plate for HDR50 and DDR100 Stages, 3 mm Alignment Groove, 6-32 Taps
$140.17
Today
+1 Qty Docs Part Number - Metric Price Available
NR360SP9/M Support Documentation
NR360SP9/MAdapter Plate for HDR50 and DDR100 Stages, M6 Taps
$109.88
Today
NR360SP4/M Support Documentation
NR360SP4/MAdapter Plate for HDR50 and DDR100 Stages, 3 mm Alignment Groove, M3 Taps
$140.17
Today
Back to Top

Vertical Mounting Bracket

NR360SP2 Bracket
Click to Enlarge

HDR50 Stage Mounted Vertically Using NR360SP2 Bracket
  • Mount HDR50(/M) Rotation Stage Vertically
  • Ø2.68" Bore Accommodates SM2 (2.035"-40) Lens Tubes
  • Seven 1/4" (M6) Counterbores on Base for Breadboard Mounting
  • Mounting Hardware Not Included

The NR360SP2(/M) vertical mounting bracket allows the HDR50(/M) stage or the retired NR360S(/M) stage to be mounted in a vertical orientation. The Ø2.68" bore allows an SM2 lens tube attached to the bottom of the stage to pass through the bracket. The bracket can be secured to an optical table or optical breadboard using an array of seven 1/4" (M6) counterbored holes. Mounting the HDR50(/M) stage to the bracket requires four 1/4"-20 (M6) cap screws (not included) that are at least 1.5" (35 mm) long.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
NR360SP2 Support Documentation
NR360SP2Vertical Mounting Bracket For HDR50(/M) Stage, Imperial Mounting Holes
$282.72
Today
+1 Qty Docs Part Number - Metric Price Available
NR360SP2/M Support Documentation
NR360SP2/MVertical Mounting Bracket for HDR50(/M) Stage, Metric Mounting Holes
$282.72
Today
Back to Top

Mounting Adapter for LNR & NRT Series Stages

NR360SP5 Application
Click for Details

HDR50 Rotation Stage with NR360SP9 Adapter Plate Mounted on NRT150 Translation Stage Using
NR360SP5 Mounting Adapter

The NR360SP5(/M) mounting adapter allows the HDR50(/M) stage or the retired NR360S(/M) stage to be mounted on top of an LNR50 Series Stage, NRT100 Stage, or an NRT150 Stage, as shown in the photo to the right. This adapter requires four 1/4"-20 (M6), 3/8" (10 mm) long cap screws and four 1/4"-20 (M6), 1.5" (35 mm) long cap screws (not included).

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
NR360SP5 Support Documentation
NR360SP5Adapter for Mounting HDR50(/M) Stage to LNR or NRT Series Stage, 1/4"-20 Taps
$111.38
Today
+1 Qty Docs Part Number - Metric Price Available
NR360SP5/M Support Documentation
NR360SP5/MAdapter for Mounting HDR50(/M) Stage to LNR or NRT Series Stage, M6 Taps
$111.38
3 weeks
