Optogenetics Bifurcated Fiber Bundles: 2 Fibers


  • Ø200 µm or Ø400 Core Multimode Fiber
  • Quickly Connect to Cannulae with Ø1.25 mm or Ø2.5 mm Ferrules
  • Heat-Shrink Tubing Minimizes the Pressure on the Specimen
  • Ideal for Bilateral Stimulation or Silencing

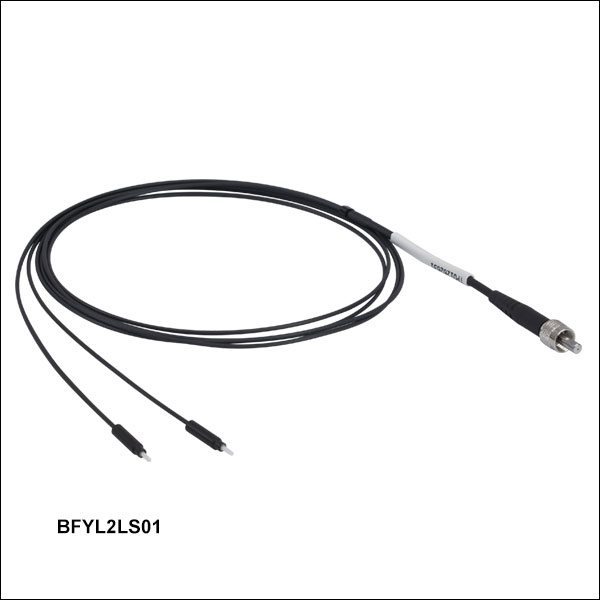

BFYL2LS01

Ø1.25 mm Ceramic Ferrules,
SMA905 Connector

Ø1.25 mm Ceramic Ferrule

Ø2.5 mm Ceramic Ferrule

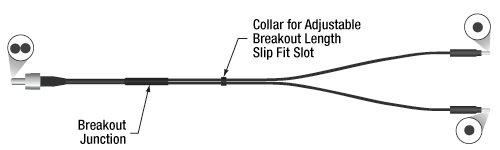

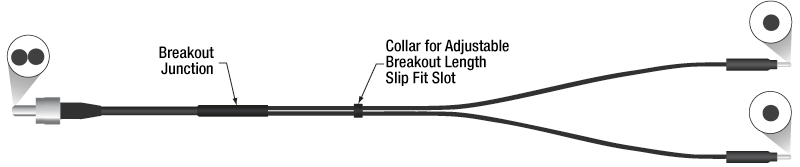

Common Connector Face



Two Ø400 µm Core Fibers

Related Items


Please Wait

Features

  • Choose from Two Ferrule Sizes for Specimen Side: Ø1.25 mm or Ø2.5 mm
  • SMA905 or 2.0 mm Narrow Key FC/PC Connector on the Non-Specimen Side
  • Ø200 µm or Ø400 µm Core Multimode Fiber
    • 0.22 NA Fiber for Ø200 µm
    • 0.39 NA Fiber for Ø200 µm and Ø400 µm
  • Ferrule Ends Integrate with Implantable Fiber Optic Cannulae
  • Heat-Shrink Tubing Minimizes the Pressure on the Specimen
  • 1 m Total Length from Common End to Split Ends
  • Custom Versions Available

These Bifurcated Multimode Fiber Optic Cables, also known as Y-cables, are ideal for use in optogenetics experiments that require simultaneous in vivo stimulation. The ceramic ferrules are compatible with our implantable fiber optic cannulae, while the SMA905 or FC/PC connector can be connected to a light source, such as our Fiber-Coupled LEDs with SMA connectors or multimode fiber-coupled laser source, respectively. These patch cables feature fiber with either a Ø200 µm (0.22 or 0.39 NA) or Ø400 µm core (0.39 NA). The fiber legs are covered with a thin, approximately Ø1.4 mm, outer heat-shrink tubing that protects the fiber and minimizes cable mass to reduce the stress on the specimen. Cables with Ø1.25 mm ferrules can be easily connected to Ø1.25 mm fiber optic cannulae using the ADAL1 mating sleeve or ADAL3 interconnect. Cables with Ø2.5 mm ferrules can be easily connected to Ø2.5 mm fiber optic cannulae using the ADAF1 mating sleeve or ADAF2 interconnect.

Each patch cable includes three protective caps that shield the ferrule ends and common connector from dust and other hazards when not in use. Additional fiber caps are also sold separately. If the fiber ends become dirty from use, we offer a selection of inspection tools, including the FS201 Fiber Inspection Scope, as well as fiber optic cleaning products.

Ferrule Size and Fiber Core Size
Thorlabs offers optogenetics patch cables with either a Ø1.25 mm or Ø2.5 mm ceramic ferrule end. The smaller footprint of the Ø1.25 mm ferrule cables offers the ability to implant several cannulae closer together for applications such as bilateral stimulation. In contrast, Ø2.5 mm ferrule cannulae and cables are easier to handle and provide a more robust connection ideal for larger specimens.

Custom fiber bundles are available upon request, including straight bundles and bifurcated fiber bundles with one common connector split into two or more connectors. See the Custom Bundles tab for an overview of some of our custom bundle capabilities. Please contact Tech Support for details.


Click to Enlarge
Multiple fiber NAs are available across our optogenetics product line; cannulae with a 0.22 or 0.39 NA are sold on this page.

Mating Sleeve and Patch Cable Compatibility
Our Ø1.25 mm ferrule cannulae are compatible with our ADAL1 mating sleeve and ADAL3 interconnect. Our Ø2.5 mm ferrule cannulae are compatible with our ADAF1 mating sleeve and ADAF2 interconnect. The diameter of the ceramic ferrule on the patch cable should be chosen to match the diameter of the ferrule on our implantable fiber optic cannulae. Cannulae and patch cables with different ferrule materials can be mixed and matched without introducing significant additional signal losses. However, fiber core size, numerical aperture (NA), and ferrule diameter should match for proper connection and maximum signal strength.

The other end of the fiber bundle has an SMA905 or FC/PC connector for interfacing with other components, such as our Fiber-Coupled LEDs with SMA connectors. The two cores in the bifurcated bundles will not be illuminated if connected to a fiber-coupled laser source; therefore, for dual cannula studies using our S1FC473MM 473 nm multimode fiber-coupled laser source, we recommend using a 2x2 multimode coupler for optogenetics.

Numerical Aperture (NA)

Numerical Aperture (NA) defines the angle of the cone of light leaving the fiber tip at the end of the cannula. 0.22 NA fiber generates an intense cone of light over a smaller area. On the other hand, a 0.39 NA fiber generates a wide cone of light that illuminates a larger area with lower intensity (as seen in the diagram above).

Optogenetics Product Family for In Vivo Applications

The diagram below illustrates one application for the Y-bundles: bilateral stimulation. Thorlabs offers a wide variety of products designed to support in vivo optogenetics applications. Please visit the OG Selection Guide tab above to see a full listing of available products for different applications.

Optogenetics System Schematic

Related Optogenetics Products
Light Sources Patch Cables Mating Cannulae Accessories
Fiber-Coupled LEDs
MM Laser, 473 nm
Standard
Rotary Joint
Dual Core
Bifurcated Y-Cables
1-to-7 Fiber Bundles
Interconnects
Mating Sleeves
Standard
Dual Core
Implant Guides
Cannula Holders

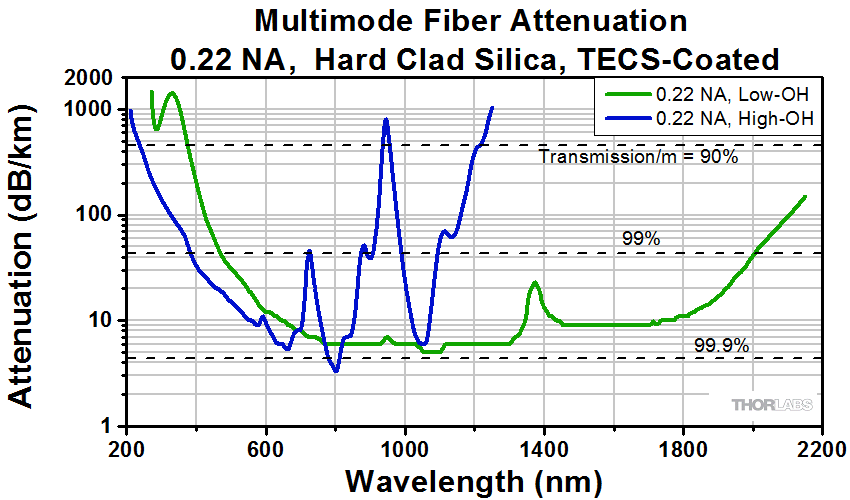

Item # Fiber Type NA Core
Diameter
Cladding
Diameter
Coating
Diameter
Buffer
Diameter
Max Core
Offset
Bend Radius
(Short Term /
Long Term)
Ferrule
Diameter
Tubing
Diameter
Connectors
BFYL1LS01 FG200UCC 0.22 ± 0.02 200 ± 8 µm 240 ± 5 µm 260 ± 6 µm  400 ± 30 nm 5 µm 26 mm / 52 mm Ø1.25 mm ~Ø1.4 mm SMA905 to Ferrule
BFYF1LS01 Ø2.5 mm

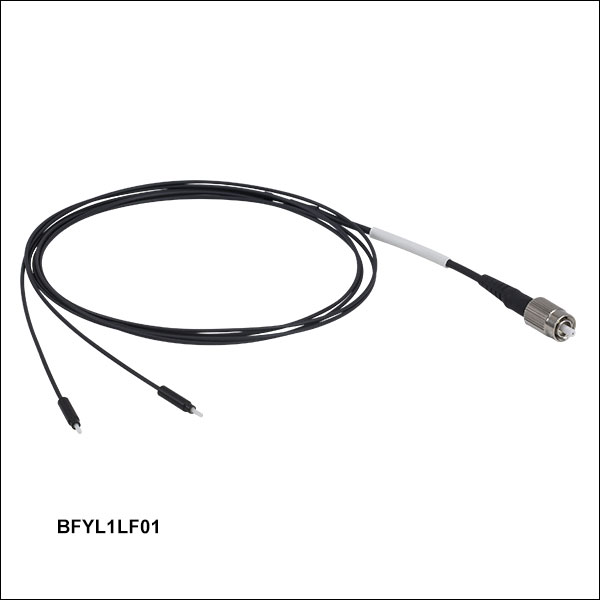

BFYL1LF01 Ø1.25 mm FC/PC to Ferrule
BFYF1LF01 Ø2.5 mm
BFYL2LS01 FT200EMT 0.39 200 ± 5 μm 225 ± 5 μm 500 ± 30 μm - 5 µm 21 mm / 42 mm Ø1.25 mm ~Ø1.4 mm SMA905 to Ferrule
BFYF2LS01 Ø2.5 mm
BFYL2LF01 Ø1.25 mm FC/PC to Ferrule
BFYF2LF01 Ø2.5 mm
BFYL4LS01 FT400EMT 0.39 400 ± 8 μm 425 ± 10 μm 730 ± 30 μm - 7 µm 43 mm / 86 mm Ø1.25 mm ~Ø1.4 mm SMA905 to Ferrule
BFYF4LS01 Ø2.5 mm
BFYL4LF01 Ø1.25 mm FC/PC to Ferrule
BFYF4LF01 Ø2.5 mm

Laser-Induced Damage in Silica Optical Fibers

The following tutorial details damage mechanisms relevant to unterminated (bare) fiber, terminated optical fiber, and other fiber components from laser light sources. These mechanisms include damage that occurs at the air / glass interface (when free-space coupling or when using connectors) and in the optical fiber itself. A fiber component, such as a bare fiber, patch cable, or fused coupler, may have multiple potential avenues for damage (e.g., connectors, fiber end faces, and the device itself). The maximum power that a fiber can handle will always be limited by the lowest limit of any of these damage mechanisms.

While the damage threshold can be estimated using scaling relations and general rules, absolute damage thresholds in optical fibers are very application dependent and user specific. Users can use this guide to estimate a safe power level that minimizes the risk of damage. Following all appropriate preparation and handling guidelines, users should be able to operate a fiber component up to the specified maximum power level; if no maximum is specified for a component, users should abide by the "practical safe level" described below for safe operation of the component. Factors that can reduce power handling and cause damage to a fiber component include, but are not limited to, misalignment during fiber coupling, contamination of the fiber end face, or imperfections in the fiber itself. For further discussion about an optical fiber’s power handling abilities for a specific application, please contact Thorlabs’ Tech Support.

Power Handling Limitations Imposed by Optical Fiber
Click to Enlarge

Undamaged Fiber End
Power Handling Limitations Imposed by Optical Fiber
Click to Enlarge

Damaged Fiber End

Damage at the Air / Glass Interface

There are several potential damage mechanisms that can occur at the air / glass interface. Light is incident on this interface when free-space coupling or when two fibers are mated using optical connectors. High-intensity light can damage the end face leading to reduced power handling and permanent damage to the fiber. For fibers terminated with optical connectors where the connectors are fixed to the fiber ends using epoxy, the heat generated by high-intensity light can burn the epoxy and leave residues on the fiber facet directly in the beam path.

Estimated Optical Power Densities on Air / Glass Interfacea
Type Theoretical Damage Thresholdb Practical Safe Levelc
CW
(Average Power)
~1 MW/cm2 ~250 kW/cm2
10 ns Pulsed
(Peak Power)
~5 GW/cm2 ~1 GW/cm2
  • All values are specified for unterminated (bare), undoped silica fiber and apply for free space coupling into a clean fiber end face.
  • This is an estimated maximum power density that can be incident on a fiber end face without risking damage. Verification of the performance and reliability of fiber components in the system before operating at high power must be done by the user, as it is highly system dependent.
  • This is the estimated safe optical power density that can be incident on a fiber end face without damaging the fiber under most operating conditions.

Damage Mechanisms on the Bare Fiber End Face

Damage mechanisms on a fiber end face can be modeled similarly to bulk optics, and industry-standard damage thresholds for UV Fused Silica substrates can be applied to silica-based fiber. However, unlike bulk optics, the relevant surface areas and beam diameters involved at the air / glass interface of an optical fiber are very small, particularly for coupling into single mode (SM) fiber. therefore, for a given power density, the power incident on the fiber needs to be lower for a smaller beam diameter.

The table to the right lists two thresholds for optical power densities: a theoretical damage threshold and a "practical safe level". In general, the theoretical damage threshold represents the estimated maximum power density that can be incident on the fiber end face without risking damage with very good fiber end face and coupling conditions. The "practical safe level" power density represents minimal risk of fiber damage. Operating a fiber or component beyond the practical safe level is possible, but users must follow the appropriate handling instructions and verify performance at low powers prior to use.

Calculating the Effective Area for Single Mode Fibers
The effective area for single mode (SM) fiber is defined by the mode field diameter (MFD), which is the cross-sectional area through which light propagates in the fiber; this area includes the fiber core and also a portion of the cladding. To achieve good efficiency when coupling into a single mode fiber, the diameter of the input beam must match the MFD of the fiber.

As an example, SM400 single mode fiber has a mode field diameter (MFD) of ~Ø3 µm operating at 400 nm, while the MFD for SMF-28 Ultra single mode fiber operating at 1550 nm is Ø10.5 µm. The effective area for these fibers can be calculated as follows:

SM400 Fiber: Area = Pi x (MFD/2)2 = Pi x (1.5 µm)2 = 7.07 µm= 7.07 x 10-8 cm2

 SMF-28 Ultra Fiber: Area = Pi x (MFD/2)2 = Pi x (5.25 µm)2 = 86.6 µm= 8.66 x 10-7 cm2

To estimate the power level that a fiber facet can handle, the power density is multiplied by the effective area. Please note that this calculation assumes a uniform intensity profile, but most laser beams exhibit a Gaussian-like shape within single mode fiber, resulting in a higher power density at the center of the beam compared to the edges. Therefore, these calculations will slightly overestimate the power corresponding to the damage threshold or the practical safe level. Using the estimated power densities assuming a CW light source, we can determine the corresponding power levels as:

SM400 Fiber: 7.07 x 10-8 cm2 x 1 MW/cm2 = 7.1 x 10-8 MW = 71 mW (Theoretical Damage Threshold)
     7.07 x 10-8 cm2 x 250 kW/cm2 = 1.8 x 10-5 kW = 18 mW (Practical Safe Level)

SMF-28 Ultra Fiber: 8.66 x 10-7 cm2 x 1 MW/cm2 = 8.7 x 10-7 MW = 870 mW (Theoretical Damage Threshold)
           8.66 x 10-7 cm2 x 250 kW/cm2 = 2.1 x 10-4 kW = 210 mW (Practical Safe Level)

Effective Area of Multimode Fibers
The effective area of a multimode (MM) fiber is defined by the core diameter, which is typically far larger than the MFD of an SM fiber. For optimal coupling, Thorlabs recommends focusing a beam to a spot roughly 70 - 80% of the core diameter. The larger effective area of MM fibers lowers the power density on the fiber end face, allowing higher optical powers (typically on the order of kilowatts) to be coupled into multimode fiber without damage.

Damage Mechanisms Related to Ferrule / Connector Termination

Click to Enlarge
Plot showing approximate input power that can be incident on a single mode silica optical fiber with a termination. Each line shows the estimated power level due to a specific damage mechanism. The maximum power handling is limited by the lowest power level from all relevant damage mechanisms (indicated by a solid line).

Fibers terminated with optical connectors have additional power handling considerations. Fiber is typically terminated using epoxy to bond the fiber to a ceramic or steel ferrule. When light is coupled into the fiber through a connector, light that does not enter the core and propagate down the fiber is scattered into the outer layers of the fiber, into the ferrule, and the epoxy used to hold the fiber in the ferrule. If the light is intense enough, it can burn the epoxy, causing it to vaporize and deposit a residue on the face of the connector. This results in localized absorption sites on the fiber end face that reduce coupling efficiency and increase scattering, causing further damage.

For several reasons, epoxy-related damage is dependent on the wavelength. In general, light scatters more strongly at short wavelengths than at longer wavelengths. Misalignment when coupling is also more likely due to the small MFD of short-wavelength SM fiber that also produces more scattered light.

To minimize the risk of burning the epoxy, fiber connectors can be constructed to have an epoxy-free air gap between the optical fiber and ferrule near the fiber end face. Our high-power multimode fiber patch cables use connectors with this design feature.

Determining Power Handling with Multiple Damage Mechanisms

When fiber cables or components have multiple avenues for damage (e.g., fiber patch cables), the maximum power handling is always limited by the lowest damage threshold that is relevant to the fiber component. In general, this represents the highest input power that can be incident on the patch cable end face and not the coupled output power.

As an illustrative example, the graph to the right shows an estimate of the power handling limitations of a single mode fiber patch cable due to damage to the fiber end face and damage via an optical connector. The total input power handling of a terminated fiber at a given wavelength is limited by the lower of the two limitations at any given wavelength (indicated by the solid lines). A single mode fiber operating at around 488 nm is primarily limited by damage to the fiber end face (blue solid line), but fibers operating at 1550 nm are limited by damage to the optical connector (red solid line).

In the case of a multimode fiber, the effective mode area is defined by the core diameter, which is larger than the effective mode area for SM fiber. This results in a lower power density on the fiber end face and allows higher optical powers (on the order of kilowatts) to be coupled into the fiber without damage (not shown in graph). However, the damage limit of the ferrule / connector termination remains unchanged and as a result, the maximum power handling for a multimode fiber is limited by the ferrule and connector termination.

Please note that these are rough estimates of power levels where damage is very unlikely with proper handling and alignment procedures. It is worth noting that optical fibers are frequently used at power levels above those described here. However, these applications typically require expert users and testing at lower powers first to minimize risk of damage. Even still, optical fiber components should be considered a consumable lab supply if used at high power levels.

Intrinsic Damage Threshold

In addition to damage mechanisms at the air / glass interface, optical fibers also display power handling limitations due to damage mechanisms within the optical fiber itself. These limitations will affect all fiber components as they are intrinsic to the fiber itself. Two categories of damage within the fiber are damage from bend losses and damage from photodarkening.

Bend Losses
Bend losses occur when a fiber is bent to a point where light traveling in the core is incident on the core/cladding interface at an angle higher than the critical angle, making total internal reflection impossible. Under these circumstances, light escapes the fiber, often in a localized area. The light escaping the fiber typically has a high power density, which burns the fiber coating as well as any surrounding furcation tubing.

A special category of optical fiber, called double-clad fiber, can reduce the risk of bend-loss damage by allowing the fiber’s cladding (2nd layer) to also function as a waveguide in addition to the core. By making the critical angle of the cladding/coating interface higher than the critical angle of the core/clad interface, light that escapes the core is loosely confined within the cladding. It will then leak out over a distance of centimeters or meters instead of at one localized spot within the fiber, minimizing the risk of damage. Thorlabs manufactures and sells 0.22 NA double-clad multimode fiber, which boasts very high, megawatt range power handling.

Photodarkening
A second damage mechanism, called photodarkening or solarization, can occur in fibers used with ultraviolet or short-wavelength visible light, particularly those with germanium-doped cores. Fibers used at these wavelengths will experience increased attenuation over time. The mechanism that causes photodarkening is largely unknown, but several fiber designs have been developed to mitigate it. For example, fibers with a very low hydroxyl ion (OH) content have been found to resist photodarkening and using other dopants, such as fluorine, can also reduce photodarkening.

Even with the above strategies in place, all fibers eventually experience photodarkening when used with UV or short-wavelength light, and thus, fibers used at these wavelengths should be considered consumables.

Preparation and Handling of Optical Fibers

General Cleaning and Operation Guidelines
These general cleaning and operation guidelines are recommended for all fiber optic products. Users should still follow specific guidelines for an individual product as outlined in the support documentation or manual. Damage threshold calculations only apply when all appropriate cleaning and handling procedures are followed.

  1. All light sources should be turned off prior to installing or integrating optical fibers (terminated or bare). This ensures that focused beams of light are not incident on fragile parts of the connector or fiber, which can possibly cause damage.

  2. The power-handling capability of an optical fiber is directly linked to the quality of the fiber/connector end face. Always inspect the fiber end prior to connecting the fiber to an optical system. The fiber end face should be clean and clear of dirt and other contaminants that can cause scattering of coupled light. Bare fiber should be cleaved prior to use and users should inspect the fiber end to ensure a good quality cleave is achieved.

  3. If an optical fiber is to be spliced into the optical system, users should first verify that the splice is of good quality at a low optical power prior to high-power use. Poor splice quality may increase light scattering at the splice interface, which can be a source of fiber damage.

  4. Users should use low power when aligning the system and optimizing coupling; this minimizes exposure of other parts of the fiber (other than the core) to light. Damage from scattered light can occur if a high power beam is focused on the cladding, coating, or connector.

Tips for Using Fiber at Higher Optical Power
Optical fibers and fiber components should generally be operated within safe power level limits, but under ideal conditions (very good optical alignment and very clean optical end faces), the power handling of a fiber component may be increased. Users must verify the performance and stability of a fiber component within their system prior to increasing input or output power and follow all necessary safety and operation instructions. The tips below are useful suggestions when considering increasing optical power in an optical fiber or component.

  1. Splicing a fiber component into a system using a fiber splicer can increase power handling as it minimizes possibility of air/fiber interface damage. Users should follow all appropriate guidelines to prepare and make a high-quality fiber splice. Poor splices can lead to scattering or regions of highly localized heat at the splice interface that can damage the fiber.

  2. After connecting the fiber or component, the system should be tested and aligned using a light source at low power. The system power can be ramped up slowly to the desired output power while periodically verifying all components are properly aligned and that coupling efficiency is not changing with respect to optical launch power.

  3. Bend losses that result from sharply bending a fiber can cause light to leak from the fiber in the stressed area. When operating at high power, the localized heating that can occur when a large amount of light escapes a small localized area (the stressed region) can damage the fiber. Avoid disturbing or accidently bending fibers during operation to minimize bend losses.

  4. Users should always choose the appropriate optical fiber for a given application. For example, large-mode-area fibers are a good alternative to standard single mode fibers in high-power applications as they provide good beam quality with a larger MFD, decreasing the power density on the air/fiber interface.

  5. Step-index silica single mode fibers are normally not used for ultraviolet light or high-peak-power pulsed applications due to the high spatial power densities associated with these applications.

Fan Out Cable
Click to Enlarge

Custom 1-to-4 Fan-Out Cable

Sample Fiber Bundle Connector Configurations

Custom Fiber Bundles

Thorlabs is pleased to offer custom straight and fan-out fiber bundles with random or mapped fiber configurations. The table below outlines some of our current bundle production capabilities. We are in the process of expanding these production capabilities, so do not hesitate to inquire if you do not see the bundle that you require described here.

Some custom bundles will require techniques outside of our usual production processes. As a result, we cannot guarantee that we will be able to make a bundle configuration to fit the requirements of your specific application. However, our engineers will be happy to work with you to determine if Thorlabs can produce a fiber bundle that fulfills your needs. To receive a quote, please provide a drawing or draft of your bundle configuration.

Fluoride Fiber Bundle
Click to Enlarge

Custom Silica Fiber Bundle with SMA905 Connectors
Custom Bundle Capabilities
Bundle
Configuration
Straighta Fan Out (2 or More Legs)a,b
Fiber
Types
Single Mode Standard (320 to 2100 nm), Ultra-High NA (960 to 1600 nm),
Photosensitive (980 to 1600 nm)
Multimode 0.10 NA Step Index (280 to 750 nm), 0.22 NA Step Index (190 to 2500 nm),
0.39 NA Step Index (300 to 2200 nm), Multimode Graded Index (750 to 1450 nm),
Multimode ZrF4 (285 nm to 4.5 µm)
Tubing Optionsc Thorlabs' Stock Furcation Tubing, Stainless Steel Tubing or Black Heat Shrink Tubing
Connectors SMA905 (Ø2 mm Max Cored), FC/PC (Ø800 µm Max Cored),
Ø1/4" Probe, or Flat-Cleaved Unterminated Fiber
Length Tolerancee ±0.14 m
Active Area
Geometryf
Round or Linear
Angle Polishing On Special Request. Available for up to Ø105 µm Core on Single Fiber End.
Please Inquire for More Information.
  • In a bundle of 20 fibers, up to one dark fiber is typical (i.e., 95% of the fibers in a bundle will be unbroken). For bundles with more than a single fiber per leg, 5-10% of the fibers are typically dark.
  • These bundles are not intended for applications that require an even power distribution.
  • Tubing selection will be further constrained by fiber type, number of fibers in the bundle, and length. Typically, more than one type of tubing will be used in the custom bundle, particularly for fan-out bundles.
  • This represents the maximum core diameter for the common end fiber. Split end fibers have core diameters that add to the common connector core diameter.
  • The length tolerance applies to bundles ≤2 m. To discuss tolerances on longer bundles, please contact techsales@thorlabs.com.
  • We cannot guarantee the distance between the fibers or the geometrical structure at the common end of a fan-out bundle.

Our cable engineers are available to help manufacture a bundle for your application.
Please contact techsales@thorlabs.com with your custom bundle requests.
Please provide a drawing or draft of your custom bundle to expedite quote processing.

Posted Comments:
Mostafa Abdelhamid  (posted 2019-09-07 14:12:59.003)
Hi, I am doing an optogenetic experiment in the mouse brain and wanted to implement two cannulas (CFMLC12L02) and stimulate them simultaneously using fiber-coupled LED (M470F3), I am a bit confused between the use of either 1X2 fiberoptic couple (T200SL1A) or Bifurcated fiber bundle (BFYL2LS01). I would be very happy if you would point out the main difference and optimal use of condition for each. Thanks a lot.
YLohia  (posted 2019-09-10 09:01:35.0)
Hello, thank you for contacting Thorlabs. The main difference between a bundle and a coupler is that the bundle can be used bidirectionally, but is not intended to be used for equal power splitting applications. Power split done through fiber bundles have a strong dependence on the position and spatial profile of the input beam.
user  (posted 2019-05-13 12:15:31.933)
Dear customer service representatives, as a happy Thorlabs customer I regret to inform that I am disappointed with this product. I would like to place a refund on my purchase of BFYL2LF01 . Unfortunately this product is not fit for use. The power splitting at the bifurcation is not equalized on any of the 4 fiber bundles I purchased, I have differences in transmission when comparing both output ferrule tips of almost 10-fold, making this product unsuited for my applications, which is bilateral optogenetic stimulation. For this I need a more balanced splitting for comparable light transmission. This product does not fulfill its purpose. Two of the fibers were purchased with order number MS3383613 and are in its original state. These I would like to return for a full refund. Two of the fibers I have made modifications at the tip and are not in the original state, but they never worked as intended nonetheless. Therefore, I would also like to request a refund for all the four fibers. I appreciate the acknowledgement of this request. Best regards, Oscar Retana
YLohia  (posted 2019-05-13 04:31:19.0)
Dear Oscar, thank you for your feedback. Please accept our apologies for any inconvenience caused by this product. I am reaching out to you via email to discuss your refund and to gather more details about your application to better understand where this issue could be arising from.

Optogenetics Selection Guide

Thorlabs offers a wide range of optogenetics components; the compatibility of these products in select standard configurations is discussed in detail here. Please contact Technical Support for assistance with items outside the scope of this guide, including custom fiber components for optogenetics.



Single-Site Stimulation

One Light Source to One Cannula Implant

The most straightforward method for in vivo light stimulation of a specimen is to use a single fiber optic with a single LED light source. The single wavelength LED is powered by an LED driver, and then the illumination output is fiber-coupled into a patch cable, which connects to the implanted cannula. See the graphics and expandable compatibility tables below for the necessary patch cables and cannulae to create this setup. To choose the appropriate LED and driver, see below or the full web presentation.

Click on Each Component for More Information

LED DriverLED DriverFiber-Coupled LEDFiber-Coupled LEDSMA to Ferrule Patch Cable with Optional Rotary JointSMA to Ferrule Patch Cable with Optional Rotary JointADAF2 InterconnectADAF2 InterconnectFiber Optic CannulaFiber Optic Cannula





Multilateral Stimulation

The ability to accurately and simultaneously direct light to multiple locations within a specimen is desired for many types of optogenetics experiments. For example, bilateral stimulation techniques typically target neurons in two spatially separated regions in order to induce a desired behavior. In more complex experiments involving the simultaneous inhibition and stimulation of neurons, delivering light of two different monochromatic wavelengths within close proximity enables the user to perform these experiments without implanting multiple cannulae, which can increase stress on the specimen.

Multilateral stimulation can be achieved with several different configurations depending on the application requirements. The sections below illustrate examples of different configurations using Thorlabs' optogenetics products.


Option 1: One Light Source to Two Cannula Implants Using Rotary Joint Splitter

Thorlabs' RJ2 1x2 Rotary Joint Splitter is designed for optogenetics applications and is used to split light from a single input evenly between two outputs. The rotary joint interface allows connected patch cables to freely rotate, reducing the risk of fiber damage caused by a moving specimen. See the graphic and compatibility table below for the necessary cables and cannulae to create this setup. For LEDs and drivers, see below or the full web presentation.

LED DriverFiber-Coupled LEDHybrid Patch Cable1x2 Rotary Joint SplitterOG Patch CableOG Patch CableADAF2 InterconnectADAF2 InterconnectFiber Optic CannulaFiber Optic CannulaFiber Optic Cannula

Option 2: One or Two Light Sources to Two Cannula Implants

If the intent is for one LED source to connect to two cannulae for simultaneous light modulation, then a bifurcated fiber bundle can be used to split the light from the LED into each respective cannula. For dual wavelength stimulation (mixing two wavelengths in a single cannula) or a more controlled split ratio between cannula, one can use a multimode coupler to connect one or two LEDs to the cannulae. If one cable end is left unused, the spare coupler cable end may be terminated by a light trap. See the graphic and compatibility table below for the necessary cables and cannulae to create this setup. For LEDs and drivers, see below or the full web presentation.

Click on Each Component Below for More Information

LED DriverLED DriverFiber-Coupled LEDFiber-Coupled LEDPatch CabletextY-CableMating SleeveMating SleeveMating SleeveMating SleeveFiber Optic CannulaFiber Optic CannulaFiber Optic CannulaFiber Optic Cannula

LED Driver2nd LED DriverLED Driver textFiber-Coupled LED2nd Fiber-Coupled LEDFiber-Coupled LED textMultimode CouplerMultimode Coupler TextADAF2 InterconnectADAF2 Interconnect TextADAF2 InterconnectADAF2 Interconnect TextFiber Optic CannulaFiber Optic CannulaFiber Optic CannulaFiber Optic Cannula


Option 3: One Light Sources to Seven Cannula Implants

If the intent is for one LED source to connect to seven cannulae for simultaneous light modulation, then a 1-to-7 fiber bundle can be used to split the light from the LED into each respective cannula. See the graphic and compatibility table below for the necessary cables and cannulae to create this setup. For LEDs and drivers, see below or the full web presentation.

Click on Each Component Below for More Information

 LED Driver




Two Light Sources into One Dual-Core Cannula Implant

For bilateral stimulation applications where the two cannulas need to be placed in close proximity (within ~1 mm), Thorlabs offers dual-core patch cables and cannulae that are designed for this specific application. Each core is driven by a separate light source, enabling users to stimulate and/or supress nerve cells in the same region of the specimen. See the graphic and compatibility table below for the necessary cables and cannulae to create this setup. For LEDs and drivers, see below or the full web presentation.

LED Driver2nd LED DriverLED Driver TextFiber-Coupled LED2nd Fiber-Coupled LEDFiber-Coupled LEDsDual-Core Patch CableDual-Core Patch CableADAF2 InterconnectADAF2 InterconnectFiber Optic CannulaFiber Optic Cannula

Click on Each Component for More Information

Part Selection Table (Click Links for Item Description Popup)
Common Fiber Properties
Core Diameter 200 µm
Wavelength Range 400 - 2200 nm
NA 0.39
Fiber Type FT200EMT
Ferrule Stylea FC (Ø2.5 mm)
Dual-Core Patch Cable FC/PC Input BFY32FL1
SMA905 Input BFY32SL1
Compatible Mating Sleeve/Interconnect ADAF1
ADAF2
ADAF4-5
Dual-Core Fiber Optic Cannulaec Stainless Steel CFM32L10
CFM32L20
  • FC components have a Ø2.5 mm ferrule end.
  • Patch cables for dual light source to single implant applications are highlighted in green above. Choose a patch cable with an input that matches your light source.
  • Available cannulae are highlighted in orange of the table above. Cannule within the same column are interchangeable.



LED Item # Wavelengtha Typical Opsin Output Powerb Color
M385F1c 385 nm EBFP, moxBFP 10.7 mW UV
M405F1c 405 nm mmilCFP, hcriGFP 3.7 mW UV
M430F1 430 nm ChR2 7.5 mW Violet
M455F3 455 nm ChIEF, bPAC 24.5 mW Royal Blue
M505F3 505 nm ChRGR, Opto-α1AR, Opto-β2AR 11.7 mW Cyan
M530F2 530 nm C1V1, VChR1 9.6 mW Green
M565F3 565 nm Arch, VChR1-SFO 13.5 mW Lime
M595F2 595 nm ChR2-SFO, eNpHR3.0 11.5 mW Amber
M625F2 625 nm ReChR 17.5 mW Red
  • Click the link for a spectrum and raw data.
  • Typical output power measured with a Ø400 µm Core, 0.39 NA multimode fiber.
  • Precautions must be taken to prevent looking directly at the UV light and UV light protective glasses must be worn to avoid eye damage. Exposure of the skin and other body parts to UV light should be avoided.

Illumination

Fiber-Coupled LEDs and Drivers

Our fiber-coupled LEDs are ideal light sources for optogenetics applications. They feature a variety of wavelength choices and a convenient interconnection to optogenetics patch cables. Thorlabs offers fiber-coupled LEDs with nominal wavelengths ranging from 280 nm to 1050 nm. See the table to the right for the LEDs with the most popular wavelengths for optogenetics. A table of compatible LED drivers can be viewed by clicking below.

Back to Top

Bifurcated Fiber Bundle, Ø200 µm Core, 0.22 NA, SMA905 to Ferrules

Item # Ferrule
Size
Common
Connector
Fiber
Type
Wavelength Range
(Click for Plot)
Core
Diameter
Cladding
Diameter
NA Compatible Cannulae
BFYL1LS01 Ø1.25 mm SMA905 FG200UCC 250 -1200 nm 200 ± 8 µm 240 ± 5 µm 0.22
± 0.02
CFMLC22 Ceramic and
CFML22 Stainless Steel
BFYF1LS01 Ø2.5 mm CFMC22 Ceramic and
CFM22 Stainless Steel
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
BFYL1LS01 Support Documentation
BFYL1LS01Customer Inspired! Bifurcated Fiber Bundle, Ø200 µm Core, 0.22 NA, SMA905 to Ø1.25 mm Ferrules, 1 m Long
$206.68
Today
BFYF1LS01 Support Documentation
BFYF1LS01Customer Inspired! Bifurcated Fiber Bundle, Ø200 µm Core, 0.22 NA, SMA905 to Ø2.5 mm Ferrules, 1 m Long
$182.37
Today
Back to Top

Bifurcated Fiber Bundle, Ø200 µm Core, 0.22 NA, FC/PC to Ferrules

Item # Ferrule
Size
Common
Connector
Fiber
Type
Wavelength Range
(Click for Plot)
Core
Diameter
Cladding
Diameter
NA Compatible Cannulae
BFYL1LF01 Ø1.25 mm FC/PC FG200UCC 250 -1200 nm 200 µm ± 8 µm 240 µm ± 5 µm 0.22
± 0.02
CFMLC22 Ceramic and
CFML22 Stainless Steel
BFYF1LF01 Ø2.5 mm CFMC22 Ceramic and
CFM22 Stainless Steel
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
BFYL1LF01 Support Documentation
BFYL1LF01Customer Inspired! Bifurcated Fiber Bundle, Ø200 µm Core, 0.22 NA, FC/PC to Ø1.25 mm Ferrules, 1 m Long
$206.68
Today
BFYF1LF01 Support Documentation
BFYF1LF01Customer Inspired! Bifurcated Fiber Bundle, Ø200 µm Core, 0.22 NA, FC/PC to Ø2.5 mm Ferrules, 1 m Long
$182.37
Today
Back to Top

Bifurcated Fiber Bundle, Ø200 µm Core, 0.39 NA, SMA905 to Ferrules

Item # Ferrule
Size
Common
Connector
Fiber
Type
Wavelength Range
(Click for Plot)
Core
Diameter
Cladding
Diameter
NA Compatible Cannulae
BFYL2LS01 Ø1.25 mm SMA905 FT200EMT 400 - 2200 nm 200 ± 5 µm 225 ± 5 µm 0.39 CFMLC12 Ceramic and
CFML12 Stainless Steel
BFYF2LS01 Ø2.5 mm CFMC12 Ceramic and
CFM12 Stainless Steel
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
BFYL2LS01 Support Documentation
BFYL2LS01Bifurcated Fiber Bundle, Ø200 µm Core, 0.39 NA, SMA905 to Ø1.25 mm Ferrules, 1 m Long
$215.76
Today
BFYF2LS01 Support Documentation
BFYF2LS01Bifurcated Fiber Bundle, Ø200 µm Core, 0.39 NA, SMA905 to Ø2.5 mm Ferrules, 1 m Long
$189.73
Today
Back to Top

Bifurcated Fiber Bundle, Ø200 µm Core, 0.39 NA, FC/PC to Ferrules

Item # Ferrule
Size
Common
Connector
Fiber
Type
Wavelength Range
(Click for Plot)
Core
Diameter
Cladding
Diameter
NA Compatible Cannulae
BFYL2LF01 Ø1.25 mm FC/PC FT200EMT 400 - 2200 nm 200 µm ± 5 µm 225 µm ± 5 µm 0.39 CFMLC12 Ceramic and
CFML12 Stainless Steel
BFYF2LF01 Ø2.5 mm CFMC12 Ceramic and
CFM12 Stainless Steel
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
BFYL2LF01 Support Documentation
BFYL2LF01Bifurcated Fiber Bundle, Ø200 µm Core, 0.39 NA, FC/PC to Ø1.25 mm Ferrules, 1 m Long
$215.76
Today
BFYF2LF01 Support Documentation
BFYF2LF01Bifurcated Fiber Bundle, Ø200 µm Core, 0.39 NA, FC/PC to Ø2.5 mm Ferrules, 1 m Long
$189.73
Today
Back to Top

Bifurcated Fiber Bundle, Ø400 µm Core, 0.39 NA, SMA905 to Ferrules

Item # Ferrule
Size
Common
Connector
Fiber
Type
Wavelength Range
(Click for Plot)
Core
Diameter
Cladding
Diameter
NA Compatible Cannulae
BFYL4LS01 Ø1.25 mm SMA905 FT400EMT 400 - 2200 nm 400 ± 8 μm 425 ± 10 μm 0.39 CFMLC14 Ceramic and
CFML14 Stainless Steel
BFYF4LS01 Ø2.5 mm CFMLC14 Ceramic and
CFML14 Stainless Steel
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
BFYL4LS01 Support Documentation
BFYL4LS01Customer Inspired! Bifurcated Fiber Bundle, Ø400 µm Core, 0.39 NA, SMA905 to Ø1.25 mm Ferrules, 1 m Long
$223.71
7-10 Days
BFYF4LS01 Support Documentation
BFYF4LS01Customer Inspired! Bifurcated Fiber Bundle, Ø400 µm Core, 0.39 NA, SMA905 to Ø2.5 mm Ferrules, 1 m Long
$198.18
Today
Back to Top

Bifurcated Fiber Bundle, Ø400 µm Core, 0.39 NA, FC/PC to Ferrules

Item # Ferrule
Size
Common
Connector
Fiber
Type
Wavelength Range
(Click for Plot)
Core
Diameter
Cladding
Diameter
NA Compatible Cannulae
BFYL4LF01 Ø1.25 mm FC/PC FT400EMT 400 - 2200 nm 400 ± 8 μm 425 ± 10 μm 0.39 CFMLC14 Ceramic and
CFML14 Stainless Steel
BFYF4LF01 Ø2.5 mm CFMLC14 Ceramic and
CFML14 Stainless Steel
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
BFYL4LF01 Support Documentation
BFYL4LF01Customer Inspired! Bifurcated Fiber Bundle, Ø400 µm Core, 0.39 NA, FC/PC to Ø1.25 mm Ferrules, 1 m Long
$223.71
Today
BFYF4LF01 Support Documentation
BFYF4LF01Customer Inspired! Bifurcated Fiber Bundle, Ø400 µm Core, 0.39 NA, FC/PC to Ø2.5 mm Ferrules, 1 m Long
$198.18
Today
