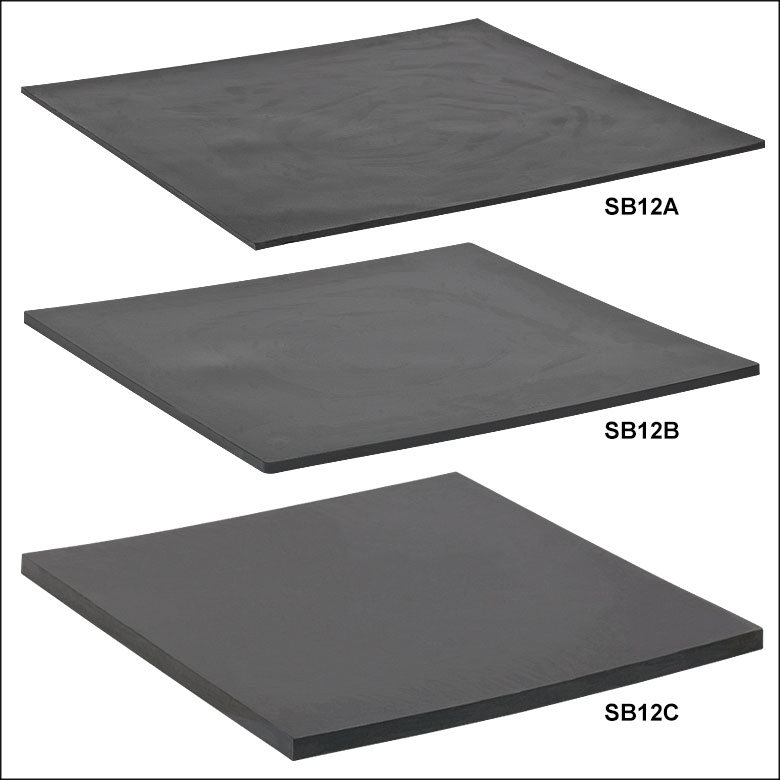

1/8" (3.2 mm) Thick
1/4" (6.4 mm) Thick
1/2" (12.7 mm) Thick
AV4 Sorbothane Feet Supporting an Aluminum Breadboard
Thorlabs’ Sorbothane Feet and Sheets offer excellent vibration and acoustic isolation for laboratory needs. Our Sorbothane feet offer internal 1/4"-20 (M6) threads or an adhesive surface, which can be used to attach the feet to the bases of test equipment or breadboards. For a more versatile option, Thorlabs also offers 12" × 12" (305 mm x 305 mm) Sorbothane sheets with 1/8" (3.2 mm), 1/4" (6.4 mm), or 1/2" (12.7 mm) thickness. These sheets are easily cut and can be adapted to suit a variety of custom applications.
For assistance in choosing the proper sorbothane isolator, please see the Feet Selection Guide and Sheet Cutting Guide tabs above.
Selecting the Proper Sorbothane Isolator Feet
The example presented here details the steps needed to ensure the proper selection of round sorbothane isolator feet to match the requirements of a particular load and problem frequency. Following the example are plots showing the amount of isolation achieved for our isolator feet. For specific isolation recommendations, please contact Tech Support.
The round sorbothane feet's isolation graphs, shown below, use load per isolator (m) in lbs, which is given by the following equation:
Based on the values given above, the calculated load per isolator is 13.5 lbs. This value should then be looked up on each isolation graph for the round isolator feet below. Sorbothane feet with a calculated load per isolator that exceeds the maximum load are not suitable for the application. Without a known problem frequency, the isolator that effectively isolates at the lowest cut-on frequency is recommended.
For this example, the AV4(/M) or AV5(/M) sorbothane feet would both be acceptable solutions. The AV4 Ø27 mm isolator feet provide better isolation performance at lower frequencies but are near the load limit, so if the total load were higher than anticipated the isolator would be outside of the recommended load capacity. Our AV5 Ø38.1 mm isolator feet will have worse isolation performance at lower frequencies, but are well within the load range which may be preferable.
If a sorbothane sheet is preferred, it would need to be cut to an appropriate size as shown in the Sheet Cutting Guide tab. For a 13.5 lb (6.1 kg) load, a 0.5" (12.7 mm) thick sheet cut into 1.5" x 0.5" (38.1 mm x 12.7 mm) pieces would provide a good isolation solution.
Sorbothane Feet Isolation Plots
Click to Enlarge
The plot shown above shows the isolation efficiency per foot of the AV3 Sorbothane Isolator Feet. These isolators should not be used above the maximum load capacity of 6 lbs. Above this weight, the isolators will begin to amplify vibrations rather than damp them.
Click to Enlarge
The plot shown above shows the isolation efficiency per foot of the AV4(/M) Sorbothane Isolator Feet. These isolators should not be used above the maximum load capacity of 14 lbs. Above this weight, the isolators will begin to amplify vibrations rather than damp them.
Click to Enlarge
The plot shown above shows the isolation efficiency per foot of the AV5(/M) Sorbothane Isolator Feet. These isolators should not be used above the maximum load capacity of 33 lbs. Above this weight, the isolators will begin to amplify vibrations rather than damp them.
Click to Enlarge
The plot shown above shows the isolation efficiency per foot of the AV6(/M) Sorbothane Isolator Feet. These isolators should not be used above the maximum load capacity of 50 lbs. Above this weight, the isolators will begin to amplify vibrations rather than damp them.
Sorbothane Sheet Cutting Guides
The tables below show the different sizes that a Sorbothane sheet should be cut down to for isolating certain frequencies. Within each table are minimum frequency values, meaning that at a specific size and load the isolator will effectively damp any frequency equal to or greater than what is given. Orange cells indicate areas where the specific isolator size and load should not be used. N/A indicates that the load is too great, whereas >100 Hz indicates that a better option is available (i.e., to isolate a frequency of 150 Hz, an isolator size that is effective from 50 Hz and up is a better choice than one that is effective from 100 Hz and up).
These Sorbothane mounting feet provide a passive isolation solution for workbench-mounted breadboards, effectively isolating noisy equipment from the optical table or breadboard surface. Unlike our pneumatic benchtop isolation solutions, these solid Sorbothane feet do not require inflation.
The AV4(/M), AV5(/M), and AV6(/M) mounting feet each contain internal 1/4"-20 (M6) threading and include four 1/4"-20 (M6) threaded studs. In contrast, the AV3 mounting feet are not threaded, and are attached to equipment or breadboards using the included double-sided tape. See the table below for the load capacities and dimensions of each isolator. When choosing an isolator, we recommend picking the isolator that offers the largest range of damped frequencies for the specific load being used. For further assistance in choosing the proper sorbothane isolator, please see the Feet Selection Guide tab above.
Please note that these feet may have silicon residue on their surface from the molding process. To remove the residue, wipe the feet down with an alcohol-based solvent such as isopropyl alcohol (IPA). To protect the work surface from this residue, please see our SB12E Adhesive Felt Sheets below.
These pliable Sorbothane Sheets are ideal for isolating mechanical noise or vibrations. The sheets come in three thicknesses and can be placed under a breadboard in single or stacked layers to counter the effects of uneven work surfaces or to isolate the breadboard from vibrations. For objects over 5 lbs (approx. 2.2 kg), the thicker 1/4" (SB12B) or 1/2" (SB12C) sheets are recommended. For information on the isolation efficiency of these sheets at specific load capacities, please see the Sheet Selection Guide tab above.
Sorbothane sheets can be cut to size using scissors or a utility knife. Please contact Technical Support to request Sorbothane sheets with a lower hardness.
These Adhesive Sheets are designed to be used with our Sorbothane mounting feet or sheets. The SB12D sheet, which has two adhesive surfaces, is ideal for semi-permanent applications where the sorbothane surface will not have to be moved often. Our SB12E sheet, which has one adhesive and one felt surface, prevents the sorbothane from marking or marring the table surface that they are placed on.
These sheets are sized to fit directly under our 12" x 12" (305 mm x 305 mm) sorbothane sheets, but can also be cut down to fit under our sorbothane mounting feet.
