Customizable Optogenetics Kits


  • Complete Fiber Optics Kit for Optogenetics with Optional Component Substitution
  • 470 nm LED Light Source
  • Ø1.25 mm or Ø2.5 mm Ferrule Cannulae with Ø200 μm or Ø400 μm Fiber Core
  • Standard and Rotary Joint Patch Cables

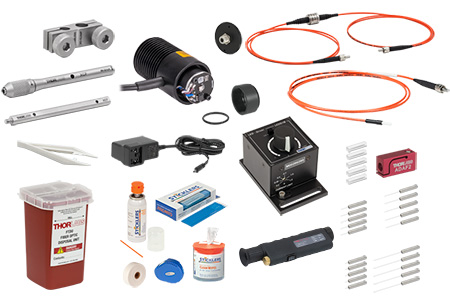

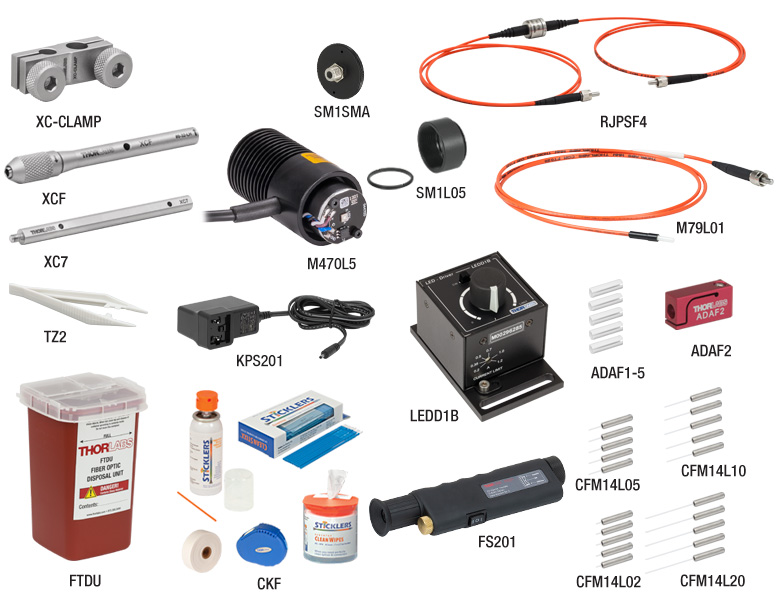

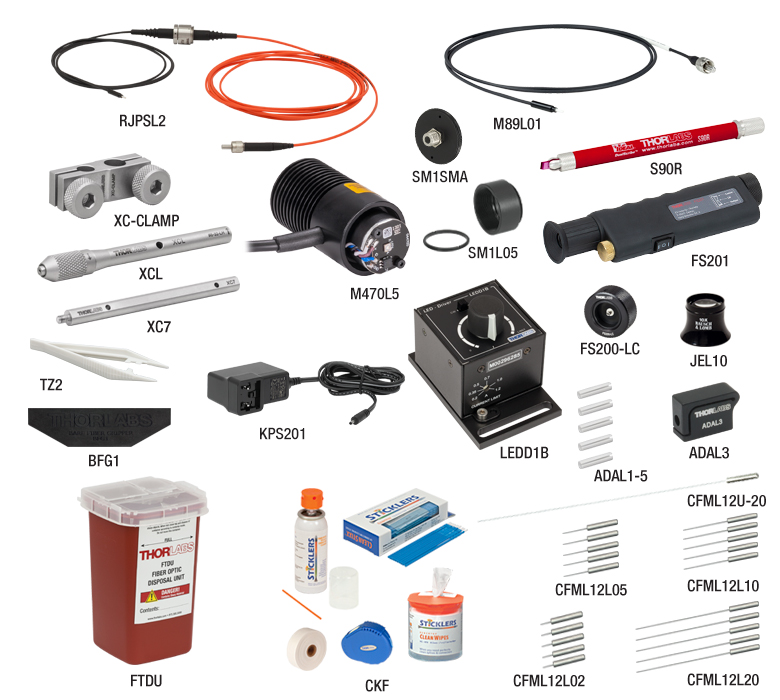

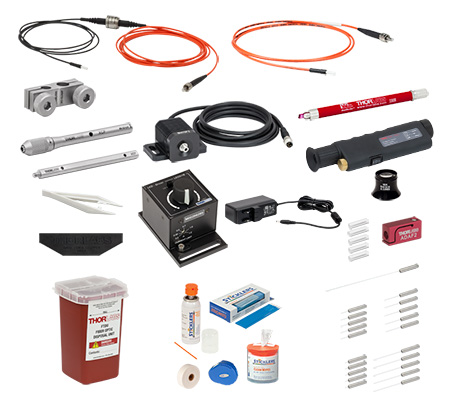

Kit with Rotary Joint Patch Cable, Ø200 µm Core Fiber, and Ø2.5 mm Ferrules

Related Items


Please Wait
Kit # Kit 1 Kit 2 Kit 3 Kit 4
Light Source M470F3 470 nm Fiber-Coupled LED (590 nm Substitution Available)
LED Driver LEDD1B
Fiber Core Size Ø200 µm Ø400 µm
Cannula Ferrule Size
Ø2.5 mm Ø1.25 mm Ø2.5 mm Ø1.25 mm
Patch Cable Standard Rotary Joint Standard Rotary Joint Standard Rotary Joint Standard Rotary Joint
Cannula
Output Powera
2.6 mW 1.9 mW 4.5 mW 2.8 mW 17.9 mW 7.7 mW 18.8 mW 9.09 mW
Variation in
Output Powerb
N/A ±7% N/A ±7% N/A ±7% N/A ±7%
  • Approximate value, tested with the LED driven at maximum current (1 A).
  • Output power variation during rotation of the rotary joint.

Features

  • Complete Fiber Optics Setup Including LED, Patch Cable, Cannulae, and Accessories
  • Flexible Component Substitution
  • Stainless Steel Ferrules and Fiber Cores in Two Sizes:
    • Ø1.25 mm Ferrules (Ø200 or Ø400µm Core Fiber)
    • Ø2.5 mm Ferrules (Ø200 or Ø400 µm Core Fiber)
  • Standard Lightweight Patch Cable with Rotary Joint Patch Cable Option
  • Cannula Holders for Implantation with Stereotaxic Equipment
  • Fiber Cleaving and Cleaning Essentials
  • Cleaved Cannulae of Various Lengths with Uncleaved Cannulae Kit Option
  • Cannula Connectors
    • 1 Quick-Release Interconnect
    • 5 Mating Sleeves

Thorlabs' optogenetics equipment is available in complete, ready-to-use kits. Our optogenetics kits include a 470 nm Fiber-Coupled LED with driver, lightweight patch cable, rotary joint patch cable, quick-release interconnect, five mating sleeves, and 20 stainless steel ferrule cannulae. Certain kits feature an additional 20 uncleaved cannula and fiber cleaving tools. Please see the Fiber Cleaving for an introduction to their use. Kits are available with Ø200 µm or Ø400 µm core fiber components with 0.39 NA. Ø200 µm core size cables are less invasive, making them ideal for smaller animals. Ø400 µm core size cables offer a stiffer, more robust solution for larger animals and higher power light sources. These kits also include accessories for cannula implantation, as well as fiber cleaning supplies to cover basic fiber care and usage.

Each component in these kits can be removed or substituted for items more applicable to the individual needs of the experiment. See below for the most relevant kit, and the OG Selection Guide for alternate cannula and patch cable options. Thorlabs also sells other fiber-coupled LEDs and fiber care supplies, including a fiber polishing and repair kit.

For more particular experimental needs, Thorlabs offers custom fiber components for optogenetics. For more information, contact Tech Support.

Optogenetics Product Family for In Vivo Applications

Thorlabs offers a wide variety of products designed to support in vivo optogenetics applications. Please visit the OG Selection Guide tab above to see a full listing of available products for different applications.

Thorlabs Optogenetics Equipment Selection Guide
Fiber Optic
Cannulae
Rotary Joint
Patch Cables
1x2 Rotary
Joint Splitter
Standard
Patch Cables
Interconnect and
Mating Sleeves
Multimode Fiber
Couplers
LED Light Sources Laser Light Source Customizable Kits

Optogenetics Specifications

Kit # Kit 1 Kit 2 Kit 3 Kit 4
Light Source M470F3 470 nm Fiber-Coupled LED
LED Driver LEDD1B
Fiber Type FT200EMT FT400EMT
Fiber Core Size Ø200 µm Ø400 µm
Fiber NA 0.39 0.39
Fiber Wavelength Range
(Click for Plot)
400 - 2200 nm 400 - 2200 nm
Cannula Ferrule Size Ø2.5 mm Ø1.25 mm Ø2.5 mm Ø1.25 mm
Patch Cable M77L01
(1 m Long)
RJPSF2
(3 m Long
with Rotary Joint)
M89L01
(1 m Long)
RJPSL2
(3 m Long
with Rotary Joint)
M79L01
(1 m Long)
RJPSF4
(3 m Long
with Rotary Joint)
M98L01
(1 m Long)
RJPSL4
(3m Long
with Rotary Joint)
Cannula Interconnects
and Mating Sleeves
1 x ADAF2 Interconnect
1 x ADAF1-5 Mating Sleeves (5 Pack)
1 x ADAL3 Interconnect
1 x ADAL1-5
 Mating Sleeves (5 Pack)
1 x ADAF2 Interconnect
1 x ADAF1-5 Mating Sleeves (5 Pack)
1 x ADAL3 Interconnect
1 x ADAL1-5 Mating Sleeves (5 Pack)
Cannulae 5 x CFM12L02 (2 mm)
5 x CFM12L05 (5 mm)
5 x CFM12L10 (10 mm)
5 x CFM12L20 (20 mm)
20 x CFM12U-20 (Uncleaved)
5 x CFML12L02 (2 mm)
5 x CFML12L05 (5 mm)
5 x CFML12L10 (10 mm)
5 x CFML12L20 (20 mm)
20 x CFML12U-20 (Uncleaved)
5 x CFM14L02 (2 mm)
5 x CFM14L05 (5 mm)
5 x CFM14L10 (10 mm)
5 x CFM14L20 (20 mm)
5 x CFML14L02 (2 mm)
5 x CFML14L05 (5 mm)
5 x CFML14L10 (10 mm)
5 x CFML14L20 (20 mm)
Approx. Cannula
Output Powera
2.6 mW 1.9 mW 4.5 mW 2.8 mW  17.9 mW 7.7 mW 18.8 mW 9.09 mW
Variation in
Output Powerb
N/A ±7% N/A ±7% N/A ±7% N/A ±7%
  • Tested with the LED driven at maximum current (1 A).
  • Output power variation during rotation of the rotary joint.

LED Specificationsa

Item # M470F3
Center Wavelength 470 nm
Bandwidth (FWHM) 20 nm

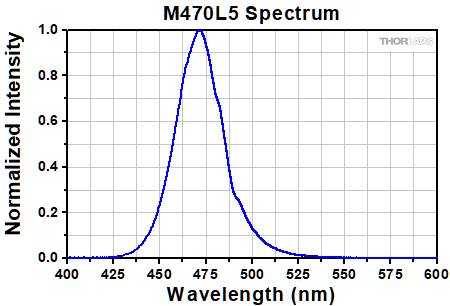

Typical Output Spectrum
(Click to Enlarge)
M470 Icon
CW Drive Current (Max) 1 A
LED Forward Voltage 3.1 V
Typical Lifetime >50,000 Hours

Fiber Specifications

Fiber Type FT200EMT Multimode FT400EMT Multimode
Core Diameter Ø200 ± 5 µm Ø400 ± 8 µm
Wavelength 400-2200 nm
NA 0.39 ± 0.02
Core / Cladding Pure Silica / TECS Hard Cladding
Cladding Diameter 225 ± 5 μm 425 ± 10 μm
Coating Diameter 500 ± 30 μm 730 ± 30 μm
Max Core Offset 5 µm 7 µm
Bend Radius
(Short Term /
Long Term)
9 mm / 18 mm 20 mm / 40 mm

LED Driver Specifications

Item # LEDD1Ba
Common Data
Output Current Range 0 - 1200 mA
LED Current Limit Set Point Range 200 - 1200 mA
LED Forward Voltage 11 V (Min)
12 V (Typical)
Current Ripple 8 mA
Current Ripple Frequency 570 kHz
Modulation Modeb
Frequency Range 0 - 5 kHz, Sine Wave
Modulation Form Arbitrary
Input Voltage Rate 0 - 5 V
Slew Rate 13.6 mA/µs
Decay Rate 13.1 mA/µs
Trigger Modeb
Frequency Range 0 - 1 kHz
Duty Cycle Range 20 - 80% @ 1 kHz
2 - 98% @ 100 Hz
0.2 - 99.8% @ 10 Hz
Modulation Form Square Wave / PWM
Logic Input Levels TTL
Min H-Level: 2 V
Max L-Level: 0.55 V
Slew Rate 18 mA/µs
Rise Time 51 µs
Decay Rate 12 mA/µs
Fall Time 79 µs
General Data
Power Supply 15 VDC
Maximum Power Consumption 15 VA
Operating Temperature 0 - 40 °C
Storage Temperature -40 to 70 °C
Weight 240 g
Dimensions (W x H x D) 60 mm x 73 mm x 104 mm
  • All the technical data is valid at 23 ± 5 °C and 45 ± 15% relative humidity.
  • Specifications for the modulation and trigger modes depend on the forward voltage and capacitance of the connected LED.
Fiber Optic Cannula Properly Connected
Figure 1. Adjust the LEDD1B current limit adjuster arrow with a flathead screwdriver to set the maximum current (1.0 A or less).

Setup

LED and Driver
All Optogenetics Starter Kits include a Fiber-Coupled LED and an LED Driver (Item # LEDD1B). The LED can be operated by connecting it to the “LED” jack in the back of the LED driver. Plug the power supply (Item # KPS101) into the LED driver, and then the power supply to the main line voltage. The LED can only be driven up to a maximum current of 1.0 A without permanent damage; use a flathead screwdriver to turn the directional arrow recessed in the current limit adjuster on the front of the driver to set the maximum driving current (see image to the right). The LED driver can then be powered on by turning the knob on top of the driver clockwise.

Patch Cable and Cannula
Insert the patch cable’s SMA connector into the LED unit by threading the connector’s rotating barrel onto the LED unit’s housing. Then, depending upon your choice of interconnect or mating sleeve, the connection methodology varies.

If you are using an ADAL1 (Ø1.25 mm ferrules) or ADAF1 (Ø2.5 mm ferrules) mating sleeve, place the mating sleeve onto the ferrule end of the patch cable. Leave approximately one-third of the mating sleeve length exposed for the cannula connection (Figure 2). Then, connect the mating sleeve to the cannula. To disconnect the cannula, grip the patch cable by the ferrule and mating sleeve and use a twisting motion. It is very important that the ends of the patch cable’s ferrule and the cannula’s ferrule are in physical contact (Figure 3). If they are not, the output power at the cannula tip will decrease significantly (Figure 4).

ADAF1 Mating Sleeve and Ferrule Patch Cable
Click to Enlarge

Figure 2. The ADAF1 Mating Sleeve should be inserted 1/2 to 2/3 of the way onto the patch cable before cannula connection.
Fiber Optic Cannula Properly Connected
Click to Enlarge

Figure 3. Properly connected cannula and patch cable, with the cannula and patch cable in physical contact.
Fiber Optic Connector Improperly Connected
Click to Enlarge

Figure 4. Improperly connected cannula and patch cable, showing an air gap and light leakage.

Quick-Release Interconnect Usage

The ADAF2 (Ø2.5 mm ferrules) quick-release interconnect provides a more reliable mating method for cannulae and patch cables. First, insert a patch cable ferrule into the interconnect and secure by tightening the setscrew using the included hex key [0.05" (1.3 mm)]. Then, squeeze the quick-release lever and insert the cannula until it makes physical contact with the ferrule. Finally, release the lever to lock the cannula into place. The interconnect is engraved to indicate where squeeze pressure should be applied. To release the cannula (or disconnect from an implanted cannula), squeeze the quick-release lever and pull the interconnect away from the cannula; only light force is needed to disconnect the interconnect. See the animation on the right for a visual depiction of this process.

Rotary Joint Patch Cables
These cables operate exactly the same way as standard patch cables, but they have an articulated joint that prevents tangling from specimen movement. SM05 (0.535"-40) mounting threads are present on the light source side of the joint. The joint can be mounted using Thorlabs’ extensive line of SM05-compatible optomechanics hardware, such as the LMR05 lens mount. Alternatively, the rotary joint can be mounted directly to the wall or ceiling of a specimen enclosure. An SM05-tapped hole can be created using Thorlabs’ 83373 SM05 tap, or the joint can be glued into a ~Ø1/2" hole. Click here for more information about mounting the rotary joint.

Operation

Make sure the current limit on the LED driver is set to 1.0 A or below before operating the LED to avoid permanent damage.

The LED can be operated using the LED driver only, or with the LED driver and an external signal. It can be operated in one of the following modes: Continuous Wave (CW), Tigger (TRIG), or Modulation (MOD). For more information on the LEDD1B driver's operation, see the full web presentation and manual.

Continuous Wave (CW) Mode
While operating in continuous wave mode, the driver provides a constant non-modulated LED current. The user controls the LED’s power by adjusting the control knob.

Trigger (TRIG) Mode
This mode operates using an externally applied TTL signal to pulse the LED output. The width of the TTL signal can be used to define the LED pulse width as well. The brightness of the LED is adjusted using the control knob.

Modulation (MOD) Mode
This mode allows the LED driver to be controlled completely by an external voltage. LED intensity varies with the input voltage, from off (0V) to maximum brightness (5V).

Fiber Care

Patch cable connectors should be cleaned every time the cable is mated, tested, or reconfigured. Clean the fiber endface using a lint-free wipe (Item # LFW90 in the CKF fiber cleaning kit) that has been wetted with connector cleaner (Item # FCS3 in the CKF fiber cleaning kit), then inspect the fiber with the inspection scope (Item # FS201). Bare fiber should be cleaned by wrapping the damp wipe around the fiber, squeezing gently, and sliding the wipe toward the end of the fiber until it squeaks. Inspect the fiber end with either the inspection scope (Item # FS201) or eye loupe (Item # JEL10). See the fiber cleaning kit spec sheet for details.

Further Reading

  1. http://www.stanford.edu/group/dlab/optogenetics/
  2. http://www.openoptogenetics.org/index.php?title=Main_Page
  3. Aravanis A, Wang LP, Zhang F, Meltzer L, Mogri M, Schneider MB, Deisseroth K. An optical neural interface: in vivo control of rodent motor cortex with integrated fiberoptic and optogenetic technology. J. Neural Eng. 2007 Sept; 4:S143-S156.
  4. Gradinaru V, Thompson KR, Zhang F, Mogri M, Kay K, Schneider MB, Deisseroth K. Targeting and readout strategies for fast optical neural control in vitro and in vivo. J Neurosci. 2007 Dec 26;27(52):14231-8.
  5. Zhang F, Gradinaru V, Adamantidis AR, Durand R, Airan RD, de Lecea L, Deisseroth K. Optogenetic interrogation of neural circuits: technology for probing mammalian brain structures. Nat Protoc. 2010;5(3):439-56. Epub 2010 Feb 18.
  6. Yizhar O, Fenno LE, Davidson TJ, Mogri M, Deisseroth K. Optogenetics in Neural Systems. Neuron. 2011 July;72:9-34.
Figure 2: Pulling the Fiber
Click to Enlarge
Figure 2. Pulling the Fiber with the BFG1 Bare Fiber Gripper
Figure 1: Scribing the Fiber
Click to Enlarge

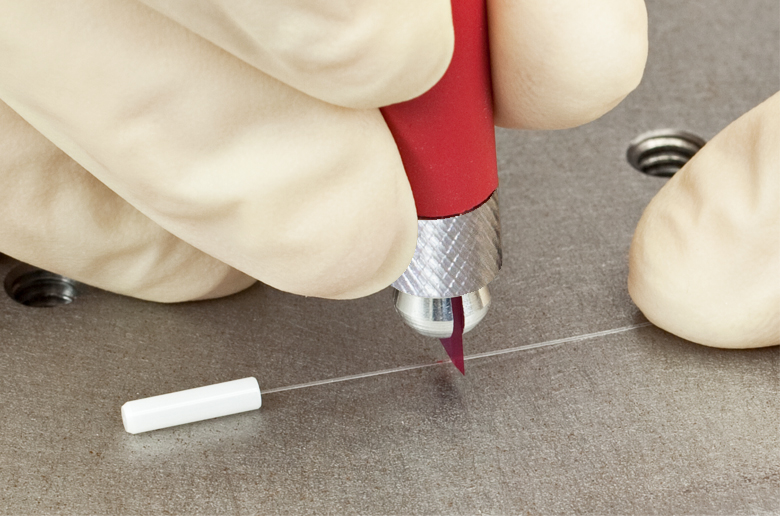

Figure 1. Scribing the Fiber with the S90R Fiber Scribe
Figure 3: Cleaved Fiber
Click to Enlarge
Figure 3. Cleaved Fiber After Pulling
Cleaved Fiber End
Click to Enlarge
Figure 4. Cleaved Fiber End, as Viewed Through the JEL10 Eye Loupe

Fiber Cleaving

Uncleaved cannula must be cleaved, or precision cut, before use. A high-quality fiber cleave will preserve the fidelity of the optical signal transmitted through the tip of the fiber. We recommend the following procedure for cleaving the fiber end.

Required Materials

  • Uncleaved Fiber Optic Cannula*
  • Marker
  • S90R Fiber Scribe*
  • BFG1 Bare Fiber Gripper*
  • KW32 Kimwipes®† Lint-Free Wipes
  • Isopropyl Alcohol or FCS3 Fiber Cleaning Fluid*
  • JEL10 Eye Loupe* or Microscope
  • FTDU Fiber Optic Disposal Unit*
  • Safety Goggles/Glasses

Starred (*) items are provided in kits with uncleaved cannulae.

Cleaving Procedure

  1. Clean the fiber end of the cannula using a lint-free wipe and isopropyl alcohol or FCS3 fiber cleaning fluid. Do not use acetone, as this will damage the TECS cladding on the exposed fiber.
  2. Measure the desired length of fiber from the end of the ferrule. Mark this length on the fiber with a marker.
  3. Place the cannula on a hard surface and secure the fiber end with a finger or tape, as shown in Figure 1.
  4. Hold the cleaving tool perpendicular to the fiber and gently score the fiber as shown in Figure 1 to the right. Do not apply excessive pressure. The fiber should not break off at this point. This step is critical in obtaining a good cleave. If the scribe is made too hard, the fiber will break instead of cleaving. If the scribe is too light, the fiber will not cleave.
  5. Hold the cannula in one hand, and grip the fiber end with a bare fiber gripper in the other end as shown in Figure 2. Pull the fiber straight back until the fiber cleaves as shown in Figure 3. Dispose of the scrap fiber end in the FTDU or any medical or fiber sharps container.
  6. If the fiber does not break with a moderate amount of tension, repeat steps 4-5 above applying slightly more pressure when scoring. Inspect the cleave using an eye loupe or microscope.

A good cleave will be flat across the fiber and perpendicular to the optic axis. There should be no ‘tag’ (i.e., protrusion) from the edge of the fiber. The region where the initial scribe was made may be visible. It should be less than 5% of the core diameter. Be patient as this process takes a little practice. Please be aware that it will be more difficult to achieve a high-quality cleave in large-core-diameter fibers compared to thinner fibers. A view of a properly cleaved fiber end as seen through a Thorlabs' JEL10 eye loupe is shown in Figure 4.

Click Here for a Print Friendly Version of this Procedure

Thorlabs also offers a full fiber termination manual, which covers fiber termination and bare fiber cleaving. It can be downloaded for free here, or a paper copy can be purchased here.

Kimwipes® is a registered trademark of the Kimberly-Clark Corporation.


Posted Comments:
user  (posted 2013-04-08 19:24:12.54)
What ever happened to your rotary joint. I think there used to be a page or at least an image of a finished unit. I really need one for my research
tcohen  (posted 2013-04-09 11:04:00.0)
Response from Tim at Thorlabs: Thank you for your interest. The rotary joint went through a redesign so that we could provide the best quality before initial release. We have plans to release four different units within the next couple of weeks and we will be adding supporting documentation to the website upon release. If you would like to discuss the specs, timeline or fit within your application, please contact us at techsupport@thorlabs.com.
user  (posted 2013-04-05 21:45:22.623)
when will a kit with rotary joint be available?

Optogenetics Selection Guide

Thorlabs offers a wide range of optogenetics components; the compatibility of these products in select standard configurations is discussed in detail here. Please contact Technical Support for assistance with items outside the scope of this guide, including custom fiber components for optogenetics.



Single-Site Stimulation

One Light Source to One Cannula Implant

The most straightforward method for in vivo light stimulation of a specimen is to use a single fiber optic with a single LED light source. The single wavelength LED is powered by an LED driver, and then the illumination output is fiber-coupled into a patch cable, which connects to the implanted cannula. See the graphics and expandable compatibility tables below for the necessary patch cables and cannulae to create this setup. To choose the appropriate LED and driver, see below or the full web presentation.

Click on Each Component for More Information

LED DriverLED DriverFiber-Coupled LEDFiber-Coupled LEDSMA to Ferrule Patch Cable with Optional Rotary JointSMA to Ferrule Patch Cable with Optional Rotary JointADAF2 InterconnectADAF2 InterconnectFiber Optic CannulaFiber Optic Cannula





Bilateral Stimulation

The ability to accurately and simultaneously direct light to multiple locations within a specimen is desired for many types of optogenetics experiments. For example, bilateral stimulation techniques typically target neurons in two spatially separated regions in order to induce a desired behavior. In more complex experiments involving the simultaneous inhibition and stimulation of neurons, delivering light of two different monochromatic wavelengths within close proximity enables the user to perform these experiments without implanting multiple cannulae, which can increase stress on the specimen.

Bilateral stimulation can be achieved with several different configurations depending on the application requirements. The sections below illustrate examples of different configurations using Thorlabs' optogenetics products.


Option 1: One Light Source to Two Cannula Implants Using Rotary Joint Splitter

Thorlabs' RJ2 1x2 Rotary Joint Splitter is designed for optogenetics applications and is used to split light from a single input evenly between two outputs. The rotary joint interface allows connected patch cables to freely rotate, reducing the risk of fiber damage caused by a moving specimen. See the graphic and compatibility table below for the necessary cables and cannulae to create this setup. For LEDs and drivers, see below or the full web presentation.

LED DriverFiber-Coupled LEDHybrid Patch Cable1x2 Rotary Joint SplitterOG Patch CableOG Patch CableADAF2 InterconnectADAF2 InterconnectFiber Optic CannulaFiber Optic CannulaFiber Optic Cannula

Option 2: One or Two Light Sources to Two Cannula Implants

If the intent is for one LED source to connect to two cannulae for simultaneous light modulation, then a bifurcated fiber bundle can be used to split the light from the LED into each respective cannula. For dual wavelength stimulation (mixing two wavelengths in a single cannula) or a more controlled split ratio between cannula, one can use a multimode coupler to connect one or two LEDs to the cannulae. If one cable end is left unused, the spare coupler cable end may be terminated by a light trap. See the graphic and compatibility table below for the necessary cables and cannulae to create this setup. For LEDs and drivers, see below or the full web presentation.

Click on Each Component Below for More Information

LED DriverLED DriverFiber-Coupled LEDFiber-Coupled LEDPatch CabletextY-CableMating SleeveMating SleeveMating SleeveMating SleeveFiber Optic CannulaFiber Optic CannulaFiber Optic CannulaFiber Optic Cannula

LED Driver2nd LED DriverLED Driver textFiber-Coupled LED2nd Fiber-Coupled LEDFiber-Coupled LED textMultimode CouplerMultimode Coupler TextADAF2 InterconnectADAF2 Interconnect TextADAF2 InterconnectADAF2 Interconnect TextFiber Optic CannulaFiber Optic CannulaFiber Optic CannulaFiber Optic Cannula




Two Light Sources into One Dual-Core Cannula Implant

For bilateral stimulation applications where the two cannulas need to be placed in close proximity (within ~1 mm), Thorlabs offers dual-core patch cables and cannulae that are designed for this specific application. Each core is driven by a separate light source, enabling users to stimulate and/or supress nerve cells in the same region of the specimen. See the graphic and compatibility table below for the necessary cables and cannulae to create this setup. For LEDs and drivers, see below or the full web presentation.

LED Driver2nd LED DriverLED Driver TextFiber-Coupled LED2nd Fiber-Coupled LEDFiber-Coupled LEDsDual-Core Patch CableDual-Core Patch CableADAF2 InterconnectADAF2 InterconnectFiber Optic CannulaFiber Optic Cannula

Click on Each Component for More Information

Part Selection Table (Click Links for Item Description Popup)
Common Fiber Properties
Core Diameter 200 µm
Wavelength Range 400 - 2200 nm
NA 0.39
Fiber Type FT200EMT
Ferrule Stylea FC (Ø2.5 mm)
Dual-Core Patch Cable FC/PC Input BFY32FL1
SMA905 Input BFY32SL1
Compatible Mating Sleeve/Interconnect ADAF1
ADAF2
Dual-Core Fiber Optic Cannulaec Stainless Steel CFM32L10
CFM32L20
  • FC components have a Ø2.5 mm ferrule end.
  • Patch cables for dual light source to single implant applications are highlighted in green above. Choose a patch cable with an input that matches your light source.
  • Available cannulae are highlighted in orange of the table above. Cannule within the same column are interchangeable.



Popular Fiber-Coupled LEDs for Optogenetics
Item # M470F3 M590F2
Center Wavelength 470 nm 590 nm
Bandwidth (FWHM) 20 nm 15 nm
Typical Output Spectrum
(Click to Enlarge)
M470 Icon M470 Icon
Ø200 µm Core Fiber Output (Typ.)a
7.0 mW 0.68 mW
Ø400 µm Core Fiber Output (Typ.)b
21.8 mW 2.73 mW
CW Drive Current (Max) 1.0 A 1.0 A
LED Forward Voltage 3.1 V 2.8 V
Typical Lifetime >50,000 Hours >50,000 Hours
  • Tested using MM Fiber with Ø200 µm core, 0.22 NA (Item # FG200UCC).
  • Tested using MM Fiber with Ø400 µm core, 0.39 NA (Item # FT400EMT).

Illumination

Fiber-Coupled LEDs and Drivers

Our fiber-coupled LEDs are ideal light sources for optogenetics applications. They feature a variety of wavelength choices and a convenient interconnection to optogenetics patch cables. Thorlabs offers fiber-coupled LEDs with nominal wavelengths ranging from 280 nm to 1050 nm. See the table to the right for the LEDs with the most popular wavelengths for optogenetics. A table of compatible LED drivers can be viewed by clicking below.

Kit 1: Ø200 µm Core Fiber, Ø2.5 mm Ferrules, and Rotary Joint Patch Cable

Item # Product Description Quantity Alternate Items
Light Source
M470F3 470 nm Fiber-Coupled LED 1 Alternate Fiber-Coupled LEDs
LEDD1B LED Driver 1 Alternate LED Drivers
KPS101 LED Driver Power Supply 1
Cannulae
CFM12L02 2 mm Length Cannula 5 Alternate Cannulae
CFM12L05 5 mm Length Cannula 5
CFM12L10 10 mm Length Cannula 5
CFM12L20 20 mm Length Cannula 5
CFM12U-20 Uncleaved Cannula, 20 Pack 1
Patch Cables and Cannula Connectors
M77L01 Standard Patch Cable 1 Alternate Patch Cables
RJPSF2 Rotary Joint Patch Cable 1
ADAF2 Interconnect 1 Cannula Connectors
ADAF1-5 Mating Sleeves (Pack of Five)a 1
Cleaving Supplies
S90R Fiber Optic Scribe 1 Alternate Cleavers
FS201 Fiber Inspection Scope 1 Alternate Inspection Tools
JEL10 Eye Loupe 1
BFG1 Bare Fiber Gripper 1 Fiber Termination Tools
Tools for Cannula Implantation
XCF Stereotaxic Cannula Holder 1 Alternate Cannula Holders/
Adapters
XC7 Cannula Holder Adapter Arm 1
XC-CLAMP Cannula Holder Adapter Clamp 1
Fiber Handling Supplies
TZ2 Optic Tweezers 1 Alternate Fiber Care Supplies
CKF Fiber Cleaning Kit 1
FTDU Fiber Disposal Unit 1
  • We also offer our mating sleeves individually (Item # ADAF1).

Click to Enlarge

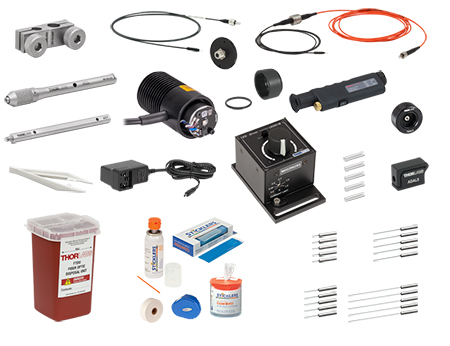

This kit features Ø200 μm fiber optic cannulae with Ø2.5 mm ferrules. This fiber size is less invasive for implantation, while the Ø2.5 mm ferrules provide easier handling and a more robust connection to the specimen.

Multiple patch cable options provide flexibility for a range of experimental setups. The standard patch cable is sufficient for sedated specimens. For experiments with mobile specimens, the rotary joint patch cable provides free movement of the cable via an integrated rotary joint interface. This reduces the risk of damage when the specimen moves, with higher light transmission and lower variation in rotational transmission than a separate rotary joint and patch cables solution.

To purchase this kit, its components can be added all at once to the shopping cart using the "Add Kit" button at the bottom of the ordering area, or individually using the shopping cart icon next to each item. Items may be removed from the default item list by changing the value in the "Qty" box to 0 before clicking the "Add Kit" button. To further customize the kit by adding alternative items, they can be added to the shopping cart via the alternate pages above or by using the "Quick View" links on the OG Selection Guide tab. This tab provides a comprehensive list of cannulae, sleeves, patch cables, and LEDs available for optogenetics studies.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
M470F3 Support Documentation
M470F3470 nm, 17.2 mW (Min) Fiber-Coupled LED, 1000 mA, SMA
$397.13
Today
LEDD1B Support Documentation
LEDD1BT-Cube LED Driver, 1200 mA Max Drive Current (Power Supply Not Included)
$314.13
Today
KPS101 Support Documentation
KPS10115 V, 2.4 A Power Supply Unit with 3.5 mm Jack Connector for One K- or T-Cube
$34.33
Today
CFM12L02 Support Documentation
CFM12L02Fiber Optic Cannula, Ø2.5 mm SS Ferrule, Ø200 µm Core, 0.39 NA, L = 2 mm
$41.77
Today
CFM12L05 Support Documentation
CFM12L05Fiber Optic Cannula, Ø2.5 mm SS Ferrule, Ø200 µm Core, 0.39 NA, L = 5 mm
$43.87
Today
CFM12L10 Support Documentation
CFM12L10Fiber Optic Cannula, Ø2.5 mm SS Ferrule, Ø200 µm Core, 0.39 NA, L = 10 mm
$45.97
Today
CFM12L20 Support Documentation
CFM12L20Fiber Optic Cannula, Ø2.5 mm SS Ferrule, Ø200 µm Core, 0.39 NA, L = 20 mm
$49.38
Today
CFM12U-20 Support Documentation
CFM12U-20Uncleaved Fiber Optic Cannula, Ø2.5 mm Stainless Ferrule, Ø200 µm Core, 0.39 NA, 20 Pack
$438.10
Today
M77L01 Support Documentation
M77L01Customer Inspired! Ø200 µm Core, 0.39 NA, SMA905 to Ø2.5 mm Ferrule Patch Cable, 1 m Long
$78.01
Today
RJPSF2 Support Documentation
RJPSF2SMA to Ø2.5 mm Ferrule Rotary Joint Patch Cable, Ø200 µm Core, 3 m Long
$321.48
Today
ADAF2 Support Documentation
ADAF2Customer Inspired! Quick-Release Interconnect for Ø2.5 mm Ferrules
$32.31
Today
ADAF1-5 Support Documentation
ADAF1-5Ceramic Split Mating Sleeves for Ø2.5 mm (FC/PC, ST®/PC, or SC/PC) Ferrules, 5 Pack
$21.43
Today
S90R Support Documentation
S90RRuby DualScribe™ Fiber Optic Scribe
$54.37
Today
FS201 Support Documentation
FS201Fiber Inspection Scope with FS200-FC and FS201-SMA Adapters
$217.47
Today
JEL10 Support Documentation
JEL10Standard 10X Eye Loupe
$25.01
Today
BFG1 Support Documentation
BFG1Rubber Gripper for Bare Fiber
$5.36
Today
XCF Support Documentation
XCFCustomer Inspired! Stereotaxic Cannula Holder, Ø2.5 mm Ferrules
$316.23
Today
XC7 Support Documentation
XC7Customer Inspired! Cannula Holder Adapter Arm, Ø7.9 mm, External 8-32 LH Stud
$48.33
Today
XC-CLAMP Support Documentation
XC-CLAMPCustomer Inspired! Adapter Clamp for Cannula Holder and Ø7.9 mm Adapter Arm
$91.14
Today
TZ2 Support Documentation
TZ2Optic Tweezers with Nylon Body and Tips
$5.36
Today
CKF Support Documentation
CKFFiber Optic Cleaning Kit
$107.16
Today
FTDU Support Documentation
FTDUFiber Optic Disposal Unit
$7.73
Today

Kit 2: Ø200 µm Core Fiber, Ø1.25 mm Ferrules, and Rotary Joint Patch Cable

Item # Product Description Quantity Alternate Items
Light Source
M470F3 470 nm Fiber-Coupled LED 1 Alternate Fiber-Coupled LEDs
LEDD1B LED Driver 1 Alternate LED Drivers
KPS101 LED Driver Power Supply 1
Cannulae
CFML12L02 2 mm Length Cannula 5 Alternate Cannulae
CFML12L05 5 mm Length Cannula 5
CFML12L10 10 mm Length Cannula 5
CFML12L20 20 mm Length Cannula 5
CFML12U-20 Uncleaved Cannula, 20 Pack 1
Patch Cables and Cannula Connectors
M89L01 Standard Patch Cable 1 Alternate Patch Cables
RJPSL2 Rotary Joint Patch Cable 1
ADAL3 Interconnect 1 Cannula Connectors
ADAL1-5 Mating Sleeves (Pack of Five)a 1
Cleaving Supplies
S90R Fiber Optic Scribe 1 Alternate Cleavers
FS201 Fiber Inspection Scope 1 Alternate Inspection Tools
FS200-LC Inspection Scope Adapter 1
JEL10 Eye Loupe 1
BFG1 Bare Fiber Gripper 1 Fiber Termination Tools
Tools for Cannula Implantation
XCL Stereotaxic Cannula Holder 1 Alternate Cannula Holders/
Adapters
XC7 Cannula Holder Adapter Arm 1
XC-CLAMP Cannula Holder Adapter Clamp 1
Fiber Handling Supplies
TZ2 Optic Tweezers 1 Alternate Fiber Care Supplies
CKF Fiber Cleaning Kit 1
FTDU Fiber Disposal Unit 1
  • We also offer our mating sleeves individually (Item # ADAL1).

Click to Enlarge

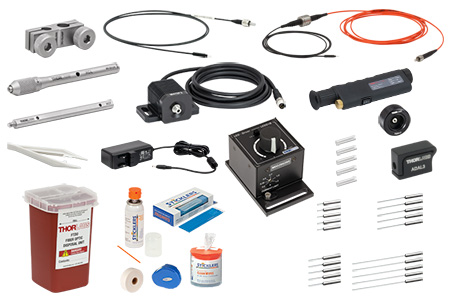

This kit features Ø200 μm fiber optic cannulae with Ø1.25 mm ferrules, a standard patch cable, and a rotary joint patch cable. This fiber size is less invasive for implantation, while the Ø1.25 mm ferrules minimize stress on the specimen.

Multiple patch cable options provide flexibility for a range of experimental setups. The standard patch cable is sufficient for sedated specimens. For experiments with mobile specimens, the rotary joint patch cable provides free movement of the cable via an integrated rotary joint interface. This reduces the risk of damage when the specimen moves, with higher light transmission and lower variation in rotational transmission than a separate rotary joint and patch cables solution.

To purchase this kit, its components can be added all at once to the shopping cart using the "Add Kit" button at the bottom of the ordering area, or individually using the shopping cart icon next to each item. Items may be removed from the default item list by changing the value in the "Qty" box to 0 before clicking the "Add Kit" button. To further customize the kit by adding alternative items, they can be added to the shopping cart via the alternate pages above or by using the "Quick View" links on the OG Selection Guide tab. This tab provides a comprehensive list of cannulae, sleeves, patch cables, and LEDs available for optogenetics studies.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
M470F3 Support Documentation
M470F3470 nm, 17.2 mW (Min) Fiber-Coupled LED, 1000 mA, SMA
$397.13
Today
LEDD1B Support Documentation
LEDD1BT-Cube LED Driver, 1200 mA Max Drive Current (Power Supply Not Included)
$314.13
Today
KPS101 Support Documentation
KPS10115 V, 2.4 A Power Supply Unit with 3.5 mm Jack Connector for One K- or T-Cube
$34.33
Today
CFML12L02 Support Documentation
CFML12L02Fiber Optic Cannula, Ø1.25 mm SS Ferrule, Ø200 µm Core, 0.39 NA, L=2 mm
$47.02
Today
CFML12L05 Support Documentation
CFML12L05Fiber Optic Cannula, Ø1.25 mm SS Ferrule, Ø200 µm Core, 0.39 NA, L=5 mm
$49.38
Today
CFML12L10 Support Documentation
CFML12L10Fiber Optic Cannula, Ø1.25 mm SS Ferrule, Ø200 µm Core, 0.39 NA, L=10 mm
$51.48
Today
CFML12L20 Support Documentation
CFML12L20Fiber Optic Cannula, Ø1.25 mm SS Ferrule, Ø200 µm Core, 0.39 NA, L=20 mm
$54.90
Today
CFML12U-20 Support Documentation
CFML12U-20Uncleaved Fiber Optic Cannula, Ø1.25 mm Stainless Ferrule, Ø200 µm Core, 0.39 NA, 20 Pack
$438.10
Volume Pricing
Today
M89L01 Support Documentation
M89L01Ø200 µm Core, 0.39 NA SMA905 to Ø1.25 mm Ferrule Patch Cable, 1 m Long
$97.71
Today
RJPSL2 Support Documentation
RJPSL2SMA to Ø1.25 mm Ferrule Rotary Joint Patch Cable, Ø200 µm Core, 3 m Long
$321.48
Today
ADAL3 Support Documentation
ADAL3Customer Inspired! Quick-Release Interconnect for Ø1.25 mm Ferrules
$32.31
Today
ADAL1-5 Support Documentation
ADAL1-5Ceramic Split Mating Sleeves for Ø1.25 mm (LC/PC) Ferrules, 5 Pack
$19.29
Today
S90R Support Documentation
S90RRuby DualScribe™ Fiber Optic Scribe
$54.37
Today
FS201 Support Documentation
FS201Fiber Inspection Scope with FS200-FC and FS201-SMA Adapters
$217.47
Today
FS200-LC Support Documentation
FS200-LCCustomer Inspired! LC-Type Connector Adapter for FS201 Fiber Inspection Scope
$30.21
Today
JEL10 Support Documentation
JEL10Standard 10X Eye Loupe
$25.01
Today
BFG1 Support Documentation
BFG1Rubber Gripper for Bare Fiber
$5.36
Today
XCL Support Documentation
XCLCustomer Inspired! Stereotaxic Cannula Holder, Ø1.25 mm Ferrules
$316.23
Today
XC7 Support Documentation
XC7Customer Inspired! Cannula Holder Adapter Arm, Ø7.9 mm, External 8-32 LH Stud
$48.33
Today
XC-CLAMP Support Documentation
XC-CLAMPCustomer Inspired! Adapter Clamp for Cannula Holder and Ø7.9 mm Adapter Arm
$91.14
Today
TZ2 Support Documentation
TZ2Optic Tweezers with Nylon Body and Tips
$5.36
Today
CKF Support Documentation
CKFFiber Optic Cleaning Kit
$107.16
Today
FTDU Support Documentation
FTDUFiber Optic Disposal Unit
$7.73
Today

Kit 3: Ø400 µm Core Fiber, Ø2.5 mm Ferrules, and Rotary Joint Patch Cable

Item # Product Description Quantity Alternate Items
Light Source
M470F3 470 nm Fiber-Coupled LED 1 Alternate Fiber-Coupled LEDs
LEDD1B LED Driver 1 Alternate LED Drivers
KPS101 LED Driver Power Supply 1
Cannulae
CFM14L02 2 mm Length Cannula 5 Alternate Cannulae
CFM14L05 5 mm Length Cannula 5
CFM14L10 10 mm Length Cannula 5
CFM14L20 20 mm Length Cannula 5
Patch Cables and Cannula Connectors
M79L01 Standard Patch Cable 1 Alternate Patch Cables
RJPSF4 Rotary Joint Patch Cable 1
ADAF2 Interconnect 1 Cannula Connectors
ADAF1-5 Mating Sleeves (Pack of Five)a 1
Tools for Cannula Implantation
XCF Stereotaxic Cannula Holder 1 Alternate Cannula Holders/
Adapters
XC7 Cannula Holder Adapter Arm 1
XC-CLAMP Cannula Holder Adapter Clamp 1
Fiber Handling Supplies
FS201 Fiber Inspection Scope 1 Alternate Inspection Tools
TZ2 Optic Tweezers 1 Alternate Fiber Care Supplies
CKF Fiber Cleaning Kit 1
FTDU Fiber Disposal Unit 1
  • We also offer our mating sleeves individually (Item # ADAF1).

Click to Enlarge

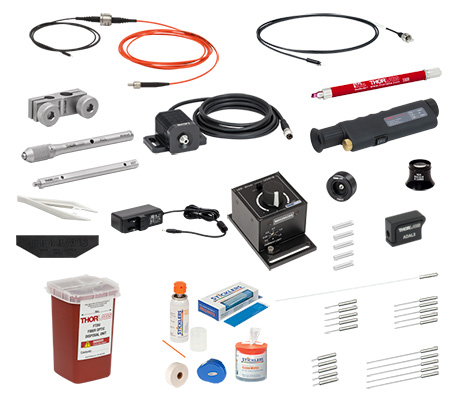

This kit features Ø400 μm fiber optic cannulae with Ø2.5 mm ferrules and a standard patch cable. This fiber size is more durable for implantation with larger specimens, while the Ø2.5 mm ferrules provide easier handling and a more robust connection. This kit does not come with uncleaved cannulae or cleaving tools.

Multiple patch cables options provide flexibility for a range of experimental setups. The standard patch cable is sufficient for sedated specimens. For experiments with mobile specimens, the rotary joint patch cable provides free movement of the cable via an integrated rotary joint interface. This reduces the risk of damage when the specimen moves, with higher light transmission and lower variation in rotational transmission than a separate rotary joint and patch cables solution.

To purchase this kit, its components can be added all at once to the shopping cart using the "Add Kit" button at the bottom of the ordering area, or individually using the shopping cart icon next to each item. Items may be removed from the default item list by changing the value in the "Qty" box to 0 before clicking the "Add Kit" button. To further customize the kit by adding alternative items, they can be added to the shopping cart via the alternate pages above or by using the "Quick View" links on the OG Selection Guide tab. This tab provides a comprehensive list of cannulae, sleeves, patch cables, and LEDs available for optogenetics studies.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
M470F3 Support Documentation
M470F3470 nm, 17.2 mW (Min) Fiber-Coupled LED, 1000 mA, SMA
$397.13
Today
LEDD1B Support Documentation
LEDD1BT-Cube LED Driver, 1200 mA Max Drive Current (Power Supply Not Included)
$314.13
Today
KPS101 Support Documentation
KPS10115 V, 2.4 A Power Supply Unit with 3.5 mm Jack Connector for One K- or T-Cube
$34.33
Today
CFM14L02 Support Documentation
CFM14L02Fiber Optic Cannula, Ø2.5 mm SS Ferrule, Ø400 µm Core, 0.39 NA, L = 2 mm
$44.92
Today
CFM14L05 Support Documentation
CFM14L05Fiber Optic Cannula, Ø2.5 mm SS Ferrule, Ø400 µm Core, 0.39 NA, L = 5 mm
$47.02
Today
CFM14L10 Support Documentation
CFM14L10Fiber Optic Cannula, Ø2.5 mm SS Ferrule, Ø400 µm Core, 0.39 NA, L = 10mm
$49.38
Today
CFM14L20 Support Documentation
CFM14L20Fiber Optic Cannula, Ø2.5 mm SS Ferrule, Ø400 µm Core, 0.39 NA, L = 20 mm
$52.53
Today
M79L01 Support Documentation
M79L01Customer Inspired! Ø400 µm Core, 0.39 NA, SMA905 to Ø2.5 mm Ferrule Patch Cable, 1 m Long
$90.88
Today
RJPSF4 Support Documentation
RJPSF4SMA to Ø2.5 mm Ferrule Rotary Joint Patch Cable, Ø400 µm Core, 3 m Long
$348.80
Today
ADAF2 Support Documentation
ADAF2Customer Inspired! Quick-Release Interconnect for Ø2.5 mm Ferrules
$32.31
Today
ADAF1-5 Support Documentation
ADAF1-5Ceramic Split Mating Sleeves for Ø2.5 mm (FC/PC, ST®/PC, or SC/PC) Ferrules, 5 Pack
$21.43
Today
XCF Support Documentation
XCFCustomer Inspired! Stereotaxic Cannula Holder, Ø2.5 mm Ferrules
$316.23
Today
XC7 Support Documentation
XC7Customer Inspired! Cannula Holder Adapter Arm, Ø7.9 mm, External 8-32 LH Stud
$48.33
Today
XC-CLAMP Support Documentation
XC-CLAMPCustomer Inspired! Adapter Clamp for Cannula Holder and Ø7.9 mm Adapter Arm
$91.14
Today
FS201 Support Documentation
FS201Fiber Inspection Scope with FS200-FC and FS201-SMA Adapters
$217.47
Today
TZ2 Support Documentation
TZ2Optic Tweezers with Nylon Body and Tips
$5.36
Today
CKF Support Documentation
CKFFiber Optic Cleaning Kit
$107.16
Today
FTDU Support Documentation
FTDUFiber Optic Disposal Unit
$7.73
Today

Kit 4: Ø400 µm Core Fiber and Ø1.25 mm Ferrules

Item # Product Description Quantity Alternate Items
Light Source
M470F3 470 nm Fiber-Coupled LED 1 Alternate Fiber-Coupled LEDs
LEDD1B LED Driver 1 Alternate LED Drivers
KPS101 LED Driver Power Supply 1
Cannulae
CFML14L02 2 mm Length Cannula 5 Alternate Cannulae
CFML14L05 5 mm Length Cannula 5
CFML14L10 10 mm Length Cannula 5
CFML14L20 20 mm Length Cannula 5
Patch Cables and Cannula Connectors
M98L01 Standard Patch Cable 1 Alternate Patch Cables
RJPSL4 Rotary Joint Patch Cable 1
ADAL3 Interconnect 1 Cannula Connectors
ADAL1-5 Mating Sleeves (Pack of Five)a 1
Tools for Cannula Implantation
XCL Stereotaxic Cannula Holder 1 Alternate Cannula Holders/
Adapters
XC7 Cannula Holder Adapter Arm 1
XC-CLAMP Cannula Holder Adapter Clamp 1
Fiber Handling Supplies
FS201 Fiber Inspection Scope 1 Alternate Inspection Tools
FS200-LC Inspection Scope Adapter 1
TZ2 Optic Tweezers 1 Alternate Fiber Care Supplies
CKF Fiber Cleaning Kit 1
FTDU Fiber Disposal Unit 1
  • We also offer our mating sleeves individually (Item # ADAL1).

Click to Enlarge

This kit features Ø400 μm fiber optic cannulae with Ø1.25 mm ferrules and a standard patch cable. This fiber size is more durable for implantation with larger specimens, while the Ø1.25 mm ferrules minimize stress on the specimen. This kit does not come with uncleaved cannulae or cleaving tools.

Multiple patch cables options provide flexibility for a range of experimental setups. The standard patch cable is sufficient for sedated specimens. For experiments with mobile specimens, the rotary joint patch cable provides free movement of the cable via an integrated rotary joint interface. This reduces the risk of damage when the specimen moves, with higher light transmission and lower variation in rotational transmission than a separate rotary joint and patch cables solution.

To purchase this kit, its components can be added all at once to the shopping cart using the "Add Kit" button at the bottom of the ordering area, or individually using the shopping cart icon next to each item. Items may be removed from the default item list by changing the value in the "Qty" box to 0 before clicking the "Add Kit" button. To further customize the kit by adding alternative items, they can be added to the shopping cart via the alternate pages above or by using the "Quick View" links on the OG Selection Guide tab. This tab provides a comprehensive list of cannulae, sleeves, patch cables, and LEDs available for optogenetics studies.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
M470F3 Support Documentation
M470F3470 nm, 17.2 mW (Min) Fiber-Coupled LED, 1000 mA, SMA
$397.13
Today
LEDD1B Support Documentation
LEDD1BT-Cube LED Driver, 1200 mA Max Drive Current (Power Supply Not Included)
$314.13
Today
KPS101 Support Documentation
KPS10115 V, 2.4 A Power Supply Unit with 3.5 mm Jack Connector for One K- or T-Cube
$34.33
Today
CFML14L02 Support Documentation
CFML14L02Customer Inspired! Fiber Optic Cannula, Ø1.25 mm SS Ferrule, Ø400 µm Core, 0.39 NA, L=2 mm
$49.38
Today
CFML14L05 Support Documentation
CFML14L05Customer Inspired! Fiber Optic Cannula, Ø1.25 mm SS Ferrule, Ø400 µm Core, 0.39 NA, L=5 mm
$51.48
Today
CFML14L10 Support Documentation
CFML14L10Customer Inspired! Fiber Optic Cannula, Ø1.25 mm SS Ferrule, Ø400 µm Core, 0.39 NA, L=10 mm
$53.32
Today
CFML14L20 Support Documentation
CFML14L20Customer Inspired! Fiber Optic Cannula, Ø1.25 mm SS Ferrule, Ø400 µm Core, 0.39 NA, L=20 mm
$57.00
Today
M98L01 Support Documentation
M98L01Ø400 µm Core, 0.39 NA SMA905 to Ø1.25 mm Ferrule Patch Cable, 1 m Long
$100.86
Today
RJPSL4 Support Documentation
RJPSL4SMA to Ø1.25 mm Ferrule Rotary Joint Patch Cable, Ø400 µm Core, 3 m Long
$348.80
Today
ADAL3 Support Documentation
ADAL3Customer Inspired! Quick-Release Interconnect for Ø1.25 mm Ferrules
$32.31
Today
ADAL1-5 Support Documentation
ADAL1-5Ceramic Split Mating Sleeves for Ø1.25 mm (LC/PC) Ferrules, 5 Pack
$19.29
Today
XCL Support Documentation
XCLCustomer Inspired! Stereotaxic Cannula Holder, Ø1.25 mm Ferrules
$316.23
Today
XC7 Support Documentation
XC7Customer Inspired! Cannula Holder Adapter Arm, Ø7.9 mm, External 8-32 LH Stud
$48.33
Today
XC-CLAMP Support Documentation
XC-CLAMPCustomer Inspired! Adapter Clamp for Cannula Holder and Ø7.9 mm Adapter Arm
$91.14
Today
FS201 Support Documentation
FS201Fiber Inspection Scope with FS200-FC and FS201-SMA Adapters
$217.47
Today
FS200-LC Support Documentation
FS200-LCCustomer Inspired! LC-Type Connector Adapter for FS201 Fiber Inspection Scope
$30.21
Today
TZ2 Support Documentation
TZ2Optic Tweezers with Nylon Body and Tips
$5.36
Today
CKF Support Documentation
CKFFiber Optic Cleaning Kit
$107.16
Today
FTDU Support Documentation
FTDUFiber Optic Disposal Unit
$7.73
Today
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites: West Coast US | Europe | Asia | China | Japan
Copyright 1999-2019 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px:Save this Image

Last Edited: Sep 12, 2013 Author: Dave Gardner
