Cage Cubes for Fluorescence Filter Sets


  • Quickly Interchange Filter Sets with Repeatable Alignment
  • Mount Ø1" or Ø2" Excitation and Emission Filters
  • Cage System and Lens Tube Compatible

DFM1

30 mm Cage Cube for Fluorescence Filter Sets, SM1-Threaded Ports

Cube Tops and Bottoms Also Available Separately

DFM2

60 mm Cage Cube for Fluorescence Filter Sets, SM2-Threaded Ports

Magnetic Coupling Offers Repeatable Alignment of a Fluorescence Filter Set within a Cage System

Related Items


Please Wait

Fluorescence filter sets can be easily mounted in a fluorescence filter cube (filters sold separately).

Cage-Compatible Filter Cube
Click to Enlarge

Each filter cube can hold a fluorescence filter set: one dichroic mirror, one excitation filter, and one emission filter.

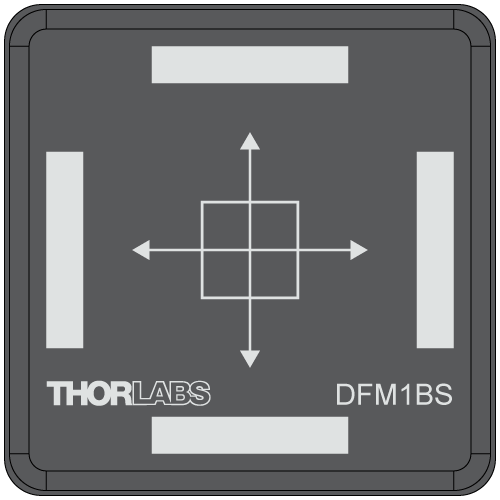

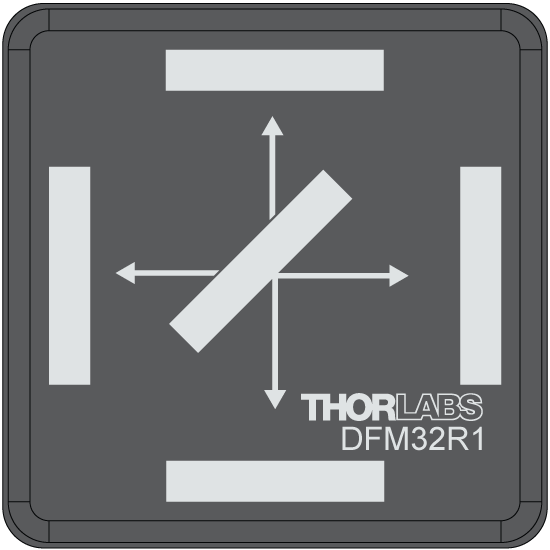

Fluorescence Filter Cube Labels
Click to Enlarge

Each filter cube has two excitation (EX) and two emission (EM) filter ports. Ports labeled with the same number should be used together.

Features

  • Cage Cubes for Holding Fluorescence Filter Set (Sold Separately)
  • 30 mm or 60 mm Cage System Compatible
  • SM1 (1.035"-40) or SM2 (2.035"-40) Lens Tube Compatible
  • Two Emission Ports with 3° Tilt to Reduce Undesired Reflections
  • Individual Cube Tops, Bottoms, and Cover Plates Also Available
  • Easily Swap Cube Tops with Different Mounted Optics
  • Cage Cube Connectors for Connecting Two Cubes Side by Side (Sold Separately Below)
  • Compatible with Beam-Turning Cube Systems

Thorlabs' Fluorescence Filter Cubes are designed to hold a fluorescence filter set (dichroic mirror, excitation filter, and emission filter) in a cage-system-compatible cube for home-built microscopy setups. Each filter cube consists of a post-mountable base and removable top that accepts filter set components. The cube top is magnetically retained in the cube base, allowing for repeatable insertion in an aligned setup. Additional tops are available to easily exchange alternate filter sets. This enables the user to switch between fluorescence imaging of different wavelengths or to change the direction of the reflected light.

As shown in the animation to the right, the insert is designed to hold a rectangular optic, such as a dichroic mirror, beamsplitter, silver mirror, or polarizing bandpass filter. The rectangular optic is clamped gently in place using a leaf spring that provides a uniform holding force to minimize stress. To mount the rectangular optic, remove the leaf spring using a Phillips #00 screwdriver and then insert the optic with the reflective coating face down. Only light force is needed to prevent the optic from moving; we recommend screwing in both screws most of the way before final tightening.

In addition, the cube top has four ports for round filters. Excitation and emission filters can be mounted in two possible configurations (see the diagram to the right) and are held using the included retaining rings, which can be tightened or loosened with our spanner wrenches (sold separately). The emission ports are oriented at a 3° angle with respect to the face in order to reduce undesired reflections. To help keep track of your filter sets, spaces are provided on the top to write labels for the mounted filters and mirrors. The cube top is designed to be inserted in a single orientation with respect to the cube base, so it is important to orient the full cube assembly in the proper direction. The 30 mm cage cubes and cage cube tops on this page are available with either a left- or right-turning orientation.

The base of these kinematic cubes has an SM-threaded port on each vertical face; the 30 mm cage-compatible cubes have SM1 (1.035"-40) threading, while the 60 mm cage-compatible cubes have SM2 (2.035"-40) threading. The cube base is equipped with three bottom-located 1/4"-20 (M6) tapped holes, which provide direct compatibility with our Ø1" posts or Ø1.5" posts. Alternatively, an AE8E25E (AE4M6M) thread adapter (sold separately) can be used for compatibility with our Ø1/2" posts.

 Fluorescence Filter Cubes Selection Guide
Item # Excitation Filter Dimensions Emission Filter Dimensions Dichroic Filter Dimensions Cage Compatibility Lens Tube Compatibility
DFM1(/M)
DFM1L(/M)
Ø25 mm,
5.0 mm Max. Thickness
Ø25 mm,
3.5 mm Max. Thickness
Min: 25.0 x 35.6 x 1.0 mm
Max: 25.2 x 36.0 x 2.0 mma
30 mm Cage System Internal SM1 (1.035"-40) Threading
DFM2(/M) Ø50 mm,
9.0 mm Max. Thickness
Ø50 mm,
6.0 mm Max. Thickness
Min: 50.8 x 72.0 x 2.0 mm
Max: 50.8 x 72.0 x 3.0 mm
60 mm Cage System Internal SM2 (2.035"-40) Threading
  • To mount dichroic filters thicker than 2.0 mm in a 30 mm cage cube, we recommend using our Dichroic Cage Cube.
# Product Description Qty. Photo
(Click to Enlarge)
1 DFM1 - Kinematic
Fluorescence Filter Cube
1 Dichroic Cage Cube
2 Microscopy Filters 1 Set Microscopy Filters
3 SM1B3 - Lens Tube Bellows 1 Bellows
4 SM1ZM - Non-Rotating
SM1 Zoom Housing
1 Zoom Housing
5 Focusing Lens Inside
Zoom Housing
1 Focusing Lens
6 ST1XY-D - XY Translator
with Differential Drives
1 XY Translator
7 Precision Pinhole Between
XY Translator and Photodetector
1 Precision Pinhole
8 Photodetector
SM1-Compatible Photodetector
1 Photodetector

DFM1 Filter Cubes - Optic Alignment in a Confocal Microscope Detection Module

The DFM1 is ideal for integrating filter sets into a custom microscopy setup. The following example of a partial confocal microscope uses a DFM1 Fluorescence Filter Cube (denoted by 1 in the image below) containing a Microscopy Filter Set (2) and an APD120A2(/M) Photodetector (8). A lens (5) located inside the SM1ZM High-Precision Zoom Housing (4) focuses the beam onto a precision pinhole (7) located just before the avalanche photodetector's detector element. The SM1ZM zoom housing is mounted directly onto the ST1XY-D XY Translation Mount with Differential Adjusters (6), creating a compact XYZ mount. SM1 Lens Tubes and the SM1B3 Lens Tube Bellows (3) allow for a light-tight connection without inhibiting the free movement of the XYZ mount.

Components used in the configuration pictured below are listed in the table to the right. These parts, along with SM1 Lens Tubes and 1" Post Assemblies, are sold separately.

Application

Posted Comments:
lukas.hille  (posted 2018-06-25 14:25:22.08)
Dear Thorlabs Team, it would be nice, if the cube or an additional mount could hold 3mm thick dichroics. The quality of 3mm thick dichroics is supperior compared to 1 and 2mm. I like this cube and its stability and flexibility. best regards Lukas
YLohia  (posted 2018-06-25 09:37:44.0)
Hello Lukas, the CM1-DCH allows for the mounting of dichroics up to 3mm thick.
gregory.futia  (posted 2016-12-02 14:43:20.163)
I designed a 3D printable storage box for the DFM1T1. The design files and STLs for printing are available on Thingverse. http://www.thingiverse.com/thing:1923215
tfrisch  (posted 2016-12-05 01:19:05.0)
Hello, thank you for your contribution on Thingiverse on behalf of our products. I hope our technical drawings were helpful in your application.
dkleckner  (posted 2015-10-21 14:54:35.817)
Could you please provide me with an estimated time-frame for the redesigned mount which would prevent overtightening? Will the new version share the same top half (so that it could be substituted later), or will both pieces be modified?
besembeson  (posted 2015-10-26 10:08:28.0)
Response from Bweh at Thorlabs USA: We don't have a firm release date yet but are working on this. I will follow-up with you.
kyleh  (posted 2015-09-23 10:53:43.4)
I am not convinced the little rubber pieces not causing distortion. I put my optic in, tightened it slowly and alternated sides, and it seemed fine at first. I put it back in the magnetic holder, and after about 15 minutes just sitting in the magnetic holder, it snapped my dichroic!! My dichroic is spec'd at 1.1 mm thickness as it says should work. It seems that sitting in the magnetic holder caused the holding to shift somehow? This is ridiculous! There has to be a better way to hold the dichroics in place for this holder without breaking my optics or bending them to cause aberrations as others have commented on.
besembeson  (posted 2015-10-07 10:32:15.0)
Response from Bweh at Thorlabs USA: Thanks for the feedback. We are actually redesigning this mount that will prevent any over-tightening during assembly. I will be in contact with you once we release this.
richard.j.smith  (posted 2015-08-17 04:22:31.287)
similar to comment below from dfogletree, i would like a left handed filter holder to fit in the standard holder, so i can switch between two configurations in my instrument. is this part available yet?
besembeson  (posted 2015-09-25 09:43:22.0)
Response from Bweh at thorlabs USA: This part is not available yet. For now, the only option, which of course doesn't have all the advantages of the DFM is to use an a C6W or C4W with a B4C or B3C and an FFM1 or B5C that provides the freedom to set output orientation.
dfogletree  (posted 2014-12-11 15:27:37.42)
We are using the turning mirror and dichroic kinematic cubes, these are very useful for directing light to different detectors. However at the moment, as far as I know, there are only "right handed" parts. Once the base in built into an optical system, I would like to be able to put either a right or left mirror/dichroic in the base. This would let me built more flexible systems. Or there could be a method to convert right to left by unscrewing the parts -- at the moment the chirality seems to be fixed.
cdaly  (posted 2014-12-18 04:26:48.0)
Response from Chris at Thorlabs: Thank you for your feedback. We will discuss internally the possibility of adding another insert which can help steer the beam in the other direction without having to remount the cube entirely.
dkleckner  (posted 2014-05-16 11:44:09.79)
I'm having a similar problem as n-lindquist and syim regarding optical aberrations. I tested the holder and found that even applying a small amount of tightening force causes significant distortion with such thin optics. Is there any quick fix for this problem? I'm considering removing the rubber pieces and attaching the filter with optical epoxy, but this would limit the usefulness of the filter holder.
besembeson  (posted 2014-05-21 04:25:05.0)
A response from Bweh at Thorlabs in USA: Thanks for your feedback. It could be that you over-tighten the screws. The dichroic mirror is clamped in place using a design that provides uniform pressure without causing deformation to the mirror, and is locked in place using two 4-40 screws locked by a 3/32" hex key. Only light force is required to mount the filter. We recommend screwing in both screws most of the way before final tightening with a balldriver. Let me know if this helps
nkaplin1  (posted 2013-09-03 14:48:31.513)
Can you clarify the size of the dichroic that this cube will accept. It is listed as holding 25.2x35.6mm and 25x36mm in two places on the product page. Will it accept the standard Zeiss and Nikon 25.5x36mm size?
pbui  (posted 2013-09-09 10:32:00.0)
Response from Phong at Thorlabs: Thank you for your post. The DFM cube should accept the standard Zeiss and Nikon size of 25.5 x 36 mm. If you have any further questions please contact Techsupport@thorlabs.com
syim  (posted 2013-05-14 21:45:07.743)
I have tried DFM/M for a home-built confocal microscopy. But I found my focused laser beam having severe aberrations. I believe the two small rubbers for dichroic beamsplitter give too much stress, since my collimated Gaussian beam turns to elliptical beam horizontally after about 50 cm. I tried my dichroic beamsplitter as well as a standard beamsplitter of Thorlabs (BSW20). My Nikon filter cube has no such problem (as you may know, it has a metal spring, instead of rubbers).
jlow  (posted 2013-05-14 11:56:00.0)
Response from Jeremy at Thorlabs: It could be that the screws are being over-tightened. You just need to have the screws in finger-tight (just enough to hold the optic in place). Also, it would be good to screw in both screws a considerable amount before the final tightening. I will contact you to discuss about this further.
n-lindquist  (posted 2013-05-04 13:45:03.383)
I am using a 1.1 mm thick "laser flat" dichroic filter and noticed that some significant astigmatism is introduced when mounted in this DFMT1 cube vs your standard cage-cube dichroic filter holders. Could the DFMT1 bend the dichroic at all?
jlow  (posted 2013-05-09 16:43:00.0)
Response from Jeremy at Thorlabs: The DFM shouldn't be bending your optic. I will contact you directly to look into this issue you are having.
werley  (posted 2013-02-20 14:54:22.65)
The magnetic filter cube is very convenient and we are hoping to use it in several home-built microscopes in the lab, but there are a couple issues. First, it would be great if the cube could accept slightly larger dichroics (26x38mm) that are standard in some Olympus filter cubes. This would facilitate interchange between different microscopes. We are hesitant to make the switch if we can't use any of the dichroics we already own. Second, I don't like how the piece that unscrews from the DFMT1 to insert or remove the dichroic has a smaller clear aperture than standard for SM1. Could you not move the rubber cylinders so the press on the corners of the dichroic to fix it in place, and bore the holes out a bit further? Thanks.
cdaly  (posted 2013-03-06 09:09:00.0)
Response from Chris at Thorlabs: Thank you for using our web feed back. The DFM had been designed with the intention of keeping the product as compact as possible for use with our dichroic filters for fluorescence. I agree that this interoperability would be quite useful. I will bring up your recommendations in our internal forums and make sure that this is known to our engineers for possible revision.
tcohen  (posted 2012-12-06 16:26:00.0)
Response from Tim at Thorlabs: Thank you for your feedback! The DFM is designed to accept our line of fluorescence dichroics and our standard dichroic mirrors. For larger filters, we offer a solution with the use of either the CM1-DCH or the C4W with a B3C and FFM1. These have recently been updated to reduce deformation of the filter.
seamus.holden  (posted 2012-11-27 13:39:45.043)
I would very much like to use thicker dichroics (2mm) with this design. Thicker dichroics are very important for TIRF applications. Has there been any progress on this? - I see that this issue was last raised in March.
bdada  (posted 2012-04-23 16:48:00.0)
Response from Buki at Thorlabs: Thank you for your feedback. We are discussing your request with our production team and will post an update soon.
user  (posted 2012-04-19 14:52:21.0)
Limiting the dichroic thickness to only 1 mm really limits what filters you can use. Can the design be modified to support thicker filters?

30 mm Cage-Compatible, Kinematic Fluorescence Filter Cubes

Cage-Compatible Filter Cube
Click to Enlarge

The DFM1L Cube (Left Panel) and DFM1 Cube (Right Panel) used to direct a filtered beam to the left and right, respectively. Light from a MCWHL5 LED was directed via the MDF-TRITC Filter Set installed in each cube.
Cage-Compatible Filter Cube Mechanical Drawing
Click for Details
Drawing of DFM1. The SM1-threaded ports on the DFM1/M are at an optical axis height of 30 mm.
DFM1(/M) & DFM1L(/M) Compatible Filters
Type Dimensions Thickness
Excitation Ø25 mm 5.0 mm
Emission Ø25 mm 3.5 mm
Dichroic Min: 25.0 mm x 35.6 mm
Max: 25.2 mm x 36.0 mm
Min: 1.0 mm
Max: 2.0 mma
  • To mount dichroic filters thicker than 2.0 mm, we recommend using our Dichroic Cage Cube.
  • Kinematic 30 mm Cage-Compatible Cubes for Mounting Fluorescence Filter Sets
    • DFM1(/M): Right-Turning Orientation
    • DFM1L(/M): Left-Turning Orientation
  • Four 4-40 Tapped Holes Around Each SM1-Threaded (1.035"-40) Port Enable 30 mm Cage System Compatibility
  • Three Bottom-Located 1/4"-20 (M6) Tapped Holes for Post Mounting

These Kinematic Fluorescence Filter Cubes each consist of a post-mountable cube base and a removable top that mounts a fluorescence filter set (sold separately). The DFM1 holds a dichroic mirror in a right turning orientation, and the DFM1L in a left-turning orientation. Thus, using the DFM1 as opposed to the DFM1L results in a 180° difference in light output direction (see image to the right).

See the table to the right for acceptable optic sizes. To see how optics are installed in the filter cubes, please see the animation in the Overview tab above. Prior to mounting the rectangular dichroic mirror, please confirm that the optic is no greater than 2.0 mm thick. To mount dichroic mirrors thicker than 2.0 mm, we recommend using our Dichroic Cage Cube.

All four sides of the filter cube base have an SM1-threaded port for compatibility with our Ø1" lens tubes. The SM1 port is centered between four 4-40 tapped holes for compatibility with Ø6 mm cage rods in a 30 mm cage system, at an optical axis height of 1.25" or 30.0 mm from the bottom of the imperial or metric cube, respectively.

Empty kinematic filter cube tops, bottom, and a cover plate are also sold separately below.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
DFM1 Support Documentation
DFM1Kinematic Fluorescence Filter Cube, 30 mm Cage Compatible, Right-Turning, 1/4"-20 Tapped Holes
$374.92
Today
DFM1L Support Documentation
DFM1LKinematic Fluorescence Filter Cube, 30 mm Cage Compatible, Left-Turning, 1/4"-20 Tapped Holes
$374.92
Today
+1 Qty Docs Part Number - Metric Price Available
DFM1/M Support Documentation
DFM1/MKinematic Fluorescence Filter Cube, 30 mm Cage Compatible, Right-Turning, M6 Tapped Holes
$374.92
Today
DFM1L/M Support Documentation
DFM1L/MKinematic Fluorescence Filter Cube, 30 mm Cage Compatible, Left-Turning, M6 Tapped Holes
$374.92
Today

30 mm Cage-Compatible, Kinematic Fluorescence Filter Cube Tops and Bottoms

Cage-Compatible Filter Cube
Click to Enlarge

In both panels, a MCWHL5 LED is attached to a DFM1B base. DFM1T1 tops with a MDF-GFP filter set (left) or a MDF-TRITC filter set (right) can be swapped to change between imaging different fluorescent samples.
DFM1T1 & DFM1T3 Compatible Filters
Type Dimensions Thickness
Excitation Ø25 mm 5.0 mm
Emission Ø25 mm 3.5 mm
Dichroic Min: 25.0 mm x 35.6 mm
Max: 25.2 mm x 36.0 mm
Min: 1.0 mm
Max: 2.0 mma
  • To mount dichroic filters thicker than 2.0 mm, we recommend using our Dichroic Cage Cube.
  • Empty Kinematic Bases and Tops for Exchanging User-Provided Filters or Mirror
  • Ideal for Quickly Switching Fluorescence Filter Sets or Angle of Reflection in an Aligned Experimental Setup
  • Cube Base with Four 4-40 Tapped Holes Around Each SM1-Threaded (1.035"-40) Port
    • Three Bottom-Located 1/4"-20 (M6) Tapped Holes for Post Mounting
  • Cover Plate for Uninterrupted Beam Transmission Available

These Kinematic Fluorescence Filter Cube Tops (DFM1T1 and DFM1T3) and Bases [DFM1B(/M)] allow users to switch between different filter sets in an aligned experimental setup (see image to the right). These items do not include fluorescence filters or a dichroic mirror.

See the table to the right for acceptable optic sizes in the cube tops. To see how optics are installed in the filter cubes, please see the animation in the Overview tab above. Prior to mounting the rectangular dichroic mirror, please confirm that the optic is no greater than 2.0 mm thick. To mount dichroic mirrors thicker than 2.0 mm, we recommend using our Dichroic Cage Cube.

The cube top is designed to be inserted in a single orientation with respect to the cube base, so it is important to orient the full cube assembly in the proper direction. Cage cube tops that hold the dichroic mirror in a right-turning (DFM1T1) or left-turning (DFM1T3) orientation are available.

All four sides of the DFM1B(/M) cube base have an SM1-threaded port for compatibility with our Ø1" lens tubes. The SM1 port is centered between four 4-40 tapped holes for compatibility with Ø6 mm cage rods in a 30 mm cage system, at an optical axis height of 1.25" or 30.0 mm from the bottom of the imperial or metric cube, respectively.

The DFM1C Cage Cube Top Cover Plate is also available for when a filter is not installed within the cube. When used with the SM1CP2 End Cap, this top cover minimizes the amount of stray light entering through the top or unused ports.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
DFM1B Support Documentation
DFM1BKinematic 30 mm Cage Cube Base, 1/4"-20 Tapped Holes
$154.50
Today
+1 Qty Docs Part Number - Universal Price Available
DFM1T1 Support Documentation
DFM1T1Kinematic Cage Cube Top for Fluorescence Filter Sets, Right-Turning
$262.65
Today
DFM1T3 Support Documentation
DFM1T3Customer Inspired! Kinematic Cage Cube Top for Fluorescence Filter Sets, Left-Turning
$262.65
Today
DFM1C Support Documentation
DFM1CCustomer Inspired! 30 mm Cage Cube Top Cover Plate
$46.35
Today
+1 Qty Docs Part Number - Metric Price Available
DFM1B/M Support Documentation
DFM1B/MKinematic 30 mm Cage Cube Base, M6 Tapped Holes
$154.50
Today

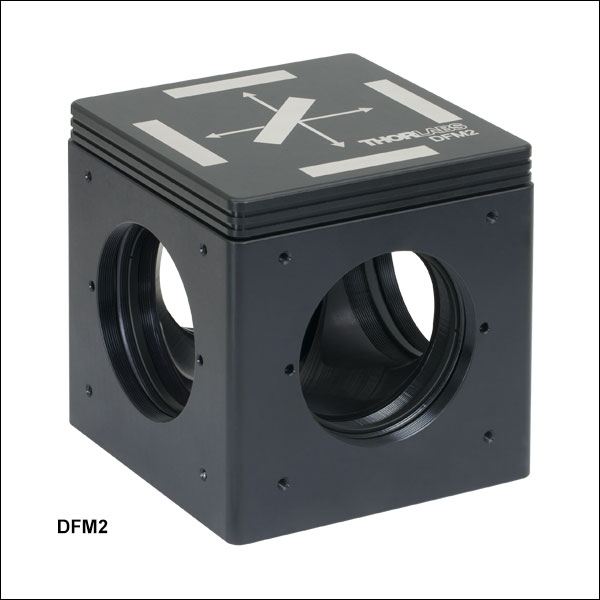

60 mm Cage-Compatible, Kinematic Fluorescence Filter Cubes

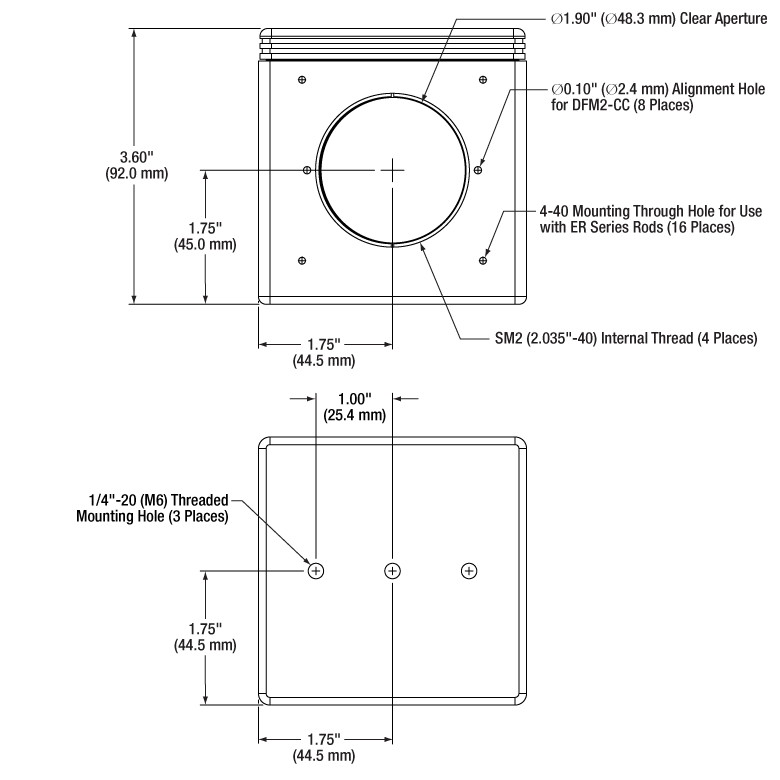

60 mm Cage-Compatible Fluorescence Filter Cube Mechanical Drawing
Click for Details

Drawing of DFM2(/M)
DFM2(/M) Compatible Filters
Type Dimensions Thickness
Excitation Ø50 mm 9.0 mm
Emission Ø50 mm 6.0 mm
Dichroic 50.8 mm x 72.0 mm Min: 2.0 mm
Max: 3.0 mm
  • Kinematic 60 mm Cage-Compatible Cubes for Mounting Fluorescence Filter Sets
  • Four 4-40 Tapped Holes Around Each SM2-Threaded (2.035"-40) Port Enable 60 mm Cage System Compatibility
  • Three Bottom-Located 1/4"-20 (M6) Tapped Holes for Post Mounting

The Kinematic Fluorescence Filter Cube for 60 mm Cage Systems consists of a post-mountable cube base and a removable top that mounts a fluorescence filter set (not included).

See the table to the right for acceptable optic sizes. To see how to install optics in the filter cubes, please see the animation in the Overview tab above. Prior to mounting the rectangular dichroic mirror, please confirm that the optic is no greater than 3.0 mm thick.

The cube top is designed to be inserted in a single orientation with respect to the cube base, so it is important to orient the full cube assembly in the proper direction.

All four sides of the filter cube base have an SM2-threaded port for compatibility with our Ø2" lens tubes. The SM2 port is centered between four 4-40 tapped holes for compatibility with Ø6 mm cage rods in a 60 mm cage system, at an optical axis height of 1.75" or 45.0 mm in the imperial or metric versions, respectively.

An empty kinematic filter cube top, bottom, and cover plate are also sold separately below.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
DFM2 Support Documentation
DFM2Kinematic Fluorescence Filter Cube, 60 mm Cage Compatible, Right-Turning, 1/4"-20 Tapped Holes
$535.60
Today
+1 Qty Docs Part Number - Metric Price Available
DFM2/M Support Documentation
DFM2/MKinematic Fluorescence Filter Cube, 60 mm Cage Compatible, Right-Turning, M6 Tapped Holes
$535.60
Today

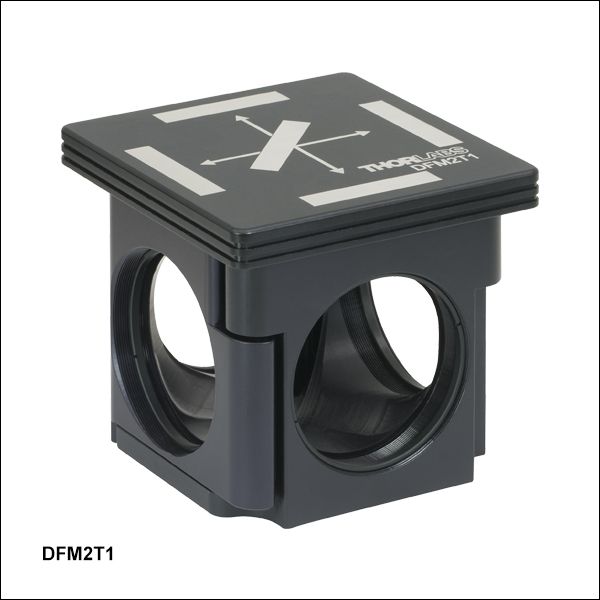

60 mm Cage-Compatible, Kinematic Fluorescence Filter Cube Tops and Bottoms

DFM2T1 Compatible Filters
Type Dimensions Thickness
Excitation Ø50 mm 9.0 mm
Emission Ø50 mm 6.0 mm
Dichroic 50.8 mm x 72.0 mm Min: 2.0 mm
Max: 3.0 mm
  • Empty Kinematic Bases and Tops for Exchanging User-Provided Filters or Mirror
  • Ideal for Quickly Switching Fluorescence Filter Sets or Angle of Reflection in an Aligned Experimental Setup
  • Cube Base with Four 4-40 Tapped Holes Around Each SM2-Threaded (2.035"-40) Port
    • Three Bottom-Located 1/4"-20 (M6) Tapped Holes for Post Mounting
  • Cover Plate for Uninterrupted Beam Transmission Available

The Kinematic Fluorescence Filter Cube Top (DFM2T1) and Bases (DFM2B and DFM2B/M) are ideal for customers who wish to mount their own filter sets. Different filter sets can be loaded into the tops, allowing for easy exchange of filter sets within an experimental setup (see image to the right). These items do not include fluorescence filters or a dichroic mirror.

See the table to the right for acceptable optic sizes. To see how to install optics in the cube, please see the animation in the Overview tab above. Prior to mounting the rectangular dichroic mirror, please confirm that the optic is no greater than 3.0 mm thick.

The cube top is designed to be inserted in a single orientation with respect to the cube base, so it is important to orient the full cube assembly in the proper direction.

All four sides of the DFM2B(/M) cube base have an SM2-threaded port for compatibility with our Ø2" lens tubes. The SM2 port is centered between four 4-40 tapped holes for compatibility with Ø6 mm cage rods in a 60 mm cage system, at an optical axis height of 1.75" or 45.0 mm from the bottom of the imperial or metric cube, respectively.

The DFM2C Cage Cube Top Cover Plate is also available for when a filter is not installed within the cube. When used with the SM2CP2 End Cap, this top cover minimizes the amount of stray light entering through the top or unused ports.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
DFM2B Support Documentation
DFM2BKinematic 60 mm Cage Cube Base, 1/4"-20 Tapped Holes
$145.23
Today
+1 Qty Docs Part Number - Universal Price Available
DFM2T1 Support Documentation
DFM2T1Kinematic 60 mm Cage Cube Top for Fluorescence Filter Sets, Right Turning
$390.37
Today
DFM2C Support Documentation
DFM2C60 mm Cage Cube Top Cover Plate
$65.92
Today
+1 Qty Docs Part Number - Metric Price Available
DFM2B/M Support Documentation
DFM2B/MKinematic 60 mm Cage Cube Base, M6 Tapped Holes
$145.23
Today

Cage Cube Connectors

Beam Turning Cage Cube Connector
Click to Enlarge
Two DFM1-P01 Beam Turning Cubes Connected Using the C4W-CC Cage Cube Connector
  • Connect Two Beam Turning or Fluorescence Filter Cubes Side by Side
  • Remove and Interchange Cube Tops while the Cube Bases are Connected
  • Screws Included for Attaching Cage Cubes
  • C4W-CC is Also Compatible with C4W and C6W Cage Cubes

Cage Cube Connectors allow two kinematic beam turning or fluorescence filter cubes to be connected together, as shown in the image to the right. The connector is attached to the cage cubes using the included 4-40 screws in the cage rod holes. Two pins on each cage cube connector are accepted by drilled holes on either side of any of the SM-threaded ports on the cage cube faces to maintain alignment. Fluorescence filter and beam turning cube tops can still be removed and inserted while the cube housings are connected.

The C4W-CC is also compatible with our 30 mm cage cubes.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
C4W-CC Support Documentation
C4W-CCCustomer Inspired! 30 mm Cage Cube Connector for C4W and C6W Series Cubes
$53.06
Today

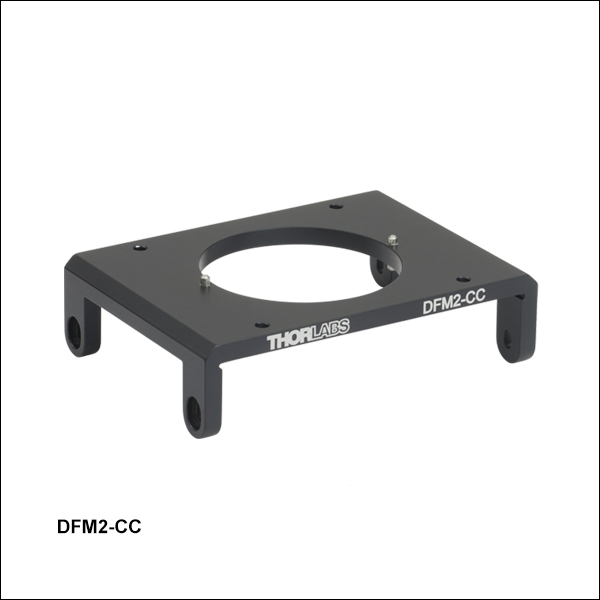

DFM2-CC Support Documentation
DFM2-CC60 mm Kinematic Cage Cube Connector
$67.98
Today
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites: West Coast US | Europe | Asia | China | Japan
Copyright 1999-2019 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px:Save this Image
