- Circular Bullseye Level is Ideal for Checking the Level of Breadboards and Tables in the XY Plane
- Combination Square and Level can be Used to Measure the Level in One Dimension and Draw Right Angles
LVL02
Combination Square and Level
Through Holes in the LVL02 Combination Square and Level Provide Easy Access for Measurement Marking
LVL03
Circular Bullseye Level
Please Wait
Thorlabs offers a combination and square level ideal for making precision measurements in one dimension, as well as a circular bullseye level for checking level in the XY plane. Both are available below.
| Posted Comments: | |
user
(posted 2021-01-29 08:25:08.603) It would be great if a metric version of LVL02 was available! It would only require different gradations and holes on the blade, the body could stay the same. YLohia
(posted 2021-02-05 04:41:43.0) Hello, thank you for your feedback. We will consider adding a metric option to our catalog in the future. ludoangot
(posted 2016-11-15 10:29:14.203) Hello, is a metric version of the square with the same features (level, holes,...) available? tfrisch
(posted 2016-11-18 08:49:11.0) Hello, thank you for contacting Thorlabs. Unfortunately, there is not a metric version available at this time. |
Zoom
Click for Details

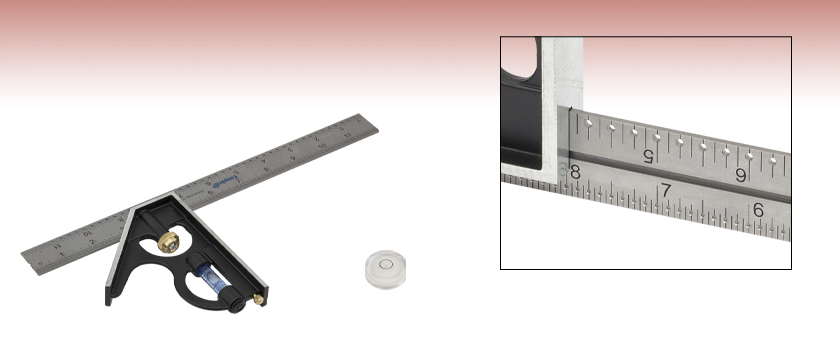

Figure G1.1 The holes in LVL02 can be used to measure the height of a beam larger than the hole. Click the photo to see an enlarged image with a zoom of the beam on the blade.
- Precision Machined Head and Bubble Level Ensure Squareness to 0.001°
- 12" Etched Stainless Steel Blade with 3 Different Inch Graduations: 8, 16, and 32 Marks per Inch
- Through Holes Every 1/4" and 1/8" Provide Easy Marking Access
- Heavy-Duty Machined Square Head
- Self-Aligning Drawbolt
- Hardened Scriber Included in Back of Head
The LVL02 Combination Square is a precision instrument with better sensitivity than similar instruments used in carpentry. Sensitivity is the measure of how large of a tilt is needed for the bubble to move, while accuracy is how close to true level the device measures. The stainless steel blade is marked with two scales on each side and is removable. One side is marked with 1/8" markings with 1/4" hole spacing and 1/16" markings with 1/8" hole spacing. On the other side, the ruler is marked with 1/16" markings with 1/4" hole spacing and 1/32" markings with 1/8" hole spacing. Also included with the combination square is a hardened scriber which is conveniently stored in the back of the head for ready access.
The holes in LVL02 can also be used to measure the height of a beam by aligning the square such that the beam passes through one of the holes. The height of the beam can be measured by determining which hole the beam passes through as shown in Figure G1.1.
Zoom
Click to Enlarge

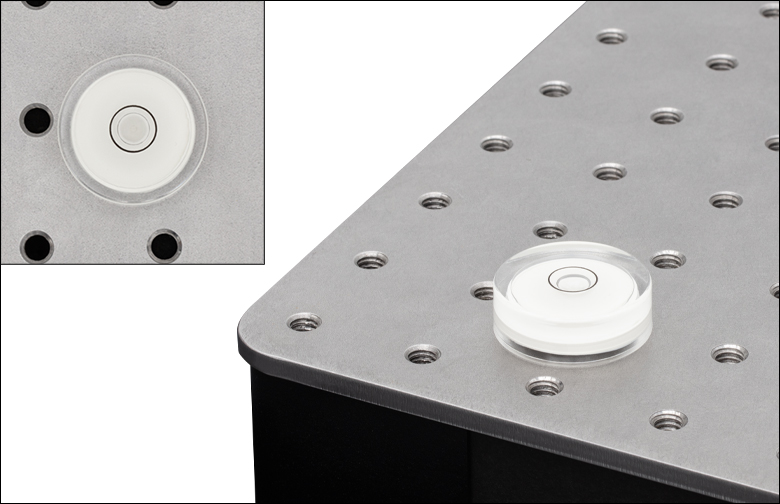

Figure G2.1 The LVL03 Circular Bullseye Level is ideal for checking the level of optical tables.
- 37 minutes per 2 mm Sensitivity
- Made of Durable Acrylic
- Measures Level in XY Plane
- 30 mm Outer Diameter

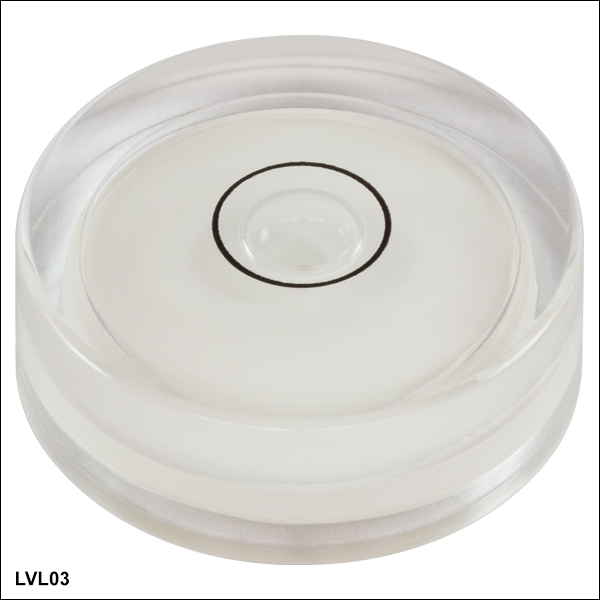

The LVL03 Circular Bullseye Level is well suited for determining level position in the XY plane. It features an outer diameter of 30 mm and is made of durable acrylic. A clear liquid and white backing make it easy to visualize level by centering the bubble within the black central Ø8.8 mm ring. This level can be used in the lab to measure and set the alignment of optomechanical mounts, breadboards, and optical tables, as shown in Figure G2.1.
