Purpose-Built Imaging Platforms

Thorlabs' microscopy systems combine the full benefits of a vertically integrated organization with decades of expertise to tailor virtually every component incorporated into its platforms. Our scientists and engineers draw from experience in all key disciplines to design, develop, manufacture, and support advanced imaging systems.

Our systems are designed from a clean sheet of paper to do the job intended from the beginning. Leveraging our extensive in-house design and fabrication capabilities allows us to minimize design trade-offs, develop targeted solutions to challenging problems, and customize each individual system to our customers' specifications. See below to view our imaging systems available.

Bergamo
Multiphoton System

TIDE™ Whole-Slide
Scanning Microscope

Multiphoton
Mesoscope

Cerna®
Modular Microscopy

Confocal
Microscopy

Spectral Domain
OCT Systems



Bergamo II Microscope
Click to Enlarge

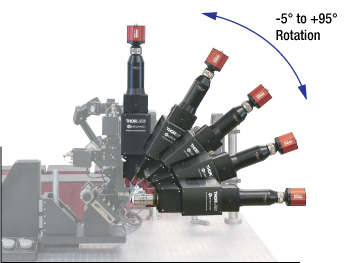

Rotating Bergamo II Microscopes Offer 100° of Focal Plane Rotation



Bergamo® II Series Multiphoton Microscopes

Recognizing that there is a need for a microscope with a modular structure that can be configured to the experiment, rather than the other way around, we set out to develop the new reference standard in multiphoton microscopy. With a selection of rigid bodies, numerous auxiliary imaging modalities, detectors, motion control, and laser beam control, the permutations of the Bergamo II Series are endless. All configurations can be paired with the Tiberius® Ti:Sapphire Femtosecond Laser, which has an industry-leading tuning speed and is designed to enable fast sequential imaging in multiphoton microscopy applications.

For additional information, please see the full Bergamo II Series presentation.



EnVista Whole-Slide-Scanning Microscope
Click to Enlarge

TIDE™ Whole-Slide-Scanning Research Microscope Configured for Brightfield and Fluorescence



TIDE™ Whole-Slide-Scanning Research Microscope

Our TIDE™ whole-slide imaging system is a fast, accurate solution built on a research microscope. Available for brightfield and fluorescence microscopy, TIDE offers greatly increased imaging speeds (up to 5 times) when compared to stop-and-stare techniques, as well as large-format images with reduced alignment errors that do not require stitching.

For additional information, please see the full TIDE presentation.



Bergamo II Microscope
Click to Enlarge

The Multiphoton Mesoscope Utilizes Technology Under License with HHMI's Janelia Research Campus



Multiphoton Mesoscope

To analyze large sections of the brain operating in concert, we developed a two-photon mesoscope for rapid functional imaging over a large Ø5 mm field of view (FOV). Scan over the entire FOV or rapidly image multiple spatially separated regions. The mesoscope enables in vivo awake-specimen neural studies at sub-cellular resolution with near-video imaging frame rates.

For additional information, please see the full Multiphoton Mesoscope presentation.



Cerna
Click to Enlarge

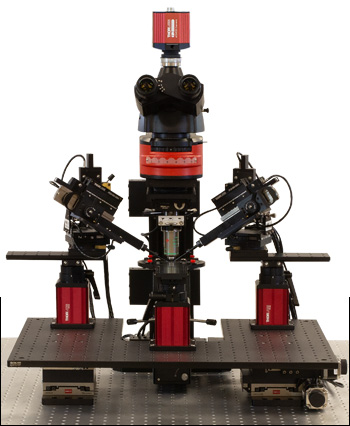

Cerna DIY Microscope Configured for Single-Cell Recordings
Cerna
Click to Enlarge

Cerna Mini Simple Fluorescence Microscope Mounted on a 12" x 24" Breadboard



Cerna® Modular Microscopy Platform

The Cerna Series is Thorlabs' easily adjustable, DIY microscopy platform for diverse experimental requirements, including cellular and developmental biology, electrophysiology, optogenetics, and machine inspection. Its versatile, expandable, and accessible design is fully compatible with Thorlabs-manufactured and user-supplied accessories. Cerna microscopes are available preconfigured or can be custom built using our diverse selection of microscope components. Preconfigured Cerna-based systems are also available for hyperspectral imaging and for simple imaging processes.

For additional information, please see the full Cerna Series presentation.



Confocal Microscope
Click to Enlarge

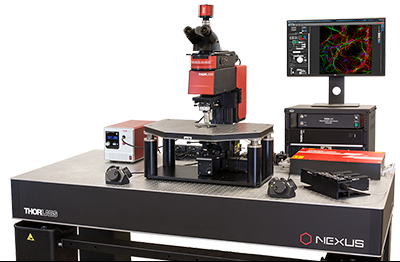

Four-Channel Confocal System Upgraded with Widefield Epi-Illumination and Differential Interference Contrast (DIC) Trans-Illumination



Confocal Microscopy Systems & Components

Thorlabs' Confocal Microscopy offerings include complete systems for laser-scanned fluorescence or reflected light microscopy, an upgrade designed to interface with commercially available inverted microscopes, and an assortment of component products for DIY construction or custom applications. Our systems are designed to be compatible with our Cerna modular microscope components, allowing them to be easily upgraded for additional functionality.

To view all of our confocal options, please see the Confocal Microscopy presentation.



Ganymede OCT System
Click to Enlarge
Ganymede Spectral Domain OCT Imaging System



Optical Coherence Tomography (OCT) Imaging Systems

Thorlabs offers a range of OCT imaging systems for various applications, including in vivo, vascular, ophthalmologic, and other biomedical imaging, as well as non-destructive testing (NDT), industrial inspection, and quality control. Our modular approach to OCT design provides a high degree of flexibility for optimizing your system to meet the unique needs of your application. Whether you are interested in a preconfigured system, or you prefer to select each component individually, please contact us. We are happy to assist you as you explore available options.

For additional information on our 900 nm and 1300 nm OCT imaging systems, please click here.

Thorlabs recognizes that each imaging application has unique requirements.
If you have any feedback, questions, or need a quotation, please contact ImagingSales@thorlabs.com or call (703) 651-1700.

In Vivo Deep Tissue Imaging

Deep tissue imaging is a hallmark of multiphoton microscopy. The Bergamo® II Series' ultrasensitive detector module utilizes full-field-of-view, non-descanned GaAsP PMT detectors to maximize the collection of photons scattered deep within a sample. This efficient design allows morphological features deep within a sample to be reconstructed without having to excise tissue.

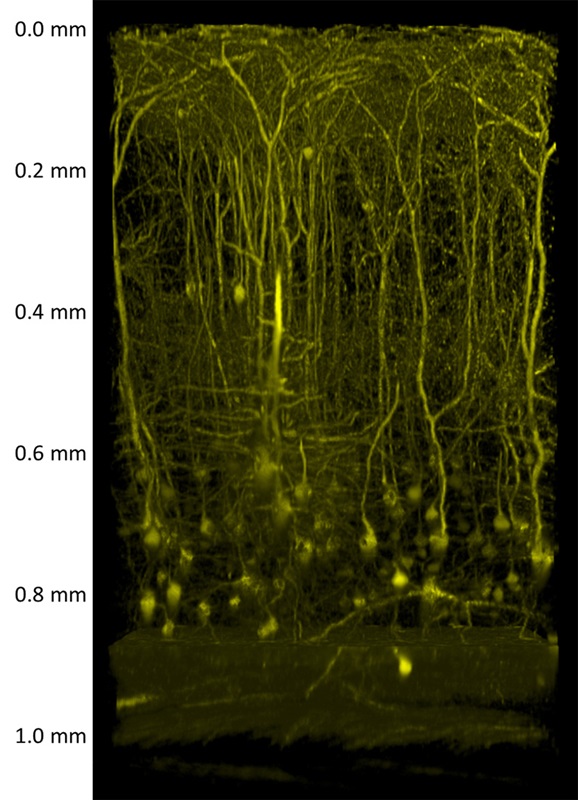

The image to the left shows an XZ projection of the primary somatosensory cortex in an 8-week-old mouse expressing thy1-YFP (H line), with a sample depth in excess of 1.0 mm. The excitation wavelength was 960 nm and the data was taken with a Nikon Apo LWD 25X objective with NA 1.10. The data set is courtesy of Dr. Hajime Hirase and Katsuya Ozawa, RIKEN Brain Science Institute, Wako, Japan.



EnVista Whole Slide Image
Click Here for Enlarged View of Whole-Slide Image
Click Here for Enlarged View of Inset
Whole-Slide and Detail Image of Bovine Pulmonary Artery Endothelial (BPAE) Cells

Whole-Slide Fluorescence Image

A fluorescence image of bovine pulmonary artery endothelial (BPAE) cells. The mitochondria were stained with MitoTracker® Red CMXRos, the f-actin was stained with Alexa Fluor® 488 phalloidin, and the nuclei were counterstained with DAPI. The image (scan area 15 mm x 15 mm) was taken at 20X magnification (caluciated using the DICOM standard) The inset shows a 604 µm x 627 µm area of the whole-slide view.

This image was taken with Thorlabs' TIDE™ Whole-Slide-Scanning System. The excitation wavelength was 1300 nm.



Developmental Biology

Maximum projection (dorsal and lateral, respectively) of zebrafish embryos, 48 hrs post-fertilization, showing developing neurons. Neurons are labeled with Alexa 488 against acetylated tubulin.

These images were taken using Thorlabs' Confocal Microscope. The fluorophore was excited using a 488 nm laser and imaged with an Olympus 20X 1.0 NA water dipping lens. The data set is courtesy of Aminah Giousoh and Dr. Robert Bryson-Richardson, School of Biological Sciences, Monash University, Victoria, Australia.



Merged Image
Click to Enlarge

Merged Image

Structural Insight with Nonlinear Imaging

Although fluorescent proteins can overcome the limitations of thick or in vivo samples, where it is not always easy for fluorophores to penetrate, their use is not always desired. Nonlinear microscopy, of which two-photon fluorescence is a part, offers several complementary contrast mechanisms for visualizing structure. Coherent Anti-Stokes Raman Scattering (CARS), Second Harmonic Generation (two-photon fluorescence), and Third Harmonic Generation (three-photon fluorescence) are nonlinear imaging techniques that offer contrast that is the direct result of the interaction of the laser with the structure of interest. Under specific conditions, this allows the generation of an observable signal without the need for fluorophores.

The figure to the right shows an image made by combining CARS, SHG, and Sum Frequency Generation (SFG) signals, while the figures below shows the individual signals from each of these imaging modalities. These images were taken using a Thorlabs multiphoton microscope.



High-Resolution Imaging
Click to Enlarge

Dendritic Spines Expressing tdTomato

High-Resolution Imaging

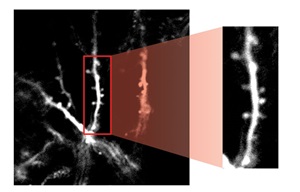

Expanded view of dendritic spines from neurons in the mouse visual cortex expressing tdTomato.

In this image, taken with a Thorlabs multiphoton microscope, the excitation wavelength was 1040 nm, and an Olympus 60X objective with NA 1.0 was used. This image is courtesy of Dr. Tobias Rose, Max Planck Institute for Neurobiology, Martinsreid, Germany.



OCT Scan Control Screen Shot
Click to Enlarge

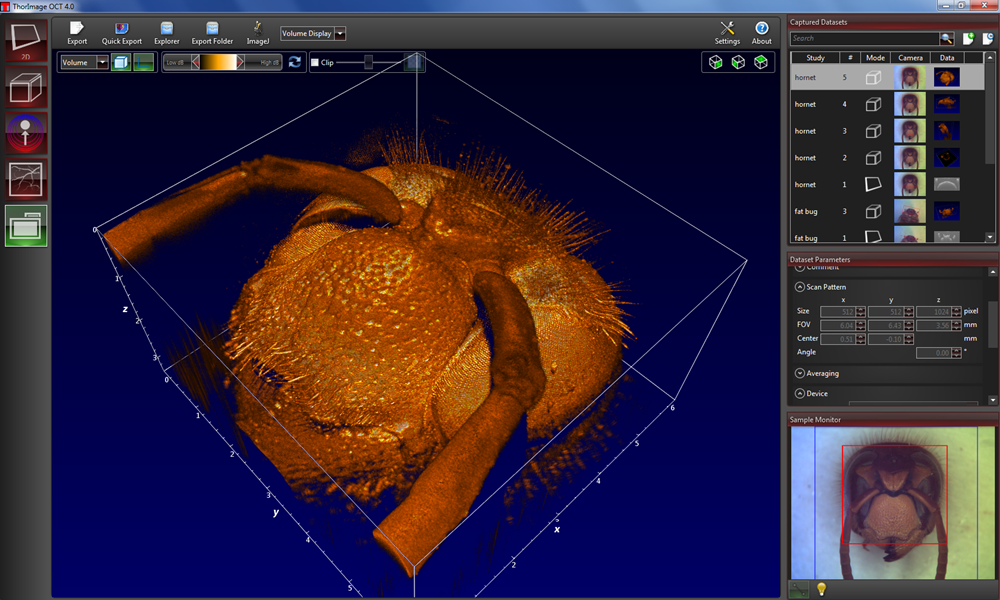

Image of a Wasp Cadaver in Volume Rendering Mode

Deep 3D Volumetric Imaging

An image of a wasp cadaver. The optical video image of the sample can be seen in the bottom right corner.

This image was taken with Thorlabs' TELESTO-II Spectral Domain OCT System. The excitation wavelength was 1300 nm.

Thorlabs recognizes that each imaging application has unique requirements.
If you have any feedback, questions, or need a quotation, please contact ImagingSales@thorlabs.com or call (703) 651-1700.

Deep Insights



In Vivo Functional Neural Imaging of Large Volumes

Large FOV imaging at high spatiotemporal resolution is a necessary requirement for correlating neural activity of large brain volumes. This movie demonstrates the firing of neurons expressing GCaMP6f in behaving mice running on a spherical treadmill. The low magnification movie shows activity across multiple brain areas, including the somatosensory, parietal, and motor areas, at 4.3 Hz across a 6.3 mm x 5.4 mm FOV. The four non-contiguous regions were imaged at 9.6 Hz with 600 μm x 600 μm FOV, and fluorescence signals from individual neurons were sampled to cross-correlate their activity.

In these image sets, taken with the Multiphoton Mesoscope, the excitation wavelength was 970 nm. The data set is courtesy of Nicholas James Sofroniew, Daniel Flickinger, Jonathan King, and Karel Svoboda; Janelia Research Campus and Vidrio Technologies, Virginia, USA (video taken from https://elifesciences.org/content/5/e14472/article-data and used here under a Creative Commons Attribution license).



Intravital Imaging

The ability to image regions within an organ of a living animal (and not just very thin tissue, like mesentery tissue) represents a major advancement in intravital microscopy. In this movie, blood perfusion can be monitored. Blood is labeled with a tail vein injection of FITC-Dextran containing red fluorescent microspheres. The microspheres can be tracked to indicate blood velocity. Red blood cells are also visible as dark shadows within the green vessels.

In these images, taken with a Thorlabs multiphoton microscope, the excitation wavelength was 780 nm and an Olympus XLUMPLFLN 20X objective with NA 1.0 was used. The preparation is courtesy of Dr. Simon Rhodes, IUPUI School of Medicine, Indianapolis, Indiana.

Deep Brain Imaging

Deep tissue imaging is a hallmark of multiphoton microscopy. The Bergamo® II Series' ultrasensitive detector module utilizes full-field-of-view, non-descanned GaAsP PMT detectors to maximize the collection of photons scattered deep within a sample. This efficient design allows morphological features deep within a sample to be reconstructed without having to excise tissue.

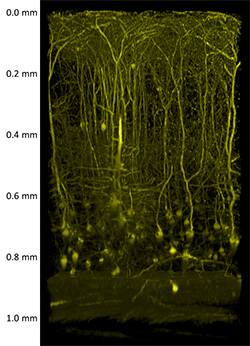

The images shown above represent an XZ projection of the primary somatosensory cortex in an 8-week-old mouse expressing thy1-YFP (H line), with a sample depth in excess of 1.0 mm. The excitation wavelength was 960 nm and the data was taken with a Nikon Apo LWD 25X objective with NA 1.10. The data set is courtesy of Dr. Hajime Hirase and Katsuya Ozawa, RIKEN Brain Science Institute, Wako, Japan.
