Compact Laser Diode Modules


  • Max Power Ranging from 4.0 to 20 mW
  • Six Versions with Wavelengths Ranging from 405 to 1550 nm
  • SM1-Threaded for Lens Tube Compatibility

Front

LDM785

785 nm, 20 mW

LDM785
Shown in
a KM200V

Rear

Related Items


Please Wait
Item # Wavelength
(Typical)
Beam Size
(Elliptical)
Output
Power
Class
LDM405 405 nm 3.0 mm x 5.0 mm 4.0 mW 3R
LDM635 635 nm 3.0 mm x 5.0 mm 4.0 mW 3R
LDM670 670 nm 3.2 mm x 3.4 mm 5.5 mW 3B
LDM785 785 nm 2.4 mm x 3.4 mm 20 mW 3B
LDM850 850 nm 3.5 mm x 4.4 mm 20 mW 3B
LDM1550 1550 nm 2.6 mm x 3.0 mm 4.5 mW 1

Features

  • Adjustable Output Power
  • Collimated Output Beam
  • Integrated Beam Shutter
  • Internal SM1 (1.035"-40) Threads
  • IEC60825-1/CDRH Compliant
  • Power Supply Included

The LDM Series of compact laser sources are well suited to benchtop optical experiments. They are available at six wavelengths: 405 nm, 635 nm, 670 nm, 785 nm, 850 nm, and 1550 nm.

The Ø1.40" by 5.8" housing contains a Fabry-Perot laser diode with a bandwidth typically around 1 nm, collimating lens, and power controller. Each laser diode module includes a built-in shutter and internal SM1 (1.035"-40) threads for mounting with an extensive range of optomechanical devices from lens tubes to lens mounts. These laser modules are typically used as alignment aids within an SM1 Lens Tube system, as shown in the figure below to the left.

The LDM modules can be mounted to any optical table using one of our C1512(/M), C1513(/M), KM200V(/M), or VC3C(/M) V-groove mounts. Besides the mechanical shutter, the module also features a remote interlock connection and key-lock power switch. The laser module has an enable/disable toggle switch, laser on indicator LED, and top-located power adjustment pot controller.

The power can be adjusted from 0 to full power by adjusting a pot, as shown in the image at the bottom right. The output of each laser diode is polarized and multi-longitudinal mode. When the Laser Enable button is facing up, the light will be vertically polarized, with the exception of the LDM635, which will have horizontal polarization. Each LDM comes with a universal power supply.

LDM Series Back View with Controls
Key-Lock, Power Port, and Interlock with Shorting Pin

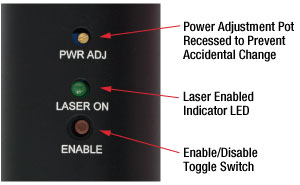

LDM Series Top Controls
Mounted Laser Diode Module
Click to Enlarge

View Imperial Product List
Item #QtyDescription
LDM7851Compact Laser Diode Module with Shutter, 785 nm, 20 mW
C15131Post Kinematic V-Clamp Mount, One PM4 Clamping Arm Included
P81Ø1.5" Mounting Post, 1/4"-20 Taps, L = 8"
PB41Studded Pedestal Base Adapter, 1/4"-20 Thread
PF1751Clamping Fork for Ø1.5" Pedestal Post or Post Pedestal Base Adapter, Universal
View Metric Product List
Item #QtyDescription
LDM7851Compact Laser Diode Module with Shutter, 785 nm, 20 mW
C1513/M1Post Kinematic V-Clamp Mount, Metric, One PM4/M Clamping Arm Included
P200/M1Ø1.5" Mounting Post, M6 Taps, L = 200 mm
PB4/M1Studded Pedestal Base Adapter, M6 x 1.0 Thread
PF1751Clamping Fork for Ø1.5" Pedestal Post or Post Pedestal Base Adapter, Universal

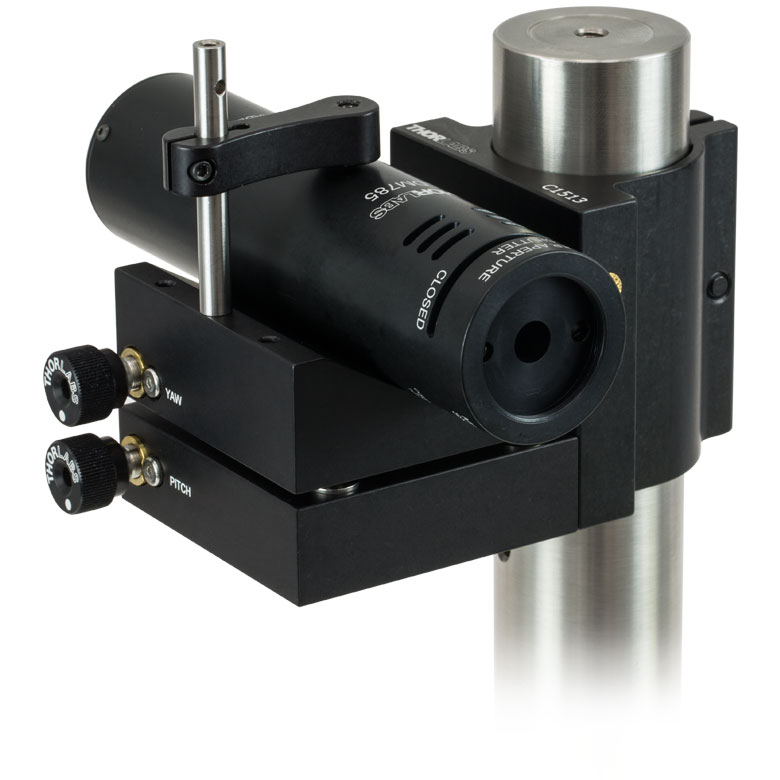

LDM785 Laser Diode Module Shown Mounted on a Ø1.5" Post Using a Kinematic V-Clamp Mount
Item # LDM405 LDM635 LDM670 LDM785 LDM850 LDM1550
Wavelength, Typical 405 nm 635 nm 670 nm 785 nm 850 nm 1550 nm
Wavelength, Min/Max 395 - 415 nm 625 - 645 nm 660 - 678 nm 776 - 800 nm 840 - 860 nm 1520 - 1580 nm
Beam Size (Elliptical)a 3.0 mm x 5.0 mm 3.0 mm x 5.0 mm 3.2 mm x 3.4 mm 2.4 mm x 3.4 mm 3.5 mm x 4.4 mm 2.6 mm x 3.0 mm
Output Powerb 4.0 mW 4.0 mW 5.5 mW 20 mW 20 mW 4.5 mW
Common Specifications
Stability, Short Term (30 min) 0.01 dB
Stability, Long-Term Drift (24 hr) 0.1 dB
Operating Temperature 10 - 40 °C
Storage Temperature 5 - 50 °C
Power Supply (Included) Input: 100 - 240 VAC, 0.48 A
50 - 60 Hz
Output: 9 VDC @ 2.2 A
  • Measured 3 m from module. Beam shape is elliptical.
  • For an operating temperature of 25 °C. When operated at a temperature other than this, the maximum output will vary.

Laser Safety and Classification

Safe practices and proper usage of safety equipment should be taken into consideration when operating lasers. The eye is susceptible to injury, even from very low levels of laser light. Thorlabs offers a range of laser safety accessories that can be used to reduce the risk of accidents or injuries. Laser emission in the visible and near infrared spectral ranges has the greatest potential for retinal injury, as the cornea and lens are transparent to those wavelengths, and the lens can focus the laser energy onto the retina.

Laser Glasses Blackout Materials Enclosure Systems
Laser Viewing Cards Alignment Tools Shutter and Controllers
Laser Safety Signs

Safe Practices and Light Safety Accessories

  • Thorlabs recommends the use of safety eyewear whenever working with laser beams with non-negligible powers (i.e., > Class 1) since metallic tools such as screwdrivers can accidentally redirect a beam.
  • Laser goggles designed for specific wavelengths should be clearly available near laser setups to protect the wearer from unintentional laser reflections.
  • Goggles are marked with the wavelength range over which protection is afforded and the minimum optical density within that range.
  • Blackout Materials can prevent direct or reflected light from leaving the experimental setup area.
  • Thorlabs' Enclosure Systems can be used to contain optical setups to isolate or minimize laser hazards.
  • A fiber-pigtailed laser should always be turned off before connecting it to or disconnecting it from another fiber, especially when the laser is at power levels above 10 mW.
  • All beams should be terminated at the edge of the table, and laboratory doors should be closed whenever a laser is in use.
  • Do not place laser beams at eye level.
  • Carry out experiments on an optical table such that all laser beams travel horizontally.
  • Remove unnecessary reflective items such as reflective jewelry (e.g., rings, watches, etc.) while working near the beam path.
  • Be aware that lenses and other optical devices may reflect a portion of the incident beam from the front or rear surface.
  • Operate a laser at the minimum power necessary for any operation.
  • If possible, reduce the output power of a laser during alignment procedures.
  • Use beam shutters and filters to reduce the beam power.
  • Post appropriate warning signs or labels near laser setups or rooms.
  • Use a laser sign with a lightbox if operating Class 3R or 4 lasers (i.e., lasers requiring the use of a safety interlock).
  • Do not use Laser Viewing Cards in place of a proper Beam Trap.



Laser Classification

Lasers are categorized into different classes according to their ability to cause eye and other damage. The International Electrotechnical Commission (IEC) is a global organization that prepares and publishes international standards for all electrical, electronic, and related technologies. The IEC document 60825-1 outlines the safety of laser products. A description of each class of laser is given below:

Class Description Warning Label
1 This class of laser is safe under all conditions of normal use, including use with optical instruments for intrabeam viewing. Lasers in this class do not emit radiation at levels that may cause injury during normal operation, and therefore the maximum permissible exposure (MPE) cannot be exceeded. Class 1 lasers can also include enclosed, high-power lasers where exposure to the radiation is not possible without opening or shutting down the laser.  Class 1
1M Class 1M lasers are safe except when used in conjunction with optical components such as telescopes and microscopes. Lasers belonging to this class emit large-diameter or divergent beams, and the MPE cannot normally be exceeded unless focusing or imaging optics are used to narrow the beam. However, if the beam is refocused, the hazard may be increased and the class may be changed accordingly.  Class 1M
2 Class 2 lasers, which are limited to 1 mW of visible continuous-wave radiation, are safe because the blink reflex will limit the exposure in the eye to 0.25 seconds. This category only applies to visible radiation (400 - 700 nm).  Class 2
2M Because of the blink reflex, this class of laser is classified as safe as long as the beam is not viewed through optical instruments. This laser class also applies to larger-diameter or diverging laser beams.  Class 2M
3R Lasers in this class are considered safe as long as they are handled with restricted beam viewing. The MPE can be exceeded with this class of laser, however, this presents a low risk level to injury. Visible, continuous-wave lasers are limited to 5 mW of output power in this class.  Class 3R
3B Class 3B lasers are hazardous to the eye if exposed directly. However, diffuse reflections are not harmful. Safe handling of devices in this class includes wearing protective eyewear where direct viewing of the laser beam may occur. In addition, laser safety signs lightboxes should be used with lasers that require a safety interlock so that the laser cannot be used without the safety light turning on. Class-3B lasers must be equipped with a key switch and a safety interlock.  Class 3B
4 This class of laser may cause damage to the skin, and also to the eye, even from the viewing of diffuse reflections. These hazards may also apply to indirect or non-specular reflections of the beam, even from apparently matte surfaces. Great care must be taken when handling these lasers. They also represent a fire risk, because they may ignite combustible material. Class 4 lasers must be equipped with a key switch and a safety interlock.  Class 4
All class 2 lasers (and higher) must display, in addition to the corresponding sign above, this triangular warning sign  Warning Symbol

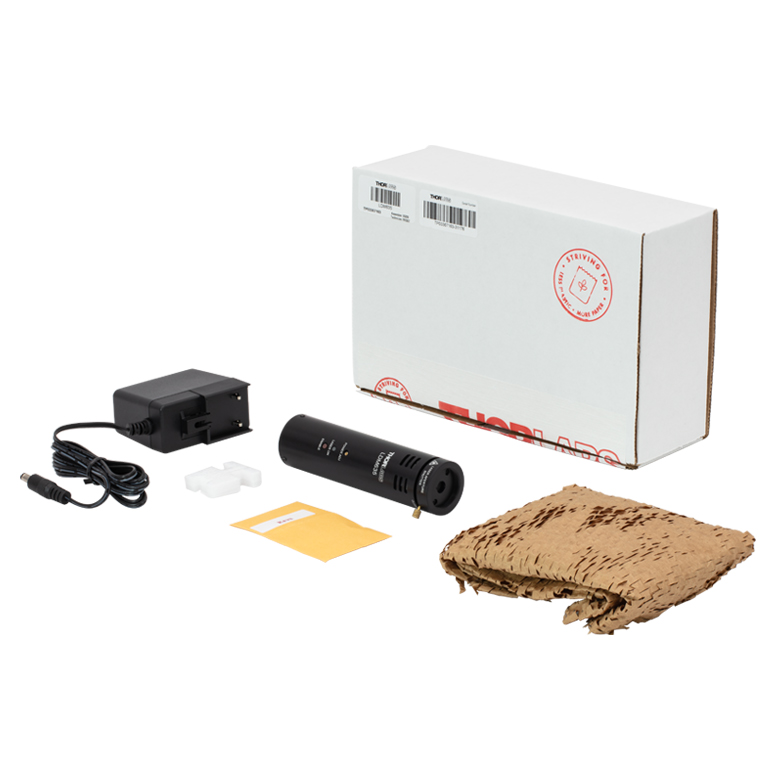

LDM635 SmartPack Packaging
Click to Enlarge

LDM635 Packaging

Smart Pack

Item # % Weight
Reduction
CO2-Equivalent
Reductiona
LDM405 9.63% 0.4 kg
LDM635 9.63% 0.87 kg
LDM670 9.63% 0.49 kg
LDM785 9.63% 0.54 kg
LDM850 9.63% 0.43 kg
LDM1550 9.63% 0.62 kg

Smart Pack

  • Reduce Weight of Packaging Materials
  • Increase Usage of Recyclable Packing Materials
  • Improve Packing Integrity
  • Decrease Shipping Costs

Thorlabs' Smart Pack Initiative is aimed at waste minimization while still maintaining adequate protection for our products. By eliminating any unnecessary packaging, implementing packaging design changes, and utilizing eco-friendly packaging materials for our customers when possible, this initiative seeks to improve the environmental impact of our product packaging. Products listed above are now shipped in re-engineered packaging that minimizes the weight and the use of non-recyclable materials.b As we move through our product line, we will indicate re-engineered packages with our Smart Pack logo.

  • Travel-based emissions reduction calculations are estimated based on the total weight reduction of packaging materials used for all of 2013's product sales, traveling 1,000 miles on an airplane, to provide general understanding of the impact of packaging material reduction. Calculations were made using the EPA's shipping emissions values for different modes of transport.
  • Some Smart Pack products may show a negative weight reduction percentage as the substitution of greener packaging materials, such as the Greenwrap, at times slightly increases the weight of the product packaging.
