Microscope Objective Threading Adapters


  • Integrate Objectives with Industry-Standard Threads into Nosepieces with M32 x 0.75 or SM2 Threads
  • Options Compatible with Thorlabs’ Bergamo® and Cerna® Microscope Systems

M32RMSS

External M32 x 0.75 Threads
and Internal RMS Threads

M32M34S

External M32 x 0.75 Threads
and Internal M34 x 1.0 Threads

CSN100

M32M25S

N40X-PF

M32M25S Adapter Connecting a Nikon Objective to a Cerna Nosepiece

M2M40S

External SM2 Threads and Internal M40 x 0.706 Threads

Related Items


Please Wait
Item # Internal Threads External Threads
M32RMSS RMS (0.800"-36) M32 x 0.75
M32M25S M25 x 0.75a
M32SM1S SM1 (1.035"-40)
M32M26S M26 x 0.706
M32M27S M27 x 0.75
M32M271S M27 x 1.0
M32M32S M32 x 0.75
M32M34S M34 x 1.0b
M32M40S M40 x 0.706
M2M32S M32 x 0.75 SM2 (2.035"-40)
M2M34S M34 x 1.0b
M2M40S M40 x 0.706
  • These threads are commonly used by Nikon and Leica objectives.
  • These threads are commonly used by Zeiss and Nikon objectives.

Features

  • Externally M32 x 0.75-Threaded Adapters Compatible with Bergamo® and Cerna® Microscope Systems
  • Externally SM2-Threaded Adapters Compatible with the CSA2100 Cerna Mounting Arm
  • Internal Threading Compatible with Olympus, Nikon, Zeiss, and Leica Objectives
  • Lip Prevents Over-Threading into Microscope Nosepieces
  • Solid Brass Construction

These Brass Microscope Adapters can mate an externally threaded microscope objective to an internally M32 x 0.75- or SM2-threaded nosepiece. The design includes a flange to prevent over-threading the adapter or the objective into a microscope nosepiece, keeping the objective at the proper position and preventing damage to the optics inside the housing. In addition, the brass construction is harder than aluminum which reduces thread binding. The M32M32S adapter was created since many M32 x 0.75 threaded nosepieces have recessed threads. Due to the large diameter of some objectives, such as the TL10X-2P, a smaller diameter mount is needed to properly load in certain mating pieces. Each adapter has spanner wrench holes or slots for compatibility with our SPW801 Adjustable Spanner Wrench to help thread the adapters into a microscope nosepiece.

To view our entire line of thread adapters, please see our Interactive Adapters Selection Guide.

Item # Typical Application External Threads Internal Threads
M32RMSS info Integrate RMS Objective with M32 x 0.75 Mount M32 x 0.75 RMS (0.800"-36)
M32M25S info Integrate M25 x 0.75 Objective with M32 x 0.75 Mount M32 x 0.75 M25 x 0.75
M32SM1S info Integrate SM1 Lens Tube with M32 x 0.75 Mount M32 x 0.75 SM1 (1.035"-40)
M32M26S info Integrate M26 x 0.706 Objective with M32 x 0.75 Mount M32 x 0.75 M26 x 0.706
M32M27S info Integrate M27 x 0.75 Objective with M32 x 0.75 Mount M32 x 0.75 M27 x 0.75
M32M271S info Integrate M27 x 1.0 Objective with M32 x 0.75 Mount M32 x 0.75 M27 x 1.0
M32M32S info Integrate Large Diameter M32 x 0.75 Objective with Recessed M32 x 0.75 Mount M32 x 0.75 M32 x 0.75
M32M34S info Integrate M34 x 1.0 Objective with M32 x 0.75 Mount M32 x 0.75 M34 x 1.0
M32M40S info Integrate M40 x 0.706 Objective with M32 x 0.75 Mount M32 x 0.75 M40 x 0.706
M2M32S info Integrate M32 x 0.75 Objective with SM2 Mount SM2 (2.035"-40) M32 x 0.75
M2M34S info Integrate M34 x 1.0 Objective with SM2 Mount SM2 (2.035"-40) M34 x 1.0
M2M40S info Integrate M40 x 0.706 Objective with SM2 Mount SM2 (2.035"-40) M40 x 0.706

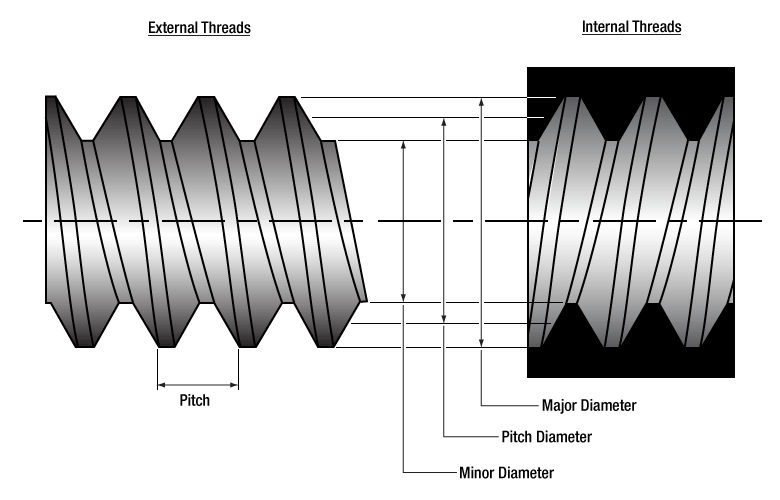

Thorlabs' Threading Specifications

Threading specifications are given below for our adapters so that you can machine mating components to suit your application. Please note that other manufacturers may have different tolerances for these threads. For other thread specifications that are not listed here, please contact Tech Support.


Click to Enlarge
RMS Threading
External Thread, 0.800"-36.0, UNS-2A Internal Thread, 0.800"-36.0, UNS-2B
Max Major Diameter 0.7989" Min Major Diameter 0.8000"
Min Major Diameter 0.7934" Min Pitch Diameter 0.7820"
Max Pitch Diameter 0.7809" Max Pitch Diameter 0.7866"
Min Pitch Diameter 0.7774" Min Minor Diameter (and 83.3% of thread) 0.770"
Max Minor Diameter 0.7688" Max Minor Diameter (and 64.9% of thread) 0.777"
M25 x 0.75 Threading
External Thread Internal Thread
Max Major Diameter 24.977 mm Min Major Diameter 25.000 mm
Min Major Diameter 24.837 mm Min Pitch Diameter 24.513 mm
Max Pitch Diameter 24.49 mm Max Pitch Diameter 24.659 mm
Min Pitch Diameter 24.379 mm Min Minor Diameter (and 83.3% of thread) 24.188 mm
Max Minor Diameter 24.165 mm Max Minor Diameter (and 64.9% of thread) 24.378 mm
SM1 Threading
External Thread, 1.035"-40.0, UNS-2A Internal Thread, 1.035"-40.0, UNS-2B
Max Major Diameter 1.0339" Min Major Diameter 1.0350"
Min Major Diameter 1.0288" Min Pitch Diameter 1.0188"
Max Pitch Diameter 1.0177" Max Pitch Diameter 1.0234"
Min Pitch Diameter 1.0142" Min Minor Diameter (and 83.3% of thread) 1.008"
Max Minor Diameter 1.0068" Max Minor Diameter (and 64.9% of thread) 1.014"
M26 x 0.706 Threading
External Thread Internal Thread
Max Major Diameter 25.977 mm Min Major Diameter 26.0 mm
Min Major Diameter 25.838 mm Min Pitch Diameter 25.541 mm
Max Pitch Diameter 25.519 mm Max Pitch Diameter 25.685 mm
Min Pitch Diameter 25.41 mm Min Minor Diameter (and 83.3% of thread) 25.236 mm
Max Minor Diameter 25.213 mm Max Minor Diameter (and 64.9% of thread) 25.417 mm
M27 x 0.75 Threading
External Thread Internal Thread
Max Major Diameter 26.977 mm Min Major Diameter 27.000 mm
Min Major Diameter 26.837 mm Min Pitch Diameter 26.513 mm
Max Pitch Diameter 26.49 mm Max Pitch Diameter 26.660 mm
Min Pitch Diameter 26.378 mm Min Minor Diameter (and 83.3% of thread) 26.188 mm
Max Minor Diameter 26.165 mm Max Minor Diameter (and 64.9% of thread) 26.378 mm
M27 x 1.0 Threading
External Thread Internal Thread
Max Major Diameter 26.95 mm Min Major Diameter 27.0 mm
Min Major Diameter 26.58 mm Min Pitch Diameter 26.35 mm
Max Pitch Diameter 25.0 mm Max Pitch Diameter 26.52 mm
Min Pitch Diameter 24.8 mm Min Minor Diameter (and 83.3% of thread) 25.917 mm
Max Minor Diameter 23.704 mm Max Minor Diameter (and 64.9% of thread) 26.153 mm
M32 x 0.75 Threading
External Thread Internal Thread
Max Major Diameter 31.977 mm Min Major Diameter 32.000 mm
Min Major Diameter 31.837 mm Min Pitch Diameter 31.513 mm
Max Pitch Diameter 31.49 mm Max Pitch Diameter 31.663 mm
Min Pitch Diameter 31.376 mm Min Minor Diameter (and 83.3% of thread) 31.188 mm
Max Minor Diameter 31.165 mm Max Minor Diameter (and 64.9% of thread) 31.378 mm
M34 x 1.0 Threading
External Thread Internal Thread
Max Major Diameter 33.974 mm Min Major Diameter 34.000 mm
Min Major Diameter 33.794 mm Min Pitch Diameter 33.350 mm
Max Pitch Diameter 33.324 mm Max Pitch Diameter 33.520 mm
Min Pitch Diameter 33.199 mm Min Minor Diameter (and 83.3% of thread) 32.917 mm
Max Minor Diameter 32.891 mm Max Minor Diameter (and 64.9% of thread) 33.153 mm
M40 x 0.706 Threading
External Thread Internal Thread
Max Major Diameter 39.969 mm Min Major Diameter 40.000 mm
Min Major Diameter 39.830 mm Min Pitch Diameter 39.542 mm
Max Pitch Diameter 39.511 mm Max Pitch Diameter 39.670 mm
Min Pitch Diameter 39.414 mm Min Minor Diameter (and 83.3% of thread) 39.236 mm
Max Minor Diameter 39.206 mm Max Minor Diameter (and 64.9% of thread) 39.405 mm
SM2 Threading
External Thread, 2.035"-40.0, UNS-2A Internal Thread, 2.035"-40.0, UNS-2B
Max Major Diameter 2.0338" Min Major Diameter 2.0350"
Min Major Diameter 2.0287" Min Pitch Diameter 2.0188"
Max Pitch Diameter 2.0176" Max Pitch Diameter 2.0239"
Min Pitch Diameter 2.0137" Min Minor Diameter (and 83.3% of thread) 2.008"
Max Minor Diameter 2.0067" Max Minor Diameter (and 64.9% of thread) 2.014"
