Lens Specifications
Design Wavelength780 nmMagnificationInfinite
Numerical Aperture0.58Window Thickness
Clear Aperture1.60 mmLaser Window Material / Index
Effective Focal Length1.45 mmGlassD-ZK3
Working Distance Surface Quality40-20 Scratch-Dig(Entire Bulk Material)

354140-CAuto CAD PDFAuto CAD DXFSolidworkseDrawingStepZemax (ZAR)Zemax (ZMX)
C140TMD-CAuto CAD PDFAuto CAD DXFSolidworkseDrawingStepZemax (ZAR)Zemax (ZMX)

Vd number60.71
CTE (10-6 / °C)7.6
Thermo optic coefficient (10-6 / °C) (Δn/ΔT)3.2

Surface
R(mm)
k
A2
A4
A6
A8
A10
Side 1
PLANO
-
-
-
-
-
-
Side 2
0.84066
-0.96307
0
0.09476566
0.02790461
0.00541558
0.003553653

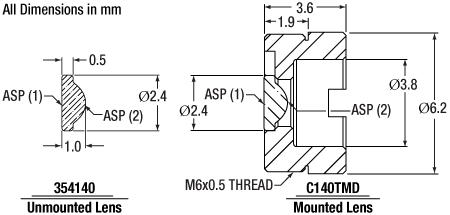

Side 1 and Side 2 are labeled as ASP1 and ASP2, respectively, on the drawings shown on the Specifications tab.
zSAG as a Function of YA44th Order Aspheric Coefficient
RRadius of CurvatureA66th Order Aspheric Coefficient
kConic ConstantA88th Order Aspheric Coefficient
A22nd Order Aspheric CoefficientAnnth Order Aspheric Coefficient
