Breadboard Mounting Accessories for 34 mm Rails


  • Build 34 mm Rail Assemblies on Top of Breadboards
  • Options for Horizontal or Vertical Rail Mounting

XT66P1

34 mm Rail Mounted Vertically
(Rail Sold Separately)

XT34HP

BA2R

34 mm Rail Slides Along Clamp
Prior to Lockdown

Related Items


Please Wait

Features

  • Mount 34 mm Optical Rails to Breadboards
  • Dovetail Mounting Clamp Attaches Rails Horizontally
  • Vertical Mounting Plate Accommodates 34 mm or 66 mm Rails
  • Magnetic Vertical Mounting Base Holds Rails During Initial Setup

Thorlabs provides three options for customers who wish to build a 34 mm rail system on top of an optical table or breadboard. The XT34HP(/M) Dovetail Mounting Clamp mounts rails parallel to the breadboard surface, while the XT66P1 Vertical Mounting Plate secures a 34 mm or 66 mm rail in a standing position. The BA2R Magnetic Vertical Mounting Base orients rails vertically using rare earth magnets that enable easy repositioning.

Thorlabs offers a wide and growing complement of accessories for 34 mm rails, including clamps and angle brackets, breadboard mounts, rail carriers, mounting platforms, lens tube adapters, and rail joiners. Together with size adapters that incorporate 66 mm and 95 mm rails into an XT34 setup, these tools provide a complete family of rigid, versatile building blocks suited for virtually any optomechanical setup.


Posted Comments:
No Comments Posted

Dovetail Mounting Clamp for 34 mm Rails

XT34 Rail Elevated on Posts
Click to Enlarge
View Imperial Product List
Item #QtyDescription
Imperial Product List
XT34HP1Dovetail Mounting Clamp for 34 mm Rails
XT34-200134 mm Construction Rail, L = 200 mm
LMR11Lens Mount with Retaining Ring for Ø1" Optics, 8-32 Tap
PH1.51Ø1/2" Post Holder, Spring-Loaded Hex-Locking Thumbscrew, L = 1.5"
TR21Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 2"
SH25S10011/4"-20 Stainless Steel Cap Screw, 1" Long, 25 Pack
View Metric Product List
Item #QtyDescription
Metric Product List
XT34HP/M1Dovetail Mounting Clamp for 34 mm Rails, Metric
XT34-200134 mm Construction Rail, L = 200 mm
LMR1/M1Lens Mount with Retaining Ring for Ø1" Optics, M4 Tap
PH40/M1Ø12.7 mm Post Holder, Spring-Loaded Hex-Locking Thumbscrew, L=40 mm
TR50/M1Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 50 mm
SH6MS251M6 x 1.0 Stainless Steel Cap Screw, 25 mm Long, 25 Pack

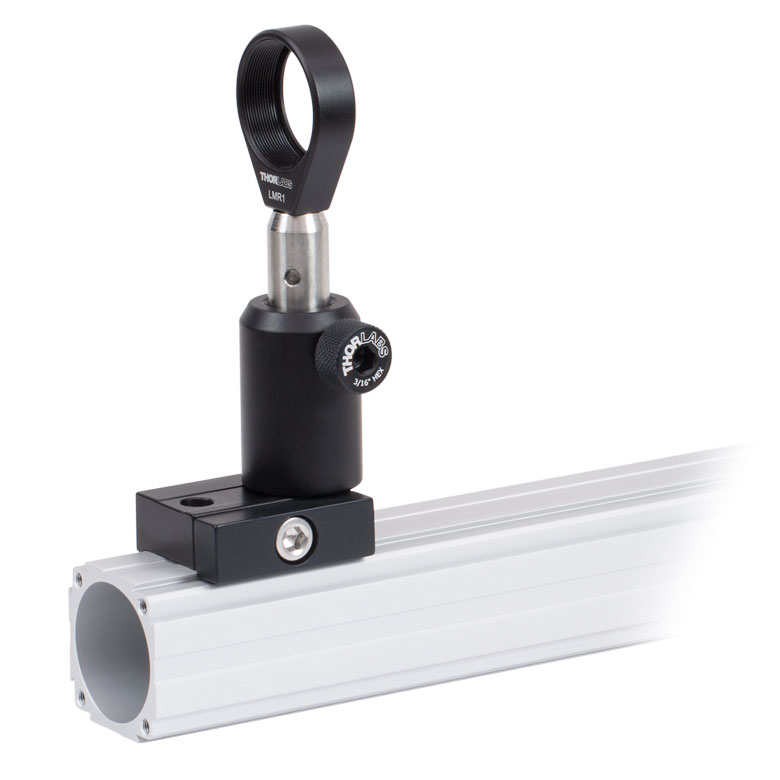

XT34HP Mounting a Post Assembly and Lens Mount
XT34 Rail Being Positioned
Click to Enlarge
View Imperial Product List
Item #QtyDescription
Imperial Product List
XT34HP1Dovetail Mounting Clamp for 34 mm Rails
XT34-200134 mm Construction Rail, L = 200 mm
SH25S10011/4"-20 Stainless Steel Cap Screw, 1" Long, 25 Pack
View Metric Product List
Item #QtyDescription
Metric Product List
XT34HP/M1Dovetail Mounting Clamp for 34 mm Rails, Metric
XT34-200134 mm Construction Rail, L = 200 mm
SH6MS251M6 x 1.0 Stainless Steel Cap Screw, 25 mm Long, 25 Pack
The XT34HP Mounting Clamp can be used to secure a rail to a breadboard or optical table.
XT34 Rail Elevated on Posts
Click to Enlarge
View Imperial Product List
Item #QtyDescription
Imperial Product List
XT34HP2Dovetail Mounting Clamp for 34 mm Rails
XT34-200134 mm Construction Rail, L = 200 mm
PH32Ø1/2" Post Holder, Spring-Loaded Hex-Locking Thumbscrew, L = 3"
TR42Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 4"
SH25S10011/4"-20 Stainless Steel Cap Screw, 1" Long, 25 Pack
BA22Mounting Base, 2" x 3" x 3/8"
View Metric Product List
Item #QtyDescription
Metric Product List
XT34HP/M2Dovetail Mounting Clamp for 34 mm Rails, Metric
XT34-200134 mm Construction Rail, L = 200 mm
PH75/M2Ø12.7 mm Post Holder, Spring-Loaded Hex-Locking Thumbscrew, L=75 mm
TR100/M2Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 100 mm
SH6MS251M6 x 1.0 Stainless Steel Cap Screw, 25 mm Long, 25 Pack
BA2/M2Mounting Base, 50 mm x 75 mm x 10 mm
The 1/4" (M6) counterbored holes can be used to elevate rails above a breadboard.
  • Mount 34 mm Rails to Any Breadboard with 1/4"-20 or M6 Taps
  • Two Counterbored Holes for 1/4"-20 (M6) Cap Screws
  • Slide Along Rail Prior to Lockdown
  • Ideal for Attaching PostsPost Holders, or Pedestal Posts
    to a 34 mm Rail
  • 1/4"-20 (M6) Tapped Hole Provides Side Mounting

The XT34HP(/M) Dovetail Mounting Clamp allows 34 mm optical rail constructions to be mounted on top of a breadboard or other 1/4"-20 (M6) compatible optical assemblies. It contains two 1/4" (M6) counterbored holes and is post mountable by the single 1/4"-20 (M6) tapped hole on one side. When flipped, the the counterbored can be used to attach various optomechanics, such as posts, pedestal posts, or post holders, as shown in the image to the far right.

The spacing between the counterbores, which is either 1" (25.4 mm) or 25 mm, is specifically designed for direct compatibility with either imperial or metric breadboards.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
XT34HP Support Documentation
XT34HPDovetail Mounting Clamp for 34 mm Rails
$57.08
Today
+1 Qty Docs Part Number - Metric Price Available
XT34HP/M Support Documentation
XT34HP/MDovetail Mounting Clamp for 34 mm Rails, Metric
$57.08
Today

Vertical Mounting Plate for 34 mm and 66 mm Optical Rails

  • Mount 34 mm or 66 mm Rails Vertically on a Breadboard or Optical Table
  • Four Counterbored Mounting Slots for 1/4"-20 or M6 Cap Screws
  • Includes Four M3 Cap Screws

The XT66P1 Vertical Mounting Plate orients a standard 34 mm or 66 mm rail in the direction orthogonal to the breadboard plane, enabling three-dimensional rail constructions. It bolts to the rail end using the four included M3 cap screws.

The counterbored slots are mechanically compatible with both imperial and metric breadboards.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
XT66P1 Support Documentation
XT66P1Vertical Mounting Plate for 34 mm & 66 mm Optical Rails
$38.42
Today

Magnetic Vertical Mounting Base for 34 mm Rails

34 mm Rail Mounted on the BA2R Base
Click to Enlarge
View Imperial Product List
Item #QtyDescription
Imperial Product List
BA2R1Magnetic Mounting Base, 2" x 3" x 3/8"
SH3M101M3 x 0.5 Alloy Steel Cap Screw, 10 mm Long, 50 Pack
XT34-200134 mm Construction Rail, L = 200 mm
View Metric Product List
Item #QtyDescription
Metric Product List
BA2R/M1Magnetic Mounting Base, 50 mm x 75 mm x 10 mm
SH3M101M3 x 0.5 Alloy Steel Cap Screw, 10 mm Long, 50 Pack
XT34-200134 mm Construction Rail, L = 200 mm
  • Four Bottom-Located M3 Counterbored Holes for Vertically Mounting 34 mm Rails
  • Holds Position of Rails During Initial Setup Process
  • Relief Cuts in Base Provide Excellent Stability

This magnetic base has four bottom-located M3 counterbores for vertically mounting 34 mm rails on an optical table or breadboard. The two rare earth magnets on the underside of this anodized aluminum base provide the ability to temporarily secure 34 mm rails during the initial setup process. The force from these magnets is strong enough to help prevent accidental movement of the vertically-mounted rails, while still allowing for easy repositioning. Once all positioning adjustments are complete, the base can be secured to the optical table or breadboard using the two 1.25" (32 mm) slots.

This base also has three bottom-located 1/4" (M6) counterbored holes for mounting our Ø1/2" Post Holders.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
BA2R Support Documentation
BA2RMagnetic Mounting Base, 2" x 3" x 3/8"
$19.91
Today
+1 Qty Docs Part Number - Metric Price Available
BA2R/M Support Documentation
BA2R/MMagnetic Mounting Base, 50 mm x 75 mm x 10 mm
$19.91
Today
