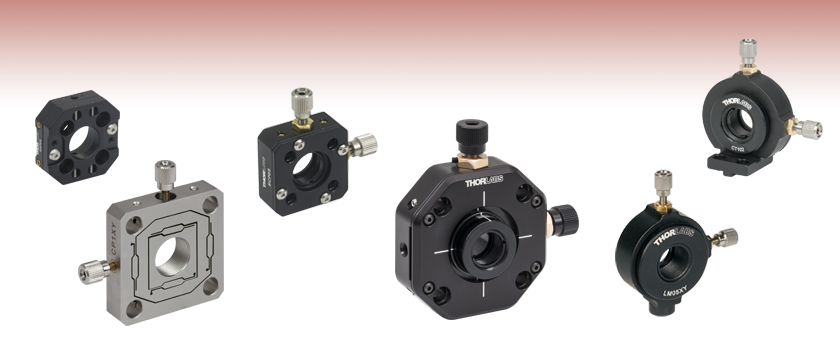

SM05-Compatible Translation Mounts


  • Internal 0.535"-40 Threading
  • Mount Ø1/2" Optics
  • Compatible with Ø1/2" Lens Tubes

SSP05

16 mm Cage
XY Slip Plate
Positioner

CP1XY

30 mm Cage XY
Flexure Translation Mount

SCP05

16 mm Cage
Translation Mount

CXYZ05

XYZ Translation Mount

LM05XY

Precision XY
Translation Mount

CT102

Precision XY Translation
Mount with 4 mm Keyway

Related Items


Please Wait

Features

  • Internal SM05 (0.535"-40) Threads
  • Mount Ø1/2" (Ø12.7 mm) Optics Using an SM05RR Retaining Ring

The products available below all contain internal SM05 (0.535"-40) threads, which are ideal for constructing complex, rigid optomechanical systems. SM05-threaded products available include: lens tubes and cage system components, fixed and kinematic mounts, and irises and diaphragms.

SM05-threaded (0.535"-40) components are designed to mount or integrate Ø1/2" (Ø12.7 mm) optics into systems. These SM05-threaded mounts translate the mounted optic perpendicular to the optical axis in both the X and Y axes. The CXYZ05 also offers 3 mm of Z-axis adjustment along the optical axis.

This page contains our SM05-compatible optic translation mounts; for a full selection of available optic translation mounts, please see here.


Posted Comments:
No Comments Posted

16 mm Cage XY Translator Mounts


Usage of the Light-Tight SCP05T Translation Mount

Click for Details

SCP05 and SCP05T
Cross Sections
  • ±1.0 mm (±0.04") of Travel with 250 μm/rev Adjusters
  • Hold Ø1/2" Optics up to 0.23" (5.8 mm) Thick with Included SM05RR Retaining Ring
  • Ø0.43" (Ø10.9 mm) Clear Aperture with Retaining Ring
  • Rear of SCP05 Compatible with Ø1/2" Lens Tubes
  • Front and Rear of SCP05T Compatible with Ø1/2" Lens Tubes for Light-Sensitive Applications

Thorlabs' SCP05 and SCP05T XY translating lens mounts provide ±1.0 mm (±0.04") of travel perpendicular to the optical axis of a 16 mm cage system. The adjusters feature 100 threads per inch and provide 250 μm of translation per revolution. The adjusters may be actuated by hand or using a 5/64" (2.0 mm) hex key or balldriver and the setscrews for mounting cage rods offer a 0.05" (1.3 mm) hex.

The SCP05 and SCP05T mounts both contain internal SM05 threads suitable for mounting Ø1/2" (12.7 mm) optics up to 0.23" (5.8 mm) thick using the included SM05RR retaining ring. The optic is held in place by the retaining ring and the retaining lip built into the SM05-threaded carriage. Additionally, the SCP05T mount contains internal SM05 threads on the front and rear faces of the housing (as illustrated in the diagram above), allowing light-tight connections to our Ø1/2" lens tubes. (The SCP05 is only threaded on the rear face.)

To remove/install the SM05RR retaining ring or an optic, the adapter retaining ring on the front of the mount must first be removed using an SPW801 Spanner Wrench. For reference, please see the animation above and to the right.

Item # Travel Drive Optics Mounting SR Cage Rod Connection
SCP05
SCP05T
±0.04" (±1.0 mm) M3 x 0.25 Fine Adjusters SM05 (0.535"-40) Thread 4 Through Holes with Side-Located Locking Screws
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SCP05 Support Documentation
SCP0516 mm Cage System, XY Translating Lens Mount for Ø1/2" Optics
$161.15
Today
SCP05T Support Documentation
SCP05TCustomer Inspired! 16 mm Cage System, XY Translating Lens Mount for Ø1/2" Optics in Light-Tight Setups
$177.47
Today

Precision XY Translation Mount, Post Mountable

  • Provides ±0.04" (±1.0 mm) of Travel in X and Y Directions
  • High Resolution Adjusters Provide 250 µm/rev
  • Compatible with Our Extensive Selection of SM05 Lens Tubes and Accessories
  • Designed to Center Ø1/2" Optics in a Beam Path
  • Tip/Tilt Deviation: <100 µrad

This mount utilizes M3 x 0.25 fine adjustment screws to provide ±1 mm of travel perpendicular to the optical axis. The adjustment screws provide 250 µm/rev, and there is a 5/64" hex socket in the back end of each screw. A hex key may be used to achieve small incremental movements. The movable carriage is internally SM05 (0.535"-40)-threaded and directly accepts Ø1/2" optics held in place by an SM05RR Retaining Ring (included). This also makes the mount compatible with any internally SM05-threaded component.

Please note that the moving SM05-threaded world may be manually rotated and may also rotate during translation.

Item # Travel Drive Optics Mounting Cage Rod Connection
LM05XY(/M) ±0.04" (±1.0 mm) M3 x 0.25 Fine Adjusters SM05 (0.535"-40) Thread N/A
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
LM05XY Support Documentation
LM05XYTranslating Lens Mount for Ø1/2" Optics, 1 Retaining Ring Included, 8-32 Tap
$151.49
Today
+1 Qty Docs Part Number - Metric Price Available
LM05XY/M Support Documentation
LM05XY/MTranslating Lens Mount for Ø1/2" Optics, 1 Retaining Ring Included, M4 Tap
$151.49
Today

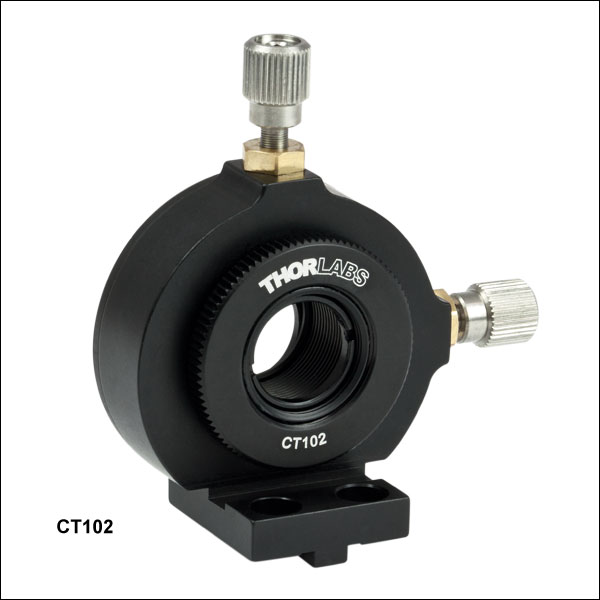

Ø1/2" Optic XY Translation Mount

  • Provides ±0.04" (±1.0 mm) of Travel in X and Y Directions
  • SM05 (0.535"-40) Threaded Bore Directly Accepts Ø1/2" Optics up to 9.9 mm (0.39") Thick
  • Wobble: <100 µrad
  • Resolution: 250 µm/rev
  • Beam Height: 0.72" (18 mm)
  • Compatible with MS-Series Translators and CT1 Cage Translator

The CT102 has an internal SM05 (0.535"-40) threading for mounting Ø1/2" components up to 0.39" (9.9 mm) thick or externally SM05-threaded components. The CT102 allows for ±1 mm of travel in the X and Y direction using M3 x 0.25 fine adjusters. The mount is directly compatible with the CT1 30 mm cage Z-axis translation stage and the MS1(/M) Translation Stage when it is used with the MS103(/M) adapter plate. One SM05RR retaining ring, which secures a component by sandwiching it between the ring and the back lip on the mount. Two 4-40 and two M3 cap screws for securing the mount are included with each unit.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CT102 Support Documentation
CT102XY Translating Lens Mount for use with CT1 or MS Stages
$206.68
Today

XY Flexure Translation Mount, 30 mm Cage Compatible

  • Flexure Design for Maximum Stability
  • Stainless Steel Construction
  • SM05 (0.535"-40) Compatible
  • ±0.25 mm Range in X and Y Directions
  • Resolution: 200 µm/rev

The CP1XY offers ±0.25 mm of XY travel manipulated by M2.5 x 0.20 fine pitch adjusters. The stainless steel flexure design provides excellent long-term stability and is ideal for fiber coupling applications or experiments that use spatial filters or pinholes, which require fine positioning. The 0.35" (8.89 mm) long center bore is tapped through with an SM05 (0.535"-40) thread to allow the integration of our extensive SM05-threaded family of products. The CP1XY is vacuum compatible to 10-5 Torr. We recommend using two POLARIS-SM05RR vacuum-compatible, stainless steel retaining rings (sold separately) to secure an optic in the bore while under vacuum conditions. Alternatively, for non-vacuum applications, we offer SM05RR anodized aluminum retaining rings.

Item # Travel Drive Optic Mounting ER Cage Rod Connection
CP1XY ±0.01" (±0.25 mm) M2.5 x 0.20 Fine Pitch Adjusters SM05 (0.535"-40) Thread 4 Through Holes with Side-Located Locking Screws
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CP1XY Support Documentation
CP1XY30 mm Cage XY Flexure Adjustment Plate
$403.63
Today

Slip Plate Positioner, 16 mm Cage Compatible and Post Mountable

  • ±1.0 mm (±0.04") of Manual Adjustment
  • SM05 (0.535"-40) Internal Thread
  • Holds Ø1/2" Optics Mounted in Ø1/2" Lens Tubes
  • 0.635" (16 mm) Clearance Hole
  • Two 2-56 Adjustment Screws for Lockable Design

Thorlabs' SSP05 16 mm Slip Plate Positioner is designed to provide coarse XY positioning of optical components within our cage assembly system. The component that provides position adjustment is the movable carriage, which moves along the surface of the other plate for small XY adjustment. The movable carriage provides manual adjustment only and is best utilized in conjunction with an alignment laser to monitor centricity.

Adjustment is achieved by first loosening the two 2-56 button-head adjustment screws with a 0.05" (1.3 mm) hex key or balldriver, manually adjusting the movable carriage in the desired position, and then tightening the screws to lock the carriage in place. The movable carriage is internally SM05 threaded and compatible with our Ø1/2" lens tubes, which can be used to hold Ø1/2" optics. Each cage rod through hole is accompanied by a side-located locking 4-40 setscrew, which can be secured using a 0.05" (1.3 mm) hex key or balldriver.

For post mounting, the SSP05 features a 4-40 tapped hole on side and an M3 tapped hole on the other. Our Mini-Series posts and Mini-Series pedestal posts can be used to mount the SSP05.

Item # Travel Slip Plate
Thickness
Back Plate
Thickness
Maximum Optic
Thickness
Optics Mounting Post Mountinga SR Cage Rod Attachment
SSP05 ±0.04"
(±1 mm)
0.20" (5.1 mm) 0.25" (6.4 mm) 0.15" (3.8 mm) SM05 (0.535"-40) Threads 4-40 and M3 Tapped Holes 4 Through Holes with
Side-Located Locking Screws
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SSP05 Support Documentation
SSP0516 mm Cage Plate Positioner
$67.37
Today

XYZ Translator for Ø1/2" Optics, 30 mm Cage Compatible and Post Mountable

Specifications
X and Y Axis Drivers 3/16"-100 Adjustersa
XY Travel ±1.5 mm (±0.06") per Axis
XY Adjustment Resolution 254 µm/rev per Axis
Z-Axis Driver 500 µm/rev Adjustment Dialb
Z Travel ±1.5 mm (±0.06")
(Alignment Tick Marks at 0.25 mm Intervals)
Clear Aperturec Ø0.42" (Ø10.7 mm)
Optic Thickness (Max) 0.31" (8.0 mm)
Optic Mounting Internal SM05 (0.535"-40) Thread
Post Mounting Two 8-32 (M4) Tapped Holes
(Allows Right- and Left-Handed Orientations)
  • Can be Locked Using the Provided Setscrew and 0.035" Hex Key
  • Can be Locked Using an SM15RR Retaining Ring (Not Included)
  • When Using the Included SM05RR Retaining Ring
XYZ Translation Mount
Click to Enlarge
The Z-Axis position can be locked by threading an SM15RR retaining ring (sold separately) onto the internal threads of the rear knurled knob. This can be done using the SPW801 Spanner Wrench.
  • ±1.5 mm (±0.06") Non-Rotating Travel in X, Y, and Z Axes
  • Accepts Ø1/2" (Ø12.7 mm) Optics up to 0.31" (8.0 mm) Thick
  • Internal SM05 (0.535"-40) Threading for Compatibility with Our Extensive Line of Ø1/2" Lens Tubes
  • Compatible with 30 mm Cage Systems
  • Two 8-32 (M4) Tapped Holes for Right- and Left-Handed Post Mounting Orientations
XYZ Translation Mount
Click to Enlarge

Translation of the Z-Axis Carrier Achieved by Rotating the Engraved Adjustment Dial

The Thorlabs CXYZ05(/M) Translation Mount offers X-, Y-, and Z-Axis travel and holds Ø1/2" (12.7 mm) optics, up to 0.31" (8.0 mm) thick, against the back lip of the optic cell using the provided SM05RR retaining ring. XY functionality allows travel perpendicular to the optical axis, while the Z-axis functionality allows for compensation of focusing errors in applications such as fiber alignment or lens mounting. The optic cell has been designed to offer pure X, Y, and Z translation.

The optic cell is internally SM05 (0.535"-40) threaded and is translated along the Z-axis by rotating the zoom adjustment dial on the back of the mount. The optic cell does not rotate during translation. An engraving is included on the knurled dial, indicating the direction that it must be turned for translating the optic cell forward and backwards. Laser-engraved tick marks spaced 0.25 mm apart are included on the optic cell for indicating the Z-axis position. The position can be locked using an SM15RR Retaining Ring (sold separately); see the image to the right for more details.

X and Y translation of the carriage is accomplished using the two 3/16"-100 fine adjusters, which can be locked using the provided nylon-tipped setscrew and 0.035" Hex Key. Horizontal and vertical witness lines provide a reference for the XY alignment.

The mount has four through holes for use with our Ø6 mm ER cage rods, making it compatible with our 30 mm Cage Systems. Each cage rod mounting hole has a side-located 4-40 locking setscrew, which uses a 0.05" hex key. The mount can easily be adapted to 16 mm Cage Systems by using the SP05 Cage System Size Adapter, as shown in the image to the left. Two 8-32 (M4) tapped holes are also provided on opposite sides of the XY adjusters for post mounting in right- or left-handed orientations.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
CXYZ05 Support Documentation
CXYZ05Customer Inspired! XYZ Translation Mount for Ø1/2" Optics, 8-32 Taps
$353.86
Today
+1 Qty Docs Part Number - Metric Price Available
CXYZ05/M Support Documentation
CXYZ05/MCustomer Inspired! XYZ Translation Mount for Ø12.7 mm Optics, M4 Taps
$353.86
Today
