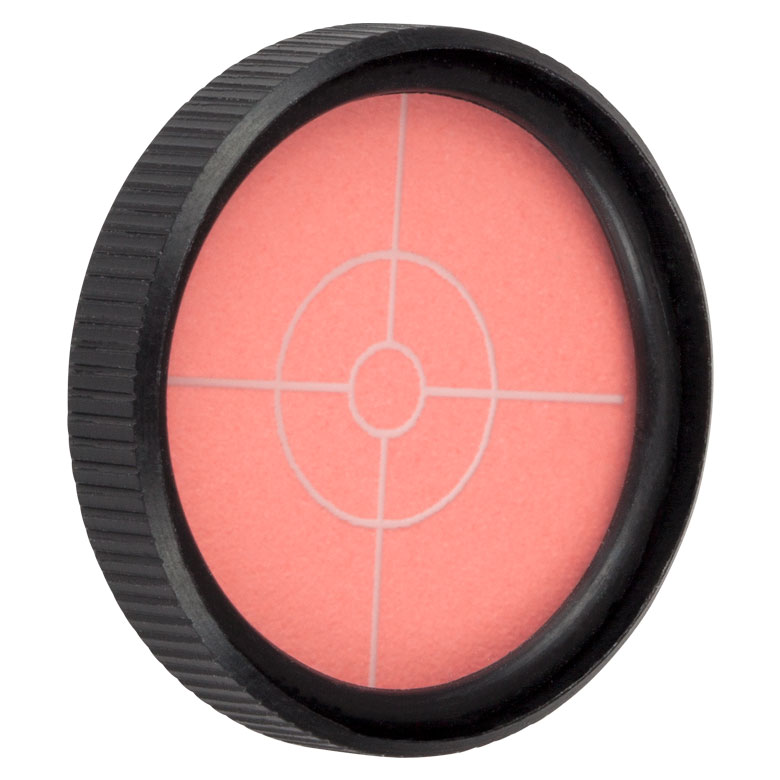

| VRC2RMS - RMS-Threaded IR and VIS Alignment Disk (400-640 nm, 800-1700 nm) |
|
|
|
| Product Summary: |
Features- Constant Emission for Viewing CW Beams
- Slow-Fading Phosphor
- RMS-Compatible Threading
The VRC2RMS IR viewing and alignment disk is designed to simplify the alignment of infrared beams along the optical axis of an internally threaded RMS mount. The VRC2RMS has external RMS threads that allow it to be threaded into a mount designed for an RMS-threaded microscope objective lens. This disk requires charging in visible light. Specifications- Absorption Band: 400 - 640 nm, 800 - 1700 nm
- Emission Band: ~580 - 750 nm
- Active Region Diameter: 0.7" (18 mm)
- Alignment Feature: Target Guide Lines
- Concentricity of Target/Hole: ±0.22 mm
|
|
|
|
|
|
|
