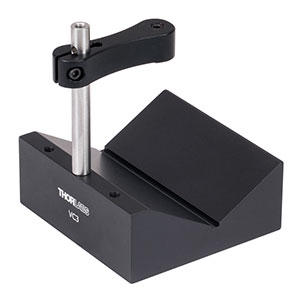

VC3 - Large V-Clamp with PM4 Clamping Arm
VC3 - V-Clamp - Large
Zoom
VC3
V-Clamp - Large
Part Number: VC3 - Ask a technical question Ask a technical question.
Weight: 0.46 lbs / Each
Available / Ships: Today
RoHS: RoHS Compliant
Price: $44.00
Add To Cart:
Qty :
VC3 Support Documentation

Catalog Page:
Documents:
Auto CAD PDF Auto CAD PDF
Auto CAD DXF Auto CAD DXF
Solidworks Solidworks
eDrawing eDrawing
Step Step
Share this Product Share this Product Print Friendly Print Friendly Add favorite Watch for updates
Product Summary:
Features
  • Clamps Cylindrical Objects Ranging from Ø0.56" (14 mm) to Ø2.0" (50 mm)
  • Post Mountable via 8-32 Tapped Hole
  • One PM2 Clamping Arm Included with Each Mount
  • Unpackaged Weight: 208 g

The VC3 Large V-Clamp is designed for large cylindrical objects such as our Tube Lasers. Cylindrical objects are clamped in place via a PM4 Clamping Arm (one included with each mount) complete with a flexure locking mechanism and nylon-tipped set screw. For extra clamping support two additional (three total) 6-32 tapped holes have been added for extra PM4 clamping arms.
