TR30/M-JP - Ø12 mm x 30 mm Stainless Steel Optical Post, Japanese
TR30/M-JP - Ø12 mm x 30 mm Stainless Steel Optical Post, Japanese
Zoom
TR30/M-JP
Ø12 mm x 30 mm Stainless Steel Optical Post, Japanese
Part Number: TR30/M-JP - Ask a technical question Ask a technical question.
Weight: 0.05 lbs / Each
Available / Ships: Today
RoHS: RoHS Compliant
Price: $4.74
Add To Cart:
Qty :
TR30/M-JP Support Documentation

Catalog Page:
Documents:
Auto CAD PDF Auto CAD PDF
Auto CAD DXF Auto CAD DXF
Solidworks Solidworks
eDrawing eDrawing
Step Step
Share this Product Share this Product Print Friendly Print Friendly Add favorite Watch for updates
Product Summary:
Features
  • One M4 Tapped Hole at the Top
  • One M6 Tapped Hole at Base
  • Removable M4-Threaded Stud
  • 30 mm Long

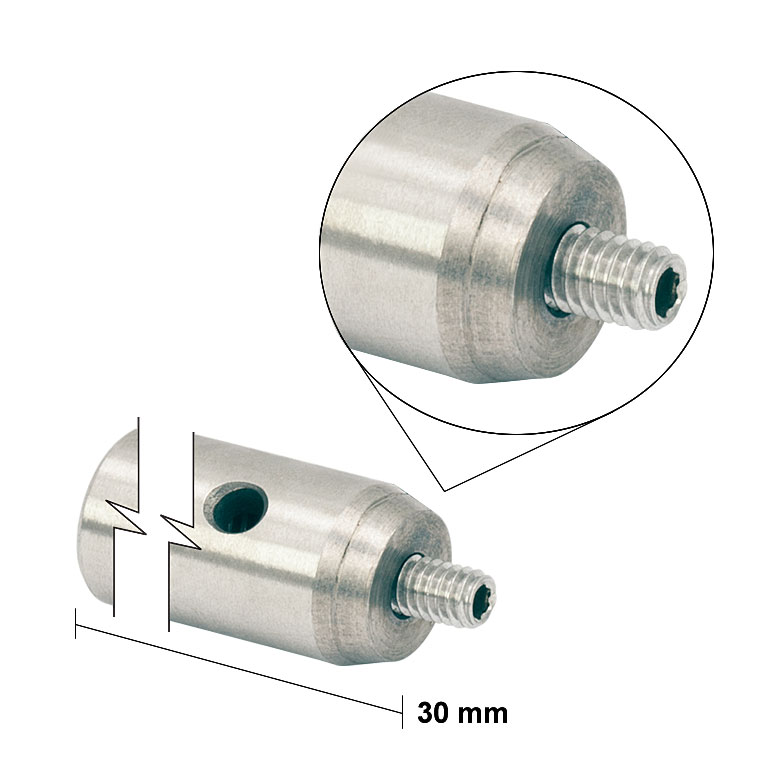

This 30 mm long nonmagnetic stainless steel post is precision gorund to Ø12 mm. One end has an M6 tapped hole, while the other end has a removable M4-threaded stud. This post is compatible with our PH-Series of Post Holders and all Ø1/2" TR related products. A side-located Ø0.13" (Ø3.1 mm) hole is bored straight through the post; a balldriver can be inserted through the hole to provide extra leverage when tightening mounted components.
