Features
- Bead Blasted Anodized Aluminum Barriers
- 8" x 6" Screen

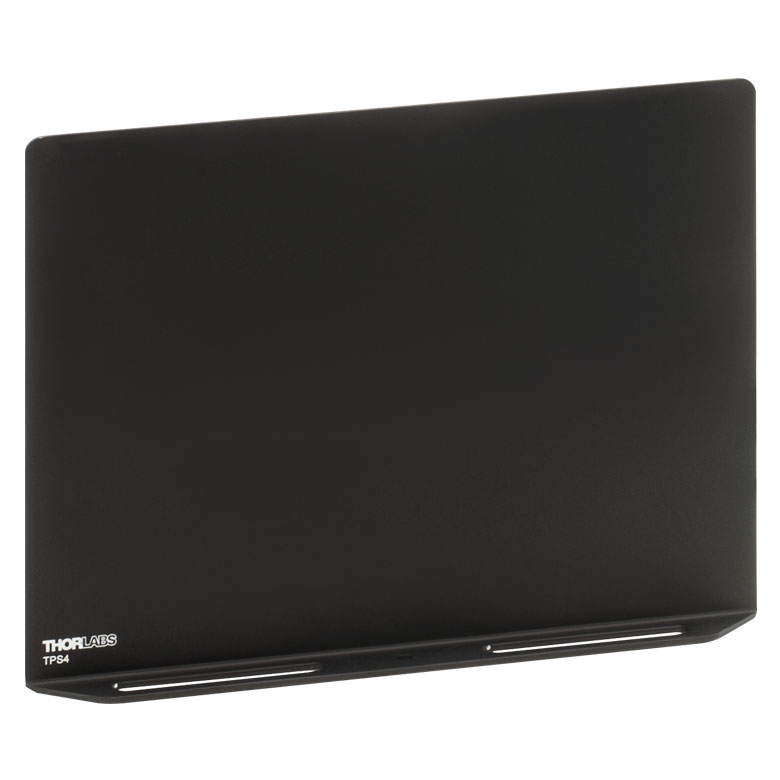

This 8" x 6" Thorlabs' Aluminum Protective Screen prevents stray or unwanted light from entering or exiting an experimental setup. The aluminum is bead blasted prior to anodization to create a homogeneously diffusive surface. With walls just 0.08" (2 mm) thick and a base that is 0.79" (20 mm) wide, this compact, lightweight screen is easily integrated into a laser setup.
The base of this screen contains two slotted mounting holes that are each 2" (50.8 mm) long, providing flexible mounting options. They are designed for use with 1/4"-20 or M6 cap screws. The TPS4 additionally contains a centered through hole designed for 8-32 or M4 cap screws, allowing the TPS4 to be mounted to a post.
Specifications
- Size: 8" x 6" (203 mm x 152 mm)
- Mounting Holes: 2 Slotted and 1 Through
- Weight: 0.51 lb (0.23 kg)
- Damage Threshold: >350 J/cm2 (1064 nm, 20 ns, 20 Hz, Ø1.14 mm)
|
