SV2-FC - 2 GHz Si FC/PC-Coupled Photodetector, 320 - 1100 nm

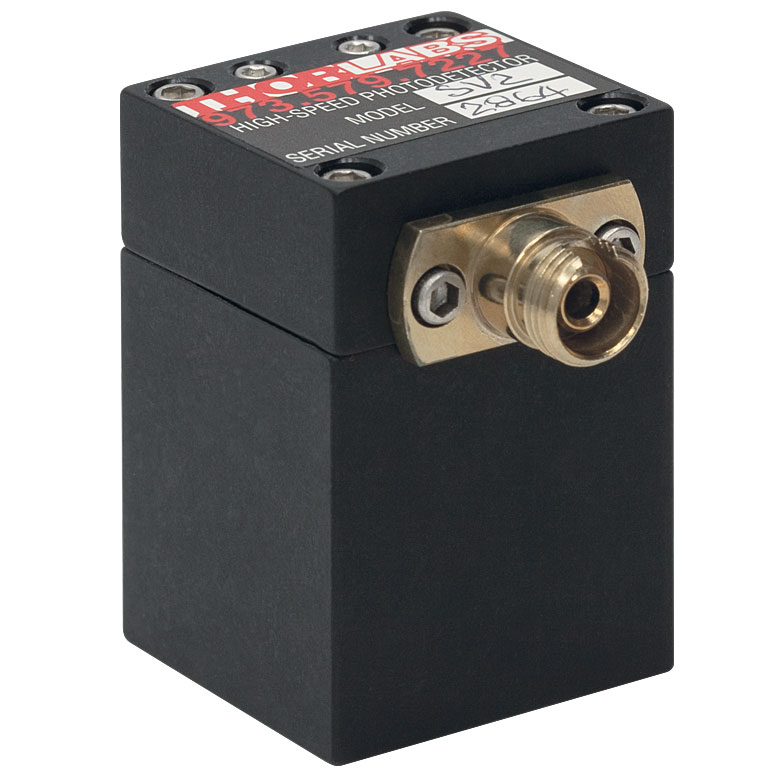

SV2-FC - Optical Detector Package, >2 GHz BW, 320-1100 nm

Zoom

SV2-FC
Optical Detector Package, >2 GHz BW, 320-1100 nm

Part Number:	SV2-FC - Ask a technical question Ask a technical question.
Weight:	0.58 lbs / Each
Available / Ships:	Lead Time
RoHS:	Exempt - Exempt
Price:	$574.00
Add To Cart:	Qty :

SV2-FC Support Documentation

Catalog Page:
Documents:
eDrawing
Step
Spec Sheet

Product Summary:

Features

Attach to SM or MM Fiber with FC/PC Connector
Small Package Allows Easy Mounting
Connects Directly to Oscilloscope with Built-in Bias-T
Minimum Recommended Load Resistor: 50 Ohms

The SV2-FC features a 2 GHz bandwidth and a Si detector with a wavelength range of 320 - 1100 nm. This high-speed photodetector undergoes specialized testing, thereby ensuring compliance with our specifications. A complete test report comes with every serialized detector package.

Specifications

Material: Si
Bandwidth: 2 GHz
Wavelength Range: 320 – 1100 nm
Fiber Input: FC/PC
Max Peak Power: 200 mW
Max Load Resistor: 50 Ohms
Max Safe Output: 2.5 V
Min Rise Time, t: 175 ps
Fall Time: <150 ps
Dark Current: 0.1 nA
NEP (Max): 2.5 x 10^-15 W/Hz^1/2 (730 nm)
Junction Capacitance: 1 pf (at 20 V)
