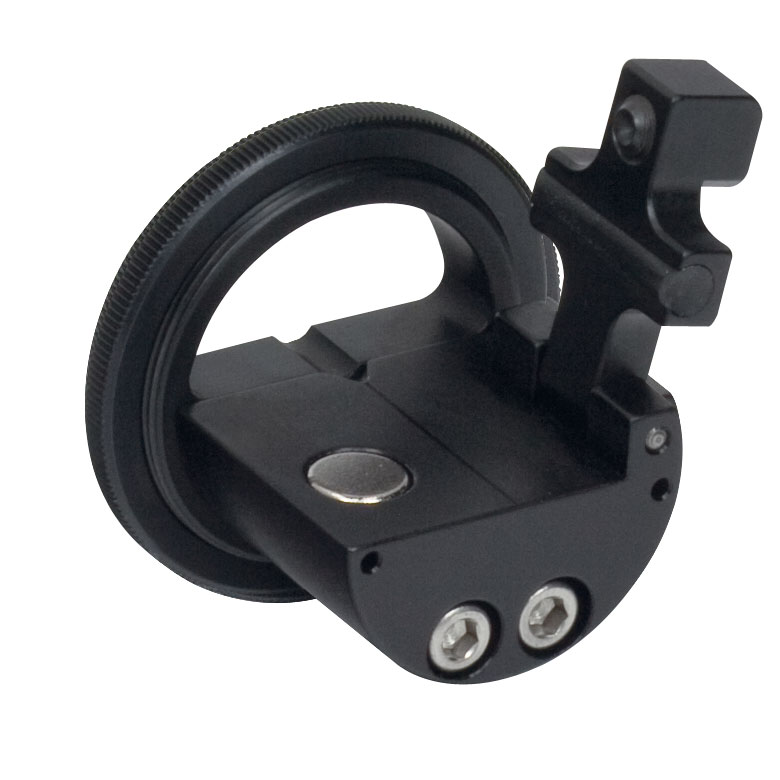

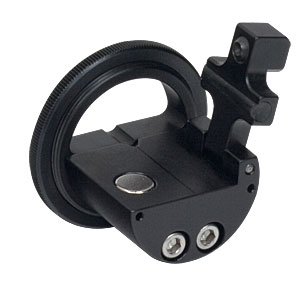

SM1F1-250 - SM1-Threaded Fiber Clamp, 250 µm

Zoom

SM1F1-250
SM1-Threaded Fiber Clamp, 250 µm

Part Number:	SM1F1-250 - Ask a technical question Ask a technical question.
Weight:	0.04 lbs / Each
Available / Ships:	Today
RoHS:
Price:	$80.00
Add To Cart:	Qty :

SM1F1-250 Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step

Product Summary:

Features

Holds Ø250 μm Jacketed Fiber
SM1-Threaded for use with SM1-Threaded Products
SM1NT Locking Nut Allows Mount to be Locked in Lens Tube
Clamping Arm Swings Clear for Easy Loading and Unloading of the Optical Fiber
Rubber Padding Provides Excellent Holding Force without Damaging the Optical Fiber

The SM1F1-250 fiber clamp consists of a two-part assembly that allows the centration of the fiber to be changed independently from a lens tube. The V-groove and rubber pad design provide excellent holding force without damaging the fiber. With external SM1 threads and a locking ring, this fiber clamp is compatible with our SM1-threaded products, including threaded kinematic mounts (as shown to right) and Ø1" lens tubes. The outer profile of this clamp will fit through the clear aperture of a ∅1" lens tube, allowing a second lens tube to be screwed on for light-tight applications.
