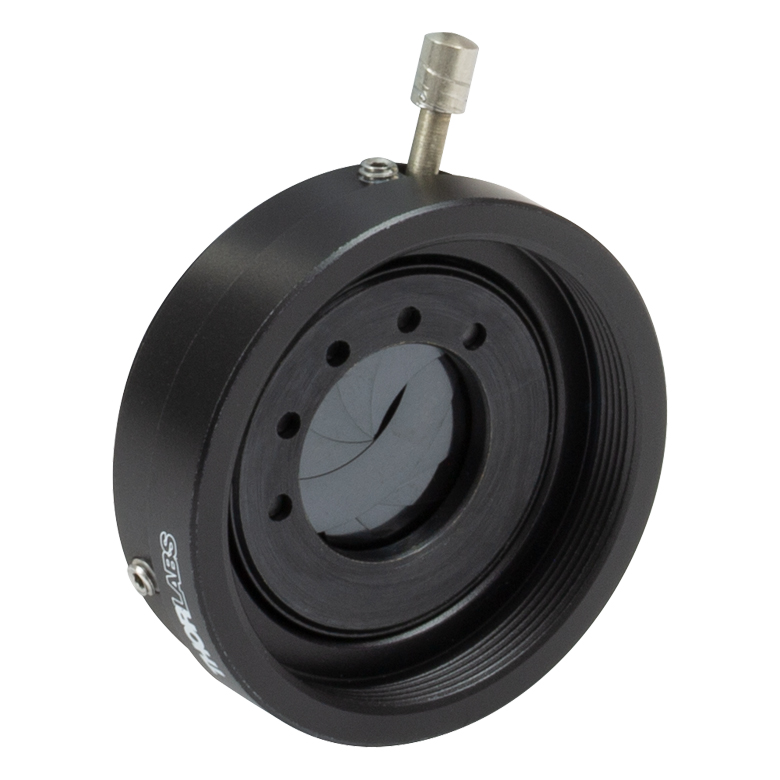

SM1D12SZ - SM1-Threaded Zero Aperture Iris, Ø12 mm Max Aperture

Zoom

SM1D12SZ
SM1-Threaded Zero Aperture Iris, Ø12 mm Max Aperture

Part Number:	SM1D12SZ - Ask a technical question Ask a technical question.
Weight:	0.04 lbs / Each
Available / Ships:	Today
RoHS:
Price:	$64.00
Add To Cart:	Qty :

SM1D12SZ Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step

Product Summary:

Features

Continuously Variable
Zero Minimum Aperture
Ø12 mm Maximum Aperture
SM1 Threaded

The dual leaf design of the SM1D12SZ allows the iris to be continuously varied from the maximum aperture diameter of 12 mm to completely closed (zero aperture). This iris also has internal SM1 threading on one side and external SM1 threading on the other, which makes the iris easy to integrate into an SM1 Lens Tube System. The iris leaves are made from black spring steel and the lever-actuated diaphragm is designed to provide smooth operation for several thousand cycles. An engraved arrow indicates the position the lever must be in to close the iris.

Specifications

Compatible Lens Tube: Ø1" (SM1)
Minimum Aperture: Zero
Maximum Aperture: Ø12 mm (Ø0.47")
