SL20 - Super Base Mounting Platform, High Precision Ball & Socket Mounting Platform

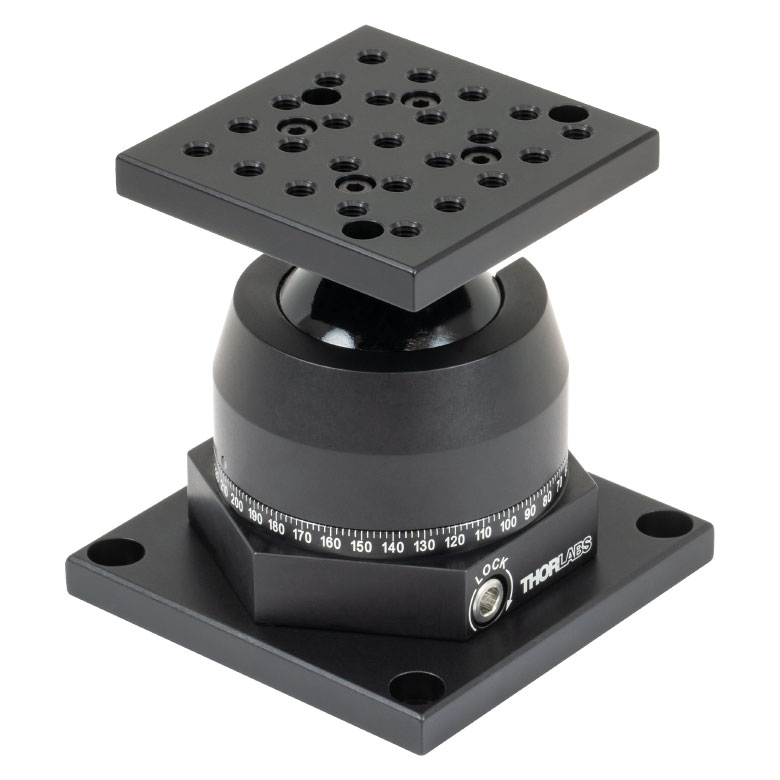

SL20 - Super Base Ball Stage, High Precision Ball & Socket Mounting Platform

Zoom

SL20
Super Base Ball Stage, High Precision Ball & Socket Mounting Platform

Part Number:	SL20 - Ask a technical question Ask a technical question.
Weight:	2.41 lbs / Each
Available / Ships:	Today
RoHS:	Exempt - Exempt6
Price:	$268.40
Add To Cart:	Qty :

SL20 Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step

Product Summary:

Features

Rapid, Lockable Angular Positioning
Full 90° Swing of Top Platform from Horizontal to Vertical Orientation
Top Platform Offers 25 1/4"-20 Mounting Holes
Full 360°Rotation of Entire Swivel Mechanism
Universal Base Plate

The SL20 Super Base is a high-precision ball and socket mounting platform that provides free spherical motion over a complete hemisphere. Positional stability is provided via a heavy-duty 3/16" hex socket locking screw that can support centralized loads of 50 kg or cantilever loads of 20 ft•lbs.

The mounting platform, complete with a generous array of twenty-five 1/4"-20 tapped holes on 0.5" centers, can be swung into arbitrary positions in addition to a full 90° vertical position. The entire ball and socket mechanism can be rotated about a vertical axis. A convenient radially laser-engraved scale offers 2° graduations, labeled every 10°.
