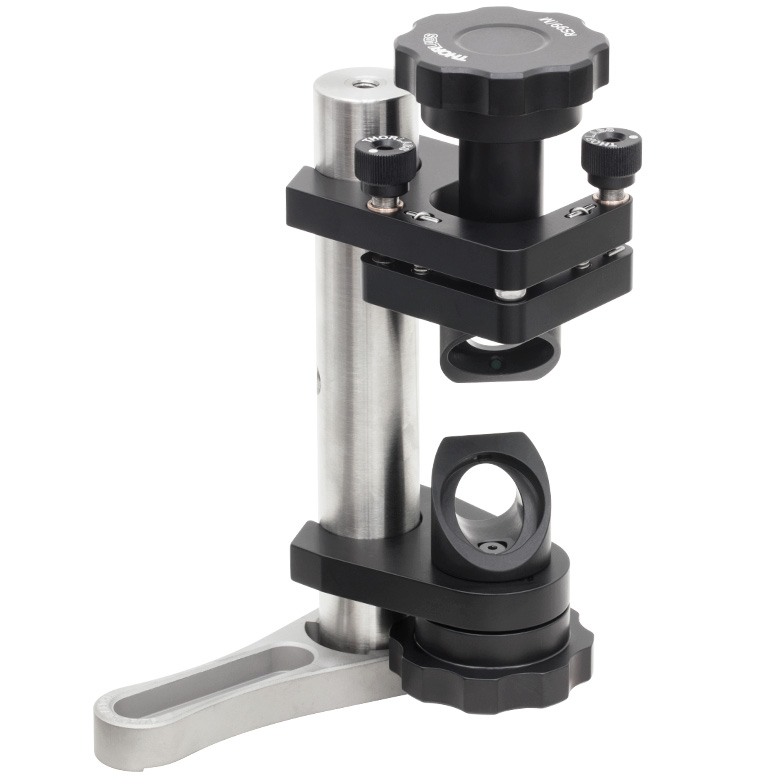

RS99/M - Complete Periscope Assembly, Metric

Zoom

RS99/M
Complete Periscope Assembly

Part Number:	RS99/M - Ask a technical question Ask a technical question.
Weight:	2.74 lbs / Each
Available / Ships:	Today
RoHS:	Exempt - Exempt6
Price:	$258.00
Add To Cart:	Qty :

RS99/M Support Documentation

Catalog Page:
Documents:
Auto CAD PDF
Auto CAD DXF
Solidworks
eDrawing
Step

Product Summary:

Features

Periscope Assembly Designed for Use with Ø25.4 mm Optics
Redirects and Changes the Height of a Beam Within an Optical System
360° Continuous Rotation with ±4° Tip and Tilt
Includes CF175 Clamping Fork and 150 mm Tall RS150/M Post
Minimum Optic Thickness: 3.3 mm

The RS99/M Periscope Assembly provides a convenient way to redirect and change the elevation of a beam within an optical system. The system consists of a pair of 45° mirror mounts with lockable adjustment knobs to provide 360° of rotation of the incoming light. The upper housing of the RS99/M provides fine control, which can be used to compensate for angular deviations of the input beam relative to the Ø25.4 mm optic. The included 6" tall post [RS150/M] can be extended using Ø1" Pillar Post Extensions and the included thread adapter.
