- Oil Immersion Objective for Visible Light
- Plan Fluorite Design
- Infinity-Corrected Design
- RMS (0.800”-36) Threading

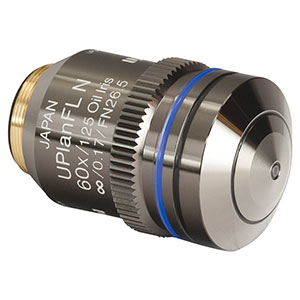

This 60X magnification objective is designed for use in oil immersion applications. The RMS60X-PFOD objective provides flat images across the entire visible spectrum. With their high signal-to-noise ratio, excellent resolution, and high-contrast imaging capabilities, they are effective in brightfield and Nomarski DIC observations. The RMS60X-PFOD is a plan flourite design which corrects for chromatic and spherical aberrations at four wavelengths.
Our microscope objectives can be mounted directly to our fiber launch systems, or they can be mounted to any of our flexure or translation stages using an HCS013 RMS mount. Alternatively, these microscope objectives can be easily mounted to our cage systems (using an SM1A3 adapter) or to our lens tubes, thus facilitating the setup of optical systems.
- Diameter: 28 mm
- Length: 49.47 mm
- Magnification: 60X
- Numerical Aperture: 1.25 – 0.65
- Working Distance: 0.12 mm
- Parfocal Length: 45.06 mm
- Design Wavelength: Visible and NIR
- Threading: RMS
