• Ideal for Imaging or Focusing Laser Light
• Plan Fluorite Design
• Infinity-Corrected Design
• RMS (0.800”-36) Threading

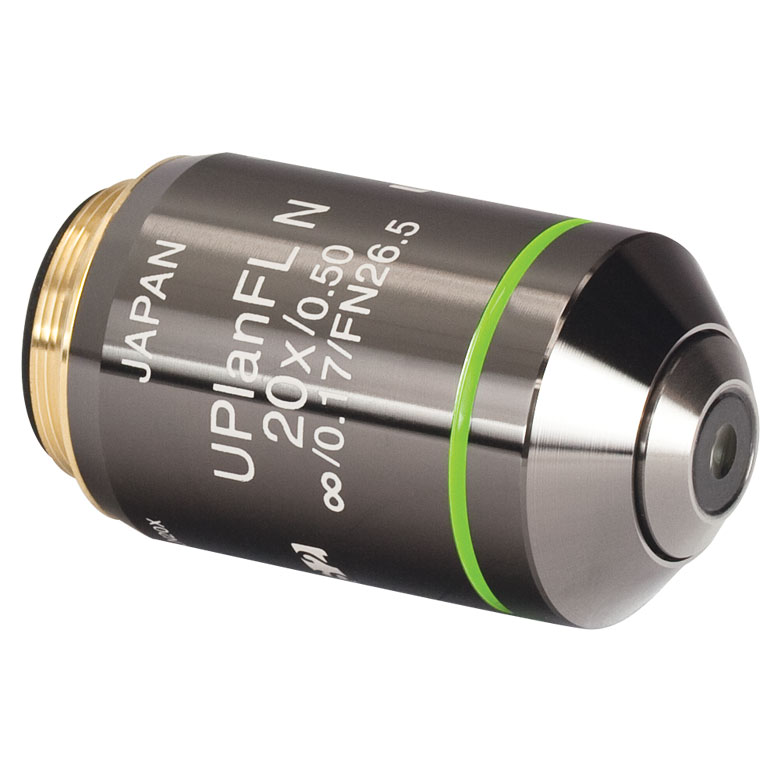

This infinity-corrected, imaging, visible microscope objective provides 20X magnification. The RMS20X-PF Plan Fluorite objective, also called a plan semi-apochromat, is corrected for four wavelengths; making the RMS20X-PF well suited for color photomicrography. With high signal-to-noise ratios, excellent resolution, and high contrast imaging, it is useful in brightfield and Nomarski DIC observations.

Our microscope objectives can be mounted directly to our fiber launch systems, or they can be mounted to any of our flexure or translation stages using an HCS013 RMS mount. Alternatively, these microscope objectives can be easily mounted to our cage systems (using an SM1A3 adapter) or to our lens tubes, thus facilitating the setup of optical systems.

• Diameter: 26 mm
• Length: 47.29 mm
• Magnification: 20X
• Numerical Aperture: 0.5
• Working Distance: 2.1 mm
• Parfocal Length: 45.06 mm
• Design Wavelength: Visible and NIR
• Threading: RMS
