• Oil Immersion Objective for Visible Light
• Plan Achromat Design
• Infinity-Corrected Design
• RMS (0.800”-36) Threading

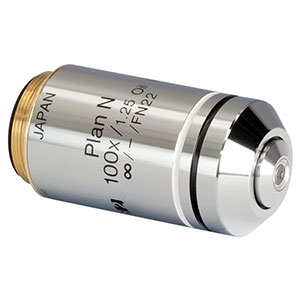

This 100X magnification objective is designed for use in oil immersion applications. The RMS100X-O objective provides flat images across the entire visible spectrum. With their high signal-to-noise ratio, excellent resolution, and high-contrast imaging capabilities, they are effective in brightfield and Nomarski DIC observations. The RMS100X-O is a plan achromat design which corrects for chromatic aberration.

Our microscope objectives can be mounted directly to our fiber launch systems, or they can be mounted to any of our flexure or translation stages using an HCS013 RMS mount. Alternatively, these microscope objectives can be easily mounted to our cage systems (using an SM1A3 adapter) or to our lens tubes, thus facilitating the setup of optical systems.

• Diameter: 24 mm
• Length: 49.24 mm
• Magnification: 100X
• Numerical Aperture: 1.25
• Working Distance: 0.15 mm
• Parfocal Length: 45.06 mm
• Design Wavelength: Visible
• Threading: RMS
